IPQ5322 vs. IPQ5424: In-Depth Analysis and Comparison of WiFi 7 Network Processors

IPQ5322 vs. IPQ5424: In-Depth Analysis and Comparison of WiFi 7 Network Processors

1. Overview

The IPQ5322 and IPQ5424 are Qualcomm's WiFi 7 network processors, designed for mid-to-high-end routers and enterprise networking equipment. Both utilize Qualcomm’s Networking Pro architecture, supporting advanced wireless features such as 4K QAM, 320MHz channel bandwidth, Multi-Link Operation (MLO), and MU-MIMO, significantly enhancing throughput and network stability.

However, despite being part of the WiFi 7 ecosystem, IPQ5322 and IPQ5424 exhibit notable differences in hardware configuration, performance, and application scenarios. This article provides a detailed comparison based on architecture, wireless capabilities, computing power, application scenarios, and cost-effectiveness.

---

2. Core Architecture and Processing Power

Analysis:

• IPQ5424 features a quad-core architecture with a 1.8GHz clock speed, offering superior computing power over the dual-core 1.5GHz IPQ5322, making it more suitable for high-concurrency applications.

• L2 cache is doubled (1MB vs. 512KB), improving data processing efficiency and reducing latency.

• An additional PCIe 3.0 lane allows for more external device support, such as WiFi 7 network cards or storage devices.

• Both feature Qualcomm's NSS network acceleration engine, but IPQ5424’s version is enhanced, offering better packet processing efficiency.

---

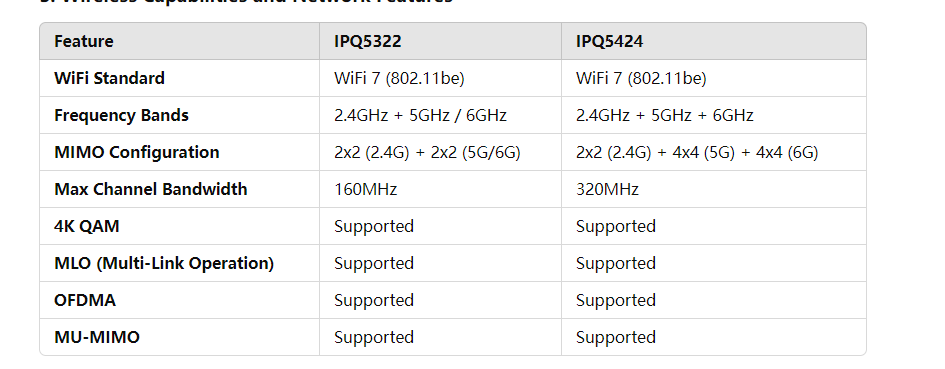

3. Wireless Capabilities and Network Features

Analysis:

• IPQ5322 primarily supports a combination of 2.4GHz and either 5GHz or 6GHz, whereas IPQ5424 simultaneously covers all three bands (2.4GHz, 5GHz, and 6GHz), optimizing spectrum utilization.

• IPQ5322’s lower MIMO configuration (2x2) is suitable for moderate throughput needs, while IPQ5424's 4x4 MIMO significantly enhances multi-user experiences.

• IPQ5424 supports a 320MHz ultra-wide channel, doubling the data throughput compared to IPQ5322’s 160MHz, making it ideal for high-bandwidth applications such as 8K video streaming and VR/AR.

• Both support WiFi 7 features like MLO, OFDMA, and MU-MIMO, but IPQ5424’s multi-band capability makes it superior in high-density environments.

---

4. Interfaces and Expandability

Analysis:

• IPQ5424 offers higher-spec Ethernet ports (10G + 2.5G), making it more suitable for enterprise and high-performance home gateways than IPQ5322’s 2.5G + 1G configuration.

• Both support USB 3.0 and similar storage interfaces, enabling external storage or NAS functionality.

---

5. Power Consumption and Cooling

Analysis:

• IPQ5322’s low power consumption (~5W) makes it ideal for fanless designs, such as home routers and small business APs.

• IPQ5424 consumes more power (~8W) and typically requires active cooling (heatsinks or fans), but its performance boost justifies the extra power usage.

---

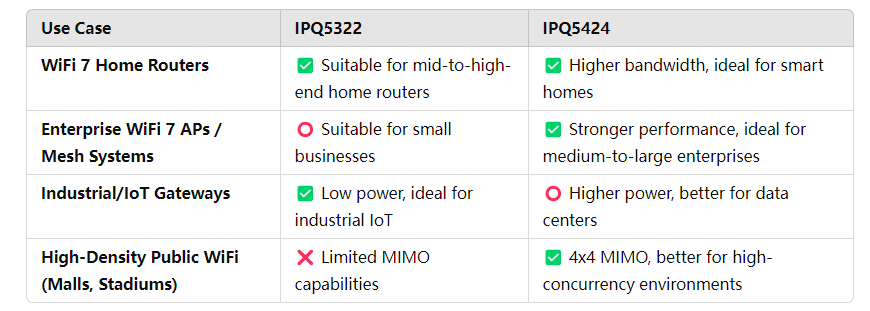

6. Application Scenarios

Summary:

• IPQ5322 is well-suited for mid-range markets, such as high-performance home WiFi 7 routers, small business gateways, and low-power IoT gateways.

• IPQ5424 is better for high-end markets, such as enterprise-grade WiFi 7 APs, large-scale Mesh networks, and high-density environments like shopping malls and hotels.

---

7. Cost and Market Positioning

IPQ5322 has a lower cost, making it ideal for price-sensitive markets, such as consumer-grade WiFi 7 routers and cost-effective enterprise APs.

IPQ5424, on the other hand, is positioned for the high-performance segment, targeting enterprise-grade networking equipment and ISP-level CPE devices.

---

8. Conclusion

Both the IPQ5322 and IPQ5424 are Qualcomm WiFi 7 SoCs, but they differ in CPU performance, wireless capabilities, and expandability. The IPQ5322 is optimized for low power consumption and cost-effectiveness, making it suitable for consumer and small business applications. Meanwhile, the IPQ5424 delivers higher throughput and multi-band support, making it ideal for high-performance networking scenarios.

Recommendation:

• For cost-effective, mid-tier applications such as home or small business use – choose IPQ5322.

• For high-performance, high-density environments with heavy network loads – choose IPQ5424.
