WiFi 7 Solution Analysis: Why Choose IPQ5322 vs. IPQ9570?

Introduction

With the rise of WiFi 7 (IEEE 802.11be) technology, the demand for high-performance wireless networking devices has increased across enterprises, homes, and industrial applications. WiFi 7 offers higher bandwidth, lower latency, and improved network stability, driving the evolution of routers, access points (APs), customer premises equipment (CPE), and other devices.

Among Qualcomm’s WiFi 7 SoC (System on Chip) solutions, IPQ5322 and IPQ9570 are two popular choices. While both support WiFi 7, they differ significantly in performance, target applications, power consumption, MIMO capability, and cost. Why do some projects choose IPQ5322 while others opt for IPQ9570? This article provides a detailed comparison to help developers and businesses make the best decision.

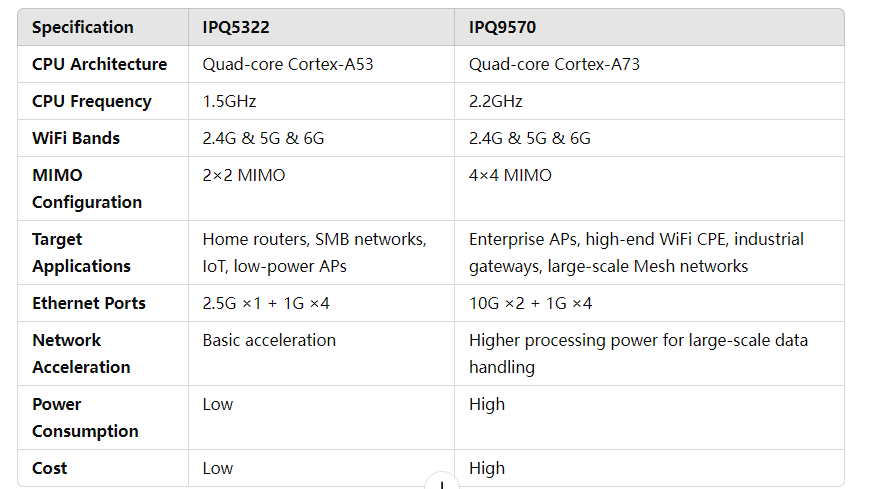

1. IPQ5322 vs. IPQ9570: Specification Comparison

2. Why Choose IPQ5322?

1) Ideal for Cost-Sensitive Projects

IPQ5322 is a cost-effective WiFi 7 solution, suitable for applications that require affordability, low power consumption, and integration while maintaining reasonable performance. Common use cases include:

SMB office networks: Supports WiFi 7 features without requiring extreme throughput.
Home routers: Sufficient for everyday use, including streaming, browsing, and gaming.
Smart home devices: WiFi 7 support for IoT applications with low power requirements.

2) Low Power Consumption and Simple Cooling Requirements

With a Cortex-A53 architecture, IPQ5322 has lower power consumption, making it ideal for passively cooled or compact devices such as outdoor APs and IoT gateways. In environments where power efficiency and thermal management are critical, IPQ5322 is a more suitable choice.

3) Suitable for Standard WiFi 7 Performance

With 2×2 MIMO, IPQ5322 is sufficient for most home and SMB users. Typical applications include:

WiFi 7 home routers (for households with 1-5 users).
Small office APs (supporting 10-20 users).
Low-power outdoor APs (for areas like parks, warehouses, and farms).

3. Why Choose IPQ9570?

1) Designed for High-Performance Applications

With its Cortex-A73 architecture and a CPU frequency of 2.2GHz, IPQ9570 is better suited for:

High-density WiFi 7 networks (e.g., airports, shopping malls, stadiums).
Enterprise-grade routers and APs (providing high throughput and stability).
Industrial-grade wireless gateways (for mining, oil rigs, smart factories).

2) Enhanced MIMO Capability

IPQ9570 supports 4×4 MIMO, delivering higher throughput and better stability compared to IPQ5322’s 2×2 MIMO. This makes it a better fit for:

High-density office networks (handling multiple simultaneous connections).
Large-scale commercial WiFi (for locations like shopping centers and subway stations).
Enterprise-level Mesh networking (for high-performance wireless backhaul).

3) 10G Ethernet Ports for High-Throughput Applications

IPQ9570 features two 10Gbps Ethernet ports, whereas IPQ5322 offers only one 2.5Gbps port. This makes IPQ9570 ideal for data centers, enterprise wireless controllers, and high-end ISP CPEs that require high-speed wired connectivity.

4) Optimized for WiFi 7 Mesh Networks and ISP Deployments

For large-scale WiFi 7 Mesh networks, IPQ9570 ensures better stability and multi-node coordination. It is also a preferred choice for ISP high-end WiFi 7 CPEs, where higher performance and network resilience are required.

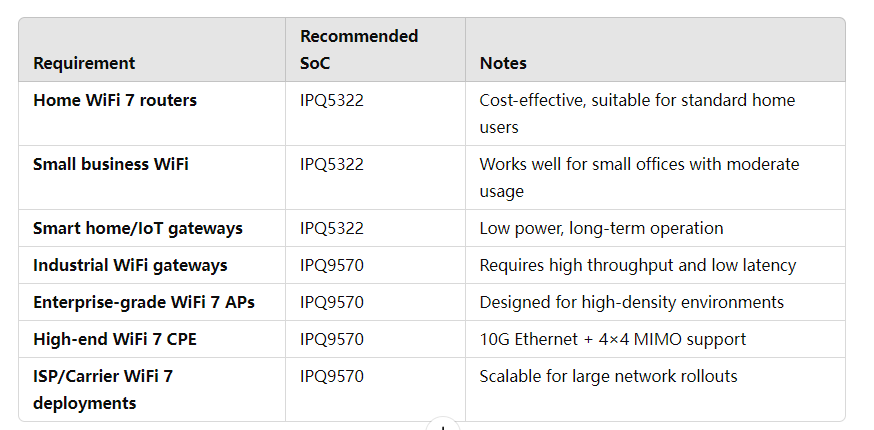

4. How to Choose the Right Solution?

5. Conclusion

The decision between IPQ5322 vs. IPQ9570 depends on application requirements, budget, and performance needs:

If cost-effectiveness, low power consumption, and compact design are priorities, IPQ5322 is the best choice. It is well-suited for home WiFi 7 routers, small business networks, and IoT applications.
If high performance is required (high throughput, enterprise APs, large-scale Mesh networking), IPQ9570 is the better option. It offers superior CPU power, better MIMO capabilities, and 10G Ethernet support.

For developers and businesses, evaluating the project’s specific needs and selecting the appropriate WiFi 7 SoC will ensure the best balance of performance, efficiency, and cost-effectiveness.
