【图神经网络：原理与实战】第十章 可解释性与可证实性

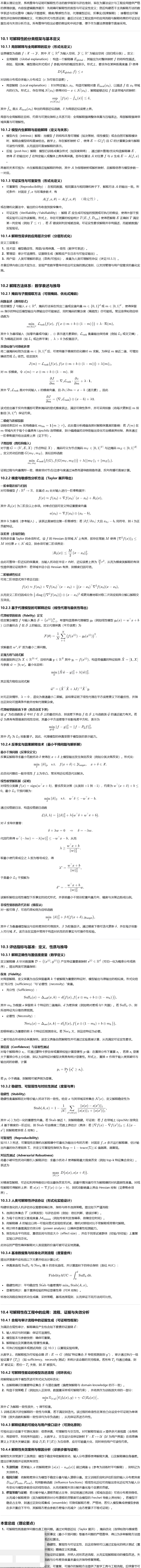

代码复现

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
第10章 可解释性工具箱 - 可执行示例代码
- 包含：可微掩码优化、梯度归因、代理线性模型、反事实生成、评估指标（充分性/必要性/稳健性/显著性/对抗性）
- 注释与打印为中文，便于实验和教学
- 依赖：numpy, scipy, sklearn, torch, matplotlib

运行示例：
    python Chapter10_Interpretability_Tools.py

注意：本文件生成和使用合成数据与简单神经网络模型以示范方法流程。
"""

import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import TensorDataset, DataLoader
from sklearn.linear_model import Ridge
from sklearn.metrics import accuracy_score
import matplotlib.pyplot as plt
from copy import deepcopy
import time

# -----------------------------
# 全局设置与工具函数
# -----------------------------
SEED = 12345
np.random.seed(SEED)
torch.manual_seed(SEED)

def set_seed(s=SEED):
    np.random.seed(s)
    torch.manual_seed(s)

def sigmoid(x):
    return 1/(1+np.exp(-x))

# 将张量转换为 numpy
def to_np(t):
    return t.detach().cpu().numpy()

# -----------------------------
# 数据与模型：合成分类任务
# -----------------------------

def generate_synthetic_classification(n_samples=1000, n_features=20, informative=5):
    """生成二分类数据，前 informative 个特征为判别特征"""
    rng = np.random.default_rng(SEED)
    X = rng.normal(0,1,(n_samples,n_features))
    # 线性可分性 + 非线性项
    w = np.zeros(n_features)
    w[:informative] = rng.normal(2.0,0.5,size=informative)
    logits = X @ w + 0.5*np.sin(X[:,0])
    probs = sigmoid(logits)
    y = (rng.random(n_samples) < probs).astype(int)
    return X.astype(np.float32), y.astype(np.int64)

class SimpleMLP(nn.Module):
    def __init__(self, n_features, hidden=64):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(n_features, hidden),
            nn.ReLU(),
            nn.Linear(hidden, hidden//2),
            nn.ReLU(),
            nn.Linear(hidden//2,2)
        )
    def forward(self,x):
        return self.net(x)

# -----------------------------
# 1. 可微掩码优化 (Learning a soft mask)
# -----------------------------

def optimize_soft_mask(model, x, baseline=None, lr=0.1, steps=200, l1=1e-2):
    """
    对单个输入 x 优化可微掩码 m in [0,1]^d
    目标：最小化 task loss 保持输出，同时压缩掩码稀疏性
    返回：soft mask, 二值化 mask
    注释：使用模型在预测概率层面保持相似性作为约束
    """
    model.eval()
    x_t = torch.tensor(x, dtype=torch.float32).unsqueeze(0)
    if baseline is None:
        baseline = torch.zeros_like(x_t)
    # 初始 mask 参数为 logit 空间
    d = x.shape[0]
    m_param = torch.zeros(d, requires_grad=True)
    optimizer = optim.Adam([m_param], lr=lr)
    with torch.no_grad():
        y_orig_logits = model(x_t)
        y_orig_prob = torch.softmax(y_orig_logits, dim=-1)[0,1].item()

    for step in range(steps):
        optimizer.zero_grad()
        m = torch.sigmoid(m_param)
        xm = x_t * m + baseline * (1-m)
        logits = model(xm)
        prob = torch.softmax(logits, dim=-1)[0,1]
        # 保持原始概率相近的损失
        loss_task = (prob - y_orig_prob)**2
        # 掩码稀疏性
        loss_reg = l1 * torch.sum(m)
        loss = loss_task + loss_reg
        loss.backward()
        optimizer.step()
        if step%50==0:
            print(f"[掩码优化] step={step}, loss_task={loss_task.item():.6e}, mask_sum={m.sum().item():.4f}")
    m_final = torch.sigmoid(m_param).detach().cpu().numpy()
    m_bin = (m_final>=0.5).astype(int)
    return m_final, m_bin

# -----------------------------
# 2. 梯度/敏感性归因 (Gradient-based saliency)
# -----------------------------

def gradient_saliency(model, x, target_class=1):
    """计算 gradient * input 作为归因分数"""
    model.eval()
    x_t = torch.tensor(x, dtype=torch.float32).unsqueeze(0)
    x_t.requires_grad_()
    logits = model(x_t)
    prob = torch.softmax(logits, dim=-1)[0,target_class]
    prob.backward()
    grad = x_t.grad.detach().cpu().numpy()[0]
    saliency = grad * x
    saliency = saliency
    return saliency

# -----------------------------
# 3. 代理线性模型 (Surrogate explanation)
# -----------------------------

def surrogate_linear_model(f_model, X, n_samples=500, alpha=1.0):
    """在输入邻域上拟合线性代理（岭回归），返回系数和截距"""
    rng = np.random.default_rng(SEED)
    idx = rng.choice(len(X), size=min(n_samples,len(X)), replace=False)
    X_sub = X[idx]
    with torch.no_grad():
        model = f_model
        X_tensor = torch.tensor(X_sub, dtype=torch.float32)
        logits = model(X_tensor)
        probs = torch.softmax(logits, dim=-1)[:,1].detach().cpu().numpy()
    ridge = Ridge(alpha=alpha)
    ridge.fit(X_sub, probs)
    return ridge.coef_, ridge.intercept_, ridge

# -----------------------------
# 4. 反事实生成 (Counterfactual via optimization)
# -----------------------------

def generate_counterfactual(model, x, target_label=1, lr=0.05, steps=200, lambda_norm=0.01):
    """最小化 L2 距离 + 分类误差，得到反事实 x'"""
    model.eval()
    x_var = torch.tensor(x, dtype=torch.float32).unsqueeze(0).clone()
    x_var = x_var.requires_grad_()
    opt = optim.Adam([x_var], lr=lr)
    for step in range(steps):
        opt.zero_grad()
        logits = model(x_var)
        loss_cls = nn.CrossEntropyLoss()(logits, torch.tensor([target_label]))
        loss_dist = lambda_norm * torch.sum((x_var - torch.tensor(x,dtype=torch.float32))**2)
        loss = loss_dist + loss_cls
        loss.backward()
        opt.step()
        if step%50==0:
            with torch.no_grad():
                pred = torch.argmax(model(x_var),dim=-1).item()
            print(f"[反事实] step={step}, loss_cls={loss_cls.item():.6e}, pred_label={pred}")
    return x_var.detach().cpu().numpy()[0]

# -----------------------------
# 5. 评估指标实现
# -----------------------------

def sufficiency_metric(model, x, mask, baseline=None, k=None):
    """保真-充分性：仅保留 mask 指示特征后预测距离"""
    model.eval()
    x_t = torch.tensor(x, dtype=torch.float32)
    if baseline is None:
        baseline = torch.zeros_like(x_t)
    if k is not None:
        # 保留前 k 特征索引
        idx = np.argsort(-mask)[:k]
        m = np.zeros_like(mask); m[idx]=1
    else:
        m = mask
    xm = x_t * torch.tensor(m,dtype=torch.float32) + baseline * (1-torch.tensor(m,dtype=torch.float32))
    with torch.no_grad():
        p_orig = torch.softmax(model(x_t.unsqueeze(0)),dim=-1)[0,1].item()
        p_mask = torch.softmax(model(xm.unsqueeze(0)),dim=-1)[0,1].item()
    return abs(p_orig - p_mask)


def necessity_metric(model, x, mask, baseline=None, k=None):
    """必要性：移除被认为重要的特征后预测距离"""
    model.eval()
    x_t = torch.tensor(x, dtype=torch.float32)
    if baseline is None:
        baseline = torch.zeros_like(x_t)
    if k is not None:
        idx = np.argsort(-mask)[:k]
        m = np.ones_like(mask); m[idx]=0
    else:
        m = 1-mask
    xm = x_t * torch.tensor(m,dtype=torch.float32) + baseline * (1-torch.tensor(m,dtype=torch.float32))
    with torch.no_grad():
        p_orig = torch.softmax(model(x_t.unsqueeze(0)),dim=-1)[0,1].item()
        p_mask = torch.softmax(model(xm.unsqueeze(0)),dim=-1)[0,1].item()
    return abs(p_orig - p_mask)


def stability_metric(explainer_func, model, x, n_pert=20, noise_scale=1e-2):
    """稳健性：对输入进行微扰，评估解释向量差异"""
    set_seed()
    s0 = explainer_func(model, x)
    S = []
    for i in range(n_pert):
        x_pert = x + np.random.normal(0,noise_scale,size=x.shape)
        s = explainer_func(model, x_pert)
        S.append(s)
    S = np.stack(S)
    # 归一化后计算平均相对差
    s0n = np.linalg.norm(s0,ord=1)+1e-12
    diffs = np.linalg.norm(S - s0[None,:], ord=1, axis=1) / s0n
    return diffs.mean()

def permutation_significance(explainer_func, model, X, x_idx=0, n_perm=100):
    """置换检验：在置换输入特征时计算解释值分布，估计每个特征的 p-value"""
    set_seed()
    x = X[x_idx].copy()
    s_obs = explainer_func(model, x)
    pvals = np.ones_like(s_obs)
    for j in range(len(s_obs)):
        greater = 0
        for _ in range(n_perm):
            x_perm = x.copy()
            # 打乱第 j 个特征在样本集中的顺序来构建置换
            x_perm[j] = np.random.permutation(X[:,j])[0]
            s_perm = explainer_func(model, x_perm)
            if abs(s_perm[j]) >= abs(s_obs[j]):
                greater += 1
        pvals[j] = (greater+1)/(n_perm+1)
    return pvals

def adversarial_explain_change(explainer_func, model, x, budget=0.1):
    """最小扰动使解释 top-k 集合发生改变（近似：基于梯度方向）"""
    # 计算解释向量的梯度近似：对每个特征尝试沿 +/- 方向扰动并计算解释变化
    base_exp = explainer_func(model, x)
    topk = np.argsort(-np.abs(base_exp))[:max(1,len(base_exp)//5)]
    best_delta = None
    best_change = 0
    for sign in [+1,-1]:
        x_try = x.copy()
        # 扰动沿梯度方向: 使用模型输出对输入的梯度近似
        x_var = torch.tensor(x_try, dtype=torch.float32).unsqueeze(0).requires_grad_()
        logits = model(x_var)
        score = torch.softmax(logits,dim=-1)[0,1]
        score.backward()
        grad = x_var.grad.detach().numpy()[0]
        direction = np.sign(grad)
        delta = sign * budget * direction
        x_new = np.clip(x + delta, -np.inf, np.inf)
        new_exp = explainer_func(model, x_new)
        change = np.linalg.norm(new_exp - base_exp, ord=1)
        if change > best_change:
            best_change = change
            best_delta = delta
    return best_delta, best_change

# -----------------------------
# 6. 演示流程：训练模型、生成解释、评估
# -----------------------------

def demo_all():
    print('中文提示：开始可解释性工具箱演示')
    # 数据
    X, y = generate_synthetic_classification(n_samples=1000, n_features=20, informative=5)
    X_train, X_test = X[:800], X[800:]
    y_train, y_test = y[:800], y[800:]

    # 训练模型
    model = SimpleMLP(n_features=X.shape[1])
    optimizer = optim.Adam(model.parameters(), lr=1e-3)
    criterion = nn.CrossEntropyLoss()
    ds = TensorDataset(torch.tensor(X_train), torch.tensor(y_train))
    loader = DataLoader(ds, batch_size=64, shuffle=True)
    print('中文提示：训练简单神经网络模型...')
    for epoch in range(10):
        model.train()
        los = 0.0
        for xb, yb in loader:
            optimizer.zero_grad()
            logits = model(xb.float())
            loss = criterion(logits, yb)
            loss.backward()
            optimizer.step()
            los += loss.item()
        if (epoch+1)%2==0:
            print(f'  epoch {epoch+1}, 平均损失={los/len(loader):.6f}')
    model.eval()
    with torch.no_grad():
        preds = torch.argmax(model(torch.tensor(X_test).float()),dim=-1).numpy()
    print('中文提示：测试准确率=', accuracy_score(y_test,preds))

    # 选择一个测试样本
    x0 = X_test[0]
    print('\n中文提示：样本 x0 的前 8 个特征值:', x0[:8])

    # 1) 可微掩码优化
    print('\n中文提示：执行可微掩码优化...')
    m_soft, m_bin = optimize_soft_mask(model, x0, lr=0.2, steps=300, l1=1e-2)
    print('中文提示：soft mask 前8值=', np.round(m_soft[:8],3))
    print('中文提示：binary mask 前8值=', m_bin[:8])

    # 2) 梯度归因
    print('\n中文提示：计算梯度归因 (gradient * input) ...')
    grad_sal = gradient_saliency(model, x0)
    print('中文提示：梯度归因前8值=', np.round(grad_sal[:8],4))

    # 3) 代理线性模型
    print('\n中文提示：拟合线性代理模型 (Ridge) ...')
    coef, intercept, ridge = surrogate_linear_model(model, X_train, n_samples=400)
    print('中文提示：线性代理系数前8=', np.round(coef[:8],4))

    # 4) 反事实生成
    print('\n中文提示：生成反事实示例 (目标类别取反) ...')
    orig_label = int(torch.argmax(model(torch.tensor(x0).float().unsqueeze(0))).item())
    target_label = 1 - orig_label
    x_cf = generate_counterfactual(model, x0, target_label=target_label, lr=0.05, steps=300, lambda_norm=0.001)
    with torch.no_grad():
        pred_orig = int(torch.argmax(model(torch.tensor(x0).float().unsqueeze(0))).item())
        pred_cf = int(torch.argmax(model(torch.tensor(x_cf).float().unsqueeze(0))).item())
    print(f'中文提示：原始预测={pred_orig}, 反事实预测={pred_cf}')

    # 5) 评估指标
    print('\n中文提示：计算充分性与必要性指标...')
    suff = sufficiency_metric(model, x0, m_soft)
    nec = necessity_metric(model, x0, m_soft)
    print(f'中文提示：充分性差异={suff:.6f}, 必要性差异={nec:.6f}')

    print('\n中文提示：计算稳健性指标 (基于梯度归因) ...')
    stab = stability_metric(gradient_saliency, model, x0, n_pert=30, noise_scale=1e-3)
    print(f'中文提示：归因稳定性平均相对差={stab:.6f}')

    print('\n中文提示：置换检验估计 p-values (对前10个特征) ...')
    pvals = permutation_significance(gradient_saliency, model, X_test, x_idx=0, n_perm=200)
    print('中文提示：p-values 前10=', np.round(pvals[:10],4))

    print('\n中文提示：对抗性解释变化测试（近似）...')
    delta, change = adversarial_explain_change(gradient_saliency, model, x0, budget=0.1)
    print(f'中文提示：发现最优扰动 change={change:.6f}, delta前8={np.round(delta[:8],4)}')

    # 可视化：原始、反事实、掩码覆盖
    plt.figure(figsize=(10,6))
    plt.subplot(3,1,1)
    plt.plot(x0, label='原始输入'); plt.title('原始输入特征'); plt.legend()
    plt.subplot(3,1,2)
    plt.plot(x_cf, label='反事实输入'); plt.title('反事实输入特征'); plt.legend()
    plt.subplot(3,1,3)
    plt.bar(np.arange(len(m_soft)), m_soft); plt.title('可微掩码值 (soft mask)')
    plt.tight_layout(); plt.show()

    print('\n中文提示：演示完成。')

if __name__=='__main__':
    demo_all()
