Odin Attributes 为Unity开发者提供了更多的自定义选项，使得开发过程更加高效和愉悦。通过使用这些特性，开发者可以创建更加专业和用户友好的编辑器界面，从而提升整个开发团队的工作效率。

在这里插入图片描述

Odin Inspector and Serializer 最新版（0积分）免费下载

⭕️探索入口

华丽的分割线

📂 Odin Attributes 大全 | 目录索引

标题1

💯 概述

Title Group 特性：将属性与标题、可选副标题和可选水平线垂直分组在一起。

标题2

💯 使用方法

【TitleGroup】提供一个主标题，或者可额外提供一个副标题

    [TitleGroup("Ints")]
    public int SomeInt1;
    [TitleGroup("Ints", "Optional subtitle")]
    public int SomeInt2;

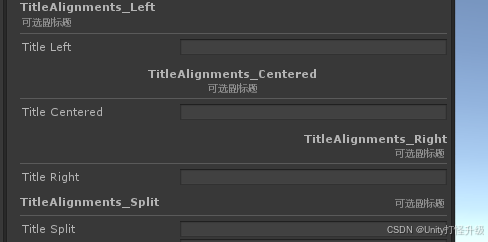

【Alignment】可选择对应标题的对齐方式

    [TitleGroup("TitleAlignments_Left", "可选副标题", alignment: TitleAlignments.Left)]
    public string titleLeft = "";
    [TitleGroup("TitleAlignments_Centered", "可选副标题", alignment: TitleAlignments.Centered)]
    public string titleCentered = "";
    [TitleGroup("TitleAlignments_Right", "可选副标题", alignment: TitleAlignments.Right)]
    public string titleRight = "";
    [TitleGroup("TitleAlignments_Split", "可选副标题", alignment: TitleAlignments.Split)]
    public string titleSplit = "";

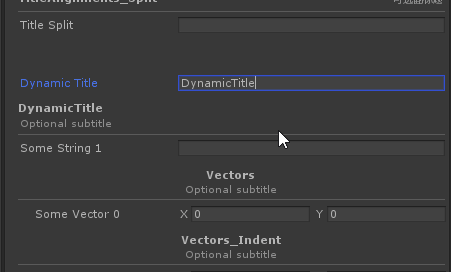

可以使用$特殊指定一个字段的值作为标题

    public string DynamicTitle = "DynamicTitle";
    [TitleGroup("$DynamicTitle", "Optional subtitle")]
    public string SomeString1;

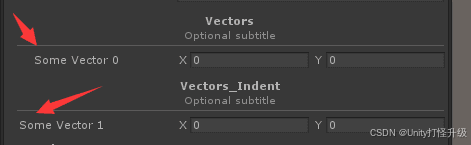

设置是否缩进

    [TitleGroup("Vectors", "Optional subtitle", alignment: TitleAlignments.Centered, horizontalLine: true, boldTitle: true, indent: true)]
    public Vector2 SomeVector0;
    [TitleGroup("Vectors_Indent", "Optional subtitle", alignment: TitleAlignments.Centered, horizontalLine: true, boldTitle: true, indent: false)]
    public Vector2 SomeVector1;

可以隐藏标题下面的横线

在这里插入图片描述

    [TitleGroup("NoTitle", horizontalLine:false)]
    public string noTitleStr = "noTitleStrContent";

标题3

💯 完整示例代码

using Sirenix.OdinInspector;
using UnityEngine;

public class TitleGroupAttributeExample : MonoBehaviour
{
    [TitleGroup("Ints")]
    public int SomeInt1;
    [TitleGroup("Ints", "Optional subtitle")]
    public int SomeInt2;

    [TitleGroup("TitleAlignments_Left", "可选副标题", alignment: TitleAlignments.Left)]
    public string titleLeft = "";
    [TitleGroup("TitleAlignments_Centered", "可选副标题", alignment: TitleAlignments.Centered)]
    public string titleCentered = "";
    [TitleGroup("TitleAlignments_Right", "可选副标题", alignment: TitleAlignments.Right)]
    public string titleRight = "";
    [TitleGroup("TitleAlignments_Split", "可选副标题", alignment: TitleAlignments.Split)]
    public string titleSplit = "";

    [PropertySpace(40)]
    public string DynamicTitle = "DynamicTitle";
    [TitleGroup("$DynamicTitle", "Optional subtitle")]
    public string SomeString1;

    [TitleGroup("Vectors", "Optional subtitle", alignment: TitleAlignments.Centered, horizontalLine: true, boldTitle: true, indent: true)]
    public Vector2 SomeVector0;
    [TitleGroup("Vectors_Indent", "Optional subtitle", alignment: TitleAlignments.Centered, horizontalLine: true, boldTitle: true, indent: false)]
    public Vector2 SomeVector1;

    [TitleGroup("NoTitle", horizontalLine:false)]
    public string noTitleStr = "noTitleStrContent";
}

标题4

💯 Odin 下载地址

Odin Inspector and Serializer 最新版（0积分）免费下载
