核心问题

确保消息在RabbitMQ投递过程中的可靠性，通过持久化存储、回调处理和定时重试解决网络异常、服务宕机等场景下的消息丢失风险
解决分布式系统中消息发送失败时的可靠重试，确保消息不丢失和最终一致性

重试机制核心流程

1 ）消息发送前持久化

原因：防止消息在发送过程中因服务崩溃或网络异常丢失。
实现：调用发送接口时，先将消息存入数据库，生成唯一ID（如UUID）记录交换器、路由键、消息体及发送次数（初始为0）。

2 ）消息发送后处理

成功发送：
- RabbitMQ确认接收（ACK）后，立即删除数据库中的持久化消息，避免数据膨胀。
投递失败：
- 交换机不存在：触发ConfirmCallback，标记发送失败，等待重试。
- 队列不存在：触发ReturnCallback，重新持久化消息到数据库（原消息已删除）。

3 ）定时任务补偿

巡检未成功消息：定时查询数据库中状态为“待发送”且未超重试次数的消息。
重试策略：
- 重试次数+1，重新投递消息。
- 若超过最大重试次数（如5次），标记消息为“死亡” 并触发告警（邮件/短信）。
并发控制：多副本部署时需用分布式锁（如Redis锁）避免重复消费。

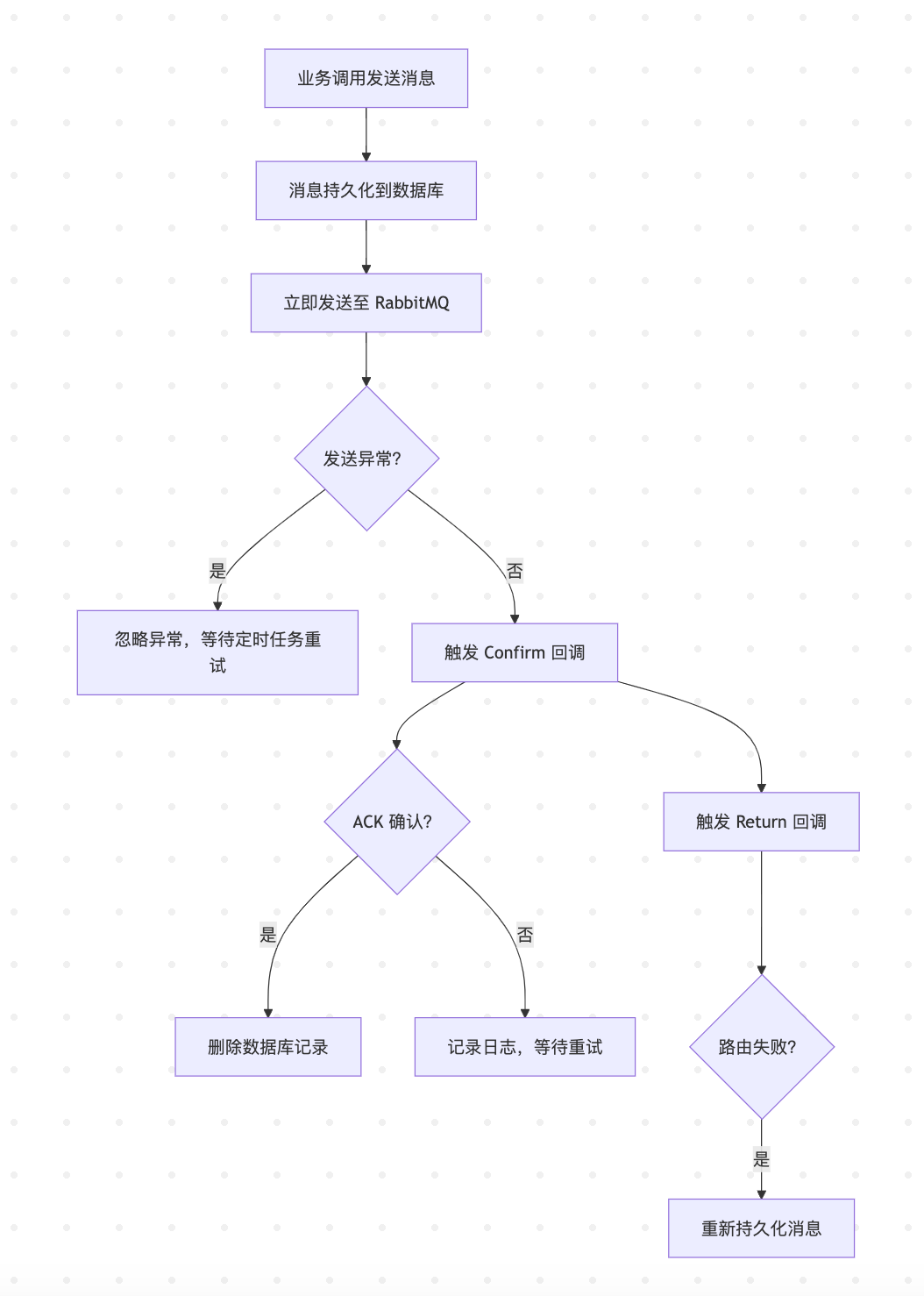

关键业务流程与 RabbitMQ 交互

Confirm 回调
- 作用：确认 RabbitMQ 是否接收消息。
- 逻辑：
  - 若收到 ACK → 删除数据库记录。
  - 若未收到 ACK → 保留记录等待重试。
Return 回调
- 场景：消息被 RabbitMQ 接收但无法路由到队列（如路由键错误）。
- 处理：将消息重新持久化至数据库，状态保持 READY。

NestJS 服务层实现

1 ) 消息存储接口设计（TransMessageService）

// trans-message.interface.ts
export interface TransMessageService {
  saveForSend(
    exchange: string,
    routingKey: string,
    payload: string
  ): Promise<TransMessagePO>;

  deleteOnAck(id: string): Promise<void>;

  saveOnReturn(
    id: string,
    exchange: string,
    routingKey: string,
    payload: string
  ): Promise<TransMessagePO>;

  listPendingMessages(): Promise<TransMessagePO[]>;

  incrementRetryCount(id: string): Promise<void>;

  markAsDead(id: string): Promise<void>;
}

2 ) 数据库实现（TypeORM + PostgreSQL）

// trans-message.service.ts
import { Injectable } from '@nestjs/common';
import { InjectRepository } from '@nestjs/typeorm';
import { Repository } from 'typeorm';
import { TransMessagePO } from './trans-message.entity';

@Injectable()
export class DBTransMessageService implements TransMessageService {
  constructor(
    @InjectRepository(TransMessagePO)
    private readonly repo: Repository<TransMessagePO>,
    private readonly serviceName: string
  ) {}

  async saveForSend(exchange: string, routingKey: string, payload: string) {
    const message = new TransMessagePO();
    message.id = uuidv4();
    message.serviceName = this.serviceName;
    message.exchange = exchange;
    message.routingKey = routingKey;
    message.payload = payload;
    message.retryCount = 0;
    message.status = 'PENDING';
    return this.repo.save(message);
  }

  async deleteOnAck(id: string) {
    await this.repo.delete({ id, serviceName: this.serviceName });
  }

  // 其他方法实现类似，略
}

消息发送器（`TransMessageSender`）

1 ) 发送消息核心逻辑

// trans-message.sender.ts
import { Injectable, Logger } from '@nestjs/common';
import { RabbitMQService } from '@golevelup/nestjs-rabbitmq';
import { TransMessageService } from './trans-message.interface';

@Injectable()
export class TransMessageSender {
  private readonly logger = new Logger(TransMessageSender.name);

  constructor(
    private readonly rmqService: RabbitMQService,
    private readonly messageService: TransMessageService
  ) {}

  async send(exchange: string, routingKey: string, payload: any) {
    const payloadString = JSON.stringify(payload);

    try {
      // 1. 持久化到数据库
      const messagePO = await this.messageService.saveForSend(
        exchange,
        routingKey,
        payloadString
      );

      // 2. 发送到RabbitMQ
      await this.rmqService.publish(exchange, routingKey, payload, {
        messageId: messagePO.id, // 关键：设置消息ID
        persistent: true
      });

      this.logger.log(`Message sent: ${messagePO.id}`);
    } catch (e) {
      this.logger.error(`Send failed: ${e.message}`, e.stack);
    }
  }
}

2 ) 回调处理（Confirm & Return）

// rabbitmq.config.ts
import { RabbitMQModule } from '@golevelup/nestjs-rabbitmq';

@Module({
  imports: [
    RabbitMQModule.forRoot(RabbitMQModule, {
      exchanges: [{ name: 'orders', type: 'topic' }],
      uri: 'amqp://localhost',
      connectionInitOptions: { wait: false },
      // 注册回调函数
      setupController: (channel) => {
        channel.on('return', (msg) => this.handleReturn(msg));
        channel.on('ack', (msg) => this.handleAck(msg));
      }
    })
  ]
})
export class AppModule {
  handleReturn(msg: ConsumeMessage) {
    const { exchange, routingKey } = msg.fields;
    const payload = msg.content.toString();
    const messageId = msg.properties.messageId; // 关键：获取消息ID
    this.messageService.saveOnReturn(messageId, exchange, routingKey, payload);
  }

  handleAck(msg: ConsumeMessage) {
    const messageId = msg.properties.messageId;
    this.messageService.deleteOnAck(messageId);
  }
}

定时任务与重试控制

// retry.task.ts
import { Injectable, Logger } from '@nestjs/common';
import { SchedulerRegistry } from '@nestjs/schedule';

@Injectable()
export class RetryTask {
  private readonly logger = new Logger(RetryTask.name);
  private readonly MAX_RETRY = 5;

  constructor(
    private messageService: TransMessageService,
    private scheduler: SchedulerRegistry
  ) {
    this.startRetryCycle();
  }

  startRetryCycle() {
    const interval = setInterval(async () => {
      const messages = await this.messageService.listPendingMessages();
      for (const msg of messages) {
        if (msg.retryCount >= this.MAX_RETRY) {
          await this.messageService.markAsDead(msg.id);
          this.triggerAlert(`Message dead: ${msg.id}`);
          continue;
        }

        await this.messageService.incrementRetryCount(msg.id);
        await this.resendMessage(msg);
      }
    }, 60_000); // 每分钟执行

    this.scheduler.addInterval('retry-job', interval);
  }

  private async resendMessage(msg: TransMessagePO) {
    // 调用发送器重新发送（略）
  }
}

NestJS 核心代码实现

消息持久化服务层（TransMessageService）

// trans-message.service.ts
import { Injectable } from '@nestjs/common';
import { TransMessage } from './entity/trans-message.entity';
import { Repository } from 'typeorm';
import { InjectRepository } from '@nestjs/typeorm';
import { MessageType } from './enums/message-type.enum';

@Injectable()
export class TransMessageService {
  constructor(
    @InjectRepository(TransMessage)
    private readonly messageRepo: Repository<TransMessage>,
    private readonly serviceName: string, // 注入服务标识
  ) {}

  // 发送前持久化
  async createReadyMessage(
    exchange: string,
    routingKey: string,
    payload: string,
  ): Promise<TransMessage> {
    const message = this.messageRepo.create({
      id: uuidv4(),
      service: this.serviceName,
      exchange,
      routingKey,
      payload,
      sendDate: new Date(),
      sequence: 0,
      type: MessageType.READY,
    });
    return this.messageRepo.save(message);
  }

  // 发送成功删除记录
  async markMessageSuccess(id: string): Promise<void> {
    await this.messageRepo.delete({ id, service: this.serviceName });
  }

  // 消息路由失败后重新持久化
  async recreateReturnedMessage(
    exchange: string,
    routingKey: string,
    payload: string,
  ): Promise<TransMessage> {
    return this.createReadyMessage(exchange, routingKey, payload);
  }

  // 查询待重试消息
  async listReadyMessages(): Promise<TransMessage[]> {
    return this.messageRepo.find({
      where: { type: MessageType.READY, service: this.serviceName },
    });
  }

  // 递增重试次数
  async incrementRetryCount(id: string): Promise<void> {
    const message = await this.messageRepo.findOneBy({ id });
    if (message) {
      message.sequence += 1;
      await this.messageRepo.save(message);
    }
  }

  // 标记消息为死亡状态
  async markMessageDead(id: string): Promise<void> {
    const message = await this.messageRepo.findOneBy({ id });
    if (message) {
      message.type = MessageType.DEAD;
      await this.messageRepo.save(message);
    }
  }
}

消息发送器（TransMessageSender）

// trans-message.sender.ts
import { Injectable, Logger } from '@nestjs/common';
import { RabbitMQService } from '@golevelup/nestjs-rabbitmq';
import { TransMessageService } from './trans-message.service';

@Injectable()
export class TransMessageSender {
  private readonly logger = new Logger(TransMessageSender.name);

  constructor(
    private readonly rmqService: RabbitMQService,
    private readonly transMessageService: TransMessageService,
  ) {}

  async send(exchange: string, routingKey: string, payload: object): Promise<void> {
    try {
      // 1. 序列化消息
      const payloadString = JSON.stringify(payload);

      // 2. 持久化到数据库
      const message = await this.transMessageService.createReadyMessage(
        exchange,
        routingKey,
        payloadString,
      );

      // 3. 发送至 RabbitMQ
      await this.rmqService.publish(exchange, routingKey, payload, {
        messageId: message.id,
        contentType: 'application/json',
      });

      this.logger.log(`Message sent: ${message.id}`);
    } catch (e) {
      this.logger.error(`Send failed: ${e.message}`, e.stack);
    }
  }
}

RabbitMQ 回调处理

// rmq.config.ts
import { RabbitMQModule } from '@golevelup/nestjs-rabbitmq';
import { TransMessageService } from './trans-message.service';

@Module({
  imports: [
    RabbitMQModule.forRoot(RabbitMQModule, {
      exchanges: [{ name: 'orders', type: 'topic' }],
      uri: 'amqp://localhost:5672',
      connectionInitOptions: { wait: false },
      // 注册回调处理器
      setupController: (channel) => {
        // 确认回调
        channel.on('ack', (msg) => {
          const messageId = msg.properties.messageId;
          this.transMessageService.markMessageSuccess(messageId);
        });

        // 返回回调
        channel.on('return', (msg) => {
          const { exchange, routingKey } = msg.fields;
          const payload = msg.content.toString();
          this.transMessageService.recreateReturnedMessage(
            exchange,
            routingKey,
            payload,
          );
        });
      },
    }),
  ],
})
export class RmqConfigModule {}

消息预持久化机制

发送前必须将消息持久化到数据库，防止发送过程中因网络中断或服务崩溃导致消息丢失。业务系统调用发送接口时：

发送成功后的清理逻辑
- 当 RabbitMQ 确认（ACK）接收消息后，立即删除数据库中的持久化记录，避免无效数据堆积引发存储压力。
定时任务重试策略
- 独立进程定时扫描状态为 PENDING 的消息：
  - 检查重试次数是否超限（如 ≤5次）
  - 每次重试增加 retryCount 值
  - 超限则标记为 DEAD 并触发告警

工程示例：1

1 ) 方案1：基础持久化+重试（推荐）

适用场景：中小型系统
技术栈：
- @golevelup/nestjs-rabbitmq + TypeORM + PostgreSQL
- 消息表字段：id, serviceName, exchange, routingKey, payload, retryCount, status
优势：实现简单，依赖少

2 ) 方案2：Redis 高性能存储

// redis-trans-message.service.ts
import { RedisService } from '@liaoliaots/nestjs-redis';

@Injectable()
export class RedisTransMessageService implements TransMessageService {
  private readonly KEY_PREFIX = 'msg:';
  constructor(private redisService: RedisService) {}

  async saveForSend(exchange: string, routingKey: string, payload: string) {
    const id = uuidv4();
    const client = this.redisService.getClient();
    await client.hset(`${this.KEY_PREFIX}${id}`, {
      exchange,
      routingKey,
      payload,
      retryCount: '0',
      status: 'PENDING'
    });
    return { id } as TransMessagePO;
  }
  // 其他方法通过Redis HSET/HGET/DEL实现
}

3 ) 方案3：分布式事务框架集成

技术栈：NestJS + RabbitMQ + Transactional Outbox 模式
核心逻辑：
- 业务操作与消息持久化在同一个数据库事务中提交
- 独立进程轮询Outbox表并投递消息
优势：强一致性，避免业务成功但消息未存储

工程示例：2

1 ) 方案 1：基础数据库重试

// task.service.ts
@Injectable()
export class RetryTaskService {
  constructor(private readonly transMessageService: TransMessageService) {}

  @Cron('*/5 * * * * *') // 每5秒执行
  async handleRetry() {
    const messages = await this.transMessageService.listReadyMessages();
    messages.forEach(async (msg) => {
      if (msg.sequence < 5) {
        await this.transMessageService.incrementRetryCount(msg.id);
        // 重新发送逻辑（略）
      } else {
        await this.transMessageService.markMessageDead(msg.id);
        // 触发告警（略）
      }
    });
  }
}

2 ) 方案 2：Redis 高性能暂存

优势：

读写速度比 MySQL 快 10 倍以上
支持分布式锁解决多副本并发问题

// 使用 Redis 存储消息
import { Redis } from 'ioredis';

@Injectable()
export class RedisTransMessageService implements TransMessageService {
  private readonly redis = new Redis();

  async createReadyMessage(
    exchange: string,
    routingKey: string,
    payload: string,
  ): Promise<TransMessage> {
    const id = uuidv4();
    await this.redis.hset(
      `msg:${id}`,
      'payload', payload,
      'exchange', exchange,
      'routingKey', routingKey,
      'sequence', '0',
    );
    return { id, exchange, routingKey, payload, sequence: 0 };
  }
}

3 ) 方案 3：死信队列（DLX）自动重试

RabbitMQ 配置命令：

创建死信交换机和队列
rabbitmqadmin declare exchange name=dlx type=direct
rabbitmqadmin declare queue name=dead_messages
rabbitmqadmin declare binding source=dlx destination=dead_messages routing_key=dead

主队列绑定死信路由
rabbitmqadmin declare queue name=orders \
  arguments='{"x-dead-letter-exchange":"dlx", "x-dead-letter-routing-key":"dead"}'

NestJS 消费死信消息：

@RabbitSubscribe({
  exchange: 'dlx',
  routingKey: 'dead',
  queue: 'dead_messages',
})
async handleDeadMessage(msg: any) {
  // 解析原始消息ID并重新持久化
  const originalMsgId = msg.properties.headers['x-original-message-id'];
  await this.transMessageService.recreateReturnedMessage(
    msg.fields.exchange,
    msg.fields.routingKey,
    msg.content.toString(),
  );
}

工程示例：3

1 ) 方案1：数据库存储方案（TypeORM）

// trans-message.service.ts
@Injectable()
export class TransMessageService {
  constructor(
    @InjectRepository(TransMessage)
    private readonly messageRepo: Repository<TransMessage>
  ) {}

  async prePersist(exchange: string, routingKey: string, payload: string) {
    const message = this.messageRepo.create({
      exchange,
      routingKey,
      payload,
      status: 'PENDING'
    });
    return this.messageRepo.save(message);
  }

  async markAsSuccess(id: string) {
    await this.messageRepo.delete(id);
  }
}

2 ) 方案2：Redis 高性能存储方案

// redis-trans.service.ts
import { RedisService } from '@liaoliaots/nestjs-redis';

@Injectable()
export class RedisTransService {
  constructor(private readonly redisService: RedisService) {}

  async prePersist(exchange: string, routingKey: string, payload: string) {
    const client = this.redisService.getClient();
    const id = uuidv4();
    await client.hset(
      `msg:${id}`,
      'exchange', exchange,
      'routingKey', routingKey,
      'payload', payload,
      'status', 'PENDING'
    );
    return id;
  }
}

3 ）方案3：混合存储方案（数据库+Redis）

热数据：高频重试消息存 Redis
冷数据：超限消息转存数据库供审计
一致性保障：通过 Redis 事务确保状态同步

关键配置与命令

RabbitMQ 必要设置

启用持久化交换机和队列
rabbitmqctl set_policy HA ".*" '{"ha-mode":"all"}' --apply-to all

监控命令
rabbitmqctl list_queues name messages_ready messages_unacknowledged

NestJS 模块配置

// app.module.ts
@Module({
  imports: [
    TypeOrmModule.forFeature([TransMessagePO]),
    RabbitMQModule.forRootAsync(RabbitMQModule, {
      useFactory: () => ({
        uri: process.env.RABBITMQ_URI,
        exchanges: [{ name: 'orders', type: 'topic', durable: true }]
      })
    })
  ],
  providers: [
    { provide: TransMessageService, useClass: DBTransMessageService },
    TransMessageSender,
    RetryTask
  ]
})
export class AppModule {}

RabbitMQ 周边配置处理

1 ) NestJS 连接配置

// rabbitmq.module.ts
import { RabbitMQModule } from '@golevelup/nestjs-rabbitmq';

@Module({
  imports: [
    RabbitMQModule.forRoot(RabbitMQModule, {
      exchanges: [{ name: 'orders', type: 'topic' }],
      uri: 'amqp://user:pass@localhost:5672',
      connectionInitOptions: { wait: false }
    })
  ]
})
export class RabbitModule {}

2 ) 关键 Shell 命令

创建带持久化的交换机
rabbitmqadmin declare exchange name=orders type=topic durable=true

监控未路由消息
rabbitmqctl list_queues name messages_unroutable

3 ) 告警机制实现

// alert.service.ts
@Injectable()
export class AlertService {
  async triggerAlert(messageId: string) {
    // 集成邮件/Slack/Webhook
    await slackService.send(`消息 ${messageId} 重试超限！`);
  }
}

核心优化点

消息轨迹追踪
通过 properties.messageId 实现全链路消息关联

并发控制
使用 Redis 分布式锁防止多副本重试冲突：

import Redlock from 'redlock';
const lock = await redlock.acquire([`lock:${messageId}`], 5000);

退避策略
指数级延长重试间隔：delay = Math.min(2 retryCount * 1000, 60000)

关键设计原则：

所有消息操作必须幂等
持久化存储与 MQ 状态需原子性同步
死信消息必须提供人工干预接口

补充知识点

RabbitMQ 持久化机制
- 消息需设置 deliveryMode: 2
- 队列声明时添加 durable: true

NestJS 微服务模式

// main.ts 启用混合模式
app.connectMicroservice<RabbitMQTransportOptions>({
  transport: Transport.RMQ,
  options: { urls: ['amqp://...'], queue: 'retry_queue' }
});

监控指标
- 重试成功率
- 平均重试耗时
- 死信队列堆积量

关键问题解决方案

并发重试控制

使用 Redis 分布式锁确保多副本服务不会重复处理同一条消息：

const lockKey = `lock:msg:${msg.id}`;
const lock = await redis.set(lockKey, '1', 'EX', 30, 'NX');
if (lock) { /* 执行重试 */ }

消息幂等性设计

在消费者端通过 messageId 去重，避免重复消费：

@RabbitSubscribe({ exchange: 'orders', routingKey: 'order.create' })
async handleOrderEvent(msg: any, @Message() amqpMsg) {
  const messageId = amqpMsg.properties.messageId;
  if (await this.redis.exists(`processed:${messageId}`)) return;
  // 处理业务...
}
