我是如何一个小时教会小白手写netty框架的

socket

今天,小白的老师让小白写一个服务器,小白学艺不精,过来向大头求救了。

在这里插入图片描述

在这里插入图片描述

在这里插入图片描述

那么socket究竟是什么呢?套接字接口(socket interface)是一组函数,它们和Unix I /O函数结合起来,用以创建网络应用。从Linux内核的角度来看, 一个套接字就是通信的一个端点。从Linux程序的角度来看,套接字就是一个有相应描述符的打开文件。

下图来源于CSAPP的书。

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

这张图清晰的表明了socket是个啥,从逻辑上说,这玩意就是个接口,从这个接口能发送和接收数据,从物理上说,这玩意就是个文件,发送数据就是往这个文件里面写入数据,接收数据就是从这个文件里面读取数据。所以Socket也是个IO操作。只不过这个文件的数据不存储在你电脑的硬盘里面,而是通过网络发送出去了。

通过socket函数可以打开一个文件,返回一个文件描述符。文件描述符可以简单的理解为文件的ID,唯一标识,一般默认打开的3个文件描述符就是标准输入,标准输出,错误输出,对应0、1、2.假设我们打开了一个socket文件,描述符是3.

接下来通过服务器通过bind函数,可以将这个socket文件,和一个IP还有端口号进行绑定。绑定以后写入这个文件的数据就会从这个IP端口读取出来或者发送出去。

socket分为客户端和服务器,客户端主动发起请求,服务器被动接受请求,listen函数就是告诉Linux内核,我这个socket是一个服务器,而不是一个客户端。

最后通过accept函数,来等待客户端的连接.accept函数会返回一个新的文件描述符,通过这个新的文件进行传递数据,而老的文件仅仅负责建立连接。

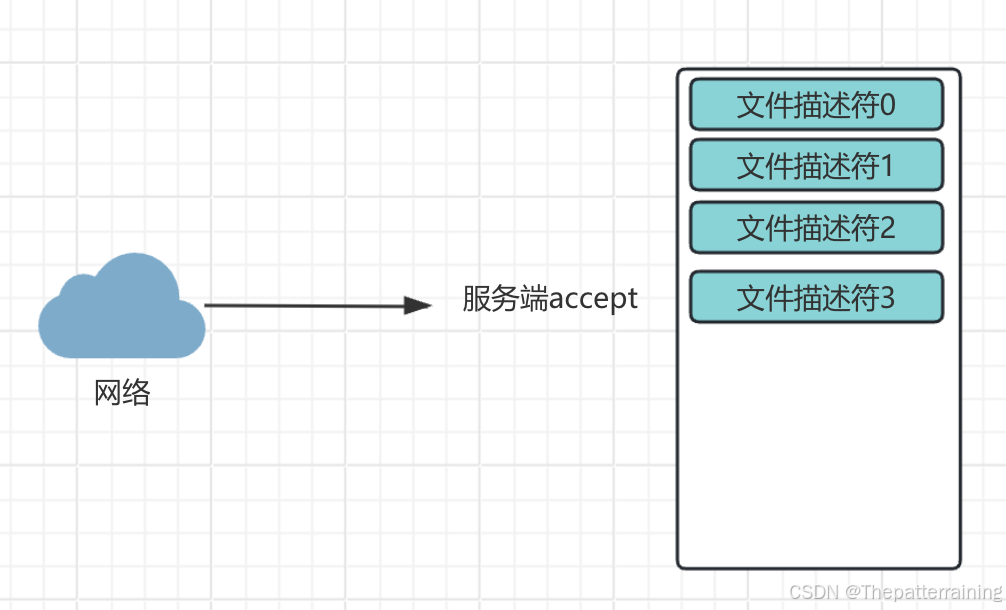

下图为accept的时候服务器的状态,这个时候等待连接。
在这里插入图片描述

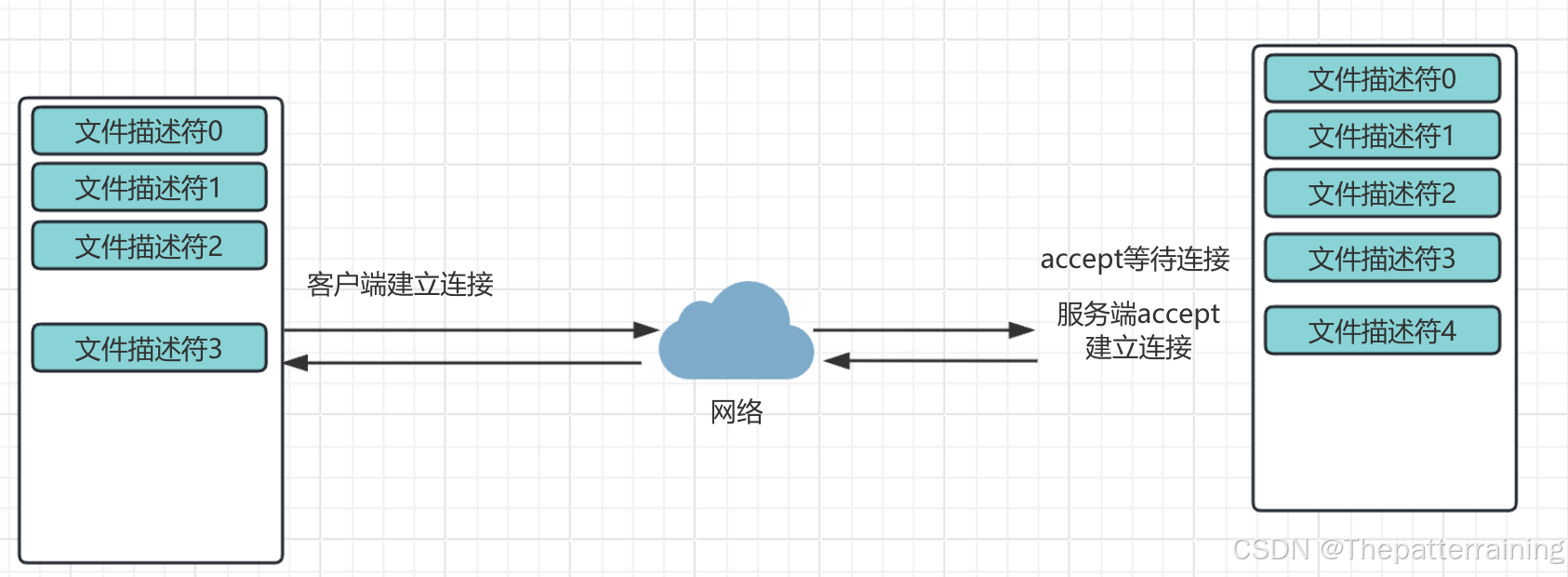

当连接建立以后,会通过新的文件描述符4进行通信。

在这里插入图片描述

基于上述理论知识,学过哲学的都知道,实践是检验真理的唯一标准。所以小白用java实现了第一版socket服务器。端口号是8888,祝看到这里的兄弟们发发发发。

import java.io.*;
import java.net.ServerSocket;
import java.net.Socket;

public class SocketServer {

    private static final String FILE_PATH = "HelloWorld.java";
    private static String readFileAsString(String filePath) throws IOException {
        StringBuilder contentBuilder = new StringBuilder();
        try (BufferedReader br = new BufferedReader(new FileReader(filePath))) {
            String currentLine;
            while ((currentLine = br.readLine()) != null) {
                System.out.println(currentLine); // 打印读取的每一行
                contentBuilder.append(currentLine).append("\n");
            }
        }
        return contentBuilder.toString();
    }
    public static void main(String[] args) {
        int port = 8888; // 服务器监听的端口号
        try {
            // 创建服务器端的ServerSocket,绑定端口号
            ServerSocket serverSocket = new ServerSocket(port);
            System.out.println("Server is running and listening on port " + port);

            // 服务器无限循环,等待客户端连接
            while (true) {
                // 服务器调用accept()方法,阻塞并等待客户端连接
                Socket clientSocket = serverSocket.accept();
                System.out.println("Client connected.");

                try {
                    // 读取HTTP请求
                    BufferedReader in = new BufferedReader(new InputStreamReader(clientSocket.getInputStream()));
                    String inputLine;
                    StringBuilder request = new StringBuilder();
                    while ((inputLine = in.readLine()) != null && !inputLine.isEmpty()) {
                        request.append(inputLine).append("\n");
                    }

                    // 发送HTTP响应
                    PrintWriter out = new PrintWriter(clientSocket.getOutputStream(), true);
                    String fileContent = readFileAsString(FILE_PATH);
                    long contentLength = fileContent.getBytes().length;
                    String response = "HTTP/1.1 200 OK\r\n" +
                            "Content-Type: application/json\r\n" +
                            "Content-Length: " + contentLength + "\r\n" +
                            "Connection: close\r\n" +
                            "\r\n" +
                            fileContent;
                    out.println(response);

                    // 关闭连接
                    clientSocket.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
                System.out.println("Client says: hello world!");

                // 关闭连接
                clientSocket.close();
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

这个代码里面没有bindlisten。这是因为被java封装起来了。如果看看ServerSocket里面的代码就能看见这两个函数。

public ServerSocket(int port) throws IOException {
    //调用了另外一个构造函数
    this(port, 50, null);
}

public ServerSocket(int port, int backlog, InetAddress bindAddr) throws IOException {
  // 参数检测
  if (port < 0 || port > 0xFFFF)
      throw new IllegalArgumentException("Port value out of range: " + port);
  if (backlog < 1)
      backlog = 50;

  // 创建了一个实现类
  this.impl = createImpl();
  try {
      // 调用了bind方法
      bind(new InetSocketAddress(bindAddr, port), backlog);
  } catch (IOException | SecurityException e) {
      close();
      throw e;
  }
}

上面能看到调用了bind方法。再看看bind里面呢。能看到这个里面有getImpl().bindgetImpl().listen。这就是上面说的bindlisten函数了。

/**
 * 将服务器Socket绑定到指定的端点地址并设置监听队列长度
 * 此方法确保Socket未关闭且未绑定,并验证端点地址和backlog参数的合法性
 * 如果满足所有条件,则进行绑定和监听设置
 *
 * @param endpoint 要绑定的端点地址,如果为null,则创建一个未指定端口的InetSocketAddress实例
 * @param backlog 监听队列的长度,如果小于1,则使用默认值50
 * @throws IOException 如果绑定或监听过程中发生I/O错误
 * @throws SocketException 如果Socket已关闭、已绑定、地址未解析或不支持的地址类型
 * @throws IllegalArgumentException 如果端点地址类型不受支持
 */
public void bind(SocketAddress endpoint, int backlog) throws IOException {
    // 检查Socket是否已关闭
    if (isClosed())
        throw new SocketException("Socket is closed");
    // 检查Socket是否已绑定
    if (isBound())
        throw new SocketException("Already bound");
    // 如果未指定端点地址,则创建一个未指定端口的InetSocketAddress实例
    if (endpoint == null)
        endpoint = new InetSocketAddress(0);
    // 检查端点地址是否为InetSocketAddress类型
    if (!(endpoint instanceof InetSocketAddress epoint))
        throw new IllegalArgumentException("Unsupported address type");
    // 检查端点地址是否已解析
    if (epoint.isUnresolved())
        throw new SocketException("Unresolved address");
    // 检查backlog参数是否合法
    if (backlog < 1)
        backlog = 50;

    // 安全检查,确保有权限监听指定端口
    @SuppressWarnings("removal")
    SecurityManager security = System.getSecurityManager();
    if (security != null)
        security.checkListen(epoint.getPort());

    // 同步块,确保线程安全
    synchronized (stateLock) {
        // 再次检查Socket是否已关闭或绑定
        if (closed)
            throw new SocketException("Socket is closed");
        if (bound)
            throw new SocketException("Already bound");
        // 调用实现类的方法进行实际的绑定和监听设置
        getImpl().bind(epoint.getAddress(), epoint.getPort());
        getImpl().listen(backlog);
        // 设置绑定状态为true
        bound = true;
    }
}

在这里插入图片描述
在这里插入图片描述

让我们用wrk压测一下。可以发现很垃圾。仅仅处理了4个请求,虽然响应时间很快。可是吞吐量太低了。

Running 30s test @ http://localhost:8888
  10 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency    55.33ms  326.77us  55.72ms   50.00%
    Req/Sec    40.00      0.00    40.00    100.00%
  Latency Distribution
     50%   55.44ms
     75%   55.72ms
     90%   55.72ms
     99%   55.72ms
  4 requests in 30.10s, 852.00B read
  Socket errors: connect 7967, read 196512, write 14, timeout 0
Requests/sec:      0.13
Transfer/sec:      28.30B

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

接下来,上线程池,小白实现了第二版代码。这次的代码加入了线程池,所有的客户端请求建立以后通过线程池的线程进行处理。建立10个线程。

import java.io.*;
import java.net.*;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

public class SimpleHttpServer {
    private static final int PORT = 8888;
    private static final String FILE_PATH = "HelloWorld.java";

    public static void main(String[] args) {
        ExecutorService threadPool = Executors.newFixedThreadPool(10);
        try (ServerSocket serverSocket = new ServerSocket(PORT)) {
            System.out.println("Server is running at http://localhost:" + PORT);

            while (true) {
                Socket clientSocket = serverSocket.accept();
                threadPool.execute(new ClientHandler(clientSocket));
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    private static class ClientHandler implements Runnable {
        private final Socket clientSocket;

        public ClientHandler(Socket clientSocket) {
            this.clientSocket = clientSocket;
        }

        @Override
        public void run() {
            try {
                // 读取HTTP请求
                BufferedReader in = new BufferedReader(new InputStreamReader(clientSocket.getInputStream()));
                String inputLine;
                StringBuilder request = new StringBuilder();
                while ((inputLine = in.readLine()) != null && !inputLine.isEmpty()) {
                    request.append(inputLine).append("\n");
                }

                // 发送HTTP响应
                PrintWriter out = new PrintWriter(clientSocket.getOutputStream(), true);
                String fileContent = readFileAsString(FILE_PATH);
                long contentLength = fileContent.getBytes().length;
                    String response = "HTTP/1.1 200 OK\r\n" +
                            "Content-Type: application/json\r\n" +
                            "Content-Length: " + contentLength + "\r\n" +
                            "Connection: close\r\n" +
                            "\r\n" +
                            fileContent;
                    out.println(response);

                // 关闭连接
                clientSocket.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }

        private String readFileAsString(String filePath) throws IOException {
            StringBuilder contentBuilder = new StringBuilder();
            try (BufferedReader br = new BufferedReader(new FileReader(filePath))) {
                String currentLine;
                while ((currentLine = br.readLine()) != null) {
                    System.out.println(currentLine); // 打印读取的每一行
                    contentBuilder.append(currentLine).append("\n");
                }
            }
            return contentBuilder.toString();
        }
    }
}

接下来在看压测结果。同样30s,处理了13个请求,处理时间虽然略有上升,但是整体性能提升了很多。

Running 30s test @ http://localhost:8888
  10 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   118.94ms   32.73ms 148.30ms   53.85%
    Req/Sec    17.50     21.62    60.00     83.33%
  Latency Distribution
     50%  147.83ms
     75%  148.02ms
     90%  148.25ms
     99%  148.30ms
  13 requests in 30.10s, 2.70KB read
  Socket errors: connect 7967, read 198469, write 1, timeout 0
Requests/sec:      0.43
Transfer/sec:      91.99B

在这里插入图片描述

在这里插入图片描述

IO

在 Java 中,BIO、NIO 和 AIO 是三种不同的 I/O 模型,它们各自的工作原理和使用场景有所不同。下面简要说明这三种 I/O 模型:

BIO(Blocking I/O,阻塞 I/O)

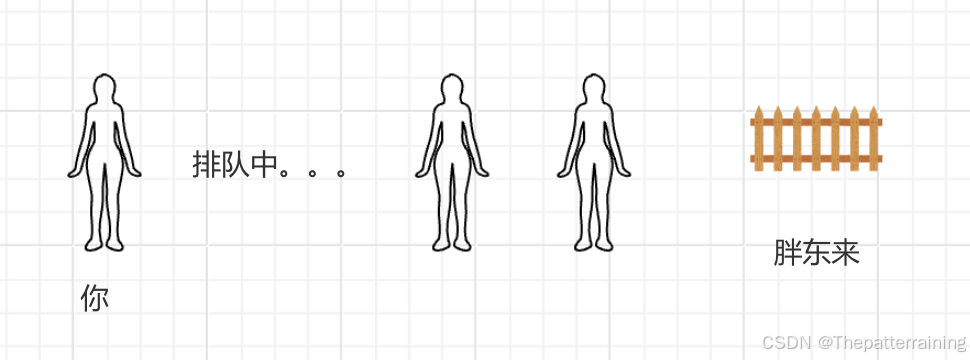

BIO就类似于你去胖东来,但是人太多了,要排队进去,而且你这个时候走了,那么你的位置就没了,需要重新排队,所以你不能离开,你只能排队等着!!!这就是所谓的同步阻塞。

在这里插入图片描述

原理:
BIO 是传统的 I/O 模型,在这个模型中,每次读取或写入数据时,线程都会被阻塞,直到操作完成。
每个连接对应一个线程,线程会一直阻塞,直到 I/O 操作完成后才能继续执行其他任务。

特性:

  • 阻塞:每次读写操作都会等待数据的到来或写入完成,阻塞当前线程。
  • 线程绑定:每个客户端连接都会占用一个独立的线程。
  • 简单直观:编程模型简单,适合小规模应用,但不适合高并发的场景。

优缺点:

  • 优点:实现简单,编程模型直观。
  • 缺点:性能差,尤其是在高并发场景下,线程过多导致资源浪费(线程上下文切换开销大)。

使用场景:
适合低并发、连接数不多的应用场景,例如小型 Web 服务。

NIO(New I/O,新 I/O)

NIO通过操作系统提供的IO多路复用机制,可以实现多线程的性能,因为IO多路复用,本质上是单线程的,所以省去了操作系统线程切换的开销。

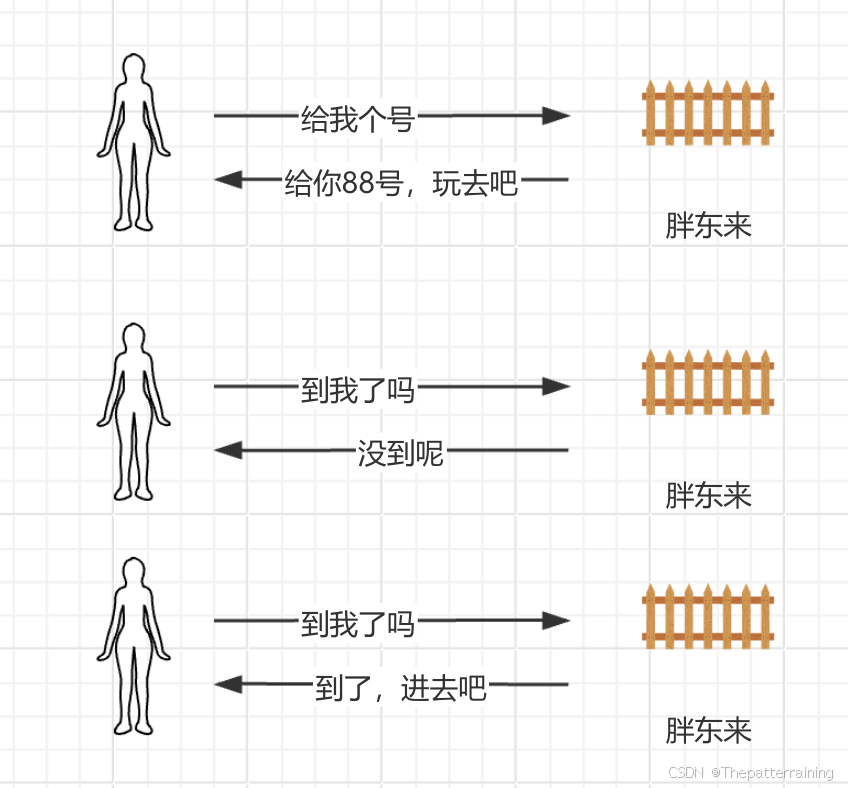

拿胖东来说,BIO你只能等着,但如果你是NIO,那么胖东来说,我给你发个号吧,你是88号,接下来你爱干啥干啥去,等我叫88号了,你过来就行了。但是呢,我只负责叫号,你离远了听不见那是你的事,你的时不时的过来问我一下,到88号了吗?到了你就进去,没到你就等着。

在这里插入图片描述

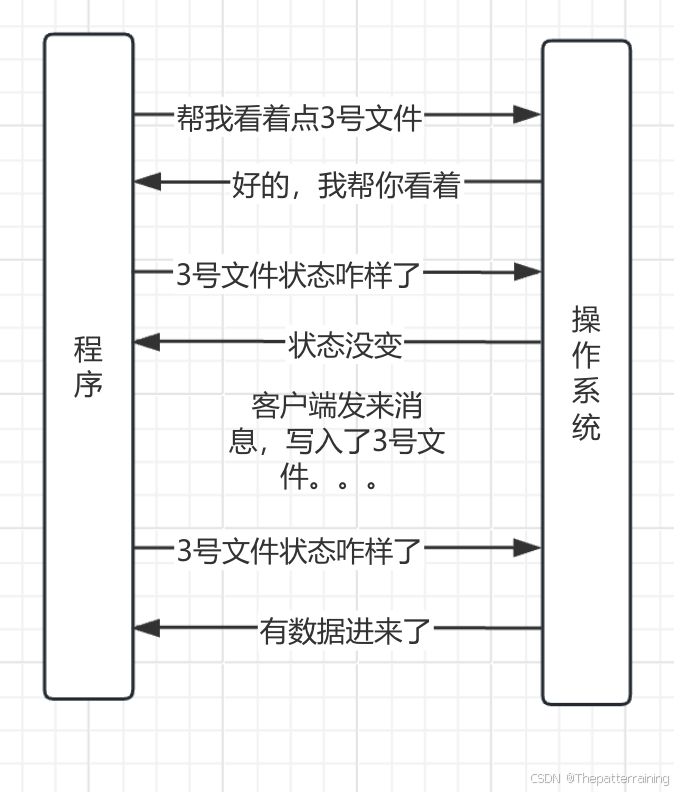

从代码来说,就是通过select进行订阅。比如select订阅文件描述符3号的状态,操作系统如果发现有数据从网络中传输过来,那么就写入3号文件,写完以后,操作系统就改变3号文件的状态,这个时候select如果过来判断3号的状态,发现变了,就知道可以执行对应的操作了,比如服务器开始运行,然后读取文件内容发送给客户端。

在这里插入图片描述

原理:
NIO 提供了 非阻塞 I/O 的能力,支持多路复用技术,允许一个线程同时处理多个 I/O 操作。
通过使用 Selector 和 Channel,NIO 可以在一个线程中处理多个客户端的 I/O 请求。
非阻塞:读取和写入操作不会阻塞线程,如果没有数据可用,线程会继续执行其他任务。

特性:

  • 非阻塞 I/O:可以通过轮询和事件通知的方式处理 I/O 请求,而不必阻塞等待。
  • 多路复用:通过 Selector 实现一个线程管理多个 Channel,处理多个连接。
  • 高效:减少了线程的开销,适用于高并发场景。

优缺点:

  • 优点:比 BIO 更高效,适合高并发、高负载的应用。
  • 缺点:编程模型较为复杂,需要理解 Selector、Channel、Buffer 的使用方式,开发成本较高。

使用场景:
高并发、大规模连接的网络应用,如服务器(HTTP、Chat Server 等)、数据库连接池、文件上传下载等。

AIO(Asynchronous I/O,异步 I/O)

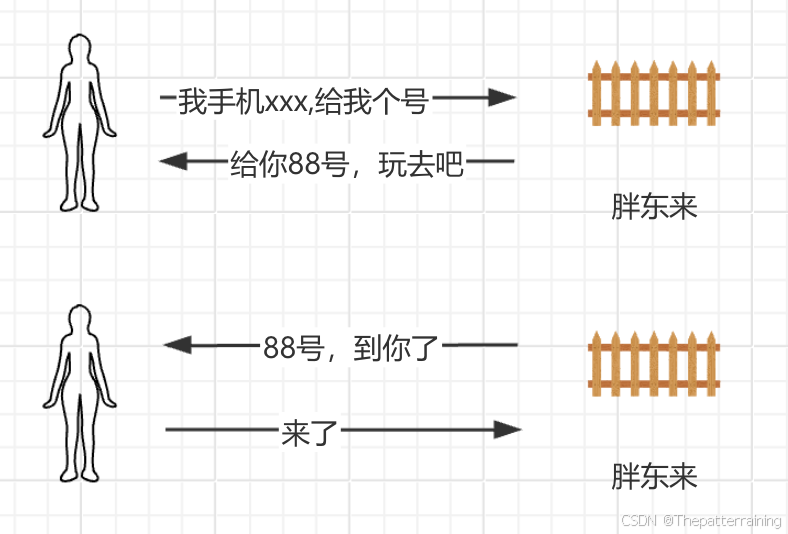

AIO就是说,在胖东来排队的时候,你找他要号的时候,还留了个手机号码,告诉他,到我了你就给我打电话,他给你88号,等叫到88号了,他就给你打电话说,到你了,过来吧。和NIO的区别就是你不用老过来问了,到了我打电话叫你。

在这里插入图片描述

原理:
AIO 是 Java 7 引入的异步 I/O 模型,它的关键特性是完全异步,即操作完成后系统会通过回调通知应用程序。
在 AIO 中,线程发起 I/O 请求后,不会阻塞等待,而是返回,等 I/O 操作完成时,操作系统会通知 Java 程序,程序再通过回调函数获取结果。

特性:

  • 异步:I/O 操作发起后,线程立即返回,不会等待操作完成。
  • 事件驱动:操作完成后,系统通过回调通知应用程序处理结果。
  • 无需轮询:不同于 NIO,AIO 不需要手动轮询 Selector,操作完成后直接通过回调处理结果。

优缺点:

  • 优点:可以进一步减少线程和上下文切换,性能非常高,适合超高并发的应用。
  • 缺点:复杂度最高,需要理解回调和事件处理机制,调试较为困难。

使用场景:
适用于极高并发的应用场景,如实时数据流处理、大规模分布式系统等。

特性BIONIOAIO
阻塞方式阻塞(每个操作阻塞当前线程)非阻塞(通过轮询和事件驱动)异步(操作完成后通过回调通知)
线程管理每个连接一个线程一个线程处理多个连接一个线程发起请求,回调通知结果
编程复杂度
性能性能差,适用于低并发场景性能优越,适用于高并发场景性能最优,适用于超高并发场景
适用场景小规模服务,低并发应用高并发应用,如 Web 服务器极高并发应用,如大数据流处理
NIO实现

说了这么多,小白也实现了NIO版本的服务器。代码如下

import java.io.IOException;
import java.nio.ByteBuffer;
import java.nio.channels.*;
import java.nio.file.*;
import java.util.Iterator;
import java.util.Set;

public class NIOHttpServer {

    private static final int PORT = 8888;
    private static final String FILE_TO_SERVE = "HelloWorld.java";

    public static void main(String[] args) {
        try {
            // 1. 打开一个 Selector,用于管理多个通道的 I/O 事件
            Selector selector = Selector.open();

            // 2. 打开一个 ServerSocketChannel,用于监听客户端连接
            ServerSocketChannel serverSocketChannel = ServerSocketChannel.open();

            // 3. 绑定到指定端口,并配置为非阻塞模式
            serverSocketChannel.bind(new java.net.InetSocketAddress(PORT));
            serverSocketChannel.configureBlocking(false);

            // 4. 将 ServerSocketChannel 注册到 Selector,监听 ACCEPT 事件
            serverSocketChannel.register(selector, SelectionKey.OP_ACCEPT);

            System.out.println("NIO HTTP Server started on port " + PORT);

            while (true) {
                // 5. 阻塞等待事件发生(或超时返回)
                selector.select();

                // 6. 获取所有准备好的事件
                Set<SelectionKey> selectedKeys = selector.selectedKeys();
                Iterator<SelectionKey> iterator = selectedKeys.iterator();

                while (iterator.hasNext()) {
                    SelectionKey key = iterator.next();
                    iterator.remove(); // 移除已处理的事件

                    if (key.isAcceptable()) {
                        // 处理新的客户端连接
                        handleAccept(key);
                    } else if (key.isReadable()) {
                        // 处理客户端请求
                        handleRead(key);
                    }
                }
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    // 接受客户端连接
    private static void handleAccept(SelectionKey key) throws IOException {
        ServerSocketChannel serverSocketChannel = (ServerSocketChannel) key.channel();
        SocketChannel clientChannel = serverSocketChannel.accept();
        clientChannel.configureBlocking(false);
        // 注册客户端通道到 Selector,监听 READ 事件
        clientChannel.register(key.selector(), SelectionKey.OP_READ);
        System.out.println("Accepted new connection from " + clientChannel.getRemoteAddress());
    }

    // 读取客户端请求并响应
    private static void handleRead(SelectionKey key) throws IOException {
        SocketChannel clientChannel = (SocketChannel) key.channel();
        ByteBuffer buffer = ByteBuffer.allocate(1024);

        // 读取客户端发送的数据
        int bytesRead = clientChannel.read(buffer);
        if (bytesRead == -1) {
            // 客户端关闭连接
            clientChannel.close();
            return;
        }

        buffer.flip();
        byte[] requestData = new byte[buffer.remaining()];
        buffer.get(requestData);
        String request = new String(requestData);
        System.out.println("Received request:\n" + request);

        // 读取 HelloWorld.java 文件内容
        String fileContent;
        try {
            fileContent = Files.readString(Paths.get(FILE_TO_SERVE));
            System.out.println("Read file content:\n" + fileContent);
        } catch (IOException e) {
            fileContent = "Error reading file: " + e.getMessage();
            System.err.println(fileContent);
        }

        // 构造 HTTP 响应
        String response = "HTTP/1.1 200 OK\r\n" +
                "Content-Type: application/json\r\n" +
                "Content-Length: " + fileContent.length() + "\r\n" +
                "\r\n" +
                fileContent;

        // 将响应写入客户端
        ByteBuffer responseBuffer = ByteBuffer.wrap(response.getBytes());
        clientChannel.write(responseBuffer);
        clientChannel.close(); // 响应完成后关闭连接
    }
}

在执行一下压测,结果表明处理了24个请求,吞吐量大大增加了。性能有明显提升,而且更加稳定。

Running 30s test @ http://localhost:8888
  10 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   145.80ms    9.32ms 170.26ms   87.50%
    Req/Sec    14.88      8.95    30.00     62.50%
  Latency Distribution
     50%  142.46ms
     75%  142.72ms
     90%  168.73ms
     99%  170.26ms
  24 requests in 30.09s, 4.52KB read
  Socket errors: connect 7967, read 192317, write 0, timeout 0
Requests/sec:      0.80
Transfer/sec:     153.92B

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

小白又把代码重新改了一遍。

import java.io.IOException;
import java.nio.ByteBuffer;
import java.nio.channels.*;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.Iterator;
import java.util.Set;

public class NIOHttpServer {

    private static final int PORT = 8888;
    private static final String FILE_PATH = "HelloWorld.java";

    public static void main(String[] args) {
        try {
            new NIOHttpServer().start();
        } catch (IOException e) {
            System.err.println("Server error: " + e.getMessage());
            e.printStackTrace();
        }
    }

    public void start() throws IOException {
        Selector selector = Selector.open();
        ServerSocketChannel serverChannel = ServerSocketChannel.open();
        serverChannel.bind(new java.net.InetSocketAddress(PORT));
        serverChannel.configureBlocking(false);
        serverChannel.register(selector, SelectionKey.OP_ACCEPT);

        System.out.println("Server started on port " + PORT);

        while (true) {
            selector.select();
            Set<SelectionKey> selectedKeys = selector.selectedKeys();
            Iterator<SelectionKey> keyIterator = selectedKeys.iterator();

            while (keyIterator.hasNext()) {
                SelectionKey key = keyIterator.next();
                keyIterator.remove();

                if (key.isAcceptable()) {
                    handleAccept(key, selector);
                } else if (key.isReadable()) {
                    handleRead(key);
                }
            }
        }
    }

    private void handleAccept(SelectionKey key, Selector selector) throws IOException {
        ServerSocketChannel serverChannel = (ServerSocketChannel) key.channel();
        SocketChannel clientChannel = serverChannel.accept();
        clientChannel.configureBlocking(false);
        clientChannel.register(selector, SelectionKey.OP_READ);
        System.out.println("Accepted connection from " + clientChannel.getRemoteAddress());
    }

    private void handleRead(SelectionKey key) {
        SocketChannel clientChannel = (SocketChannel) key.channel();
        ByteBuffer buffer = ByteBuffer.allocate(1024);

        try {
            int bytesRead = clientChannel.read(buffer);
            if (bytesRead == -1) {
                clientChannel.close();
                return;
            }

            buffer.flip();
            String request = new String(buffer.array(), 0, buffer.limit());
            System.out.println("Received request: \n" + request);

            String fileContent = readFileContent(FILE_PATH);
            String response = constructHttpResponse(fileContent);
            ByteBuffer responseBuffer = ByteBuffer.wrap(response.getBytes());

            while (responseBuffer.hasRemaining()) {
                clientChannel.write(responseBuffer);
            }

            clientChannel.close();
        } catch (IOException e) {
            System.err.println("Error handling client request: " + e.getMessage());
            try {
                clientChannel.close();
            } catch (IOException ex) {
                System.err.println("Error closing client connection: " + ex.getMessage());
            }
        }
    }

    private String constructHttpResponse(String bodyContent) {
        String headers = constructHttpHeaders(bodyContent.length());
        return headers + bodyContent;
    }

    private String constructHttpHeaders(int contentLength) {
        return "HTTP/1.1 200 OK\r\n" +
                "Content-Type: text/plain\r\n" +
                "Content-Length: " + contentLength + "\r\n" +
                "\r\n";
    }

    private String readFileContent(String filePath) {
        try {
            Path path = Paths.get(filePath);
            return Files.readString(path);
        } catch (IOException e) {
            System.err.println("Error reading file: " + e.getMessage());
            return "File not found or error reading file.";
        }
    }
}

在这里插入图片描述

在这里插入图片描述

零拷贝技术

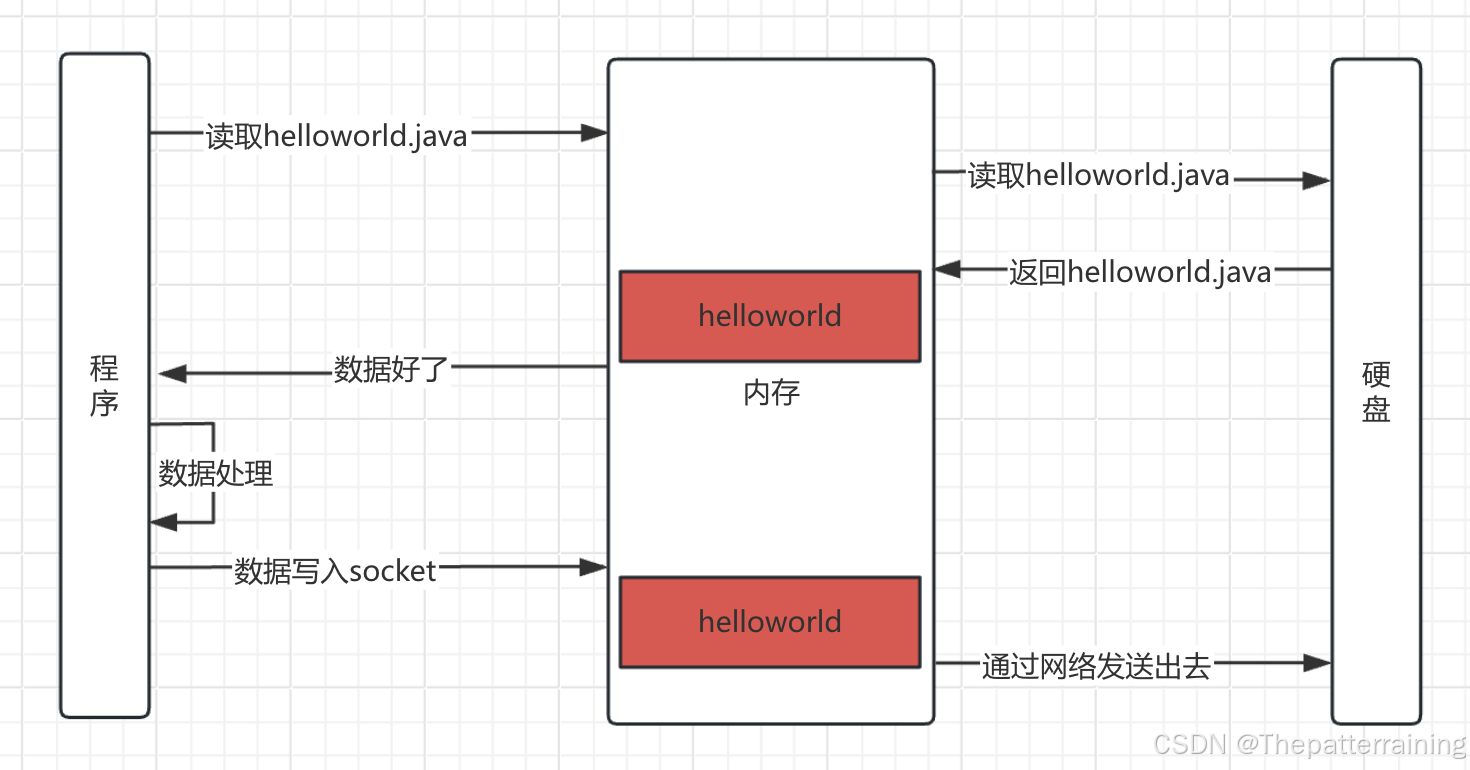

现在代码中读取文件内容在返回的过程如下图所示。可以看到一共有7步,有多次IO,而且内存里面有两份一样的数据,空间占用大。
在这里插入图片描述

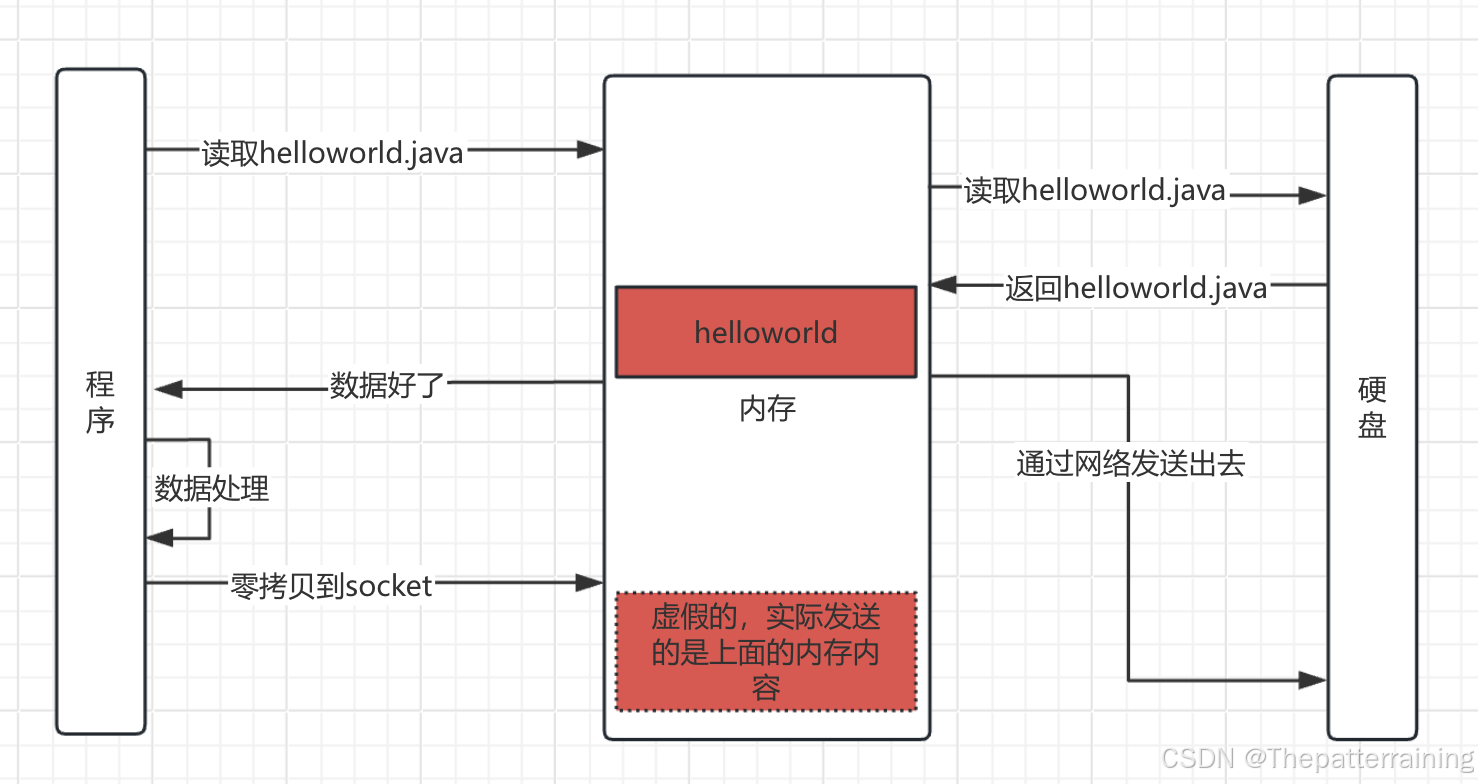

零拷贝是操作系统提供的一种技术,操作系统提供了一个函数,通过这个函数就可以实现零拷贝,看一下零拷贝的过程吧。

零拷贝可以减少IO操作次数,减少内存空间占用,内存里面实际上只有一份内容,网络发送读取的就是那个内容。没有发送内存拷贝动作。

在这里插入图片描述

用零拷贝技术重写代码

import java.io.IOException;
import java.nio.ByteBuffer;
import java.nio.channels.*;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.Iterator;
import java.util.Set;

public class NIOZeroCopyHttpServer {

    private static final int PORT = 8888;
    private static final String FILE_PATH = "HelloWorld.java";

    public static void main(String[] args) {
        try {
            new NIOZeroCopyHttpServer().start();
        } catch (IOException e) {
            System.err.println("Server error: " + e.getMessage());
            e.printStackTrace();
        }
    }

    public void start() throws IOException {
        Selector selector = Selector.open();
        ServerSocketChannel serverChannel = ServerSocketChannel.open();
        serverChannel.bind(new java.net.InetSocketAddress(PORT));
        serverChannel.configureBlocking(false);
        serverChannel.register(selector, SelectionKey.OP_ACCEPT);

        System.out.println("Server started on port " + PORT);

        while (true) {
            selector.select();
            Set<SelectionKey> selectedKeys = selector.selectedKeys();
            Iterator<SelectionKey> keyIterator = selectedKeys.iterator();

            while (keyIterator.hasNext()) {
                SelectionKey key = keyIterator.next();
                keyIterator.remove();

                if (key.isAcceptable()) {
                    handleAccept(key, selector);
                } else if (key.isReadable()) {
                    handleRead(key);
                }
            }
        }
    }

    private void handleAccept(SelectionKey key, Selector selector) throws IOException {
        ServerSocketChannel serverChannel = (ServerSocketChannel) key.channel();
        SocketChannel clientChannel = serverChannel.accept();
        clientChannel.configureBlocking(false);
        clientChannel.register(selector, SelectionKey.OP_READ);
        System.out.println("Accepted connection from " + clientChannel.getRemoteAddress());
    }

    private void handleRead(SelectionKey key) {
        SocketChannel clientChannel = (SocketChannel) key.channel();
        ByteBuffer buffer = ByteBuffer.allocate(1024);

        try {
            int bytesRead = clientChannel.read(buffer);
            if (bytesRead == -1) {
                clientChannel.close();
                return;
            }

            buffer.flip();
            String request = new String(buffer.array(), 0, buffer.limit());
            System.out.println("Received request: \n" + request);

            sendFileUsingZeroCopy(clientChannel, FILE_PATH);
        } catch (IOException e) {
            System.err.println("Error handling client request: " + e.getMessage());
            try {
                clientChannel.close();
            } catch (IOException ex) {
                System.err.println("Error closing client connection: " + ex.getMessage());
            }
        }
    }

    private void sendFileUsingZeroCopy(SocketChannel clientChannel, String filePath) {
        try (FileChannel fileChannel = FileChannel.open(Paths.get(filePath))) {
            long fileSize = fileChannel.size();
            String headers = constructHttpHeaders(fileSize);
            ByteBuffer headerBuffer = ByteBuffer.wrap(headers.getBytes());

            // Write headers first
            while (headerBuffer.hasRemaining()) {
                clientChannel.write(headerBuffer);
            }

            // 零拷贝
            long position = 0;
            while (position < fileSize) {
                position += fileChannel.transferTo(position, fileSize - position, clientChannel);
            }

            clientChannel.close();
        } catch (IOException e) {
            System.err.println("Error sending file: " + e.getMessage());
        }
    }

    private String constructHttpHeaders(long contentLength) {
        return "HTTP/1.1 200 OK\r\n" +
                "Content-Type: text/plain\r\n" +
                "Content-Length: " + contentLength + "\r\n" +
                "Connection: close\r\n" +
                "\r\n";
    }
}

再次使用wrk压测。可以看到同样30s内,处理了48个请求,吞吐量再次提升。性能更加强大了。

Running 30s test @ http://localhost:8888
  10 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   100.27ms   64.55ms 208.10ms   72.92%
    Req/Sec    36.45     88.79   303.00     90.91%
  Latency Distribution
     50%   62.63ms
     75%  200.92ms
     90%  204.08ms
     99%  208.10ms
  48 requests in 30.10s, 9.66KB read
  Socket errors: connect 7967, read 195016, write 3, timeout 0
Requests/sec:      1.59
Transfer/sec:     328.50B

在这里插入图片描述

零拷贝+线程池

小白又给代码加上了线程池。代码如下

import java.io.IOException;
import java.nio.ByteBuffer;
import java.nio.channels.*;
import java.nio.file.Paths;
import java.util.Iterator;
import java.util.Set;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

public class NIOThreadZeroCopyHttpServer {

    private static final int PORT = 8888;
    private static final String FILE_PATH = "HelloWorld.java";
    private static final int THREAD_POOL_SIZE = 10;

    private final ExecutorService threadPool = Executors.newFixedThreadPool(THREAD_POOL_SIZE);

    public static void main(String[] args) {
        try {
            new NIOThreadZeroCopyHttpServer().start();
        } catch (IOException e) {
            System.err.println("Server error: " + e.getMessage());
            e.printStackTrace();
        }
    }

    public void start() throws IOException {
        Selector selector = Selector.open();
        ServerSocketChannel serverChannel = ServerSocketChannel.open();
        serverChannel.bind(new java.net.InetSocketAddress(PORT));
        serverChannel.configureBlocking(false);
        serverChannel.register(selector, SelectionKey.OP_ACCEPT);

        System.out.println("Server started on port " + PORT);

        while (true) {
            selector.select(); // Block until events are available
            Set<SelectionKey> selectedKeys = selector.selectedKeys();
            Iterator<SelectionKey> keyIterator = selectedKeys.iterator();

            while (keyIterator.hasNext()) {
                SelectionKey key = keyIterator.next();
                keyIterator.remove(); // Ensure key is removed to prevent re-processing

                if (!key.isValid()) {
                    continue; // Skip invalid keys
                }

                try {
                    if (key.isAcceptable()) {
                        handleAccept(key, selector);
                    }
                } catch (CancelledKeyException e) {
                    System.err.println("CancelledKeyException: " + e.getMessage());
                }
            }
        }
    }

    private void handleAccept(SelectionKey key, Selector selector) throws IOException {
        ServerSocketChannel serverChannel = (ServerSocketChannel) key.channel();
        SocketChannel clientChannel = serverChannel.accept();
        clientChannel.configureBlocking(false);
        clientChannel.setOption(java.net.StandardSocketOptions.TCP_NODELAY, true);
        clientChannel.register(selector, SelectionKey.OP_READ);

        System.out.println("Accepted connection from " + clientChannel.getRemoteAddress());

        // Submit task to thread pool for processing
        threadPool.submit(() -> handleRequest(clientChannel));
    }

    private void handleRequest(SocketChannel clientChannel) {
        ByteBuffer buffer = ByteBuffer.allocate(1024);
        try {
            int bytesRead = clientChannel.read(buffer);
            if (bytesRead == -1) {
                clientChannel.close();
                return;
            }

            buffer.flip();
            String request = new String(buffer.array(), 0, buffer.limit());
            System.out.println("Received request: \n" + request);

            sendFileUsingZeroCopy(clientChannel, FILE_PATH);
        } catch (IOException e) {
            System.err.println("Error handling client request: " + e.getMessage());
            try {
                clientChannel.close();
            } catch (IOException ex) {
                System.err.println("Error closing client connection: " + ex.getMessage());
            }
        }
    }

    private void sendFileUsingZeroCopy(SocketChannel clientChannel, String filePath) {
        try (FileChannel fileChannel = FileChannel.open(Paths.get(filePath))) {
            long fileSize = fileChannel.size();
            String headers = constructHttpHeaders(fileSize);
            ByteBuffer headerBuffer = ByteBuffer.wrap(headers.getBytes());

            // Write headers first
            while (headerBuffer.hasRemaining()) {
                clientChannel.write(headerBuffer);
            }

            // Use zero-copy to send file content
            long position = 0;
            while (position < fileSize) {
                position += fileChannel.transferTo(position, fileSize - position, clientChannel);
            }

            clientChannel.close();
        } catch (IOException e) {
            System.err.println("Error sending file: " + e.getMessage());
        }
    }

    private String constructHttpHeaders(long contentLength) {
        return "HTTP/1.1 200 OK\r\n" +
                "Content-Type: text/plain\r\n" +
                "Content-Length: " + contentLength + "\r\n" +
                "Connection: close\r\n" +
                "\r\n";
    }
}

压测结果如下,整体性能有明显提升

Running 30s test @ http://localhost:8888
  10 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     7.64ms    8.85ms  27.32ms   82.47%
    Req/Sec   113.30     99.51   300.00     80.00%
  Latency Distribution
     50%    2.09ms
     75%   13.33ms
     90%   23.46ms
     99%   27.32ms
  113 requests in 30.10s, 22.73KB read
  Socket errors: connect 7967, read 191435, write 12, timeout 0
Requests/sec:      3.75
Transfer/sec:     773.29B

在这里插入图片描述

在这里插入图片描述

BOSS-Worker模式

之前的代码里面,Worker线程接收到请求以后进行工作,这个时候就会占用这个请求连接,在工作。就相当于干了两份活

  • 接收请求
  • 处理任务

将这两个活,分给两个人,就能提升效率,BOSS线程池仅仅接收请求,再把请求分配给Worker线程,Worker线程仅仅需要处理任务。还有一个好处就是,BOSS可以有多个,比如多个领导负责分配任务。

新的代码如下

import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.ByteBuffer;
import java.nio.channels.*;
import java.nio.file.Paths;
import java.util.Iterator;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

public class NIOBossWorkerHttpServer {
    private static final int PORT = 8888;
    private static final int BUFFER_SIZE = 1024;
    private static final int BOSS_THREAD_COUNT = 1;  // Boss 线程数
    private static final int WORKER_THREAD_COUNT = 10; // Worker 线程数
    private static final String FILE_PATH = "HelloWorld.java";

    public static void main(String[] args) throws IOException {
        // Boss 线程池
        ExecutorService bossThreadPool = Executors.newFixedThreadPool(BOSS_THREAD_COUNT);
        // Worker 线程池
        ExecutorService workerThreadPool = Executors.newFixedThreadPool(WORKER_THREAD_COUNT);

        // 创建一个主选择器(Boss Selector)
        Selector bossSelector = Selector.open();
        ServerSocketChannel serverChannel = ServerSocketChannel.open();
        serverChannel.configureBlocking(false);
        serverChannel.bind(new InetSocketAddress(PORT));
        serverChannel.register(bossSelector, SelectionKey.OP_ACCEPT);

        System.out.println("HTTP Server started on port " + PORT);

        // Boss 线程负责分发连接
        bossThreadPool.submit(() -> {
            try {
                while (true) {
                    bossSelector.select(); // 等待事件
                    Iterator<SelectionKey> iterator = bossSelector.selectedKeys().iterator();

                    while (iterator.hasNext()) {
                        SelectionKey key = iterator.next();
                        iterator.remove();

                        if (key.isAcceptable()) {
                            SocketChannel clientChannel = serverChannel.accept();
                            clientChannel.configureBlocking(false);
                            System.out.println("Accepted new connection: " + clientChannel.getRemoteAddress());

                            // 将新连接交给 Worker 线程池处理
                            workerThreadPool.submit(() -> handleClient(clientChannel));
                        }
                    }
                }
            } catch (IOException e) {
                System.err.println("Error in Boss thread: " + e.getMessage());
            }
        });
    }

    /**
     * Worker 线程处理客户端连接的读写操作
     */
    private static void handleClient(SocketChannel clientChannel) {
        try (Selector workerSelector = Selector.open()) {
            clientChannel.register(workerSelector, SelectionKey.OP_READ);
            ByteBuffer buffer = ByteBuffer.allocate(BUFFER_SIZE);

            while (clientChannel.isOpen()) {
                workerSelector.select(); // 等待事件
                Iterator<SelectionKey> iterator = workerSelector.selectedKeys().iterator();

                while (iterator.hasNext()) {
                    SelectionKey key = iterator.next();
                    iterator.remove();

                    if (key.isReadable()) {
                        SocketChannel channel = (SocketChannel) key.channel();
                        buffer.clear();
                        int bytesRead = channel.read(buffer);
                        if (bytesRead == -1) {
                            closeChannel(channel);
                            return;
                        }

                        // 请求解析 (这里只简单返回文件内容作为响应)
                        buffer.flip();
                        sendFile(channel, FILE_PATH);
                    }
                }
            }
        } catch (IOException e) {
            System.err.println("Error in Worker thread: " + e.getMessage());
        } finally {
            closeChannel(clientChannel);
        }
    }

    /**
     * 使用零拷贝技术发送文件
     */
    private static void sendFile(SocketChannel clientChannel, String filePath) {
        try (FileChannel fileChannel = FileChannel.open(Paths.get(filePath))) {
            long fileSize = fileChannel.size();

            // 构造 HTTP 响应头
            String headers = "HTTP/1.1 200 OK\r\n" +
                    "Content-Type: text/plain\r\n" +
                    "Content-Length: " + fileSize + "\r\n" +
                    "\r\n";
            ByteBuffer headerBuffer = ByteBuffer.wrap(headers.getBytes());

            // 发送响应头
            while (headerBuffer.hasRemaining()) {
                clientChannel.write(headerBuffer);
            }

            // 使用零拷贝发送文件内容
            long position = 0;
            while (position < fileSize) {
                position += fileChannel.transferTo(position, fileSize - position, clientChannel);
            }
            System.out.println("File sent successfully to: " + clientChannel.getRemoteAddress());
        } catch (IOException e) {
            System.err.println("Error sending file: " + e.getMessage());
        }
    }

    /**
     * 关闭通道
     */
    private static void closeChannel(Channel channel) {
        if (channel != null && channel.isOpen()) {
            try {
                channel.close();
                System.out.println("Channel closed.");
            } catch (IOException e) {
                System.err.println("Error closing channel: " + e.getMessage());
            }
        }
    }
}

当BOSS数量为1个的时候,压测结果。可以看到吞吐量大大提升了一波。整体性能更好了。

Running 30s test @ http://localhost:8888
  10 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   326.78ms   66.97ms   1.18s    95.07%
    Req/Sec     7.73      9.44    40.00     87.74%
  Latency Distribution
     50%  310.27ms
     75%  340.00ms
     90%  369.37ms
     99%  488.59ms
  912 requests in 30.10s, 166.80KB read
  Socket errors: connect 7967, read 187538, write 0, timeout 0
Requests/sec:     30.30
Transfer/sec:      5.54KB

当BOSS数量为4个的时候,压测结果,能看到性能再次提升了。

Running 30s test @ http://localhost:8888
  10 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   221.00ms   25.30ms 331.05ms   85.11%
    Req/Sec    23.14     14.81    70.00     50.55%
  Latency Distribution
     50%  211.31ms
     75%  226.24ms
     90%  257.96ms
     99%  297.11ms
  1350 requests in 30.10s, 246.66KB read
  Socket errors: connect 7967, read 242633, write 0, timeout 0
Requests/sec:     44.85
Transfer/sec:      8.19KB

在这里插入图片描述

在这里插入图片描述

在这里插入图片描述

netty

Netty是一个NIO客户端服务器框架,可以快速轻松地开发网络应用程序,例如协议服务器和客户端。它极大地简化了网络编程,如TCP和UDP套接字服务器。

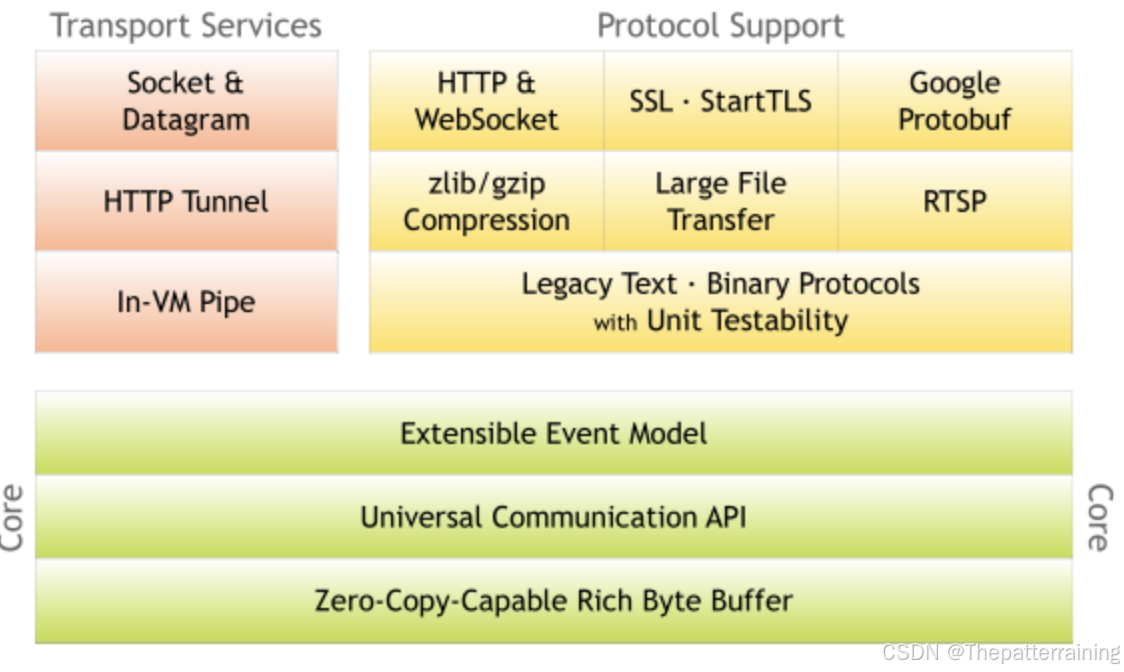

netty就是基于上述的网络编程实现的,区别就是netty封装的更好,更完善,做了一些优化,支持了更多的协议。参考netty官网的架构图。

可以看到支持TCP、UDP, 支持大文件传输,支持压缩,支持HTTP、HTTPS、SMTP邮件、Google Protobuf一般用来实现RPC,通过事件模型实现,还实现了零拷贝技术。

在这里插入图片描述

如何使用netty来实现上面的服务器

通过netty实现的话,代码简单了很多,只需要关注读取文件并返回给客户端这个逻辑就可以了。但是其根本模型没有变化,比如BOSS和Worker,还有零拷贝,线程池,NIO技术,这些是netty的核心,他只是增加了更多的逻辑,支持,优化等。

package org.example;

import io.netty.bootstrap.ServerBootstrap;
import io.netty.buffer.Unpooled;
import io.netty.channel.*;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.handler.codec.http.*;
import io.netty.handler.codec.http.HttpHeaders;
import io.netty.handler.stream.ChunkedWriteHandler;
import io.netty.util.CharsetUtil;


import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;

public class Main {
    private static final int PORT = 8888;

    public static void main(String[] args) {
        // Boss 线程池: 接收客户端连接
        EventLoopGroup bossGroup = new NioEventLoopGroup(1);
        // Worker 线程池: 处理 I/O 操作
        EventLoopGroup workerGroup = new NioEventLoopGroup(10);

        try {
            // 创建 ServerBootstrap
            ServerBootstrap b = new ServerBootstrap();
            b.group(bossGroup, workerGroup)
                    .channel(io.netty.channel.socket.nio.NioServerSocketChannel.class)
                    .childHandler(new ChannelInitializer<Channel>() {
                        @Override
                        protected void initChannel(Channel ch) {
                            ch.pipeline().addLast(new HttpServerCodec()); // HTTP 编解码
                            ch.pipeline().addLast(new HttpObjectAggregator(65536)); // 处理 HTTP 请求体
                            ch.pipeline().addLast(new ChunkedWriteHandler()); // 支持大文件传输
                            ch.pipeline().addLast(new HelloWorldServerHandler()); // 自定义处理逻辑
                        }
                    });

            // 绑定端口并启动
            ChannelFuture f = b.bind(PORT).sync();
            System.out.println("Server started on port 8888...");

            // 等待服务器关闭
            f.channel().closeFuture().sync();
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            workerGroup.shutdownGracefully();
            bossGroup.shutdownGracefully();
        }
    }
}

class HelloWorldServerHandler extends SimpleChannelInboundHandler<FullHttpRequest> {

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, FullHttpRequest msg) throws Exception {
        // 读取文件内容
        File file = new File("./HelloWorld.java");

        if (file.exists()) {
            byte[] fileContent = Files.readAllBytes(file.toPath());
            FullHttpResponse response = new DefaultFullHttpResponse(HttpVersion.HTTP_1_1, HttpResponseStatus.OK,
                    Unpooled.copiedBuffer(fileContent));

            // 设置响应头
            response.headers().set(HttpHeaders.Names.CONTENT_TYPE, "text/plain; charset=UTF-8");
            response.headers().set(HttpHeaders.Names.CONTENT_LENGTH, response.content().readableBytes());

            // 发送响应
            ctx.writeAndFlush(response).addListener(ChannelFutureListener.CLOSE);
        } else {
            // 文件不存在时返回 404
            FullHttpResponse response = new DefaultFullHttpResponse(HttpVersion.HTTP_1_1, HttpResponseStatus.NOT_FOUND,
                    Unpooled.copiedBuffer("File Not Found".getBytes(CharsetUtil.UTF_8)));

            response.headers().set(HttpHeaders.Names.CONTENT_TYPE, "text/plain; charset=UTF-8");
            response.headers().set(HttpHeaders.Names.CONTENT_LENGTH, response.content().readableBytes());

            ctx.writeAndFlush(response).addListener(ChannelFutureListener.CLOSE);
        }
    }
}

压测结果,性能很高。

Running 30s test @ http://localhost:8888
  10 threads and 10000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     8.39ms   12.28ms 113.55ms   92.66%
    Req/Sec   192.24    343.10     2.51k    88.08%
  Latency Distribution
     50%    4.41ms
     75%    9.55ms
     90%   17.22ms
     99%   72.18ms
  15693 requests in 30.10s, 3.02MB read
  Socket errors: connect 7967, read 22110, write 1, timeout 0
Requests/sec:    521.32
Transfer/sec:    102.84KB
并发测试对比

上面都是10个线程并发10000测试的结果。我们现在改成并发1000,再做个对比。

netty实现的压测结果,和10000没什么区别

Running 30s test @ http://localhost:8888
  10 threads and 1000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency    94.20ms  178.90ms 896.17ms   86.02%
    Req/Sec   324.69    443.24     2.20k    85.19%
  Latency Distribution
     50%   10.05ms
     75%   49.68ms
     90%  365.89ms
     99%  724.64ms
  16390 requests in 30.05s, 3.16MB read
  Socket errors: connect 0, read 36092, write 117, timeout 0
Requests/sec:    545.36
Transfer/sec:    107.58KB

我们自己实现的BOSS-Worker代码,压测结果,1000并发的性能提升很明显。因为我们的实现更加原始,而netty的实现更重。更注重高并发,对于低并发而言我们的实现更好,这也说明我们确实实现了netty的核心功能。

Running 30s test @ http://localhost:8888
  10 threads and 1000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   205.91us  529.03us  75.25ms   99.30%
    Req/Sec    15.51k     5.85k   25.50k    62.44%
  Latency Distribution
     50%  177.00us
     75%  207.00us
     90%  245.00us
     99%  518.00us
  1389306 requests in 30.09s, 247.76MB read
  Socket errors: connect 0, read 10787, write 0, timeout 0
Requests/sec:  46169.43
Transfer/sec:      8.23MB

接下来是线程池+NIO+零拷贝的实现压测结果。对于低并发的性能同样很好,但是比BOSS-Worker实现低了很多很多。

Running 30s test @ http://localhost:8888
  10 threads and 1000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     7.38ms   13.68ms 201.55ms   91.31%
    Req/Sec   102.92    287.63     2.54k    92.41%
  Latency Distribution
     50%    3.65ms
     75%    6.38ms
     90%   18.18ms
     99%   68.71ms
  11677 requests in 30.08s, 2.29MB read
  Socket errors: connect 0, read 454831, write 242, timeout 0
Requests/sec:    388.15
Transfer/sec:     78.09KB

接下来试试NIO+零拷贝的实现压测结果。可以看到结果也很棒

Running 30s test @ http://localhost:8888
  10 threads and 1000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     4.49ms    9.53ms 178.38ms   93.80%
    Req/Sec   127.52    313.84     2.42k    91.95%
  Latency Distribution
     50%    2.21ms
     75%    4.10ms
     90%    8.91ms
     99%   41.68ms
  13680 requests in 30.06s, 2.69MB read
  Socket errors: connect 0, read 80895, write 7, timeout 0
Requests/sec:    455.12
Transfer/sec:     91.56KB

再看看NIO的实现压测结果,因为没有零拷贝,所以执行时间增加了很多。尤其是最大延迟,吞吐量也有降低。

Running 30s test @ http://localhost:8888
  10 threads and 1000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     8.24ms   27.62ms 675.49ms   96.24%
    Req/Sec   125.39    301.56     3.01k    91.31%
  Latency Distribution
     50%    2.22ms
     75%    9.52ms
     90%   24.23ms
     99%   45.71ms
  11657 requests in 30.10s, 2.08MB read
  Socket errors: connect 0, read 87555, write 1308, timeout 0
Requests/sec:    387.33
Transfer/sec:     70.73KB

最后看看BIO的实现吧。可以看到吞吐量还是低了不少的。

Running 30s test @ http://localhost:8888
  10 threads and 1000 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency    55.22ms   48.14ms 181.62ms   65.71%
    Req/Sec    83.94    221.86     1.33k    93.39%
  Latency Distribution
     50%   48.44ms
     75%   68.44ms
     90%  153.94ms
     99%  170.59ms
  5304 requests in 30.09s, 1.08MB read
  Socket errors: connect 0, read 60714, write 723, timeout 0
Requests/sec:    176.29
Transfer/sec:     36.67KB

整体总结而言,主要的提升手段是NIO和BOSS-Worker模型,零拷贝也有一定的性能提升。

在这里插入图片描述

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
