创建项目的思路

分析业务---->建立数据库----->实现后端功能----->完成前端页面展示

一、创建数据库

/*
Navicat MySQL Data Transfer

Source Server         : 数据库教学
Source Server Version : 80016
Source Host           : localhost:3306
Source Database       : ssmbuild

Target Server Type    : MYSQL
Target Server Version : 80016
File Encoding         : 65001

Date: 2022-04-01 11:37:29
*/

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for `books`
-- ----------------------------
DROP TABLE IF EXISTS `books`;
CREATE TABLE `books` (
  `bookID` int(10) NOT NULL,
  `bookName` varchar(100) NOT NULL,
  `bookCounts` int(11) NOT NULL,
  `detail` varchar(200) DEFAULT NULL,
  PRIMARY KEY (`bookID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of books
-- ----------------------------
INSERT INTO `books` VALUES ('1', 'java', '1', '从入门到放弃');
INSERT INTO `books` VALUES ('2', 'Mysal', '10', '从删库到跑路');
INSERT INTO `books` VALUES ('3', 'Linux', '5', '从进门到金老');

二、创建一个maven项目

创建maven后第一步配置pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>RegisterHuman-SSM</artifactId>
    <version>1.0-SNAPSHOT</version>

    <!--依赖：junit，数据库驱动，连接池，servlet，jsp，mybatis，mybatis-spring spring 最基本的依赖-->
    <dependencies>
        <!--Junit-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
        <!--数据库驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.12</version>
        </dependency>
        <!-- 数据库连接池 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>

        <!--Servlet - JSP -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <!--Mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.2</version>
        </dependency>

        <!--Spring-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>
        <!--Lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.10</version>
        </dependency>
    </dependencies>

    <!-- 静态资源导出问题 -->
    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>


</project>

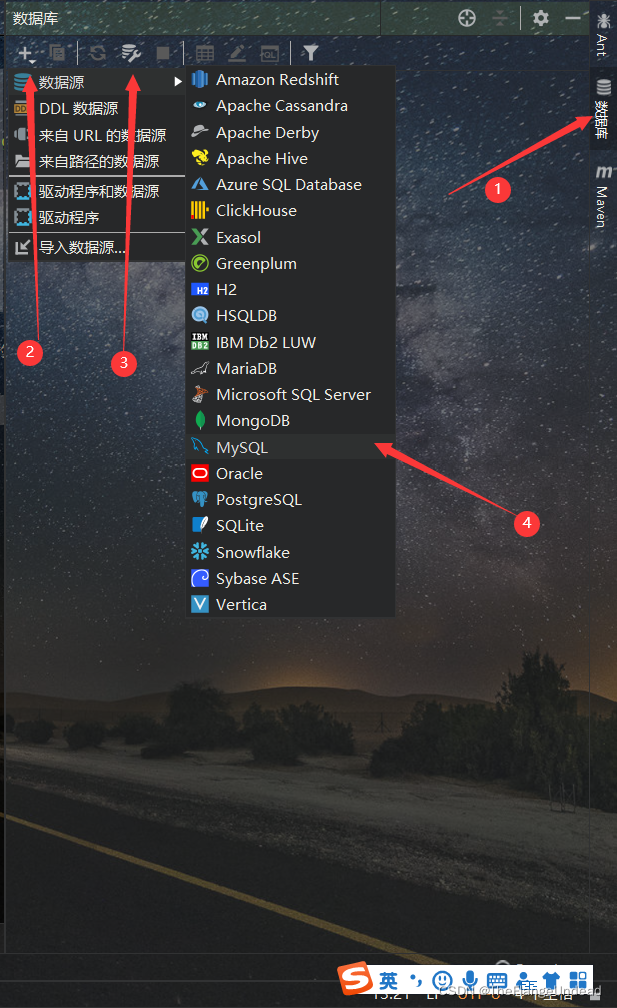

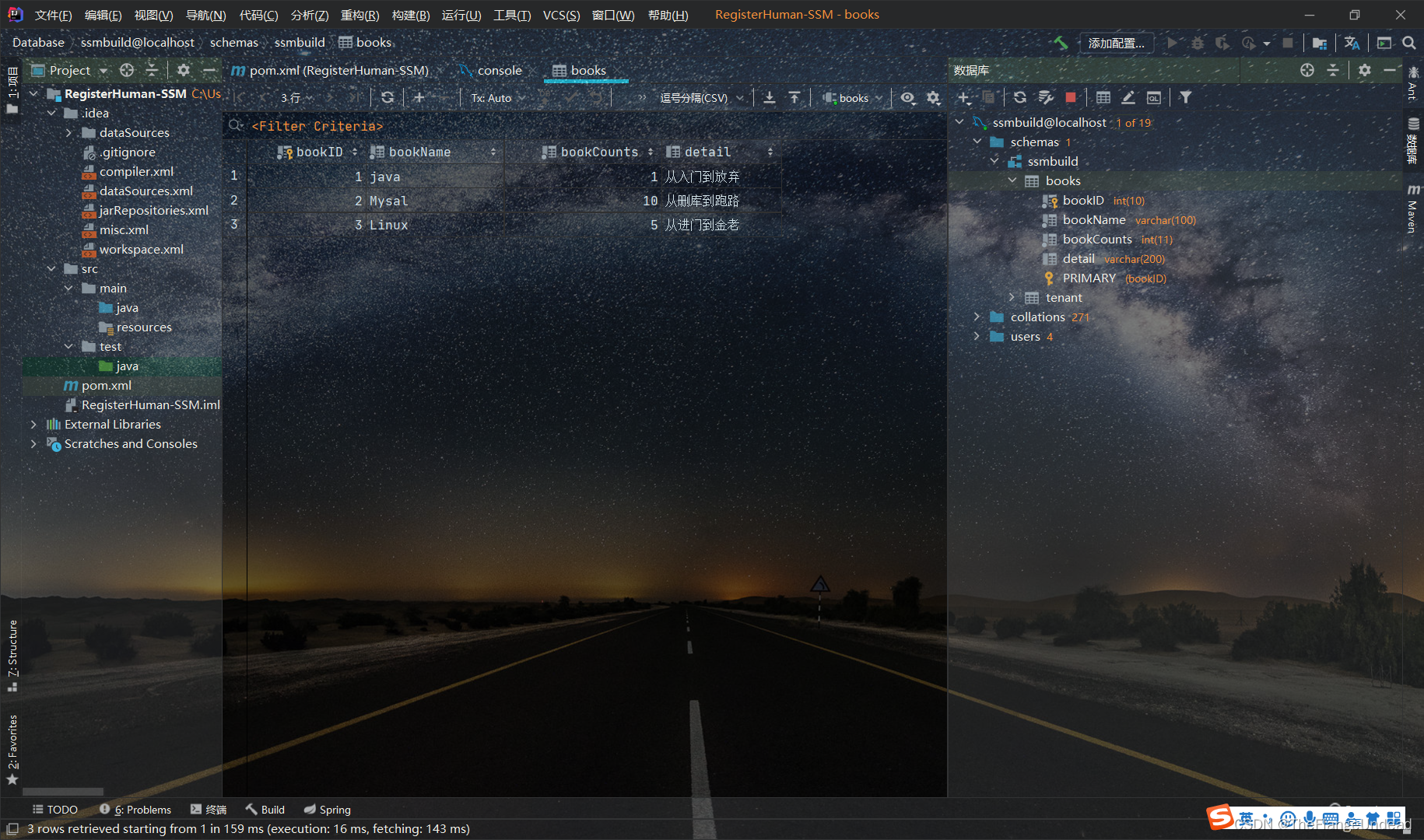

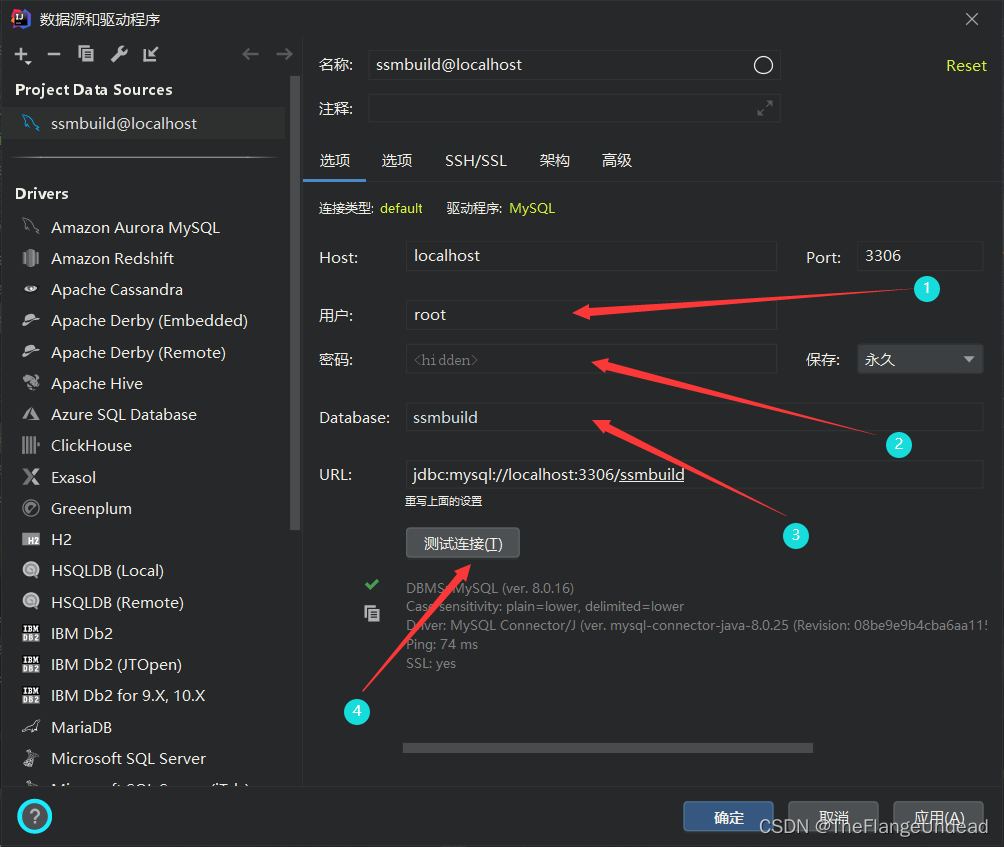

三、连接数据库

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-UkoBAwJn-1648886309367)(C:\Users\zjx95\Desktop\FlyIdea\1.飞思java基础\m4\ssm框架的整合\imgs\1648865637905.png)]$

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-N9dslnyN-1648886309374)(C:\Users\zjx95\Desktop\FlyIdea\1.飞思java基础\m4\ssm框架的整合\imgs\1648865722265.png)]$

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-TPNmk5h3-1648886309376)(C:\Users\zjx95\Desktop\FlyIdea\1.飞思java基础\m4\ssm框架的整合\imgs\1648865779287.png)]$

四、完善包结构

pojo 实体层
dao（mapper）持久层
serveice业务层
controller表现层

resouces配置文件

mybatis-config配置mybatis

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
       PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

</configuration>

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

</beans>

五、整合mybatis

编写配置文件db.properties连接数据库

# MySQL 5.X
#jdbc.driver=com.mysql.jdbc.Driver
# MySQL 8.X
jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT%2B8&useSSL=false
# &符号前面是解决乱码问题和使用安全连接，后面是时区问题，mysql驱动8.0以上需要自己加时区否则可能报错
jdbc.username=root
jdbc.password=123456

完善mybatis-config

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <!--配置数据源 交给spring去做-->
    <typeAliases>
        <package name="com.zhou.pojo"/>
    </typeAliases>

    <!--添加映射文件路径-->
    <mappers>
        <mapper resource="com.zhou.dao.BookMapper"/>
    </mappers>

</configuration>

在pojo包下建立一个类Books

package com.zhou.pojo;


import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
//使用了lombok插件

/**
 * @email zjx9527@foxmail.com,
 * @author:Zhou_jx,
 */

@Data//私有属性的get，set方法
@AllArgsConstructor//有参构造方法
@NoArgsConstructor//无参构造方法
public class Books {

    private int bookID;
    private String bookName;
    private int bookCounts;
    private String detail;
}

在dao包下写接口BookMapper

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.zhou.dao.BookMapper">

    <insert id="addBook" parameterType="Books">
        insert into ssmbuild.books (bookname,bookCounts,detail)
        values (#{bookName},#{bookCounts},#{detail});
    </insert>

    <delete id="deleBookById" parameterType="int">
        delete from ssmbuild.books where bookID = #{bookId}
    </delete>


    <update id="updateBook" parameterType="Books">
        update ssmbuild.books
        set bookName=#{bookName},bookCounts=#{bookbookCounts},detail=#{detail}
        where bookID=#{bookID};
    </update>

    <select id="queryBookById" resultType="Books">
        select * from ssmbuild.books where bookID = #{bookId}
    </select>

    <select id="queryAllBook" resultType="Books">
        select * from ssmbuild,books
    </select>


</mapper>

写完mapper配置文件，绑定到mybatis-config配置文件中

 <!--添加映射文件路径-->
    <mappers>
        <mapper resource="com.zhou.dao.BookMapper"/>
    </mappers>

mybatis整合完成

六、配置Spring

配置spring整合mybatis，数据源使用c3p0连接池

spring-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 配置整合mybatis -->
    <!-- 1.关联数据库文件 -->
    <context:property-placeholder location="classpath:db.properties"/>

    <!-- 2.数据库连接池 -->
    <!--数据库连接池
        dbcp 半自动化操作 不能自动连接
        c3p0 自动化操作（自动的加载配置文件 并且设置到对象里面）
        druid:
        hikari:spring-boot2.0默认使用
    -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <!-- 配置连接池属性 -->
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>

        <!-- c3p0连接池的私有属性 -->
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="10"/>
        <!-- 关闭连接后不自动commit -->
        <property name="autoCommitOnClose" value="false"/>
        <!-- 获取连接超时时间 -->
        <property name="checkoutTimeout" value="10000"/>
        <!-- 当获取连接失败重试次数 -->
        <property name="acquireRetryAttempts" value="2"/>
    </bean>

    <!-- 3.配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>

    <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
    <!--解释 ：https://www.cnblogs.com/jpfss/p/7799806.html-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="com.zhou.dao"/>
    </bean>

</beans>

随后配置spring-service.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 扫描service相关的bean -->
    <context:component-scan base-package="com.zhou.service" />

    <!--BookServiceImpl注入到IOC容器中-->
    <!--因为我们这里和spring-dao.xml文件是分开的，所以在使用dao包下面的类会包红-->
    <!--应该在配置application-context文件时，配置上下文，然后其他spring配置文件都一个关注这个上下文，就不会出现这种错误了-->

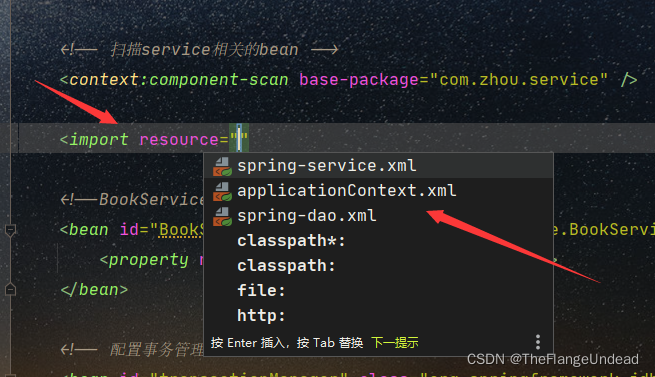

    <!--也可以手动写关联配置文件：import只能用来关联spring的文件-->
    <!--<import resource="spring-dao.xml"/>-->
    <bean id="BookServiceImpl" class="com.zhou.service.BookServiceImp">
        <property name="bookMapper" ref="bookMapper"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource" />
    </bean>

    <!--如果还需要写aop的事务支持，那pom文件也需要加入新的依赖-->

</beans>

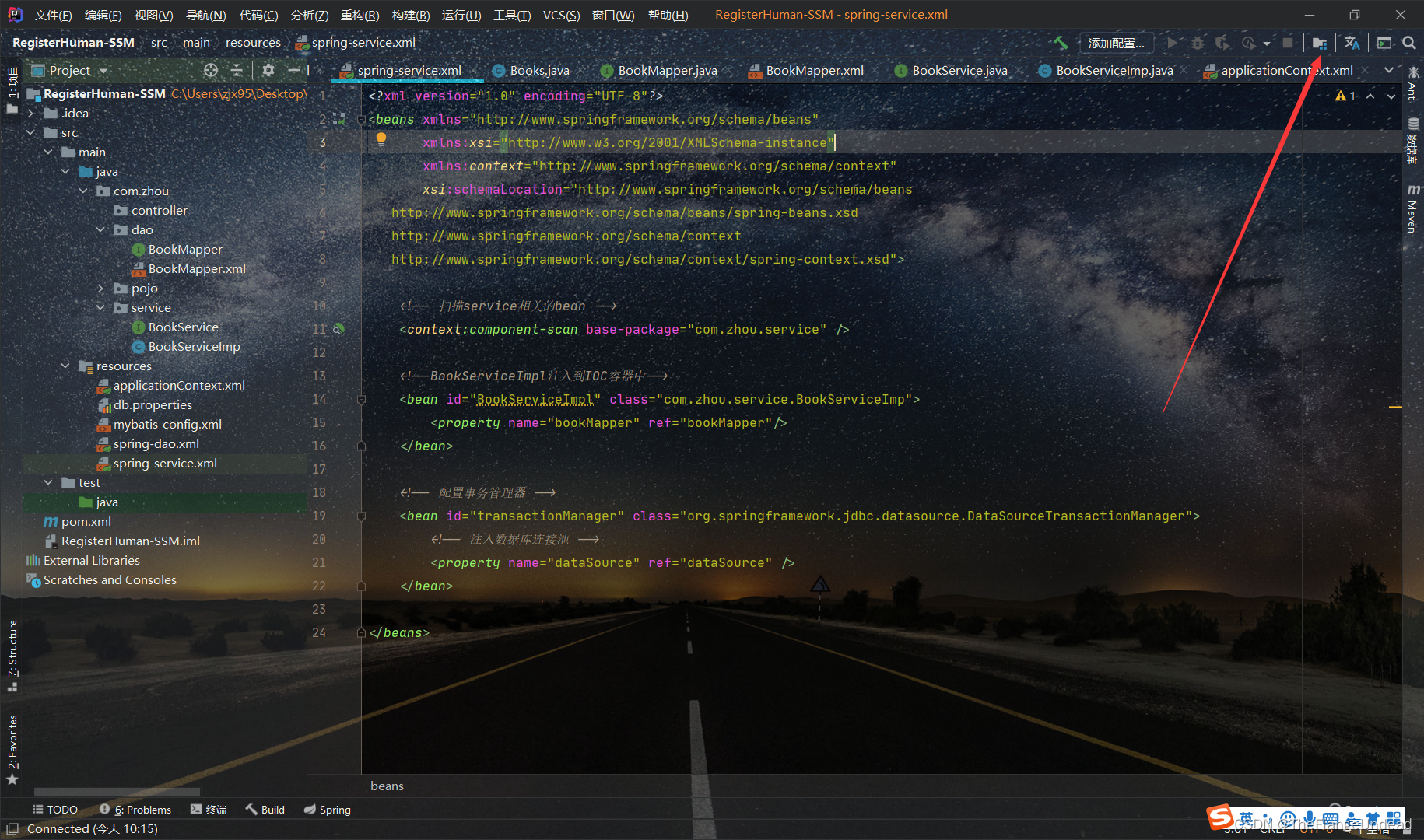

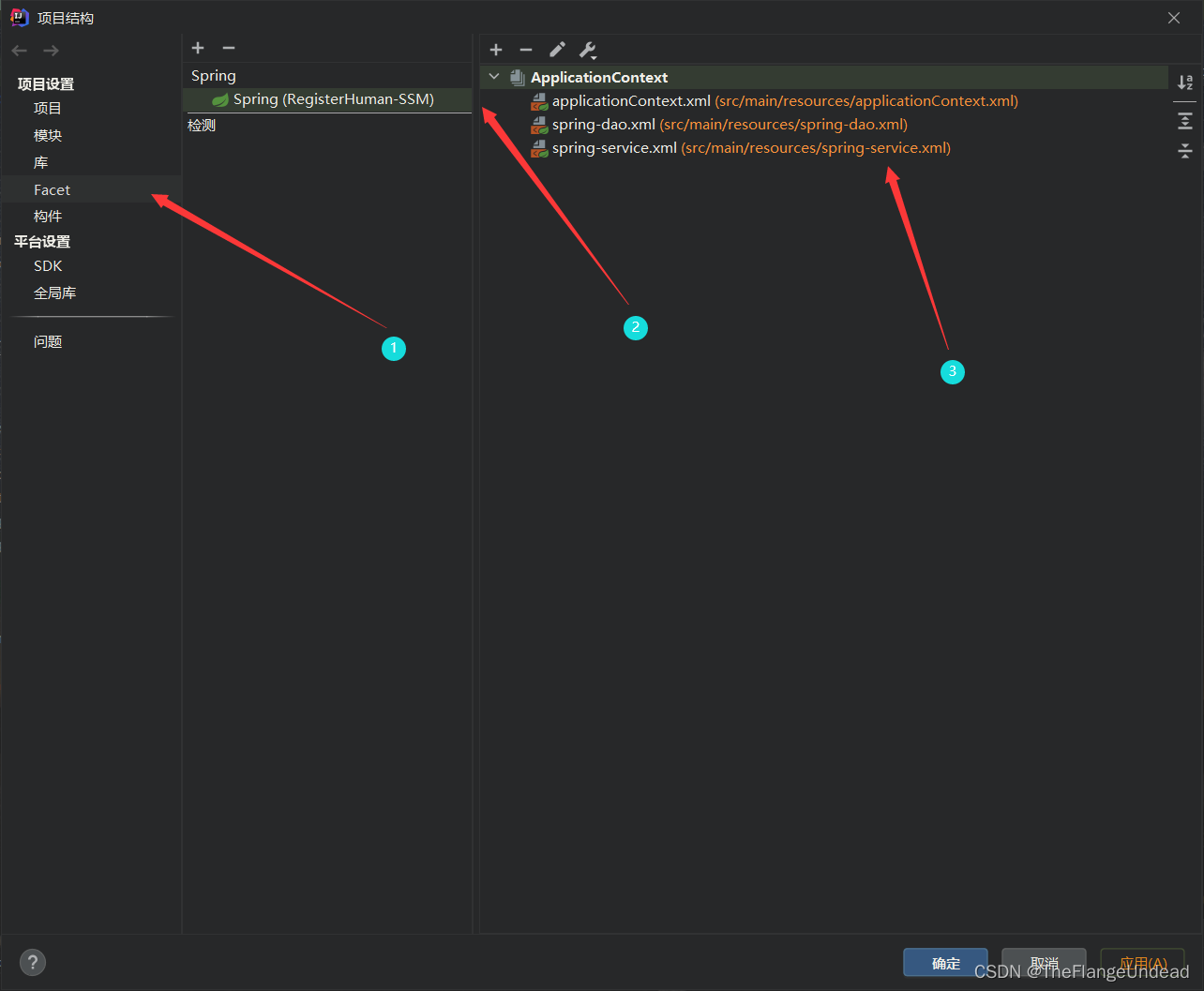

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-QV8VOjHq-1648886309379)(C:\Users\zjx95\Desktop\FlyIdea\1.飞思java基础\m4\ssm框架的整合\imgs\1648883870071.png)]$

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-DaKaLUBO-1648886309380)(C:\Users\zjx95\Desktop\FlyIdea\1.飞思java基础\m4\ssm框架的整合\imgs\1648883908291.png)]$

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-DBdk0SaC-1648886309381)(C:\Users\zjx95\Desktop\FlyIdea\1.飞思java基础\m4\ssm框架的整合\imgs\1648884314436.png)]$

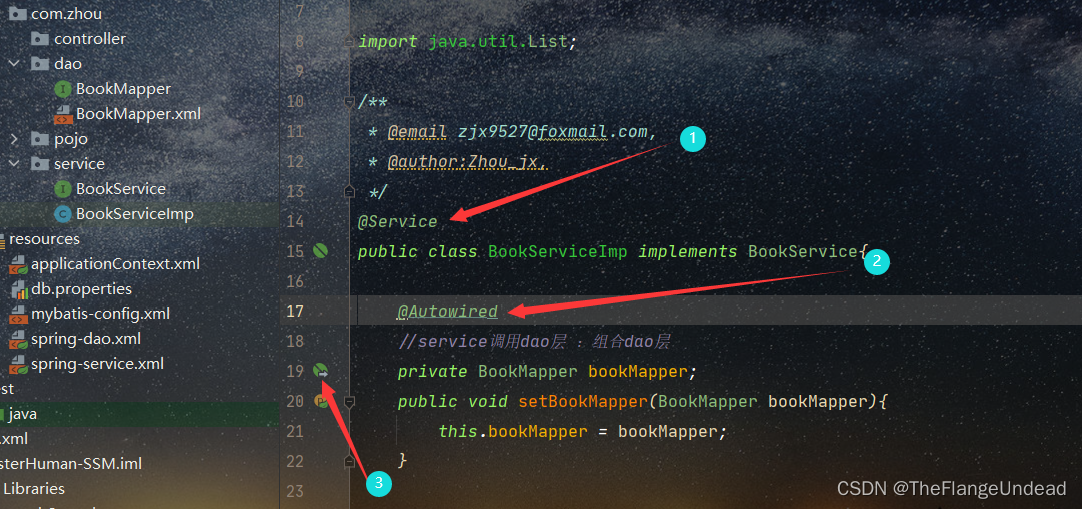

同样的也可以在serivce中写注解，如果能够成功跳转到dao中就代表成功了

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-zUMqMLb7-1648886309382)(C:\Users\zjx95\Desktop\FlyIdea\1.飞思java基础\m4\ssm框架的整合\imgs\1648884777537.png)]$

七、 spring-mvc的整合

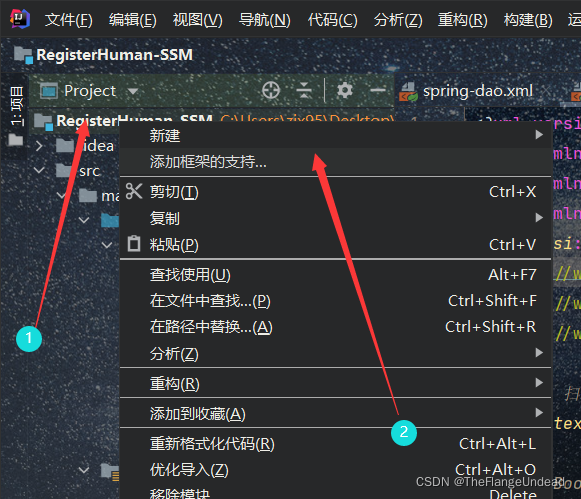

首先需要在项目加入web模块
$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-XmLUIfSf-1648886309383)(C:\Users\zjx95\Desktop\FlyIdea\1.飞思java基础\m4\ssm框架的整合\imgs\1648885345335.png)]$
配置web.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <!--DispatcherServlet-->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--encodingFilter-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>
            org.springframework.web.filter.CharacterEncodingFilter
        </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--Session过期时间-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>

</web-app>

配置spring-mvc.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd
   http://www.springframework.org/schema/mvc
   https://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- 配置SpringMVC -->
    <!-- 1.开启SpringMVC注解驱动 -->
    <mvc:annotation-driven />
    <!-- 2.静态资源默认servlet配置-->
    <mvc:default-servlet-handler/>

    <!-- 3.配置jsp 显示ViewResolver视图解析器 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp" />
    </bean>

    <!-- 4.扫描web相关的bean -->
    <context:component-scan base-package="com.zhou.controller" />

</beans>
