黄金矿工的实现

黄金矿工

实现黄金矿工游戏大体可以分为4个类

1.背景类

package com.zhou.GUI;

import java.awt.*;

/**
 * @author:Zhou_jx,
 */
public class Bg {
    //关卡数
    static int level = 1;
    //目标得分
    int goal = level*15;
    //总分
    static int countsum = 0;
    //药水数量
    static int waternum = 3;
    //药水状态 true表示正在使用
    static boolean waterState = false;
    //开始时间
    long startTime;
    //结束时间
    long endTime;
    //药水价格
    int price = (int) (Math.random()*10+1);
    //是否进入商店
    boolean shop = false;


    //判断时间
    boolean gameTime(){
        //单位转换为秒
        long time = (endTime-startTime)/1000;
        return time > 30;
    }
    //读取图片路径
    Image bg = Toolkit.getDefaultToolkit().getImage("imgs/bg.jpg");
    Image bg1 = Toolkit.getDefaultToolkit().getImage("imgs/bg1.jpg");
    Image bg2 = Toolkit.getDefaultToolkit().getImage("imgs/peo.png");
    Image water = Toolkit.getDefaultToolkit().getImage("imgs/water.png");

    //绘制
    //除开背景图片一类，其他的绘制都需要在游戏进行中才会进行绘制
    void paintSelf(Graphics g){
        //绘制地下位置
        g.drawImage(bg,0,200,null);
        //绘制天空的位置
        g.drawImage(bg1,0,0,null);
        //根据窗口的状态来选择绘制
        switch (GameWin.state){
            case 0:
                //当游戏未开始时，显示的信息
                drawWord(g,80,Color.BLACK,"开始游戏",200,400);
                break;
            case 1:
                //绘制人物的位置
                g.drawImage(bg2,322,50,null);
                //调用绘制字符串的方法,打印总分
                drawWord(g,30,Color.black,"积分："+countsum,30,150);
                //绘制药水
                g.drawImage(water,500,100,null);
                //调用绘制方法，打印药水数量
                drawWord(g,30,Color.green,"*"+waternum,560,150);
                //绘制关卡数
                drawWord(g,20,Color.black,"第"+level+"关",30,60);
                //绘制目标积分
                drawWord(g,30,Color.black,"目标"+goal,30,110);
                //局部变量计算时间
                endTime = System.currentTimeMillis();
                //计算玩家剩余的时间
                long time = 30-(endTime-startTime)/1000;
                //用三目运算来显示玩家的剩余时间
                drawWord(g,30,Color.black,"时间剩余"+(time>=0?time:0),580,80);
                break;
            case 2:
                //绘制药水
                g.drawImage(water,300,400,null);
                //调用绘制方法，打印药水数量
                drawWord(g,30,Color.green,"价格"+waternum,300,500);
                //绘制关卡数
                drawWord(g,20,Color.black,"是否购买"+level+"关",300,550);
                //当玩家确定购买时
                if(shop){
                    //用游戏总分扣除药水钱
                    countsum = countsum-price;
                    //药水数量加一
                    waternum++;
                    //重置购买药水的状态
                    shop = false;
                    GameWin.state = 1;
                    //重置时间
                    startTime = System.currentTimeMillis();
                }
                break;
            case 3:
                //失败的时候打印的画面
                drawWord(g,80,Color.RED,"游戏失败",250,350);
                drawWord(g,80,Color.RED,"积分"+countsum,250,450);
                break;
            case 4:
                //成功的时候打印的画面
                drawWord(g,80,Color.YELLOW,"游戏成功",250,350);
                drawWord(g,80,Color.YELLOW,"积分"+countsum,250,450);
                break;
        }


    }

    //绘制字符串的方法
    public static void drawWord(Graphics g,int size,Color color,String str,int x,int y){
        //绘制游戏分数的颜色，字体，名字，位置；
        g.setColor(color);
        g.setFont(new Font("仿宋",Font.BOLD,size));
        g.drawString(str,x,y);
    }

    //重置背景元素
    void reGame(){
        //关卡数
        level = 1;
        //目标得分
        goal = level*15;
        //总分
        countsum = 0;
        //药水数量
        int waternum = 3;
        //药水状态 true表示正在使用
        waterState = false;
    }
}

2.窗口类

package com.zhou.GUI;

import javax.swing.*;
import java.awt.*;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.util.ArrayList;

/**
 * 继承JFrame，才有窗口以及监听鼠标的功能
 * @author:Zhou_jx,
 */
public class GameWin extends JFrame {
    //游戏状态0表示未开始，1表示运行中，2表示商店，3表示失败，4表示胜利
    static int state;
    //金块集合
    ArrayList<Object> objectList = new ArrayList<>();
    //背景类实例化
    Bg bg = new Bg();
    //实例化线
    Line line = new Line(this);
    //实现金块类
    {
        //设置一个参数，判断是否可以放置的依据
        boolean isPlace = true;
        for (int i = 0; i < Math.random()*9+3*Bg.level; i++) {
            double random = Math.random();
            Gold gold;//用来存放生成的金块对象
            //生成三种不同大小金块的概率
            if (random<0.3)
                gold = new GoldMini();
            else if (random<0.7)
                gold = new Gold();
            else
                gold = new GoldPlus();
            //遍历所有的金块，看集合中包含的金块是否有与新金块坐标重合的，重合即打回去重做
            for(Object obj:objectList){
                if(gold.getRec().intersects(obj.getRec())){
                    isPlace = false;
                    i--;
                }
            }
            if(isPlace)
                objectList.add(gold);
            else{
                isPlace = true;
                i--;
            }
        }
        //随机10块以内的石头
        for (int i = 0; i < Math.random()*9+1; i++) {
            boolean isRock = true;
            //将创建的石头放到rock对象里面
            Rock rock;
            rock = new Rock();
            //遍历所有的rock判断坐标是否重复
            for (Object object:objectList){
                if(rock.getRec().intersects(object.getRec())){
                    isRock = false;
                    i--;
                }
            }
            if(isRock)
                objectList.add(rock);
            else {
                i--;
            }
        }
    }
    //添加一张画布，想实现双缓存技术
    Image offScreenImage;

    //下一关
    public void nextLevel(){
        //判断游戏时间是否足够
        if(bg.gameTime()&&state==1){
            //判断是否达到目标分数
            if(Bg.countsum>=bg.goal){
                if(Bg.level==5){
                    state = 4;
                }
                else {
                    //满足条件，关卡等级加一
                    state = 2;
                    Bg.level++;
                }
            }
            else
                state = 3;
            //释放组件
            dispose();
            //生成下一个等级的窗口
            GameWin gameWin = new GameWin();
            gameWin.lunch();
        }

    }

    void lunch(){
        //让窗口可视化
        this.setVisible(true);
        //设置窗口的宽高
        this.setSize(768,1000);
        //设置窗口位置，默认剧中
        this.setLocationRelativeTo(null);
        //窗口标题，自定义
        this.setTitle("黄金矿工");
        //关闭窗口
        setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);

        //鼠标点击事件
        addMouseListener(new MouseAdapter() {
            @Override
            public void mouseClicked(MouseEvent e) {
                super.mouseClicked(e);
                switch (state){
                    case 0:
                        if(e.getButton()==3){
                            state = 1;
                            bg.startTime = System.currentTimeMillis();
                        }
                        break;
                    case 1:
                        //左右摇摆，点击左键
                        if(e.getButton()==1&&line.state==0)
                            line.state=1;
                        //抓取返回，点击右键
                        if(e.getButton()==3&&line.state==3&&Bg.waternum>0){
                            Bg.waterState=true;
                            Bg.waternum--;
                        }
                        break;
                    case 2:
                        //商店购买事件
                        if(e.getButton()==1){
                            bg.shop = true;
                        }
                        if(e.getButton()==3){
                            state = 1;
                            bg.startTime = System.currentTimeMillis();
                        }
                        break;
                    case 3:
                    case 4:
                        //重置游戏
                        if(e.getButton()==1){
                            state = 0;
                            bg.reGame();
                            line.reGame();
                        }
                        break;
                }

            }
        });

        //重复绘画画布，这样可以达到一直刷新线条的视觉
        while (true){
            nextLevel();
            try {
                repaint();
                Thread.sleep(10);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
        }
    }


    @Override
    public void paint(Graphics g){
        //画布大小
        offScreenImage = this.createImage(768,1000);
        //给画布画笔
        Graphics gImage = offScreenImage.getGraphics();
        //绘制背景图片
        bg.paintSelf(gImage);
        //绘制物体绘制线，都会在状态1的时候绘制
        if(state==1){
            //绘制金块集合
            for(Object object:objectList){
                object.piantSelf(gImage);
            }
            //绘制线
            line.paintSelf(gImage);
        }
        g.drawImage(offScreenImage,0,0,null);
    }

    //主方法，程序的入口
    public static void main(String[] args) {
        //实例化
        GameWin gameWin = new GameWin();
        gameWin.lunch();
    }
}

3.勾爪（线）类

package com.zhou.GUI;

import java.awt.*;

/**
 * @author:Zhou_jx,
 */
public class Line {
    //线的起点坐标
    int x=400;
    int y=180;
    //终点坐标
    int endx=500;
    int endy=500;
    //线长
    double len = 100;
    //线最小值
    double Mixlen = 100;
    double Maxlen = 750;
    double n = 0;
    //方向判定参数
    int dir = 1;
    //定义状态 0
    int state;
    //勾爪图片
    Image hook = Toolkit.getDefaultToolkit().getImage("imgs/hook.png");

    //获取主函数中的参数
    GameWin frame;
    Line(GameWin frame){
        this.frame = frame;
    }

    //判断是否抓取成功
    void logic(){
        for (Object object:this.frame.objectList){
            if(endx>object.x&&endx<object.x+object.width
                    && endy>object.y&&endy<object.y+object.height){
                state = 3;
                object.flag = true;
            }
        }

    }

    //由于绘画线时的参数时代码都一样，所以写一个方法来调用避免重复代码
    void linePaint(Graphics g){
        g.drawLine(x-1,y-1,endx,endy);
        g.drawLine(x,y,endx,endy);
        g.drawLine(x+1,y+1,endx,endy);
        g.drawImage(hook,endx-36,endy-2,null);
    }

    //线运行时不同的状态，0为正常运动状态，1为鼠标点击左键后进行抓取状态，2为抓取中了之后线的行动，3为抓中之后线对于不同物体的抓取速度
    void paintSelf(Graphics g){
        logic();
        switch (state){
            case 0:
                if (n<=0.1)
                    dir = 1;
                else if(n>=0.9)
                    dir = -1;
                n=n+0.005*dir;
                endx = (int) (x+len*Math.cos(n*Math.PI));
                endy = (int) (y+len*Math.sin(n*Math.PI));
                g.setColor(Color.red);
                linePaint(g);
                break;
            case 1:
                if(len<=Maxlen){
                    len +=12;
                    endx = (int) (x+len*Math.cos(n*Math.PI));
                    endy = (int) (y+len*Math.sin(n*Math.PI));
                    g.setColor(Color.YELLOW);
                    linePaint(g);
                }else {
                    state = 2;
                }
                break;
            case 2:
                if(len>=Mixlen){
                    len -=12;
                    endx = (int) (x+len*Math.cos(n*Math.PI));
                    endy = (int) (y+len*Math.sin(n*Math.PI));
                    g.setColor(Color.BLUE);
                    linePaint(g);
                }else
                    state = 0;
                break;
            case 3://抓取返回
                int m = 1;
                    if(len>=Mixlen){
                        len = len-10;
                        endx = (int) (x+len*Math.cos(n*Math.PI));
                        endy = (int) (y+len*Math.sin(n*Math.PI));
                        g.setColor(Color.PINK);
                        linePaint(g);
                        for (Object object:this.frame.objectList){
                            if (object.flag){
                                m = object.m;
                                object.x=endx- (object.getWidth()/2);
                                object.y=endy;
                                if(len<=Mixlen){
                                    //移除被抓中的物体
                                    object.x=-150;
                                    object.y=-150;
                                    //令其显示参数为f
                                    object.flag = false;
                                    //药水状态
                                    Bg.waterState = false;
                                    Bg.countsum += object.getCount();
                                    state = 0;
                                }
                                if(Bg.waterState){
                                    if(object.type==1){
                                        m=1;
                                    }
                                    if (object.type==2){
                                        //移除被抓中的物体
                                        object.x=-150;
                                        object.y=-150;
                                        //令其显示参数为f
                                        object.flag = false;
                                        Bg.waterState = false;
                                        state = 2;
                                    }
                                }
                            }

                    }
                }
                try {
                    Thread.sleep(m);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                break;
        }

    }

    //重置线元素
    void reGame(){
        n = 0;
        len = 100;
    }
}

4.物体类

• 父类Object

  package com.zhou.GUI;

  import java.awt.*;

  /**
   * @author:Zhou_jx,
   */
  public class Object {
      //坐标
      int x;
      int y;
      //宽高
      int width;
      int height;
      //图片
      Image img;
      //区别值
      boolean flag = false;
      //质量
      int m;
      //积分
      int count;
      //类型 1为金块， 2为石块
      int type;


      //绘画自己
      void piantSelf(Graphics g){
          g.drawImage(img,x,y,null);
      }

      //获得自己的宽度
      public int getWidth() {
          return width;
      }

      //获取矩形坐标
      public Rectangle getRec(){
          return new Rectangle(x,y,width,height);
      }

      //获取子类积分的方法
      public int getCount(){
          return count;
      }
  }



• 子类金块类

  package com.zhou.GUI;

  import java.awt.*;

  /**
   * @author:Zhou_jx,
   */
  public class Gold extends Object{
      //使用无参构造函数重写父类
      Gold(){
          this.x = (int) (Math.random()*700);
          this.y = (int) (Math.random()*550+300);
          this.width = 52;
          this.height = 52;
          this.flag=false;
          this.m = 30;
          this.count = 4;
          this.type = 1;
          this.img = Toolkit.getDefaultToolkit().getImage("imgs/gold1.gif");
      }
  }

  //小金块类
  //使用无参构造函数重写父类
  class GoldMini extends Gold {
      GoldMini() {
          this.width = 36;
          this.height = 36;
          this.m = 15;
          this.count = 2;
          this.img = Toolkit.getDefaultToolkit().getImage("imgs/gold0.gif");
      }
  }

  //大金块类
  //使用无参构造函数重写父类
  class GoldPlus extends Gold {

      GoldPlus() {
          this.x = (int) (Math.random()*650);
          this.width = 105;
          this.height = 105;
          this.m = 70;
          this.count = 8;
          this.img = Toolkit.getDefaultToolkit().getImage("imgs/gold2.gif");
      }
  }


• 石头类

  package com.zhou.GUI;

  import java.awt.*;

  /**
   * @author:Zhou_jx,
   */
  //继承父类Obejct
  public class Rock extends Object{
      //使用无参构造方法重写父类
      Rock() {
          this.x = (int) (Math.random()*700);
          this.y = (int) (Math.random()*550+300);
          this.width = 71;
          this.height = 71;
          this.flag=false;
          this.m = 50;
          this.count = 1;
          this.type = 2;
          this.img = Toolkit.getDefaultToolkit().getImage("imgs/rock1.png");
      }
  }

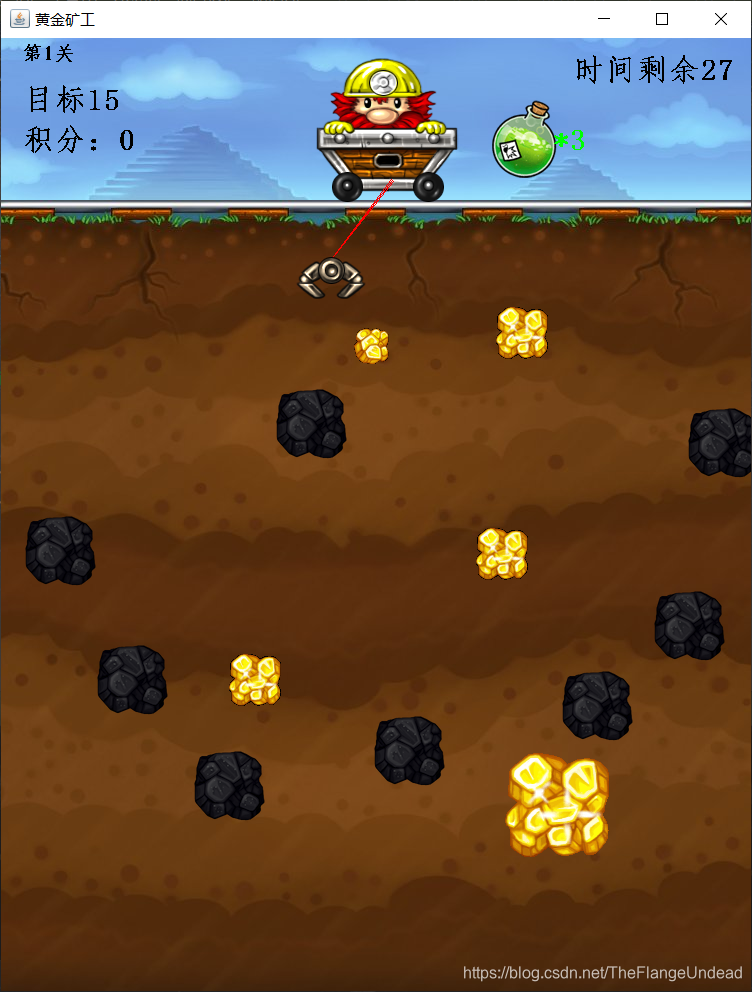

运行截图

需要使用的图片

ps

详情可以去【尚学堂】只用了2小时做出了Java黄金矿工小游戏项目_java初级项目_java练手项目_java项目实战_Java游戏开发实战教学_java小游戏_哔哩哔哩_bilibili观看；
