基于TensorFlow1使用Horovod实现BERT在单节点上的多GPU卡训练

一，下载从github中下载tensorflow1版本的bert代码和预训练模型

1，下载bert代码地址：google-research/bert

2，下载预训练模型，此处可选择bert-base中文版本，如下图：

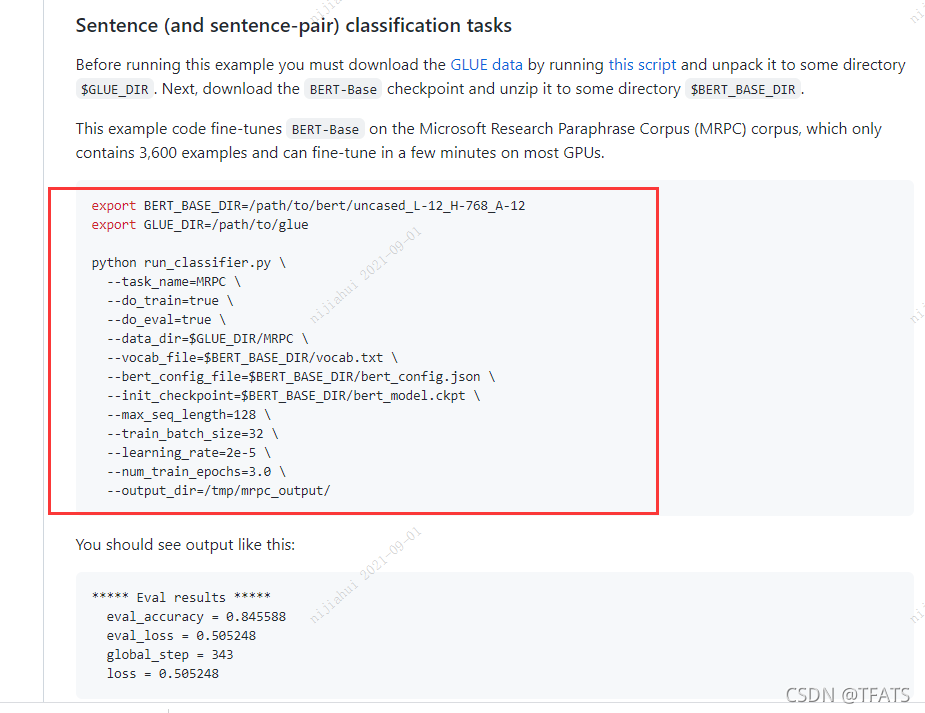

3，如官网所示创建执行脚本-方便传参，如下图所示：

二，修改创建执行脚本

根据机器的GPU个数，Horovod运行多卡训练

gpu_num=$(nvidia-smi --query-gpu=name --format=csv,noheader | wc -l)

horovodrun -np ${gpu_num} -H localhost:${gpu_num} python run_classifier_roberta_wwm_large.py \
  --task_name=$TASK_NAME \
  --do_train=true \
  --do_predict=true \
  --data_dir=$GLUE_DATA_DIR/$TASK_NAME \
  --vocab_file=$ROBERTA_WWM_LARGE_DIR/vocab.txt \
  --bert_config_file=$ROBERTA_WWM_LARGE_DIR/bert_config.json \
  --init_checkpoint=$ROBERTA_WWM_LARGE_DIR/bert_model.ckpt \
  --max_seq_length=128 \
  --train_batch_size=32 \
  --learning_rate=2e-5 \
  --num_train_epochs=4.0 \
  --output_dir=$CURRENT_DIR/${TASK_NAME}_output \

注意： 脚本中传入执行文件中的参数如果要增加或修改，一定要在后边带上\符号

三，修改run_classifier.py文件

#chang 1:引入horovod
flags = tf.flags
FLAGS = flags.FLAGS
import optimization_hvd
import horovod.tensorflow as hvd
hvd.init()
os.environ['CUDA_VISIBLE_DEVICES'] = str(hvd.local_rank())
config = tf.ConfigProto(allow_soft_placement=True)
config.gpu_options.per_process_gpu_memory_fraction = 0.998
config.graph_options.optimizer_options.global_jit_level = tf.OptimizerOptions.ON_1
config.gpu_options.allow_growth = True

...
def get_train_examples(self, data_dir):
    """See base class."""
    #chang 2 修改训练数据创建方式
    return self._create_examples_train(
        self._read_json(os.path.join(data_dir, "train.json")))
#chang 3 新增训练数据创建代码
def _create_examples(self, lines):
    """See base class."""
    examples = []
    for (i, line) in enumerate(lines):
        # 【二，horovod - 区对数据 - 分卡处理】
      	if i % hvd.size() != hvd.rank():
        	continue
        guid = "%s" % (i) if 'id' not in line else line['id']
        text_a = tokenization.convert_to_unicode(line['text'])
        label = ['O'] * len(text_a)
        if 'label' in line:
            for l, words in line['label'].items():
                for word, indices in words.items():
                    for index in indices:
                        if index[0] == index[1]:
                            label[index[0]] = 'S-' + l
                        else:
                            label[index[0]] = 'B-' + l
                            label[index[1]] = 'E-' + l
                            for i in range(index[0] + 1, index[1]):
                                label[i] = 'M-' + l
        examples.append(
            InputExample(guid=guid, text_a=text_a, label=label))
def _create_examples(self, file_path, set_type):
	...
def main(_):

	tf.logging.set_verbosity(tf.logging.INFO)
	#chang 4 为不同的rank定义不同的输出文件名
	FLAGS.output_dir = FLAGS.output_dir if hvd.rank() == 0 else os.path.join(FLAGS.output_dir, str(hvd.rank()))

    run_config = tf.contrib.tpu.RunConfig(
        cluster=tpu_cluster_resolver,
        master=FLAGS.master,
        model_dir=FLAGS.output_dir,
        save_checkpoints_steps=FLAGS.save_checkpoints_steps,
        #chang 5 设置配置
        session_config=config,
        tpu_config=tf.contrib.tpu.TPUConfig(
            iterations_per_loop=FLAGS.iterations_per_loop,
            num_shards=FLAGS.num_tpu_cores,
            per_host_input_for_training=is_per_host))
  ...

	if FLAGS.do_train:
	    train_file = os.path.join(FLAGS.output_dir, "train.tf_record")
	    file_based_convert_examples_to_features(
	    ...
	    # change 6 确保每个进程拥有同样的初始化权重
	    hooks = [hvd.BroadcastGlobalVariablesHook(0)]
	    estimator.train(input_fn=train_input_fn, max_steps=num_train_steps, hooks=hooks)

	#change 7 #只在编号为0的GPU上进行评估
	if FLAGS.do_eval and hvd.rank() == 0:
	...
	#change 8 #只在编号为0的GPU上进行预测
	if FLAGS.do_predict and hvd.rank() == 0 :

四，修改optimization.py文件

# change 1 导入horovod包、使用混合精度训练
import horovod.tensorflow as hvd
import os
os.environ['TF_AUTO_MIXED_PRECISION_GRAPH_REWRITE_IGNORE_PERFORMANCE'] = '1'  ## 混合精度训练

# change 2 修改【create_optimizer】 函数
def create_optimizer(loss, init_lr, num_train_steps, num_warmup_steps, use_tpu):
	...
    optimizer = AdamWeightDecayOptimizer(
    	# Change 3 (optional)  学习率乘以GPU个数
        learning_rate=learning_rate * hvd.size(),
		...)

    # Change 4 使用hvd分布式优化器
    # optimizer = tf.train.experimental.enable_mixed_precision_graph_rewrite(optimizer)
    optimizer = hvd.DistributedOptimizer(optimizer)

    if use_tpu:
        optimizer = tf.contrib.tpu.CrossShardOptimizer(optimizer)
    tvars = tf.trainable_variables()

	# Change 5 使用分布式优化器计算梯度
	# grads = tf.gradients(loss, tvars)
    grads_and_vars = optimizer.compute_gradients(loss, tvars)

	# Change 6 根据分布式优化器的调试进行梯度裁剪
    grads = [grad for grad, var in grads_and_vars]
    tvars = [var for grad, var in grads_and_vars]
    # This is how the model was pre-trained.
    (grads, _) = tf.clip_by_global_norm(grads, clip_norm=1.0)

	# Change 7 调整梯度裁剪进行优化
    train_op = optimizer.apply_gradients(
        zip(grads, tvars), global_step=global_step)

    # Normally the global step update is done inside of `apply_gradients`.
    # However, `AdamWeightDecayOptimizer` doesn't do this. But if you use
    # a different optimizer, you should probably take this line out.
    new_global_step = global_step + 1
    train_op = tf.group(train_op, [global_step.assign(new_global_step)])
    return train_op
