着色器

在 OpenGL 中，一切都在 3D 空间中，但屏幕或窗口是像素的 2D 数组，因此 OpenGL 的很大一部分工作是将所有 3D 坐标转换为适合屏幕的 2D 像素。将 3D 坐标转换为 2D 像素的过程由 OpenGL 的图形管道管理。图形管道可以分为两个大部分：第一部分将 3D 坐标转换为 2D 坐标，第二部分将 2D 坐标转换为实际的彩色像素。

图形管道将一组 3D 坐标作为输入，并将这些坐标转换为屏幕上的彩色 2D 像素。图形管道可以分为几个步骤，其中每个步骤都需要上一步的输出作为其输入。所有这些步骤都是高度专业的，并且可以轻松地并行执行。由于其并行特性，当今的显卡具有数千个小型处理内核，可在图形管道中快速处理数据。处理核心在 GPU 上运行管道的每个步骤的小程序称为着色器。

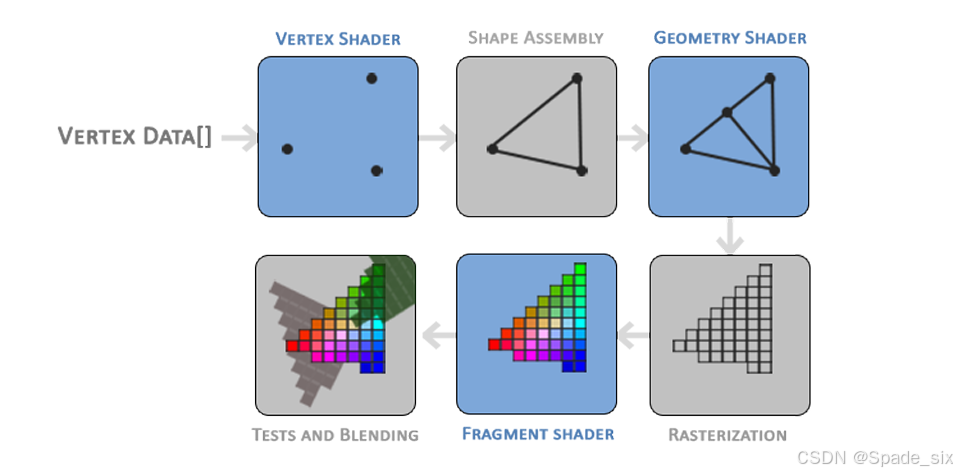

图形管道的阶段

顶点着色器—>几何着色器（有默认着色器）—>片段着色器

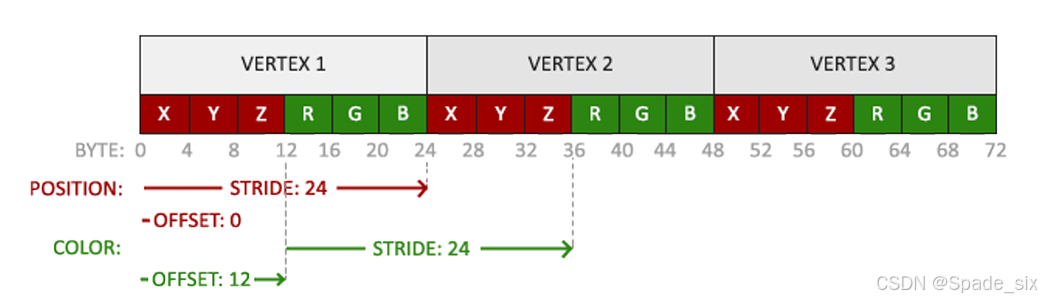

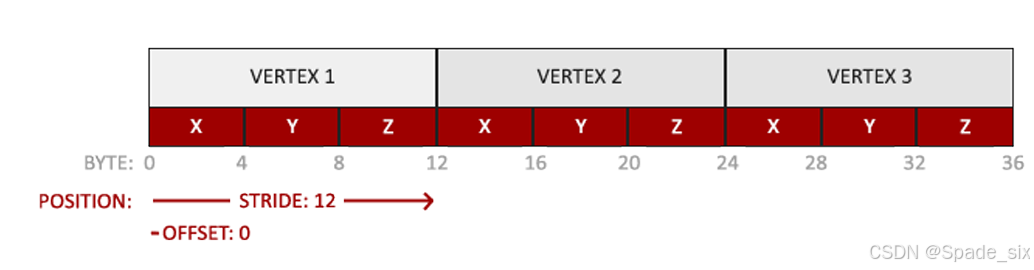

顶点缓冲区（VBO）数据格式

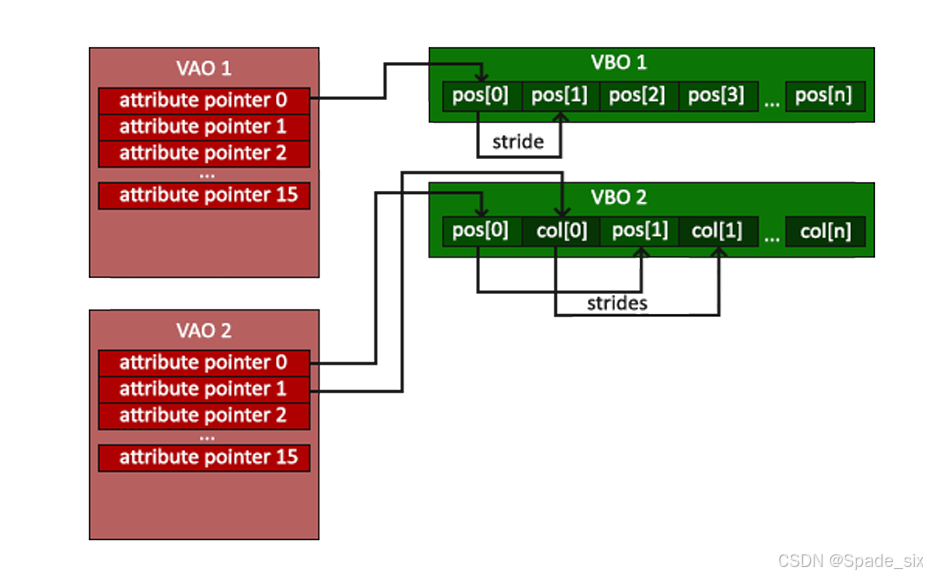

顶点数组（VAO）数据格式

绘制一个三角形

#include <glad/glad.h>
#include <GLFW/glfw3.h>
#include <iostream>

void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void processInput(GLFWwindow* window);

const unsigned int SCR_WIDTH = 800;
const unsigned int SCR_HEIGHT = 600;

//定义顶点着色器
//1.每个着色器都以其版本的声明开头。
//从 OpenGL 3.3 及更高版本开始，GLSL 的版本号与 OpenGL 的版本匹配
//例如，GLSL 版本 420 对应于 OpenGL 版本 4.2
//还明确提到正在使用 core profile 功能
//
const char* vertexShaderSource = R"(
#version 330 core
layout (location = 0) in vec3 aPos;
void main()
{
   gl_Position = vec4(aPos, 1.0);
})";

//定义片段着色器
//RGBA
const char* fragmentShaderSource = R"(
#version 330 core
out vec4 color;
void main() {
    color = vec4(1.0f, 0.5f, 0.2f, 1.0f); //橙色
})";

int main()
{
	glfwInit();
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
	glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

	GLFWwindow* window = glfwCreateWindow(SCR_WIDTH, SCR_HEIGHT, "LearnOpenGL", NULL, NULL);
	if (window == NULL) {
		std::cout << "Failed to create GLFW window" << std::endl;
		glfwTerminate();
		return -1;
	}
	glfwMakeContextCurrent(window);
	glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);

	if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress)) {
		std::cout << "Failed to initialize GLAD" << std::endl;
		return -1;
	}

	//创建一个顶点着色器对象，由 ID 引用
	unsigned int vertexShader;
	//创建着色器
	vertexShader = glCreateShader(GL_VERTEX_SHADER);
	//将着色器源代码附加到 shader 对象并编译着色器
	//第一个参数为编译到的着色器对象
	//第二个参数指定作为源代码传递的字符串数量
	//第三个参数是顶点着色器的实际源代码
	//第 4 个参数保留为 NULL
	glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
	//编译着色器
	glCompileShader(vertexShader);
	//定义一个整数来表示成功，并为错误消息定义一个存储容器
	int success;
	char infoLog[512];
	//检查是否编译成功
	glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &success);
	//如果不成功，打印错误信息
	if (!success)
	{
		glGetShaderInfoLog(vertexShader, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::VERTEX::COMPILATION_FAILED\n" <<
			infoLog << std::endl;
	}

	unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
	glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
	glCompileShader(fragmentShader);
	glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &success);
	if (!success)
	{
		glGetShaderInfoLog(fragmentShader, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::FRAGMENT::COMPILATION_FAILED\n" << infoLog << std::endl;
	}

	//创建着色器程序
	unsigned int shaderProgram;
	shaderProgram = glCreateProgram();
	//将之前编译的着色器附加到程序中
	glAttachShader(shaderProgram, vertexShader);
	glAttachShader(shaderProgram, fragmentShader);
	//链接它们
	glLinkProgram(shaderProgram);
	//检查错误
	glGetProgramiv(shaderProgram, GL_LINK_STATUS, &success);
	if (!success) {
		glGetProgramInfoLog(shaderProgram, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::PROGRAM::LINKING_FAILED\n" << infoLog << std::endl;
	}
	//删除着色器对象
	glDeleteShader(vertexShader);
	glDeleteShader(fragmentShader);

	//定义三角形的顶点（z轴为0，在同一平面上）
	//opengl中坐标范围为-1到1，即对于800*600的屏幕（左下角为0，0，右上角为800，600），
	// 左下角为-1，-1，右上角为1，1
	float vertices[] = {
		-0.5f, -0.5f, 0.0f,
		 0.5f, -0.5f, 0.0f,
		 0.0f,  0.5f, 0.0f
	};
	//顶点数组对象：VAO
	unsigned int VAO;
	//顶点缓冲区对象：VBO
	unsigned int VBO;
	glGenVertexArrays(1, &VAO);
	//生成一个具有缓冲区ID的缓冲区
	glGenBuffers(1, &VBO);
	//绑定顶点数组对象
	glBindVertexArray(VAO);
	//顶点缓冲对象的缓冲类型是GL_ARRAY_BUFFER。OpenGL允许我们一次绑定到多个缓冲区，
	// 只要它们有不同的缓冲类型。
	// 将新创建的缓冲区绑定到GL_ARRAY_BUFFER目标
	glBindBuffer(GL_ARRAY_BUFFER, VBO);
	//将先前定义的顶点数据复制到缓冲区的内存中
	//第四个参数指定我们希望显卡如何管理给定数据。
	// 这可以采取 3 种形式：
	// GL_STREAM_DRAW：数据只设置一次，GPU 最多使用几次。
	// GL_STATIC_DRAW：数据只设置一次，多次使用。
	// GL_DYNAMIC_DRAW：数据更改很多，使用了很多次。
	glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

	//第一个参数指定我们想要配置的 vertex 属性
	//在具有layout（location = 0）的顶点着色器中指定了position vertex属性的位置
	//第二个参数指定顶点属性的大小。vertex属性是vec3，因此它由3个值组成
	//第三个参数指定顶点的数据类型（GLSL 中的 vec* 由浮点值组成）
	//第四个参数指定我们是否希望对数据进行规范化。
	//如果我们输入整数数据类型（int， byte）并将其设置为 GL_TRUE，则整数数据将标准化为0（或-1 对于有符号数据）,
	//当转换为 float 时为 1。这与我们无关，因此我们将将其留GL_FALSE
	//第五个参数称为stride，它告诉我们连续顶点属性之间的间距
	//由于下一组位置数据的位置正好是浮点数大小的3倍，因此我们将该值指定为步幅
	//第六个参数是void*类型，需要奇怪的强制转换
	//这是位置数据在缓冲区中开始的位置的偏移量，由于位置数据位于数据数组的开头，因此该值仅为0。
	glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
	glEnableVertexAttribArray(0);

	//解绑
	glBindBuffer(GL_ARRAY_BUFFER, 0);
	glBindVertexArray(0);

	while (!glfwWindowShouldClose(window))
	{
		processInput(window);
		glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
		glClear(GL_COLOR_BUFFER_BIT);

		//激活着色器程序
		glUseProgram(shaderProgram);
		//绑定VAO，VBO通过VAO间接绑定
		glBindVertexArray(VAO);
		//第一个参数为OpenGL基元类型
		//第二个参数指定想要绘制的顶点数组的起始索引
		//第三个参数指定了想要绘制的顶点数量
		glDrawArrays(GL_TRIANGLES, 0, 3);

		glfwSwapBuffers(window);
		glfwPollEvents();

	}
	glDeleteVertexArrays(1, &VAO);
	glDeleteBuffers(1, &VBO);
	glDeleteProgram(shaderProgram);

	glfwTerminate();
	return 0;
}

void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{
	glViewport(0, 0, width, height);
}
void processInput(GLFWwindow* window)
{
	if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
		glfwSetWindowShouldClose(window, true);
}

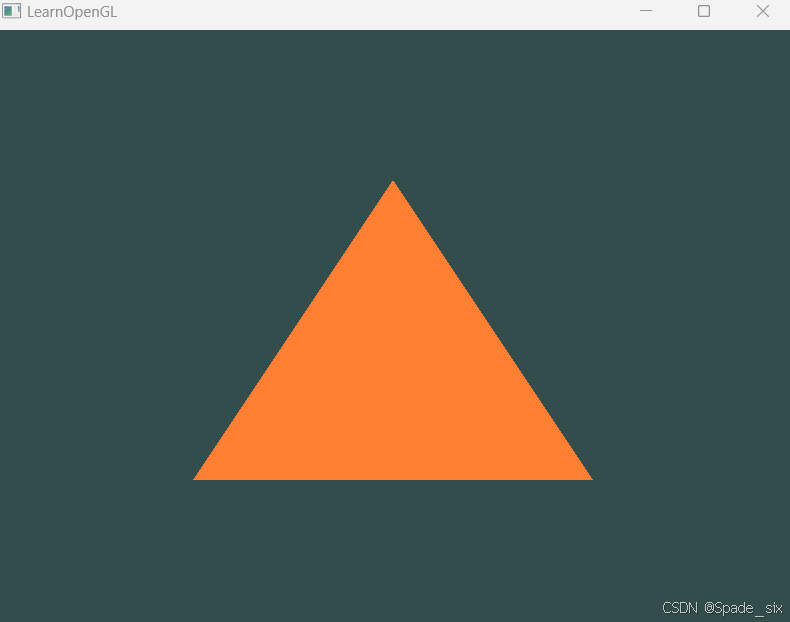

运行结果：

绘制矩形时，顶点如下：

 float vertices[] = {
 // first triangle
 0.5f, 0.5f, 0.0f, // top right
 0.5f,-0.5f, 0.0f, // bottom right
-0.5f, 0.5f, 0.0f, // top left
 // second triangle
 0.5f,-0.5f, 0.0f, // bottom right
-0.5f,-0.5f, 0.0f, // bottom left
-0.5f, 0.5f, 0.0f // top left
 };

指定的顶点上有一些重叠，这将造成 50% 的开销。一旦我们有更复杂的模型，这些模型有超过 1000 个三角形，其中会有大块重叠，情况只会变得更糟。更好的解决方案是仅存储唯一顶点，然后指定我们想要绘制这些顶点的顺序。元素缓冲区对象（EBO）能解决这一点。EBO 是一个缓冲区，就像顶点缓冲区对象一样，它存储 OpenGL 用于决定绘制哪些顶点的索引。

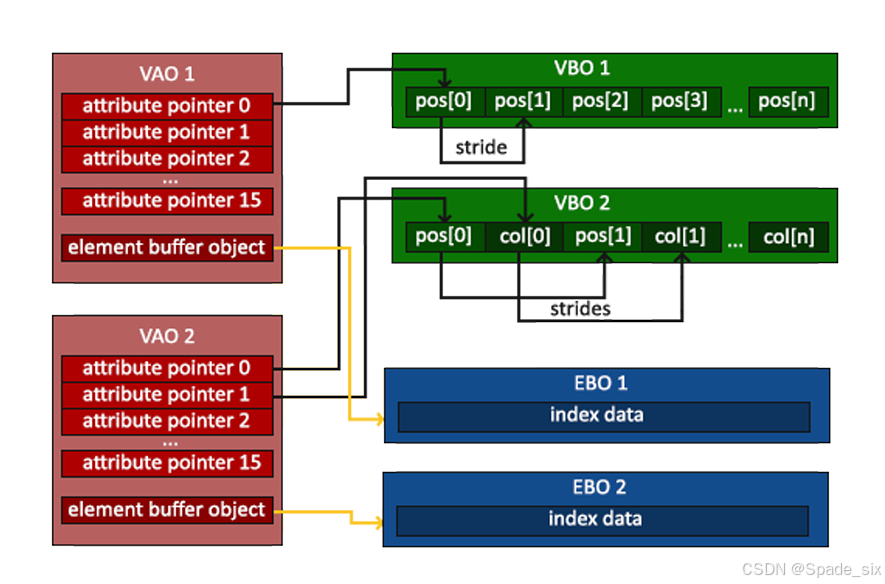

元素缓冲区对象（EBO）数据格式

绘制矩形

#include <glad/glad.h>
#include <GLFW/glfw3.h>
#include <iostream>

void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void processInput(GLFWwindow* window);

const unsigned int SCR_WIDTH = 800;
const unsigned int SCR_HEIGHT = 600;

const char* vertexShaderSource = R"(
#version 330 core
layout (location = 0) in vec3 aPos;
void main()
{
   gl_Position = vec4(aPos, 1.0);
})";

const char* fragmentShaderSource = R"(
#version 330 core
out vec4 color;
void main() {
    color = vec4(1.0f, 0.5f, 0.2f, 1.0f); //橙色
})";

int main()
{
	glfwInit();
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
	glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

	GLFWwindow* window = glfwCreateWindow(SCR_WIDTH, SCR_HEIGHT, "LearnOpenGL", NULL, NULL);
	if (window == NULL) {
		std::cout << "Failed to create GLFW window" << std::endl;
		glfwTerminate();
		return -1;
	}
	glfwMakeContextCurrent(window);
	glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);

	if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress)) {
		std::cout << "Failed to initialize GLAD" << std::endl;
		return -1;
	}

	unsigned int vertexShader;
	vertexShader = glCreateShader(GL_VERTEX_SHADER);
	glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
	glCompileShader(vertexShader);
	int success;
	char infoLog[512];
	glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &success);
	if (!success)
	{
		glGetShaderInfoLog(vertexShader, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::VERTEX::COMPILATION_FAILED\n" <<
			infoLog << std::endl;
	}

	unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
	glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
	glCompileShader(fragmentShader);
	glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &success);
	if (!success)
	{
		glGetShaderInfoLog(fragmentShader, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::FRAGMENT::COMPILATION_FAILED\n" << infoLog << std::endl;
	}

	unsigned int shaderProgram;
	shaderProgram = glCreateProgram();
	glAttachShader(shaderProgram, vertexShader);
	glAttachShader(shaderProgram, fragmentShader);
	glLinkProgram(shaderProgram);
	glGetProgramiv(shaderProgram, GL_LINK_STATUS, &success);
	if (!success) {
		glGetProgramInfoLog(shaderProgram, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::PROGRAM::LINKING_FAILED\n" << infoLog << std::endl;
	}
	glDeleteShader(vertexShader);
	glDeleteShader(fragmentShader);

	float vertices[] = {
		0.5f, 0.5f, 0.0f, // top right
		0.5f,-0.5f, 0.0f, // bottom right
	   -0.5f,-0.5f, 0.0f, // bottom left
	   -0.5f, 0.5f, 0.0f // top left
	};
	unsigned int indices[] = {
		0, 1, 3, //第一个三角形
		1, 2, 3 //第二个三角形
	};

	unsigned int VAO, VBO, EBO;
	glGenVertexArrays(1, &VAO);
	glGenBuffers(1, &VBO);
	glGenBuffers(1, &EBO);
	glBindVertexArray(VAO);

	glBindBuffer(GL_ARRAY_BUFFER, VBO);
	glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

	glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, EBO);
	glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);

	glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
	glEnableVertexAttribArray(0);

	//VAO在目标GL_ELEMENT_ARRAY_BUFFER时不仅存储glBindBuffer调用，也存储其unbind调用
	//因此在取消绑定VAO之前不要取消绑定元素数组缓冲区，否则它不会配置EBO。
	//glBindBuffer(GL_ARRAY_BUFFER, 0);
	glBindVertexArray(0);

	//绘制线框多边形
	//第一个参数把它应用到所有三角形的正面和背面
	//第二个参数把它们画成线条
	//任何后续的绘制调用都将以线框模式渲染三角形，
	//直到使用glPolygonMode（GL_FRONT_AND_BACK， GL_FILL）将其设置回默认值
	glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);

	while (!glfwWindowShouldClose(window))
	{
		processInput(window);
		glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
		glClear(GL_COLOR_BUFFER_BIT);

		glUseProgram(shaderProgram);
		glBindVertexArray(VAO);
		//第一个参数指定我们想要绘制的模式，类似于 glDrawArrays
		//第二个参数是我们想要绘制的元素的数量，总共要绘制6个顶点
		//第三个参数是GL_UNSIGNED_INT类型的索引类型
		//最第四个参数允许在EBO中指定偏移量
		glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, 0);

		glfwSwapBuffers(window);
		glfwPollEvents();

	}
	glDeleteVertexArrays(1, &VAO);
	glDeleteBuffers(1, &VBO);
	glDeleteBuffers(1, &EBO);
	glDeleteProgram(shaderProgram);

	glfwTerminate();
	return 0;
}

void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{
	glViewport(0, 0, width, height);
}
void processInput(GLFWwindow* window)
{
	if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
		glfwSetWindowShouldClose(window, true);
}

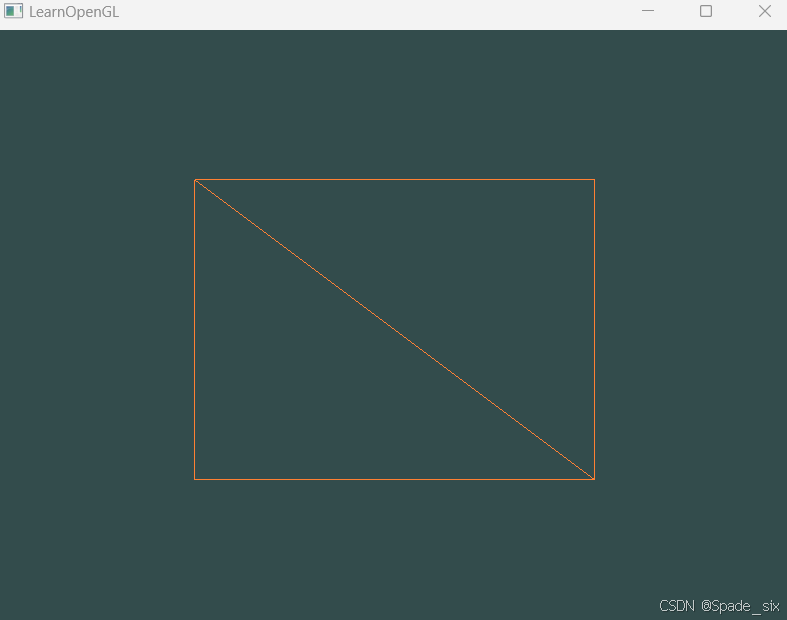

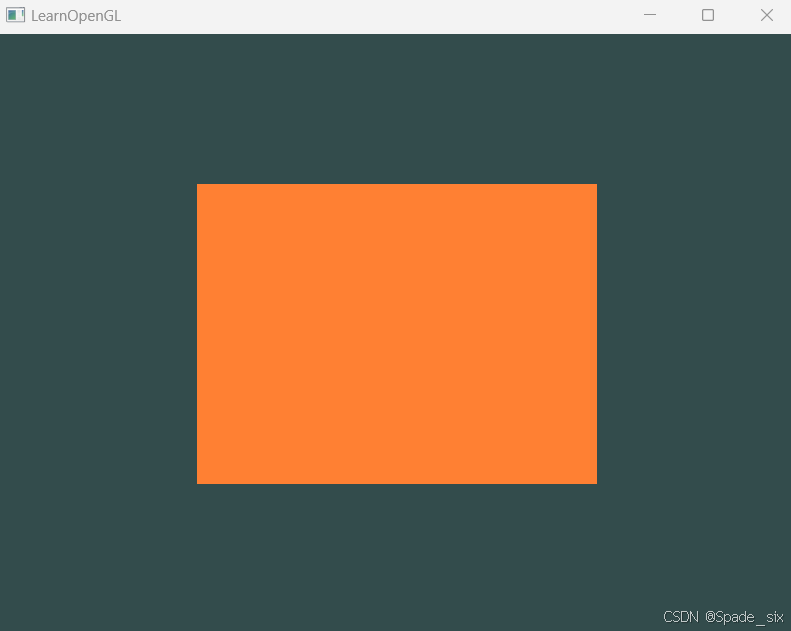

运行结果：

GLSL

着色器是用类似 C 语言 GLSL 编写的。GLSL 专为图形使用而定制，包含专门针对矢量和矩阵操作的有用功能。着色器始终以版本声明开头，后跟输入和输出变量、uniform 及其 main 函数的列表。每个着色器的入口点都位于其 main 函数处，在这里处理任何输入变量并将结果输出到其输出变量中。

 #version version_number
 in type in_variable_name;
 in type in_variable_name;
 out type out_variable_name;
 uniform type uniform_name;
 void main()
 {
 // process input(s) and do some weird graphics stuff
 ...
 // output processed stuff to output variable
 out_variable_name = weird_stuff_we_processed;
 }

当专门讨论顶点着色器时，每个输入变量也称为顶点属性。允许声明的最大顶点属性数受硬件限制。OpenGL 保证始终至少有 16 个 4 分量顶点属性可用，但某些硬件可能允许通过查询 GL_MAX_VERTEX_ATTRIBS 来检索更多。

int nrAttributes;
 glGetIntegerv(GL_MAX_VERTEX_ATTRIBS, &nrAttributes);
 std::cout << "Maximum nr of vertex attributes supported: " << nrAttributes
 << std::endl;

vector

GLSL 中的 vector 是一个 1、2、3 或 4 个组件容器，适用于刚才提到的任何基本类型。它们可以采用以下形式（n 表示分量数）：

vecn：n 个浮点数的默认向量
bvecn：n 个布尔值的向量
ivecn：n 个整数的向量
uvecn：n 个无符号整数的向量
dvecn：n 个双精度分量的向量

大多数时候，我们将使用基本的 vecn，因为 float 足以满足我们的大多数目的。

uniform

Uniform 是将数据从 CPU 上的应用程序传递到 GPU 上的着色器的另一种方式。但是，与顶点属性相比，uniforms 略有不同。首先，uniform有全局性，这意味着每个着色器程序对象可以在着色器程序的任何阶段从任何着色器访问该变量。其次，无论你将 uniform 值设置为什么，uniforms 都将保留其值，直到它们被重置或更新。要在 GLSL 中声明 uniform，我们只需将 uniform 关键字添加到具有类型和名称的着色器中。

#include <glad/glad.h>
#include <GLFW/glfw3.h>
#include <iostream>
#include <cmath>

void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void processInput(GLFWwindow* window);

const unsigned int SCR_WIDTH = 800;
const unsigned int SCR_HEIGHT = 600;

const char* vertexShaderSource = R"(
#version 330 core
layout (location = 0) in vec3 aPos;
void main()
{
   gl_Position = vec4(aPos, 1.0);
})";

const char* fragmentShaderSource = R"(
#version 330 core
out vec4 FragColor;
uniform vec4 ourColor;
void main()
{
   FragColor = ourColor;
})";

int main()
{

    glfwInit();
    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

    GLFWwindow* window = glfwCreateWindow(SCR_WIDTH, SCR_HEIGHT, "LearnOpenGL", NULL, NULL);
    if (window == NULL)
    {
        std::cout << "Failed to create GLFW window" << std::endl;
        glfwTerminate();
        return -1;
    }
    glfwMakeContextCurrent(window);
    glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);

    if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
    {
        std::cout << "Failed to initialize GLAD" << std::endl;
        return -1;
    }

    unsigned int vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
    glCompileShader(vertexShader);
    int success;
    char infoLog[512];
    glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(vertexShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::VERTEX::COMPILATION_FAILED\n" << infoLog << std::endl;
    }
    unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
    glCompileShader(fragmentShader);
    glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(fragmentShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::FRAGMENT::COMPILATION_FAILED\n" << infoLog << std::endl;
    }
    unsigned int shaderProgram = glCreateProgram();
    glAttachShader(shaderProgram, vertexShader);
    glAttachShader(shaderProgram, fragmentShader);
    glLinkProgram(shaderProgram);
    glGetProgramiv(shaderProgram, GL_LINK_STATUS, &success);
    if (!success) {
        glGetProgramInfoLog(shaderProgram, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::PROGRAM::LINKING_FAILED\n" << infoLog << std::endl;
    }
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);

    float vertices[] = {
         0.5f, -0.5f, 0.0f,  // bottom right
        -0.5f, -0.5f, 0.0f,  // bottom left
         0.0f,  0.5f, 0.0f   // top
    };

    unsigned int VBO, VAO;
    glGenVertexArrays(1, &VAO);
    glGenBuffers(1, &VBO);
    glBindVertexArray(VAO);
    glBindBuffer(GL_ARRAY_BUFFER, VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
    glEnableVertexAttribArray(0);
    glBindVertexArray(VAO);

    while (!glfwWindowShouldClose(window))
    {
        processInput(window);
        glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);

        glUseProgram(shaderProgram);


        double  timeValue = glfwGetTime();
        float greenValue = sin(timeValue) / 2.0f + 0.5f;
        //查询 ourColor uniform 的位置。我们将着色器程序和 uniform 的名称（我们要从中检索位置）提供给 query 函数
        //如果 glGetUniformLocation 返回 - 1，则找不到位置
        int vertexColorLocation = glGetUniformLocation(shaderProgram, "ourColor");
        //设置 uniform 值。请注意，如果 in uniform 位置，则不需要先使用着色器程序
        //但更新 uniform 确实需要先使用程序（通过调用 glUseProgram），因为它会在当前活动的着色器程序上设置 uniform
        glUniform4f(vertexColorLocation, 0.0f, greenValue, 0.0f, 1.0f);

        glDrawArrays(GL_TRIANGLES, 0, 3);

        glfwSwapBuffers(window);
        glfwPollEvents();
    }

    glDeleteVertexArrays(1, &VAO);
    glDeleteBuffers(1, &VBO);
    glDeleteProgram(shaderProgram);

    glfwTerminate();
    return 0;
}

void processInput(GLFWwindow* window)
{
    if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
        glfwSetWindowShouldClose(window, true);
}

void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{
    glViewport(0, 0, width, height);
}

顶点着色器中输出颜色

#include <glad/glad.h>
#include <GLFW/glfw3.h>
#include <iostream>
#include <cmath>

void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void processInput(GLFWwindow* window);

const unsigned int SCR_WIDTH = 800;
const unsigned int SCR_HEIGHT = 600;

const char* vertexShaderSource = R"(
#version 330 core
layout (location = 0) in vec3 aPos;
layout (location = 1) in vec3 aColor;
out vec3 ourColor;
void main()
{
    gl_Position = vec4(aPos, 1.0);
    ourColor = aColor;
})";

const char* fragmentShaderSource = R"(
#version 330 core
out vec4 FragColor;
in vec3 ourColor;
void main()
{
    FragColor = vec4(ourColor, 1.0);
})";

int main()
{

    glfwInit();
    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

    GLFWwindow* window = glfwCreateWindow(SCR_WIDTH, SCR_HEIGHT, "LearnOpenGL", NULL, NULL);
    if (window == NULL)
    {
        std::cout << "Failed to create GLFW window" << std::endl;
        glfwTerminate();
        return -1;
    }
    glfwMakeContextCurrent(window);
    glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);

    if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
    {
        std::cout << "Failed to initialize GLAD" << std::endl;
        return -1;
    }

    unsigned int vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
    glCompileShader(vertexShader);
    int success;
    char infoLog[512];
    glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(vertexShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::VERTEX::COMPILATION_FAILED\n" << infoLog << std::endl;
    }
    unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
    glCompileShader(fragmentShader);
    glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(fragmentShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::FRAGMENT::COMPILATION_FAILED\n" << infoLog << std::endl;
    }
    unsigned int shaderProgram = glCreateProgram();
    glAttachShader(shaderProgram, vertexShader);
    glAttachShader(shaderProgram, fragmentShader);
    glLinkProgram(shaderProgram);
    glGetProgramiv(shaderProgram, GL_LINK_STATUS, &success);
    if (!success) {
        glGetProgramInfoLog(shaderProgram, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::PROGRAM::LINKING_FAILED\n" << infoLog << std::endl;
    }
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);

    float vertices[] = {
        // positions      // colors
        0.5f,-0.5f, 0.0f, 1.0f, 0.0f, 0.0f, // bottom right
       -0.5f,-0.5f, 0.0f, 0.0f, 1.0f, 0.0f, // bottom left
        0.0f, 0.5f, 0.0f, 0.0f, 0.0f, 1.0f // top
    };

    unsigned int VBO, VAO;
    glGenVertexArrays(1, &VAO);
    glGenBuffers(1, &VBO);
    glBindVertexArray(VAO);
    glBindBuffer(GL_ARRAY_BUFFER, VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)0);
    glEnableVertexAttribArray(0);
    glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)(3 * sizeof(float)));
    glEnableVertexAttribArray(1);
    glBindVertexArray(VAO);

    while (!glfwWindowShouldClose(window))
    {
        processInput(window);
        glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);

        glUseProgram(shaderProgram);


        double  timeValue = glfwGetTime();
        float greenValue = sin(timeValue) / 2.0f + 0.5f;
        //查询 ourColor uniform 的位置。我们将着色器程序和 uniform 的名称（我们要从中检索位置）提供给 query 函数
        //如果 glGetUniformLocation 返回 - 1，则找不到位置
        int vertexColorLocation = glGetUniformLocation(shaderProgram, "ourColor");
        //设置 uniform 值。请注意，如果 in uniform 位置，则不需要先使用着色器程序
        //但更新 uniform 确实需要先使用程序（通过调用 glUseProgram），因为它会在当前活动的着色器程序上设置 uniform
        glUniform4f(vertexColorLocation, 0.0f, greenValue, 0.0f, 1.0f);

        glDrawArrays(GL_TRIANGLES, 0, 3);

        glfwSwapBuffers(window);
        glfwPollEvents();
    }

    glDeleteVertexArrays(1, &VAO);
    glDeleteBuffers(1, &VBO);
    glDeleteProgram(shaderProgram);

    glfwTerminate();
    return 0;
}

void processInput(GLFWwindow* window)
{
    if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
        glfwSetWindowShouldClose(window, true);
}

void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{
    glViewport(0, 0, width, height);
}

着色器封装为类

shader.h

#ifndef SHADER_H
#define SHADER_H

#include <glad/glad.h>

#include <string>
#include <fstream>
#include <sstream>
#include <iostream>

class Shader
{
public:
    unsigned int ID;
    Shader(const char* vertexPath, const char* fragmentPath)
    {
        std::string vertexCode;
        std::string fragmentCode;
        std::ifstream vShaderFile;
        std::ifstream fShaderFile;
        vShaderFile.exceptions(std::ifstream::failbit | std::ifstream::badbit);
        fShaderFile.exceptions(std::ifstream::failbit | std::ifstream::badbit);
        try
        {
            vShaderFile.open(vertexPath);
            fShaderFile.open(fragmentPath);
            std::stringstream vShaderStream, fShaderStream;
            vShaderStream << vShaderFile.rdbuf();
            fShaderStream << fShaderFile.rdbuf();
            vShaderFile.close();
            fShaderFile.close();
            vertexCode = vShaderStream.str();
            fragmentCode = fShaderStream.str();
        }
        catch (std::ifstream::failure& e)
        {
            std::cout << "ERROR::SHADER::FILE_NOT_SUCCESSFULLY_READ: " << e.what() << std::endl;
        }
        const char* vShaderCode = vertexCode.c_str();
        const char* fShaderCode = fragmentCode.c_str();
        unsigned int vertex, fragment;

        vertex = glCreateShader(GL_VERTEX_SHADER);
        glShaderSource(vertex, 1, &vShaderCode, NULL);
        glCompileShader(vertex);
        checkCompileErrors(vertex, "VERTEX");

        fragment = glCreateShader(GL_FRAGMENT_SHADER);
        glShaderSource(fragment, 1, &fShaderCode, NULL);
        glCompileShader(fragment);
        checkCompileErrors(fragment, "FRAGMENT");

        ID = glCreateProgram();
        glAttachShader(ID, vertex);
        glAttachShader(ID, fragment);
        glLinkProgram(ID);
        checkCompileErrors(ID, "PROGRAM");

        glDeleteShader(vertex);
        glDeleteShader(fragment);
    }

    void use()
    {
        glUseProgram(ID);
    }

    void setBool(const std::string& name, bool value) const
    {
        glUniform1i(glGetUniformLocation(ID, name.c_str()), (int)value);
    }

    void setInt(const std::string& name, int value) const
    {
        glUniform1i(glGetUniformLocation(ID, name.c_str()), value);
    }

    void setFloat(const std::string& name, float value) const
    {
        glUniform1f(glGetUniformLocation(ID, name.c_str()), value);
    }

private:
    void checkCompileErrors(unsigned int shader, std::string type)
    {
        int success;
        char infoLog[1024];
        if (type != "PROGRAM")
        {
            glGetShaderiv(shader, GL_COMPILE_STATUS, &success);
            if (!success)
            {
                glGetShaderInfoLog(shader, 1024, NULL, infoLog);
                std::cout << "ERROR::SHADER_COMPILATION_ERROR of type: " << type << "\n" << infoLog << "\n -- --------------------------------------------------- -- " << std::endl;
            }
        }
        else
        {
            glGetProgramiv(shader, GL_LINK_STATUS, &success);
            if (!success)
            {
                glGetProgramInfoLog(shader, 1024, NULL, infoLog);
                std::cout << "ERROR::PROGRAM_LINKING_ERROR of type: " << type << "\n" << infoLog << "\n -- --------------------------------------------------- -- " << std::endl;
            }
        }
    }
};
#endif

shader.vs

#version 330 core
layout (location = 0) in vec3 aPos;
layout (location = 1) in vec3 aColor;

out vec3 ourColor;

void main()
{
    gl_Position = vec4(aPos, 1.0);
    ourColor = aColor;
}

shader.fs

#version 330 core
out vec4 FragColor;

in vec3 ourColor;

void main()
{
    FragColor = vec4(ourColor, 1.0f);
}

cpp

#include <glad/glad.h>
#include <GLFW/glfw3.h>

#include "shader.h"
#include <iostream>

void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void processInput(GLFWwindow* window);

const unsigned int SCR_WIDTH = 800;
const unsigned int SCR_HEIGHT = 600;

int main()
{
    glfwInit();
    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

    GLFWwindow* window = glfwCreateWindow(SCR_WIDTH, SCR_HEIGHT, "LearnOpenGL", NULL, NULL);
    if (window == NULL)
    {
        std::cout << "Failed to create GLFW window" << std::endl;
        glfwTerminate();
        return -1;
    }
    glfwMakeContextCurrent(window);
    glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);

    if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
    {
        std::cout << "Failed to initialize GLAD" << std::endl;
        return -1;
    }

    Shader ourShader("shader.vs", "shader.fs");

    float vertices[] = {
        // positions         // colors
         0.5f, -0.5f, 0.0f,  1.0f, 0.0f, 0.0f,  // bottom right
        -0.5f, -0.5f, 0.0f,  0.0f, 1.0f, 0.0f,  // bottom left
         0.0f,  0.5f, 0.0f,  0.0f, 0.0f, 1.0f   // top
    };

    unsigned int VBO, VAO;
    glGenVertexArrays(1, &VAO);
    glGenBuffers(1, &VBO);
    glBindVertexArray(VAO);

    glBindBuffer(GL_ARRAY_BUFFER, VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)0);
    glEnableVertexAttribArray(0);
    glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)(3 * sizeof(float)));
    glEnableVertexAttribArray(1);

    glBindVertexArray(0);

    while (!glfwWindowShouldClose(window))
    {
        processInput(window);

        glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);

        ourShader.use();
        glBindVertexArray(VAO);
        glDrawArrays(GL_TRIANGLES, 0, 3);

        glfwSwapBuffers(window);
        glfwPollEvents();
    }

    glDeleteVertexArrays(1, &VAO);
    glDeleteBuffers(1, &VBO);

    glfwTerminate();
    return 0;
}

void processInput(GLFWwindow* window)
{
    if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
        glfwSetWindowShouldClose(window, true);
}
void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{
    glViewport(0, 0, width, height);
}
