上面两期已经学习了认证和授权的相关知识并且对源码进行了解析,相信这些知识点应付简单系统权限控制已经足够,但是如果想要实现复杂的权限控制,就需要自己进自定义开发了。今天我们来学习一下如何基于Spring Security,实时从数据库里查询用户权限进行权限校验,实现动态权限控制。
一、RBAC简介
动态权限开发以前,我们必须要有一套明确的权限系统。下面我们基于RBAC来讲解具体实现流程。
RBAC(role-based access control),基于角色的权限控制系统,是指对于不同角色的用户,拥有不同的权限 。用户绑定角色,角色绑定菜单权限和资源权限,形成用户-角色-权限的关系,如下图所示。

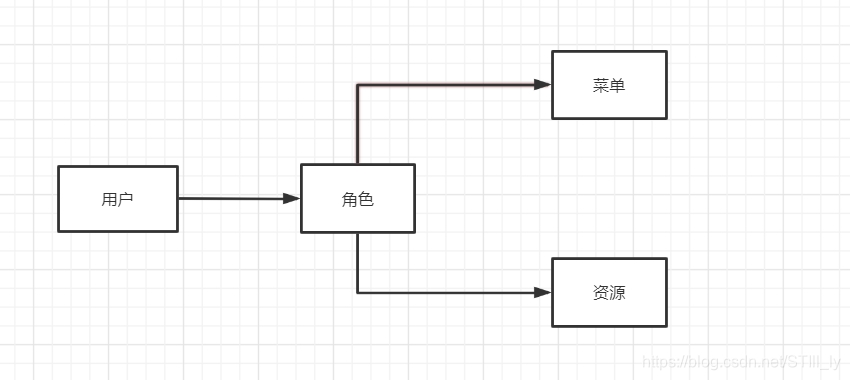

用户角色权限关系图:
二、RBAC数据库设计
用户角色权限关系数据库模型
建表语句
/*
Navicat Premium Data Transfer
Source Server : MysqlLocal
Source Server Type : MySQL
Source Server Version : 50728
Source Host : localhost:3306
Source Schema : auth
Target Server Type : MySQL
Target Server Version : 50728
File Encoding : 65001
Date: 03/09/2020 11:49:20
*/
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for auth_menu
-- ----------------------------
DROP TABLE IF EXISTS `auth_menu`;
CREATE TABLE `auth_menu` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`parent_id` bigint(20) NULL DEFAULT NULL COMMENT '父级ID',
`name` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '前端名称',
`title` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '菜单名称',
`level` int(4) NULL DEFAULT NULL COMMENT '菜单级数',
`icon` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '前端图标',
`sort` int(4) NULL DEFAULT NULL COMMENT '菜单排序',
`create_time` datetime(0) NULL DEFAULT NULL COMMENT '创建时间',
`hidden` int(1) NULL DEFAULT NULL COMMENT '前端隐藏',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 33 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;
-- ----------------------------
-- Table structure for auth_resource
-- ----------------------------
DROP TABLE IF EXISTS `auth_resource`;
CREATE TABLE `auth_resource` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`category_id` bigint(20) NULL DEFAULT NULL COMMENT '资源分类ID',
`name` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '资源名称',
`description` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '描述',
`url` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '资源URL',
`create_time` datetime(0) NULL DEFAULT NULL COMMENT '创建时间',
PRIMARY KEY (`id`) USING BTREE,
INDEX `pk_ar_category_id`(`category_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 35 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;
-- ----------------------------
-- Table structure for auth_resource_category
-- ----------------------------
DROP TABLE IF EXISTS `auth_resource_category`;
CREATE TABLE `auth_resource_category` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`name` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '分类名称',
`sort` int(4) NULL DEFAULT NULL COMMENT '排序',
`create_time` datetime(0) NULL DEFAULT NULL COMMENT '创建时间',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 6 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = '资源分类' ROW_FORMAT = Dynamic;
-- ----------------------------
-- Table structure for auth_role
-- ----------------------------
DROP TABLE IF EXISTS `auth_role`;
CREATE TABLE `auth_role` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`name` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '名称',
`description` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '描述',
`user_count` int(11) NULL DEFAULT NULL COMMENT '后台用户数量',
`create_time` datetime(0) NULL DEFAULT NULL COMMENT '创建时间',
`status` int(1) NULL DEFAULT 1 COMMENT '启用状态:0->禁用;1->启用',
`sort` int(11) NULL DEFAULT 0 COMMENT '排序',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 7 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;
-- ----------------------------
-- Table structure for auth_role_menu
-- ----------------------------
DROP TABLE IF EXISTS `auth_role_menu`;
CREATE TABLE `auth_role_menu` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`role_id` bigint(20) NULL DEFAULT NULL COMMENT '角色ID',
`menu_id` bigint(20) NULL DEFAULT NULL COMMENT '菜单ID',
PRIMARY KEY (`id`) USING BTREE,
INDEX `pk_rm_role_id`(`role_id`) USING BTREE,
INDEX `pk_rm_menu_id`(`menu_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 240 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;
-- ----------------------------
-- Table structure for auth_role_resource
-- ----------------------------
DROP TABLE IF EXISTS `auth_role_resource`;
CREATE TABLE `auth_role_resource` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`role_id` bigint(20) NULL DEFAULT NULL COMMENT '角色ID',
`resource_id` bigint(20) NULL DEFAULT NULL COMMENT '资源ID',
PRIMARY KEY (`id`) USING BTREE,
INDEX `pk_rc_role_id`(`role_id`) USING BTREE,
INDEX `pk_rc_resource_id`(`resource_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 344 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;
-- ----------------------------
-- Table structure for auth_user
-- ----------------------------
DROP TABLE IF EXISTS `auth_user`;
CREATE TABLE `auth_user` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`username` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '用户名',
`password` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '密码',
`nickname` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '昵称',
`id_number` varchar(18) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '身份证号',
`sex` int(1) NULL DEFAULT NULL COMMENT '性别:0->女;1->男',
`birthday` datetime(0) NULL DEFAULT NULL COMMENT '出生日期',
`email` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '邮箱',
`phone` varchar(15) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '联系方式',
`icon` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '头像',
`note` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '备注信息',
`create_time` datetime(0) NULL DEFAULT NULL COMMENT '创建时间',
`login_time` datetime(0) NULL DEFAULT NULL COMMENT '最后登录时间',
`status` int(1) NULL DEFAULT 1 COMMENT '帐号启用状态:0->禁用;1->启用',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 11 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = '用户表' ROW_FORMAT = Dynamic;
-- ----------------------------
-- Table structure for auth_user_role
-- ----------------------------
DROP TABLE IF EXISTS `auth_user_role`;
CREATE TABLE `auth_user_role` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`user_id` bigint(20) NULL DEFAULT NULL,
`role_id` bigint(20) NULL DEFAULT NULL,
PRIMARY KEY (`id`) USING BTREE,
INDEX `pk_ur_user_id`(`user_id`) USING BTREE,
INDEX `pk_ur_role_id`(`role_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 58 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;
SET FOREIGN_KEY_CHECKS = 1;
三、动态权限解决方案一
Spring Security中是通过FilterSecurityInterceptor过滤器实现权限验证的,实现的具体细节上期已经介绍。要实现动态权限校验,可以在FilterSecurityInterceptor前增加一个自定义的过滤器,实现自己的权限校验逻辑。
3.1、定义一个动态权限相关业务接口DynamicSecurityService,有一个方法loadDataSource(),用来加载资源ANT通配符和资源对应MAP。具体实现由业务系统是实现。
接口:
public interface DynamicSecurityService {
/**
* 加载资源ANT通配符和资源对应MAP
*/
Map<String, ConfigAttribute> loadDataSource();
}
实现类:
/**
* @author FishAndFlower
* @title: rmsDynamicSecurityService
* @projectName rms
* @description: 用户动态权限加载
* @date 2020/7/30 10:01
*/
@Component
public class AuthDynamicSecurityService implements DynamicSecurityService {
@Autowired
private ResourceService resourceService;
@Override
public Map<String, ConfigAttribute> loadDataSource() {
Map<String, ConfigAttribute> map = new ConcurrentHashMap<>();
List<AuthResourceDto> resourceList = resourceService.queryAuthResources(new AuthResourceQueryCondition());
for (AuthResource resource : resourceList) {
map.put(resource.getUrl(), new org.springframework.security.access.SecurityConfig(resource.getId() + ":" + resource.getName()));
}
return map;
}
}
3.2、定义一个动态权限数据源(DynamicSecurityMetadataSource),实现FilterInvocationSecurityMetadataSource接口,重写getAttributes()方法,自动装配DynamicSecurityService实现类,用于获取动态权限规则。
@Component
public class DynamicSecurityMetadataSource implements FilterInvocationSecurityMetadataSource {
private static Map<String, ConfigAttribute> configAttributeMap = null;
@Autowired
private DynamicSecurityService dynamicSecurityService;
@PostConstruct
public void loadDataSource() {
configAttributeMap = dynamicSecurityService.loadDataSource();//加载所有的URL和资源map
}
/**
* 获取访问路径所需要的权限
* @param o
* @return
* @throws IllegalArgumentException
*/
@Override
public Collection<ConfigAttribute> getAttributes(Object o) throws IllegalArgumentException {
if (configAttributeMap == null) this.loadDataSource();
List<ConfigAttribute> configAttributes = new ArrayList<>();
//获取当前访问的路径
String url = ((FilterInvocation) o).getRequestUrl();
String path = URLUtil.getPath(url);
PathMatcher pathMatcher = new AntPathMatcher();
Iterator<String> iterator = configAttributeMap.keySet().iterator();
//获取访问该路径所需资源
while (iterator.hasNext()) {
String pattern = iterator.next();
if (pathMatcher.match(pattern, path)) {
configAttributes.add(configAttributeMap.get(pattern));
}
}
// 未设置操作请求权限,返回空集合
return configAttributes;
}
@Override
public Collection<ConfigAttribute> getAllConfigAttributes() {
return null;
}
@Override
public boolean supports(Class<?> aClass) {
return true;
}
}
3.3、定义一个动态权限决策管理器(DynamicAccessDecisionManager),用于判断用户是否有访问权限,实现AccessDecisionManager接口,重写decide()方法和supports()方法,decide用于判断用户是都有去访问权限。
@Component
@Slf4j
public class DynamicAccessDecisionManager implements AccessDecisionManager {
/**
* 判断是都有访问权限
* @param authentication 登录用户授权信息
* @param object
* @param configAttributes 该请求需要的访问权限
* @throws AccessDeniedException
* @throws InsufficientAuthenticationException
*/
@Override
public void decide(Authentication authentication, Object object,
Collection<ConfigAttribute> configAttributes) throws AccessDeniedException, InsufficientAuthenticationException {
// 当接口未被配置资源时直接放行
if (CollUtil.isEmpty(configAttributes)) {
log.info("未配置资源访问限制");
return;
}
Iterator<ConfigAttribute> iterator = configAttributes.iterator();
while (iterator.hasNext()) {
ConfigAttribute configAttribute = iterator.next();
//将访问所需资源或用户拥有资源进行比对
String needAuthority = configAttribute.getAttribute();
for (GrantedAuthority grantedAuthority : authentication.getAuthorities()) {
if (needAuthority.trim().equals(grantedAuthority.getAuthority())) {
return;
}
}
}
throw new AccessDeniedException("抱歉,您没有访问权限");
}
@Override
public boolean supports(ConfigAttribute configAttribute) {
return true;
}
@Override
public boolean supports(Class<?> aClass) {
return true;
}
}
3.4、定义一个DynamicSecurityFilter过滤器,继承AbstractSecurityInterceptor抽象类,自动装配DynamicAccessDecisionManager和DynamicSecurityMetadataSource,实现动态权限过滤器。
@Component
public class DynamicSecurityFilter extends AbstractSecurityInterceptor implements Filter {
@Autowired
private DynamicSecurityMetadataSource dynamicSecurityMetadataSource;
@Autowired
public void setMyAccessDecisionManager(DynamicAccessDecisionManager dynamicAccessDecisionManager) {
super.setAccessDecisionManager(dynamicAccessDecisionManager);
}
@Override
public void init(FilterConfig filterConfig) throws ServletException {
}
@Override
public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
HttpServletRequest request = (HttpServletRequest) servletRequest;
FilterInvocation fi = new FilterInvocation(servletRequest, servletResponse, filterChain);
//OPTIONS请求直接放行
if(request.getMethod().equals(HttpMethod.OPTIONS.toString())){
fi.getChain().doFilter(fi.getRequest(), fi.getResponse());
return;
}
//此处会调用AccessDecisionManager中的decide方法进行鉴权操作
InterceptorStatusToken token = super.beforeInvocation(fi);
try {
fi.getChain().doFilter(fi.getRequest(), fi.getResponse());
} finally {
super.afterInvocation(token, null);
}
}
@Override
public void destroy() {
}
@Override
public Class<?> getSecureObjectClass() {
return FilterInvocation.class;
}
@Override
public SecurityMetadataSource obtainSecurityMetadataSource() {
return dynamicSecurityMetadataSource;
}
}
3.5、 定义好过滤器后,需要将过滤器配置到FilterSecurityInterceptor之前:
四、动态权限解决方案二
使用access()方法设置动态权限也是很好的办法,相比方案一更简单明了。只需要编写一个动态权限方法,然后配置一下校验规则即可:
@Override
public boolean hasPermission(HttpServletRequest request, Authentication authentication) {
boolean hasPermission = false;
//获取请求路径
String url = request.getRequestURI();
String path = URLUtil.getPath(url);
//获取访问该路径所需资源权限
PathMatcher pathMatcher = new AntPathMatcher();
Collection<ConfigAttribute> configAttributes = new ArrayList<>();
List<AuthResourceDto> resourceList = resourceService.queryAuthResources(new AuthResourceQueryCondition());
for (AuthResource resource : resourceList) {
if(pathMatcher.match(resource.getUrl(), path)){
configAttributes.add(new org.springframework.security.access.SecurityConfig(resource.getId() + ":" + resource.getName()));
}
}
//判断是否有权限
Iterator<ConfigAttribute> iterator = configAttributes.iterator();
while (iterator.hasNext()) {
ConfigAttribute configAttribute = iterator.next();
//将访问所需资源或用户拥有资源进行比对
String needAuthority = configAttribute.getAttribute();
for (GrantedAuthority grantedAuthority : authentication.getAuthorities()) {
if (needAuthority.trim().equals(grantedAuthority.getAuthority())) {
hasPermission = true;
}
}
}
return hasPermission;
}
然后在自定义的AuthorizeConfigProvider实现类中添加一行权限校验代码:
config.anyRequest().access("@authUserServiceImpl.hasPermission(request, authentication)");
:
@Component
/**最小值,最先读取这个配置**/
@Order(Integer.MIN_VALUE)
public class AuthAuthorizeConfigProvider implements AuthorizeConfigProvider {
@Autowired
private SecurityProperties securityProperties;
@Override
public boolean config(ExpressionUrlAuthorizationConfigurer<HttpSecurity>.ExpressionInterceptUrlRegistry config) {
//支持本地应用查询资源信息
// config.antMatchers(HttpMethod.GET,"/auth/security/resourceall").access("hasIpAddress('0:0:0:0:0:0:0:1') or hasIpAddress('127.0.0.1')");
config.antMatchers(HttpMethod.GET,"/auth/security/info","/security/resourceall","/security/user","/security/resources").permitAll();
//使用access配置动态权限
config.anyRequest().access("@authUserServiceImpl.hasPermission(request, authentication)");
return true;
}
}
其中authUserServiceImpl为AuthUserServiceImpl bean的id,hasPermission为其方法。这样可以在FilterSecurityInterceptor过滤器中进行权限校验,不必再自定义过滤器。
五、资源管理系统演示
项目演示地址:http://175.24.75.121/#/login
用户名:visitor
密码:visitor
六、GITHUB
前端工程:https://github.com/STIll-clx/rms-admin-web
后端工程:https://github.com/STIll-clx/rms
七、专题导航
上一节:三、Spring Security认证和授权-授权流程及源码解析
下一节:五、Spring Security认证和授权-实现图片验证码功能
欢迎点赞加关注!(๑′ᴗ‵๑)I Lᵒᵛᵉᵧₒᵤ❤
