一个月准备蓝桥杯嵌入式——dey2LCD显示Hello world

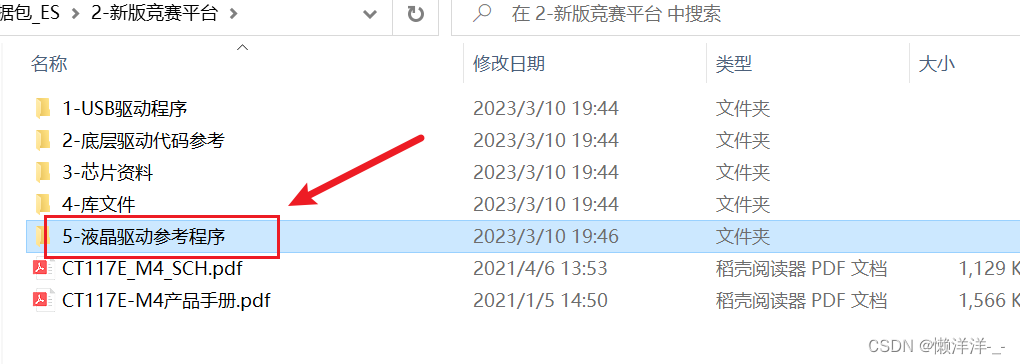

今天移植一下考试时给的屏幕驱动，然后简单了解一下API函数。

不用cubemx配置，直接把写好的.c和.h文件移植一下就可以。

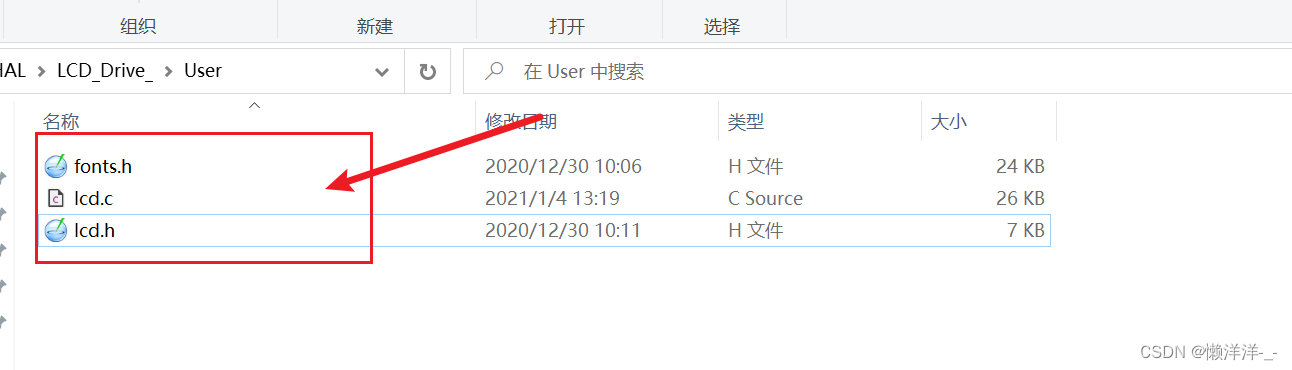

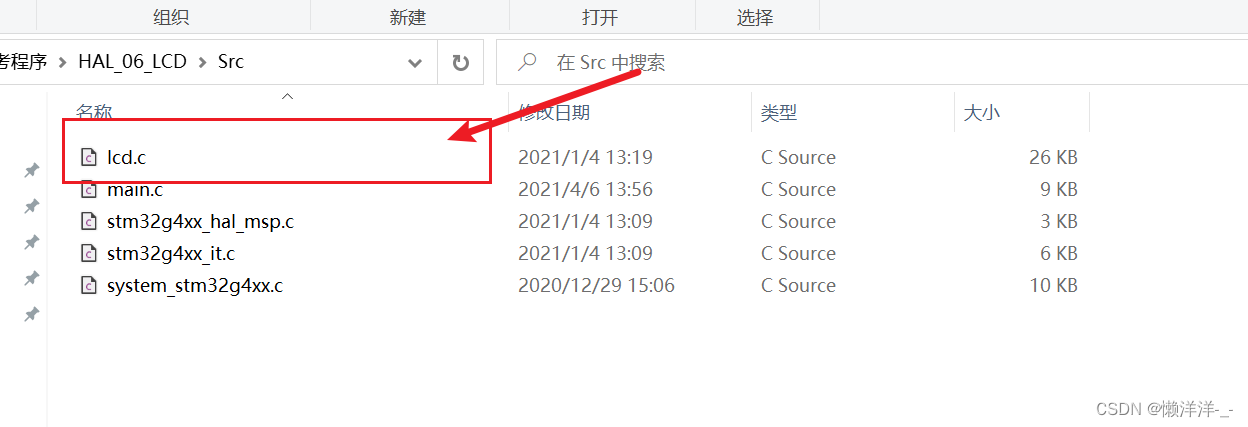

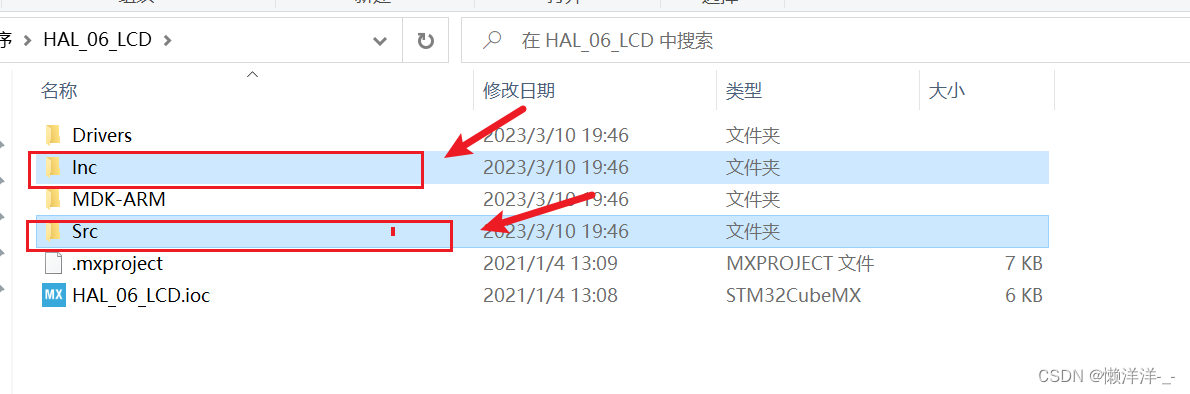

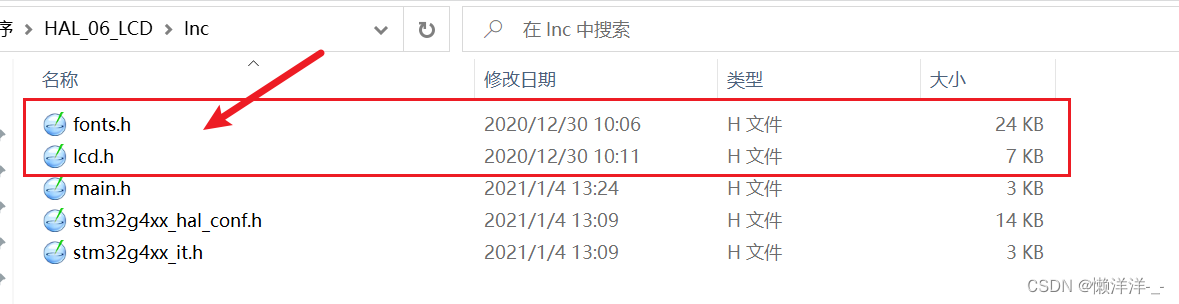

把两个.h和一个.c全部拿到我们的User文件夹里，然后keil添加一下，步骤如下。

添加后：

记得#include，因为后边要用

#include "LCD.h"
#include "stdio.h"

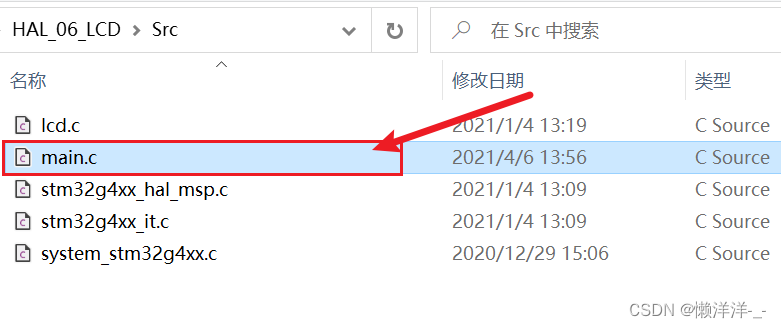

然后打开src里的main.c文件，记事本打开，把关键内容copy一下够用就行。

	LCD_Init();
	LCD_Clear(Blue);
	LCD_SetBackColor(Blue);
	LCD_SetTextColor(White);


	LCD_DrawLine(120,0,320,Horizontal);
	LCD_DrawLine(0,160,240,Vertical);
	HAL_Delay(1000);
	LCD_Clear(Blue);

	LCD_DrawRect(70,210,100,100);
	HAL_Delay(1000);
	LCD_Clear(Blue);

	LCD_DrawCircle(120,160,50);
	HAL_Delay(1000);

	LCD_Clear(Blue);
	LCD_DisplayStringLine(Line4 ,(unsigned char *)"    Hello,world.   ");
	HAL_Delay(1000);

	LCD_SetBackColor(White);
	LCD_DisplayStringLine(Line0,(unsigned char *)"                    ");
	LCD_SetBackColor(Black);
	LCD_DisplayStringLine(Line1,(unsigned char *)"                    ");
	LCD_SetBackColor(Grey);
	LCD_DisplayStringLine(Line2,(unsigned char *)"                    ");
	LCD_SetBackColor(Blue);
	LCD_DisplayStringLine(Line3,(unsigned char *)"                    ");
	LCD_SetBackColor(Blue2);
	LCD_DisplayStringLine(Line4,(unsigned char *)"                    ");
	LCD_SetBackColor(Red);
	LCD_DisplayStringLine(Line5,(unsigned char *)"                    ");
	LCD_SetBackColor(Magenta);
	LCD_DisplayStringLine(Line6,(unsigned char *)"                    ");
	LCD_SetBackColor(Green);
	LCD_DisplayStringLine(Line7,(unsigned char *)"                    ");
	LCD_SetBackColor(Cyan);
	LCD_DisplayStringLine(Line8,(unsigned char *)"                    ");
	LCD_SetBackColor(Yellow);
	LCD_DisplayStringLine(Line9,(unsigned char *)"                    ");

以上就是常用的api函数，如果想仔细研究可以去LCD.h文件末尾了解全部LCD函数，如果评论区有人想要的话，出一期专门研究全部函数的文章。

直接点亮Hello world!

	char Line[30];
	uint i=180;
	sprintf(Line,"12345678901234567890");

    LCD_Init();

    LCD_Clear(Black);
	LCD_SetBackColor(Black);//设置背景色黑色
	LCD_SetTextColor(White);//设置显示白色

	sprintf(Line,"Hello world!");

	LCD_DisplayStringLine(Line0 ,(unsigned char *)Line);//第一行显示数组line内容

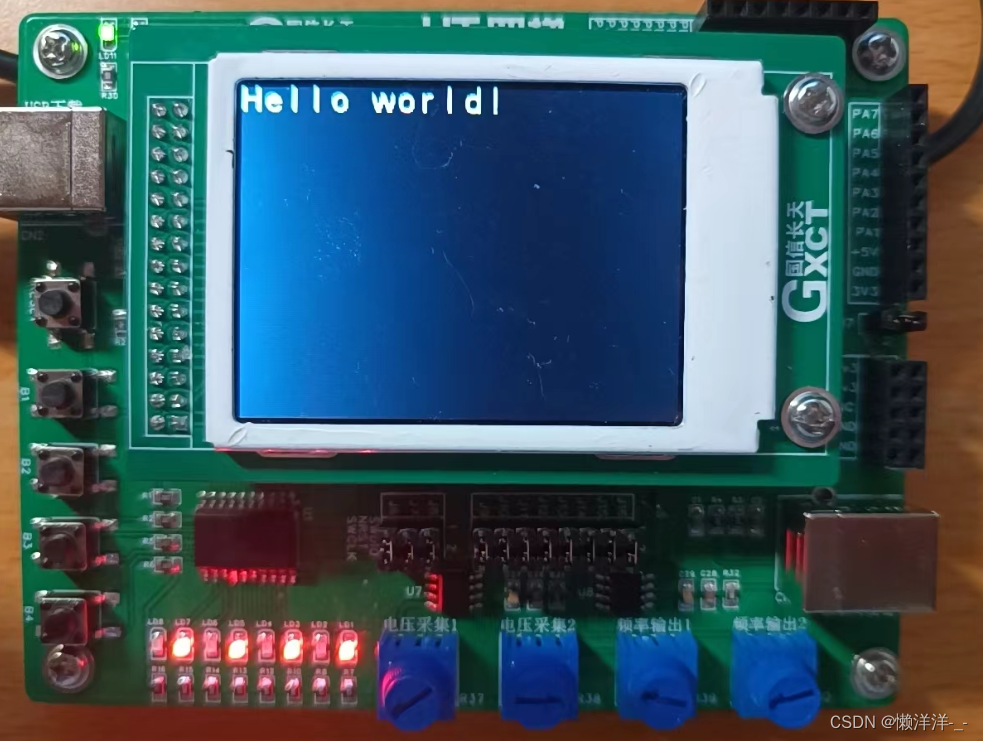

效果：

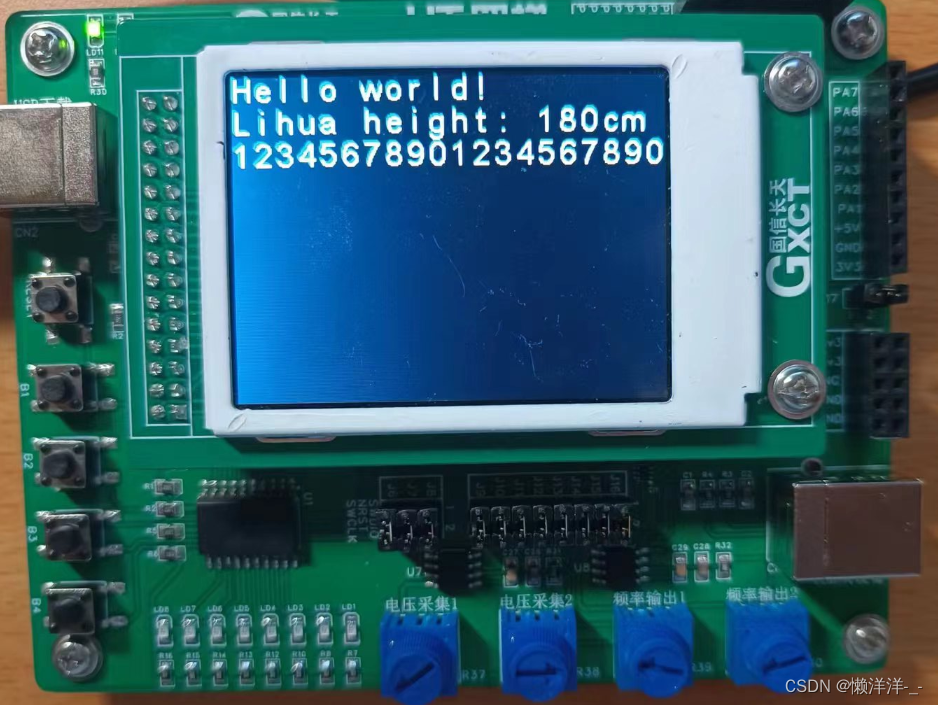

显示一下李华身高，（可恶，李华脱了鞋子只有179.5cm）,以及每行显示多少字符，你也该知道了。

	char Line[30];
	uint i=180;
	sprintf(Line,"12345678901234567890");

    LCD_Init();

    LCD_Clear(Black);
	LCD_SetBackColor(Black);//设置背景色黑色
	LCD_SetTextColor(White);//设置显示白色

	sprintf(Line,"Hello world!");

	LCD_DisplayStringLine(Line0 ,(unsigned char *)Line);//第一行显示数组line内容


    sprintf(Line,"Lihua height: %dcm",i);
	LCD_DisplayStringLine(Line1 ,(unsigned char *)Line);

	sprintf(Line,"12345678901234567890");
	LCD_DisplayStringLine(Line2 ,(unsigned char *)Line);

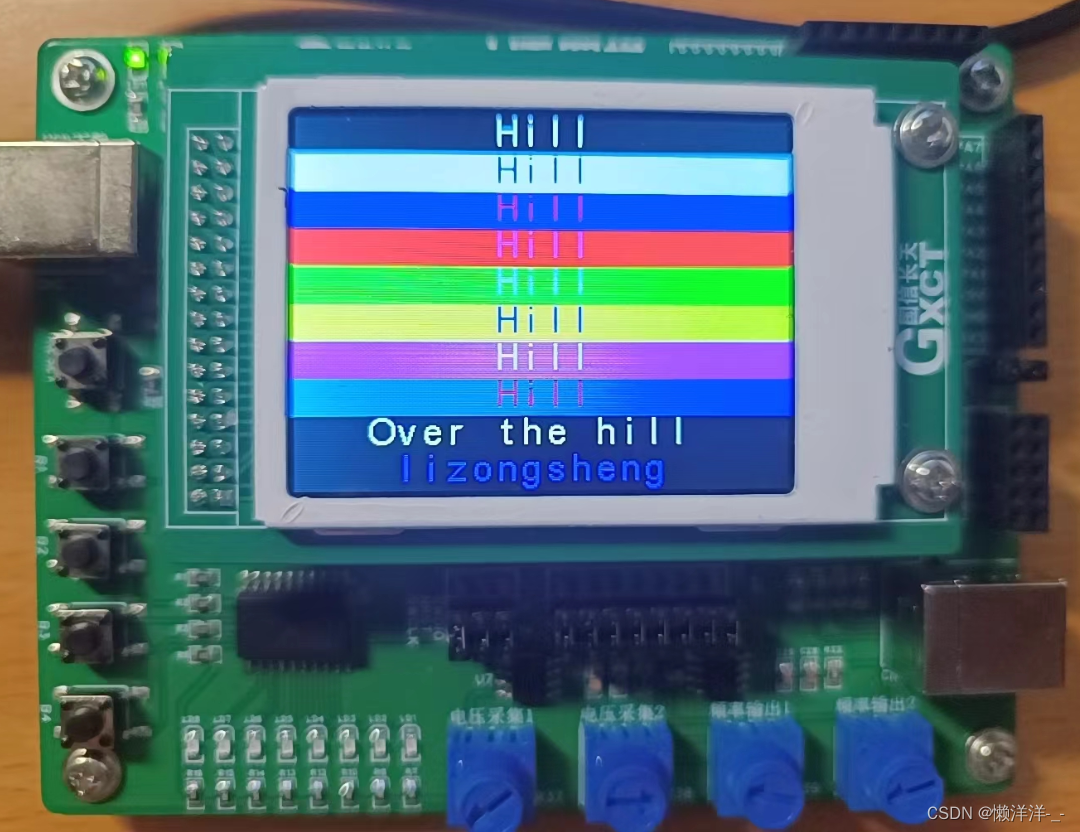

今天的教程其实在这里就差不多了，但是既然是彩屏，我简单试一下能不能用现有的函数玩点花活。之前有段时间喜欢李宗盛的《山丘》，最近更喜欢《我终于失去了你》，或者《爱如潮水》，感觉我的审美跟年龄好不符，像个40岁的老头。

    char Line[30];
	uint i=180;
	sprintf(Line,"12345678901234567890");

    LCD_Init();


    LCD_Clear(Black);

	LCD_SetBackColor(Black);
	LCD_SetTextColor(White);
	sprintf(Line,"        Hill        ");
	LCD_DisplayStringLine(Line0 ,(unsigned char *)Line);

	LCD_SetBackColor(White);
	LCD_SetTextColor(Blue);
	sprintf(Line,"        Hill        ");
	LCD_DisplayStringLine(Line1 ,(unsigned char *)Line);

	LCD_SetBackColor(Blue);
	LCD_SetTextColor(Red);
	sprintf(Line,"        Hill        ");
	LCD_DisplayStringLine(Line2 ,(unsigned char *)Line);

	LCD_SetBackColor(Red);
	LCD_SetTextColor(Magenta);
	sprintf(Line,"        Hill        ");
	LCD_DisplayStringLine(Line3 ,(unsigned char *)Line);

	LCD_SetBackColor(Green);
	LCD_SetTextColor(Cyan);
	sprintf(Line,"        Hill        ");
	LCD_DisplayStringLine(Line4 ,(unsigned char *)Line);

	LCD_SetBackColor(Yellow);
	LCD_SetTextColor(Blue);
	sprintf(Line,"        Hill        ");
	LCD_DisplayStringLine(Line5 ,(unsigned char *)Line);

	LCD_SetBackColor(Magenta);
	LCD_SetTextColor(Grey);
	sprintf(Line,"        Hill        ");
	LCD_DisplayStringLine(Line6 ,(unsigned char *)Line);

	LCD_SetBackColor(Blue2);
	LCD_SetTextColor(Red);
	sprintf(Line,"        Hill        ");
	LCD_DisplayStringLine(Line7 ,(unsigned char *)Line);

	LCD_SetBackColor(Black);
	LCD_SetTextColor(White);
	sprintf(Line,"   Over the hill    ");
	LCD_DisplayStringLine(Line8 ,(unsigned char *)Line);

	LCD_SetBackColor(Black);
	LCD_SetTextColor(Blue);
	sprintf(Line,"    lizongsheng     ");
	LCD_DisplayStringLine(Line9 ,(unsigned char *)Line);

ok,明天见，KEY有一点点小问题，明天没搞定就更新一期在虚拟机上快速配置环境，防止到考场半天搞不定软件耽误时间。

期待一下KEY,应该和LED的驱动一样，跟别人的不太一样，但肯定好用，且简短。（但愿吧.....）
