YOLOV5入门与滑动验证码位置识别实战

本文介绍了如何使用YOLOV5稳定版本在少量数据集上进行滑动验证码空缺位置的识别,通过实践应用展示了该算法在实际场景中的效能,包括数据准备、标注、模型选择和训练过程。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

前言

        yolo是大名鼎鼎的目标检测算法,其核心思维是(You Only Look Once),仅用一次就可得出结果,相比于传统的滑动窗口法可以获得巨大的性能提升。本文基于yolo的稳定版本v5进行实验,完成了滑动验证码空缺位置的识别任务,在少量的数据集上取得了比较不错的效果。本文不涉及算法原理讲解,仅侧重于实践应用,对底层感兴趣的同学可以移步【你一定从未看过如此通俗易懂的YOLO系列(从v1到v5)模型解读】。

环境

  • python3.9.13
  • windows10
  • CPU:R7-7840HS
  • GPU:无(集显)

YOLOV5

源码

git clone https://github.com/ultralytics/yolov5.git

 模型

        这里使用yolov5s模型,体积适中,效果也十分不错。更多模型可以进入官方仓库中下载。模型下载后可以放到yolo的根目录,在后续train.py中需要配置使用。

https://github.com/ultralytics/yolov5/releases/download/v7.0/yolov5s.pt

安装库

pip install -r requirements.txt

数据准备

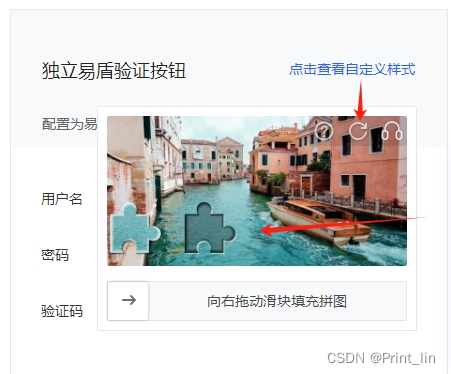

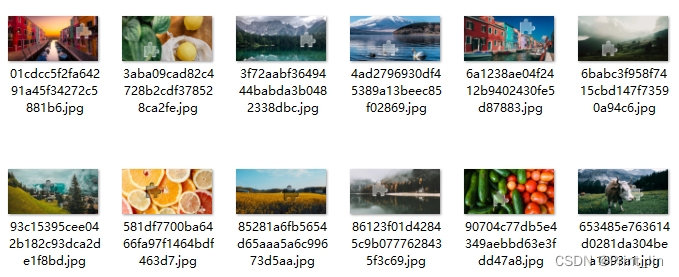

        我们从网易易盾行为式验证码手动下载30张滑动验证码的图片,如您希望结果更加准确,可以下载更多的图片加入训练集。当然,动手能力强的同学可以写个脚本自动下载,我这里偷个懒。

数据标注

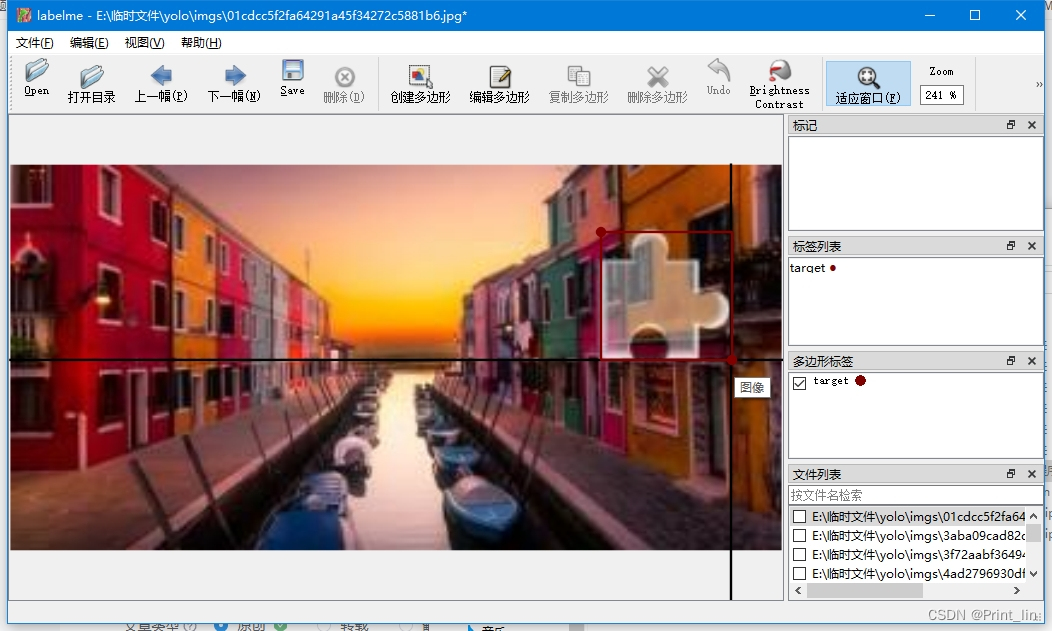

        数据标注使用开源的Labelme,官方仓库地址:https://github.com/labelmeai/labelme,软件下载地址:Labelme.exe。具体使用教程可以另行搜索,不过正常应该都会用,比较简单。我们使用Labelme标注每一个缺口位置,取名为target,会为每一张图片生成一个json包含标注框和原始图像内容。

标注转换

        Labelme标注得到的json需要使用脚本转换为yolo所接受的标注格式,我们使用一个转换脚本生成。脚本来源地址:基于树莓派4B的YOLOv5-Lite目标检测的移植与部署(含训练教程)

        下文的脚本会查找当前目录下的imgs文件中的所有json文件,将文件转换后会在当前目录下生成train和valid文件夹,里面包含了可供yolo训练的数据。train(训练)和valid(验证)数据量的划分比例由dic_labels中的ratio参数决定,这里默认80%的数据用于训练。

import os
import json
import random
import base64
from glob import glob

dic_labels= {'target':0,
            'ratio':0.8}

def generate_labels(dic_labs):
    ratio = dic_labs['ratio']
    for index, labelme_annotation_path in enumerate(glob(f'imgs/*.json')):

        # 读取文件名
        image_id = os.path.basename(labelme_annotation_path).rstrip('.json')

        # 计算是train 还是 valid
        train_or_valid = 'train' if random.random() < ratio else 'valid'

        # 读取labelme格式的json文件
        labelme_annotation_file = open(labelme_annotation_path, 'r')
        labelme_annotation = json.load(labelme_annotation_file)

        # yolo 格式的 lables
        yolo_annotation_path = os.path.join(train_or_valid, 'labels',image_id + '.txt')
        yolo_annotation_file = open(yolo_annotation_path, 'w')

        # yolo 格式的图像保存
        yolo_image = base64.decodebytes(labelme_annotation['imageData'].encode())
        yolo_image_path = os.path.join(train_or_valid, 'images', image_id + '.jpg')

        yolo_image_file = open(yolo_image_path, 'wb')
        yolo_image_file.write(yolo_image)
        yolo_image_file.close()


        # 获取位置信息
        for shape in labelme_annotation['shapes']:
            if shape['shape_type'] != 'rectangle':
                print(
                    f'Invalid type `{shape["shape_type"]}` in annotation `annotation_path`')
                continue


            points = shape['points']
            scale_width = 1.0 / labelme_annotation['imageWidth']
            scale_height = 1.0 / labelme_annotation['imageHeight']
            width = (points[1][0] - points[0][0]) * scale_width
            height = (points[1][1] - points[0][1]) * scale_height
            x = ((points[1][0] + points[0][0]) / 2) * scale_width
            y = ((points[1][1] + points[0][1]) / 2) * scale_height
            object_class = dic_labels[shape['label']]
            yolo_annotation_file.write(f'{object_class} {x} {y} {width} {height}\n')
        yolo_annotation_file.close()
        print("creat lab %d : %s"%(index,image_id))


if __name__ == "__main__":
    os.makedirs(os.path.join("train",'images'),exist_ok=True)
    os.makedirs(os.path.join("train",'labels'),exist_ok=True)
    os.makedirs(os.path.join("valid",'images'),exist_ok=True)
    os.makedirs(os.path.join("valid",'labels'),exist_ok=True)
    generate_labels(dic_labels)


训练配置

        在yolo目录下包含了train.py,我们需要修改train.py中的部分参数。

  1. 第516行--weights中配置下载好的模型地址,值:yolov5s.pt。模型来源见上文
  2. 第518行--data中配置数据集文件,值:data/imgs.yaml。imgs.yaml的内容见下文
  3. 第522行--imgsz中配置图片尺寸,值:320。
  4. 第537行--device中配置运行设备,值:cpu。有显卡的同学可以设置相应的显卡号

        imgs.yaml文件是表示训练的数据集路径以及目标数量等配置,具体设置如下,请注意修改为您具体的文件路径。

train: ../train/
val: ../valid/
test:

# number of classes
nc: 1

# class names
names: [ 'target' ]

开始训练

python train.py

        如果一切正常,您将会在根目录得到一个runs目录,其中train文件夹中的exp*就是训练结果,我们找到最后一个exp20文件夹下的weights目录就是最终的权重文件。其中best.pt代表最好的结果,last.pt表示最后一次迭代的结果。

验证结果

python detect.py --weights best.pt --source ../imgs --data data/imgs.yaml --imgsz [160,320] --conf-thres 0.15

参数解释:

  • --weights 训练后的权重文件

  • --source 验证的图片地址

  • --data 可选,训练数据集位置

  • --imgsz 验证的图片尺寸

  • --conf-thres 置信度,大于此值的才会进行标记

        执行detect.py后同样会在runs目录中生成一个detect文件夹,里面的exp*就是识别结果。

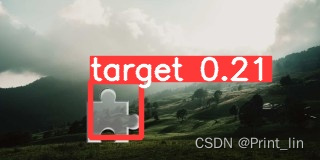

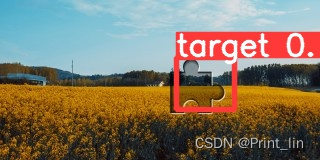

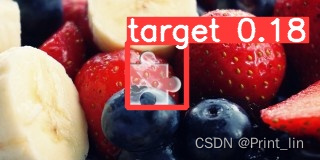

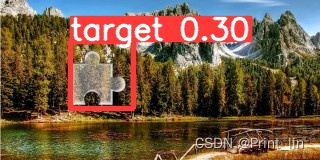

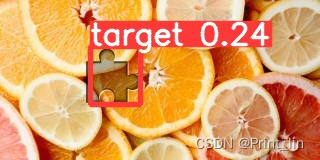

最终产出

        本次实验取得了不错的结果,可以看到在十分少量(30张图)的数据集下就可以训练得到较为准确的识别效果,识别速度每张图片15ms,yolo是十分强大的目标检测算法。

完整的代码以及支持文件:https://pan.baidu.com/s/16CuewqUFydVwWt5LRUx1wA?pwd=icc7

互联网人,免费共享,希望您的点赞、关注、评论。
