【LLIE专题】HVI代码解读

本文是对HVI技术的代码解读，原文解读请看HVI。

原文概要

本文通过提出HVI色彩空间和CIDNet模型，为低光照图像增强领域带来了新的突破。

• HVI色彩空间通过极化HS图和可学习的强度压缩函数，有效解决了传统色彩空间在低光照图像增强中的不足。
• CIDNet网络的双分支结构和交叉注意力机制进一步提升了图像增强的效果。
• 实验结果表明，HVI色彩空间和CIDNet模型在多个数据集上均取得了优异的性能，证明了其在低光照图像增强中的有效性和实用性。

1、颜色空间转换公式

$$H=\cos \left(\frac{\pi \mathbf{h}}{3}\right),\mathbf{V}=\sin \left(\frac{\pi \mathbf{h}}{3}\right)$$
$$C_k(x)=\sqrt[k]{\sin \left(\frac{\pi {\mathbf{I}}_{max}(x)}{2}\right)+\epsilon },$$
$$\begin{array}{rl}\hat{\mathbf{H}}& ={\mathbf{C}}_k\odot \mathbf{S}\odot H,\\ \hat{\mathbf{V}}& ={\mathbf{C}}_k\odot \mathbf{S}\odot V,\end{array}$$ I m a x ( x ) = max ⁡ c ∈ { R , G , B } ( I c ( x ) ) {I}_{max}(x)=\max_{\mathbf{c}\in\{R,G,B\}}(\mathbf{I}_{\mathbf{c}}(x)) Imax​(x)=c∈{R,G,B}max​(Ic​(x))
RGB转HVI其公式如上所述，h为HSV公式中的h; $I_{max}(x)$同理为HSV公式中的，其实也就是HVI中的I;S也是HSV中的s;其中 k ∈ Q 是可训练参数，使用小$\epsilon =1\times 10^{-8}$ 以避免梯度爆炸。HVI颜色空间其实需要先转化为HSV颜色空间，然后在此基础上做一些变换操作。具体我们可以看代码。
HVI转RGB公式如下，首先HVI转HSV:
$$\begin{array}{rl}\mathbf{H}& =\arctan \left(\frac{\hat{v}}{\hat{h}}\right)\mathrm{mod}1\\ \mathbf{S}& ={\alpha }_S\sqrt{{\hat{h}}^2+{\hat{v}}^2}\\ \mathbf{V}& ={\alpha }_I{\hat{\mathbf{I}}}_{\mathbf{I}}\end{array}$$
然后HSV转RGB:
$$\begin{array}{rl}{h}_i& \equiv \lfloor \frac{h}{60}\rfloor (\mathrm{mod}6)\\ f& =\frac{h}{60}-h_i\\ p& =v\times (1-s)\\ q& =v\times (1-f\times s)\\ t& =v\times (1-(1-f)\times s)\end{array}$$
$$(r,g,b)=\{\begin{array}{ll}(v,t,p),& \text{if }{h}_i=0\\ (q,v,p),& \text{if }{h}_i=1\\ (p,v,t),& \text{if }{h}_i=2\\ (p,q,v),& \text{if }{h}_i=3\\ (t,p,v),& \text{if }{h}_i=4\\ (v,p,q),& \text{if }{h}_i=5\end{array}$$

import torch
import torch.nn as nn

pi = 3.141592653589793

class RGB_HVI(nn.Module):
    def __init__(self):
        super(RGB_HVI, self).__init__()
        self.density_k = torch.nn.Parameter(torch.full([1],0.2)) # k is reciprocal to the paper mentioned
        self.gated = False
        self.gated2= False
        self.alpha = 1.0
        self.alpha_s = 1.3
        self.this_k = 0

    def HVIT(self, img):
        eps = 1e-8
        device = img.device
        dtypes = img.dtype
        hue = torch.Tensor(img.shape[0], img.shape[2], img.shape[3]).to(device).to(dtypes)
        value = img.max(1)[0].to(dtypes)
        img_min = img.min(1)[0].to(dtypes)
        hue[img[:,2]==value] = 4.0 + ( (img[:,0]-img[:,1]) / (value - img_min + eps)) [img[:,2]==value]
        hue[img[:,1]==value] = 2.0 + ( (img[:,2]-img[:,0]) / (value - img_min + eps)) [img[:,1]==value]
        hue[img[:,0]==value] = (0.0 + ((img[:,1]-img[:,2]) / (value - img_min + eps)) [img[:,0]==value]) % 6

        hue[img.min(1)[0]==value] = 0.0
        hue = hue/6.0

        saturation = (value - img_min ) / (value + eps )
        saturation[value==0] = 0

        hue = hue.unsqueeze(1)
        saturation = saturation.unsqueeze(1)
        value = value.unsqueeze(1)

        k = self.density_k
        self.this_k = k.item()

        color_sensitive = ((value * 0.5 * pi).sin() + eps).pow(k)
        ch = (2.0 * pi * hue).cos()
        cv = (2.0 * pi * hue).sin()
        H = color_sensitive * saturation * ch
        V = color_sensitive * saturation * cv
        I = value
        xyz = torch.cat([H, V, I],dim=1)
        return xyz

    def PHVIT(self, img):
        eps = 1e-8
        H,V,I = img[:,0,:,:],img[:,1,:,:],img[:,2,:,:]

        # clip
        H = torch.clamp(H,-1,1)
        V = torch.clamp(V,-1,1)
        I = torch.clamp(I,0,1)

        v = I
        k = self.this_k
        color_sensitive = ((v * 0.5 * pi).sin() + eps).pow(k)
        H = (H) / (color_sensitive + eps)
        V = (V) / (color_sensitive + eps)
        H = torch.clamp(H,-1,1)
        V = torch.clamp(V,-1,1)
        h = torch.atan2(V + eps,H + eps) / (2*pi)
        h = h%1
        s = torch.sqrt(H**2 + V**2 + eps)

        if self.gated:
            s = s * self.alpha_s

        s = torch.clamp(s,0,1)
        v = torch.clamp(v,0,1)

        r = torch.zeros_like(h)
        g = torch.zeros_like(h)
        b = torch.zeros_like(h)

        hi = torch.floor(h * 6.0)
        f = h * 6.0 - hi
        p = v * (1. - s)
        q = v * (1. - (f * s))
        t = v * (1. - ((1. - f) * s))

        hi0 = hi==0
        hi1 = hi==1
        hi2 = hi==2
        hi3 = hi==3
        hi4 = hi==4
        hi5 = hi==5

        r[hi0] = v[hi0]
        g[hi0] = t[hi0]
        b[hi0] = p[hi0]

        r[hi1] = q[hi1]
        g[hi1] = v[hi1]
        b[hi1] = p[hi1]

        r[hi2] = p[hi2]
        g[hi2] = v[hi2]
        b[hi2] = t[hi2]

        r[hi3] = p[hi3]
        g[hi3] = q[hi3]
        b[hi3] = v[hi3]

        r[hi4] = t[hi4]
        g[hi4] = p[hi4]
        b[hi4] = v[hi4]

        r[hi5] = v[hi5]
        g[hi5] = p[hi5]
        b[hi5] = q[hi5]

        r = r.unsqueeze(1)
        g = g.unsqueeze(1)
        b = b.unsqueeze(1)
        rgb = torch.cat([r, g, b], dim=1)
        if self.gated2:
            rgb = rgb * self.alpha
        return rgb

RGB到HVI转换（HVIT方法）

1. HVIT 方法实现了从 RGB 颜色空间到 HVI 颜色空间的转换，它首先计算出图像的亮度（Value）、色调（Hue）和饱和度（Saturation）三个分量，其中亮度是 RGB 各通道中的最大值，色调根据各通道与亮度的关系确定，饱和度则由亮度与最小值的差值计算得到。
2. 然后，基于亮度值计算颜色敏感性因子，该因子与一个可学习的参数相关，用于调节颜色的敏感程度，接着利用颜色敏感性因子、饱和度以及色调的余弦和正弦值，计算出 HVI 颜色空间中的 H、V、I 三个通道的值。
3. 最后，将这三个通道的值拼接成一个新的张量并输出，从而完成从 RGB 到 HVI 的颜色空间转换。

HVI到RGB转换（PHVIT方法）

1. PHVIT 方法负责将 HVI 颜色空间转换回 RGB 颜色空间，输入为一个 HVI 格式的图像张量，首先分离出 H、V、I 三个通道，并对 H 和 V 通道的值进行裁剪，限制在一定范围，对 I 通道的值也进行裁剪，确保其在 [0, 1] 范围内。
2. 接着，利用 I 通道的值计算颜色敏感性因子，并基于此因子对 H 和 V 通道的值进行调整，再次裁剪后计算出色调值和饱和度，饱和度的计算还涉及是否启用门控机制来对其进行缩放，同时对饱和度和亮度值进行裁剪，避免超出合理范围。
3. 最后，依据计算的色调值确定所处区间，根据不同区间的公式计算出对应的 R、G、B 值，将其拼接成一个新的张量，若启用门控机制则对 RGB 值进行缩放，最终输出转换后的 RGB 图像。

2、网络结构

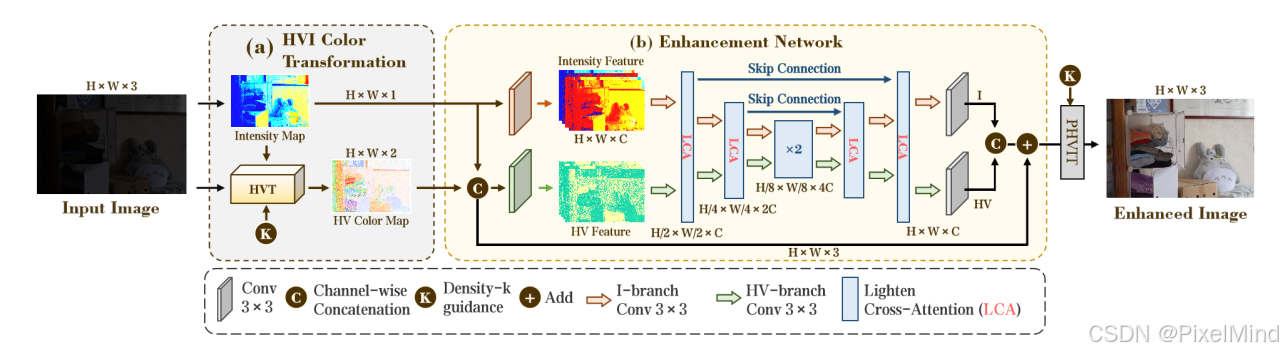

网络结构图如下所示：

代码如下：

class CIDNet(nn.Module, PyTorchModelHubMixin):
    def __init__(self,
                 channels=[36, 36, 72, 144],
                 heads=[1, 2, 4, 8],
                 norm=False
        ):
        super(CIDNet, self).__init__()


        [ch1, ch2, ch3, ch4] = channels
        [head1, head2, head3, head4] = heads

        # HV_ways
        self.HVE_block0 = nn.Sequential(
            nn.ReplicationPad2d(1),
            nn.Conv2d(3, ch1, 3, stride=1, padding=0,bias=False)
            )
        self.HVE_block1 = NormDownsample(ch1, ch2, use_norm = norm)
        self.HVE_block2 = NormDownsample(ch2, ch3, use_norm = norm)
        self.HVE_block3 = NormDownsample(ch3, ch4, use_norm = norm)

        self.HVD_block3 = NormUpsample(ch4, ch3, use_norm = norm)
        self.HVD_block2 = NormUpsample(ch3, ch2, use_norm = norm)
        self.HVD_block1 = NormUpsample(ch2, ch1, use_norm = norm)
        self.HVD_block0 = nn.Sequential(
            nn.ReplicationPad2d(1),
            nn.Conv2d(ch1, 2, 3, stride=1, padding=0,bias=False)
        )


        # I_ways
        self.IE_block0 = nn.Sequential(
            nn.ReplicationPad2d(1),
            nn.Conv2d(1, ch1, 3, stride=1, padding=0,bias=False),
            )
        self.IE_block1 = NormDownsample(ch1, ch2, use_norm = norm)
        self.IE_block2 = NormDownsample(ch2, ch3, use_norm = norm)
        self.IE_block3 = NormDownsample(ch3, ch4, use_norm = norm)

        self.ID_block3 = NormUpsample(ch4, ch3, use_norm=norm)
        self.ID_block2 = NormUpsample(ch3, ch2, use_norm=norm)
        self.ID_block1 = NormUpsample(ch2, ch1, use_norm=norm)
        self.ID_block0 =  nn.Sequential(
            nn.ReplicationPad2d(1),
            nn.Conv2d(ch1, 1, 3, stride=1, padding=0,bias=False),
            )

        self.HV_LCA1 = HV_LCA(ch2, head2)
        self.HV_LCA2 = HV_LCA(ch3, head3)
        self.HV_LCA3 = HV_LCA(ch4, head4)
        self.HV_LCA4 = HV_LCA(ch4, head4)
        self.HV_LCA5 = HV_LCA(ch3, head3)
        self.HV_LCA6 = HV_LCA(ch2, head2)

        self.I_LCA1 = I_LCA(ch2, head2)
        self.I_LCA2 = I_LCA(ch3, head3)
        self.I_LCA3 = I_LCA(ch4, head4)
        self.I_LCA4 = I_LCA(ch4, head4)
        self.I_LCA5 = I_LCA(ch3, head3)
        self.I_LCA6 = I_LCA(ch2, head2)

        self.trans = RGB_HVI()

    def forward(self, x):
        dtypes = x.dtype
        hvi = self.trans.HVIT(x)
        i = hvi[:,2,:,:].unsqueeze(1).to(dtypes)
        # low
        i_enc0 = self.IE_block0(i)
        i_enc1 = self.IE_block1(i_enc0)
        hv_0 = self.HVE_block0(hvi)
        hv_1 = self.HVE_block1(hv_0)
        i_jump0 = i_enc0
        hv_jump0 = hv_0

        i_enc2 = self.I_LCA1(i_enc1, hv_1)
        hv_2 = self.HV_LCA1(hv_1, i_enc1)
        v_jump1 = i_enc2
        hv_jump1 = hv_2
        i_enc2 = self.IE_block2(i_enc2)
        hv_2 = self.HVE_block2(hv_2)

        i_enc3 = self.I_LCA2(i_enc2, hv_2)
        hv_3 = self.HV_LCA2(hv_2, i_enc2)
        v_jump2 = i_enc3
        hv_jump2 = hv_3
        i_enc3 = self.IE_block3(i_enc2)
        hv_3 = self.HVE_block3(hv_2)

        i_enc4 = self.I_LCA3(i_enc3, hv_3)
        hv_4 = self.HV_LCA3(hv_3, i_enc3)

        i_dec4 = self.I_LCA4(i_enc4,hv_4)
        hv_4 = self.HV_LCA4(hv_4, i_enc4)

        hv_3 = self.HVD_block3(hv_4, hv_jump2)
        i_dec3 = self.ID_block3(i_dec4, v_jump2)
        i_dec2 = self.I_LCA5(i_dec3, hv_3)
        hv_2 = self.HV_LCA5(hv_3, i_dec3)

        hv_2 = self.HVD_block2(hv_2, hv_jump1)
        i_dec2 = self.ID_block2(i_dec3, v_jump1)

        i_dec1 = self.I_LCA6(i_dec2, hv_2)
        hv_1 = self.HV_LCA6(hv_2, i_dec2)

        i_dec1 = self.ID_block1(i_dec1, i_jump0)
        i_dec0 = self.ID_block0(i_dec1)
        hv_1 = self.HVD_block1(hv_1, hv_jump0)
        hv_0 = self.HVD_block0(hv_1)

        output_hvi = torch.cat([hv_0, i_dec0], dim=1) + hvi
        output_rgb = self.trans.PHVIT(output_hvi)

        return output_rgb

    def HVIT(self,x):
        hvi = self.trans.HVIT(x)
        return hvi

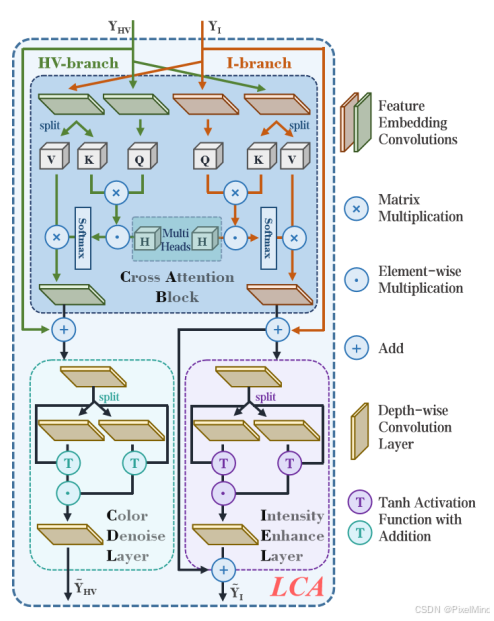

其中最重要的LCA注意力模块结构和代码如下：

# Cross Attention Block
class CAB(nn.Module):
    def __init__(self, dim, num_heads, bias):
        super(CAB, self).__init__()
        self.num_heads = num_heads
        self.temperature = nn.Parameter(torch.ones(num_heads, 1, 1))

        self.q = nn.Conv2d(dim, dim, kernel_size=1, bias=bias)
        self.q_dwconv = nn.Conv2d(dim, dim, kernel_size=3, stride=1, padding=1, groups=dim, bias=bias)
        self.kv = nn.Conv2d(dim, dim*2, kernel_size=1, bias=bias)
        self.kv_dwconv = nn.Conv2d(dim*2, dim*2, kernel_size=3, stride=1, padding=1, groups=dim*2, bias=bias)
        self.project_out = nn.Conv2d(dim, dim, kernel_size=1, bias=bias)

    def forward(self, x, y):
        b, c, h, w = x.shape

        q = self.q_dwconv(self.q(x))
        kv = self.kv_dwconv(self.kv(y))
        k, v = kv.chunk(2, dim=1)

        q = rearrange(q, 'b (head c) h w -> b head c (h w)', head=self.num_heads)
        k = rearrange(k, 'b (head c) h w -> b head c (h w)', head=self.num_heads)
        v = rearrange(v, 'b (head c) h w -> b head c (h w)', head=self.num_heads)

        q = torch.nn.functional.normalize(q, dim=-1)
        k = torch.nn.functional.normalize(k, dim=-1)

        attn = (q @ k.transpose(-2, -1)) * self.temperature
        attn = nn.functional.softmax(attn,dim=-1)

        out = (attn @ v)

        out = rearrange(out, 'b head c (h w) -> b (head c) h w', head=self.num_heads, h=h, w=w)

        out = self.project_out(out)
        return out


# Intensity Enhancement Layer
class IEL(nn.Module):
    def __init__(self, dim, ffn_expansion_factor=2.66, bias=False):
        super(IEL, self).__init__()

        hidden_features = int(dim*ffn_expansion_factor)

        self.project_in = nn.Conv2d(dim, hidden_features*2, kernel_size=1, bias=bias)

        self.dwconv = nn.Conv2d(hidden_features*2, hidden_features*2, kernel_size=3, stride=1, padding=1, groups=hidden_features*2, bias=bias)
        self.dwconv1 = nn.Conv2d(hidden_features, hidden_features, kernel_size=3, stride=1, padding=1, groups=hidden_features, bias=bias)
        self.dwconv2 = nn.Conv2d(hidden_features, hidden_features, kernel_size=3, stride=1, padding=1, groups=hidden_features, bias=bias)

        self.project_out = nn.Conv2d(hidden_features, dim, kernel_size=1, bias=bias)

        self.Tanh = nn.Tanh()
    def forward(self, x):
        x = self.project_in(x)
        x1, x2 = self.dwconv(x).chunk(2, dim=1)
        x1 = self.Tanh(self.dwconv1(x1)) + x1
        x2 = self.Tanh(self.dwconv2(x2)) + x2
        x = x1 * x2
        x = self.project_out(x)
        return x


# Lightweight Cross Attention
class HV_LCA(nn.Module):
    def __init__(self, dim,num_heads, bias=False):
        super(HV_LCA, self).__init__()
        self.gdfn = IEL(dim) # IEL and CDL have same structure
        self.norm = LayerNorm(dim)
        self.ffn = CAB(dim, num_heads, bias)

    def forward(self, x, y):
        x = x + self.ffn(self.norm(x),self.norm(y))
        x = self.gdfn(self.norm(x))
        return x

class I_LCA(nn.Module):
    def __init__(self, dim,num_heads, bias=False):
        super(I_LCA, self).__init__()
        self.norm = LayerNorm(dim)
        self.gdfn = IEL(dim)
        self.ffn = CAB(dim, num_heads, bias=bias)

    def forward(self, x, y):
        x = x + self.ffn(self.norm(x),self.norm(y))
        x = x + self.gdfn(self.norm(x))
        return x

网络结构中用到的上下采样模块如下：

class NormDownsample(nn.Module):
    def __init__(self,in_ch,out_ch,scale=0.5,use_norm=False):
        super(NormDownsample, self).__init__()
        self.use_norm=use_norm
        if self.use_norm:
            self.norm=LayerNorm(out_ch)
        self.prelu = nn.PReLU()
        self.down = nn.Sequential(
            nn.Conv2d(in_ch, out_ch,kernel_size=3,stride=1, padding=1, bias=False),
            nn.UpsamplingBilinear2d(scale_factor=scale))
    def forward(self, x):
        x = self.down(x)
        x = self.prelu(x)
        if self.use_norm:
            x = self.norm(x)
            return x
        else:
            return x

class NormUpsample(nn.Module):
    def __init__(self, in_ch,out_ch,scale=2,use_norm=False):
        super(NormUpsample, self).__init__()
        self.use_norm=use_norm
        if self.use_norm:
            self.norm=LayerNorm(out_ch)
        self.prelu = nn.PReLU()
        self.up_scale = nn.Sequential(
            nn.Conv2d(in_ch,out_ch,kernel_size=3,stride=1, padding=1, bias=False),
            nn.UpsamplingBilinear2d(scale_factor=scale))
        self.up = nn.Conv2d(out_ch*2,out_ch,kernel_size=1,stride=1, padding=0, bias=False)

    def forward(self, x,y):
        x = self.up_scale(x)
        x = torch.cat([x, y],dim=1)
        x = self.up(x)
        x = self.prelu(x)
        if self.use_norm:
            return self.norm(x)
        else:
            return x


从网络结构和代码可以看出，该网络结构采用了类似unet型的结构，并且在中间插入了自注意力捕捉HS和I之间的信息。

3、小结

HVI代码主要是HVI和RGB颜色空间的互相转换以及CIDNet网络结构。

4、实测

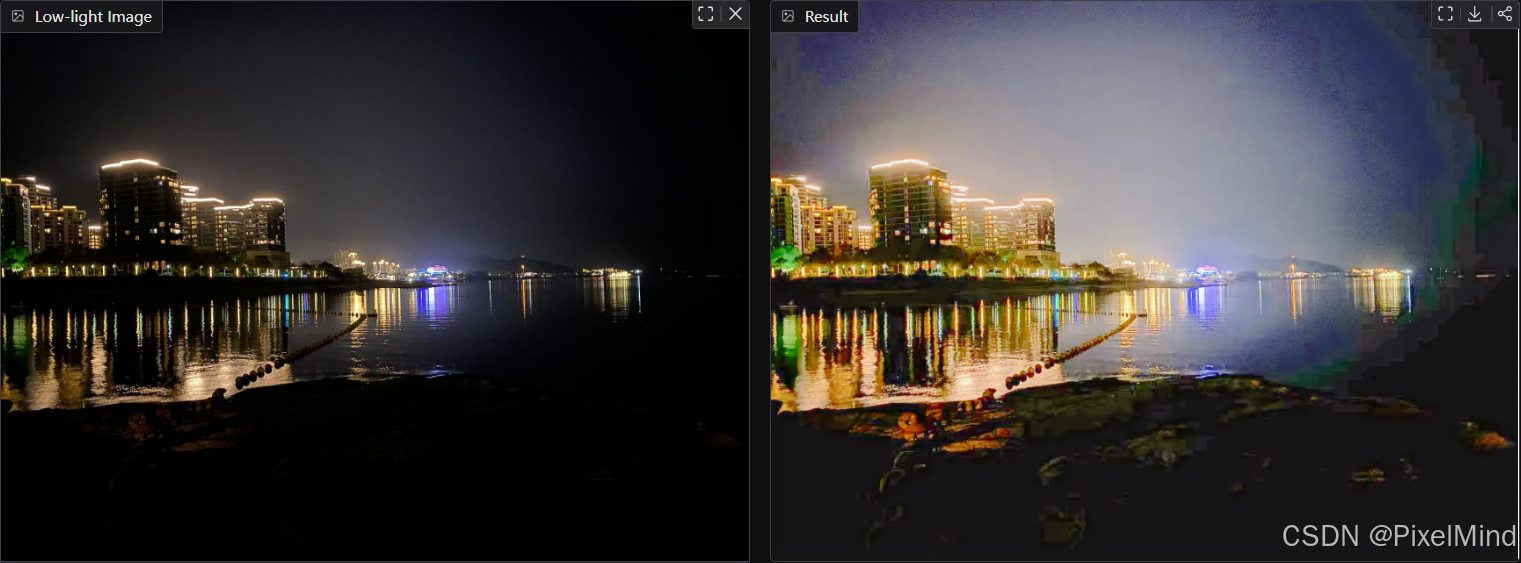

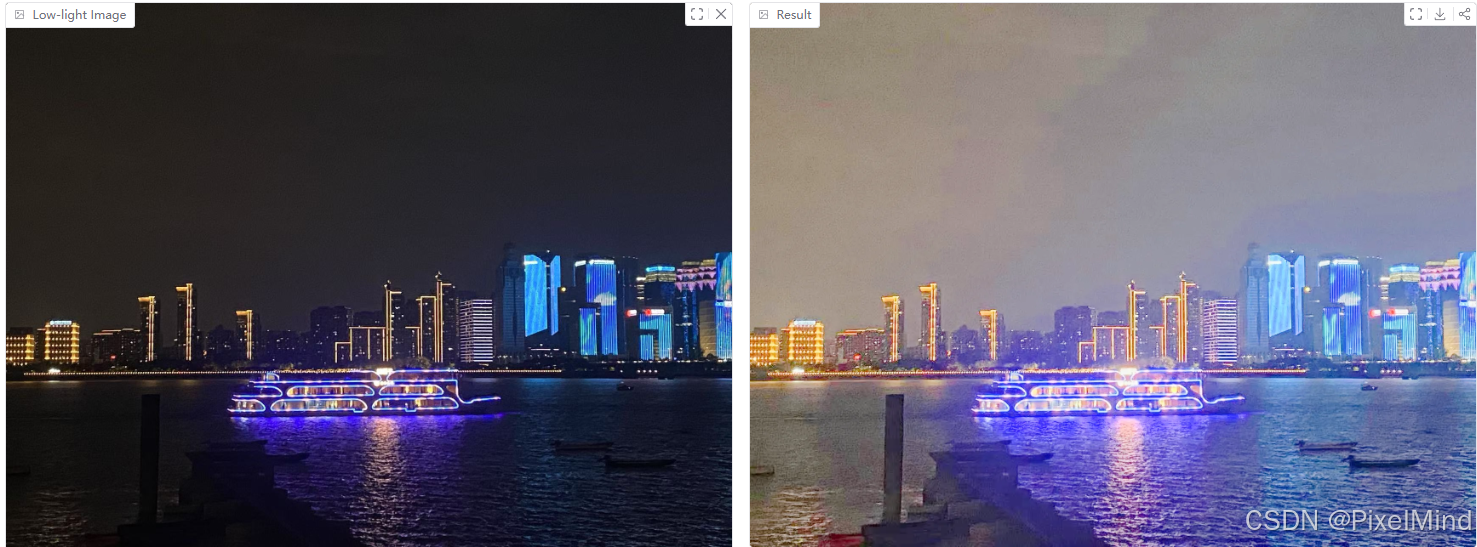

我们用自己手机拍摄的夜间图像，用作者给出的Hugging Face Demo测试了一下，效果如下所示，可以看出暗区存在较为明细的分层现象，这个可能和以下因素有关：暗区过暗（极端暗区）、训练数据（数据中缺少这种极端场景）。
