OSPF+RIP V2+路由引入+虚链路+Stub末节区域+TotallyStub完全末节区域+OSPF默认路由技术综合配置实验

O_dysseus

已于 2022-09-17 23:00:24 修改

阅读量1.1k

点赞数

CC 4.0 BY-SA版权

分类专栏：路由与交换技术文章标签：网络服务器 tcp/ip 网络协议 udp

于 2022-09-17 22:44:22 首次发布

本文链接：https://blog.youkuaiyun.com/O_dysseus/article/details/126911858

文章目录

一、实验报告内容 1

1、多区域 OSPF + RIP V2 路由引入的配置

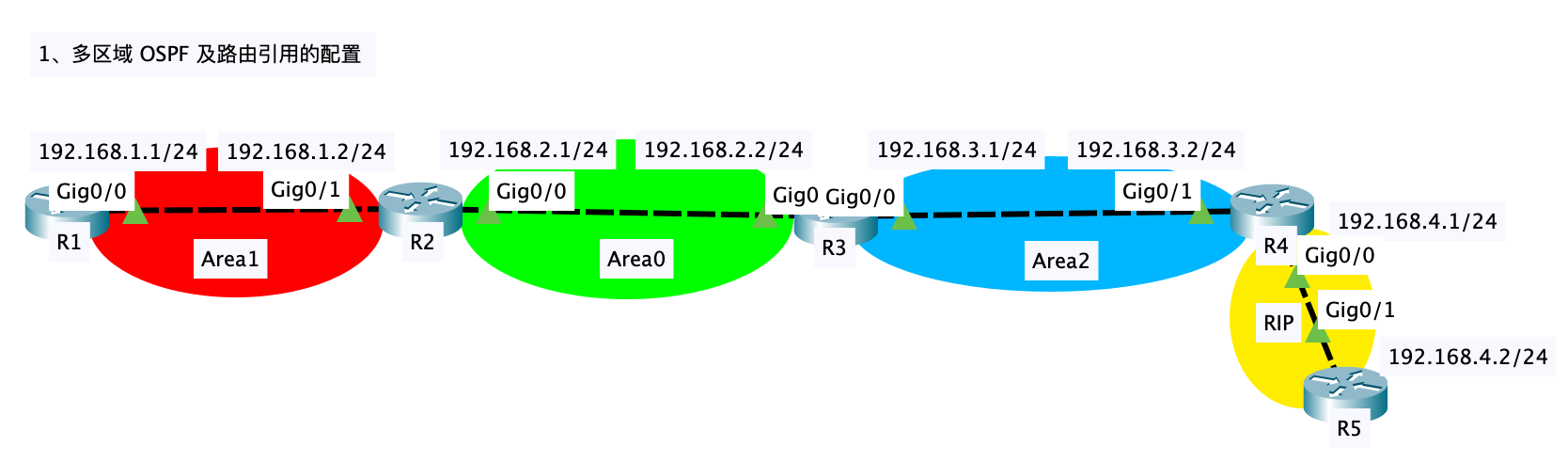

（1）网络拓扑

R1的配置

!Router>
en
!Router#
conf t
!Router(config)#
no ip domain-lookup
hostname R1
!配置端口
int g0/0
ip addr 192.168.1.1 255.255.255.0
no shut
exit
!配置OSPF
int loopback 0
ip addr 1.1.1.1 255.255.255.255
no shut
exit
router ospf 100
router-id 1.1.1.1
network 192.168.1.0 0.0.0.255 area 1
exit

R2的配置

!Router>
en
!Router#
conf t
!Router(config)#
no ip domain-lookup
hostname R2
!配置端口
int g0/1
ip addr 192.168.1.2 255.255.255.0
no shut
exit
int g0/0
ip addr 192.168.2.1 255.255.255.0
no shut
exit
!配置OSPF
int loopback 0
ip addr 2.2.2.2 255.255.255.255
no shut
exit
router ospf 100
router-id 2.2.2.2
network 192.168.1.0 0.0.0.255 area 1
network 192.168.2.0 0.0.0.255 area 0
exit

R3的配置

!Router>
en
!Router#
conf t
!Router(config)#
no ip domain-lookup
hostname R3
!配置端口
int g0/1
ip addr 192.168.2.2 255.255.255.0
no shut
exit
int g0/0
ip addr 192.168.3.1 255.255.255.0
no shut
exit
!配置OSPF
int loopback 0
ip addr 3.3.3.3 255.255.255.255
no shut
exit
router ospf 100
router-id 3.3.3.3
network 192.168.2.0 0.0.0.255 area 0
network 192.168.3.0 0.0.0.255 area 2
exit

R4的配置

!Router>
en
!Router#
conf t
!Router(config)#
no ip domain-lookup
hostname R4
!配置端口
int g0/1
ip addr 192.168.3.2 255.255.255.0
no shut
exit
int g0/0
ip addr 192.168.4.1 255.255.255.0
no shut
exit
!配置OSPF
int loopback 0
ip addr 4.4.4.4 255.255.255.255
no shut
exit
router ospf 100
router-id 4.4.4.4
network 192.168.3.0 0.0.0.255 area 2
exit
!配置RIP V2
router rip
version 2
no auto-summary
network 192.168.4.0
network 192.168.3.0
network 192.168.2.0
network 192.168.1.0
exit
!OSFP引入/重发布RIP
router ospf 100
redistribute rip subnets
exit
!RIP引入/重发布OSPF
router rip
redistribute ospf 100 metric 1
exit

R5的配置

!Router>
en
!Router#
conf t
!Router(config)#
no ip domain-lookup
hostname R5
!配置端口
int g0/1
ip addr 192.168.4.2 255.255.255.0
no shut
exit
!配置RIP V2
router rip
version 2
no auto-summary
network 1
