本文整理了使用IDEA连接配置了Kerberos的HDFS集群时遇到的时钟偏差和RPC保护配置不一致的错误。通过调整Windows系统时间与集群时间同步，以及确保`hadoop.rpc.protection`配置与集群一致，成功解决问题。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

连接hdfs代码

public class HdfsTest {
    public static void main(String[] args) throws IOException {
        System.setProperty("java.security.krb5.conf", "hdfs-conf-kerberos\\krb5.conf");
        Configuration conf = new Configuration();
        conf.set("fs.defaultFS", "hdfs://bigdata-37-201:8020");
        conf.set("hadoop.security.authentication", "kerberos");

        try {
            UserGroupInformation.setConfiguration(conf);
            UserGroupInformation.loginUserFromKeytab("hdfs_test1/hdfs_test1@HADOOP.COM", "hdfs-conf-kerberos\\hdfs_test1.keytab");
            System.out.println("+++++++++++++="+UserGroupInformation.getCurrentUser());
        } catch (IOException e) {
            e.printStackTrace();
        }
        FileSystem fs = FileSystem.get(conf);
        FileStatus[] fsStatus = fs.listStatus(new Path("/tmp"));
        for (int i = 0; i < fsStatus.length; i++) {
            System.out.println("+++++ "+fsStatus[i].getPath().toString());
        }
    }
}

配置文件放置路径：

报错内容：

2021-02-18 15:33:50,189 INFO [org.apache.hadoop.security.UserGroupInformation] - Login successful for user hdfs_test1/hdfs_test1@HADOOP.COM using keytab file hdfs-conf-kerberos\hdfs_test1.keytab
+++++++++++++=hdfs_test1/hdfs_test1@HADOOP.COM (auth:KERBEROS)
2021-02-18 15:34:17,628 WARN [org.apache.hadoop.ipc.Client] - Couldn't setup connection for hdfs_test1/hdfs_test1@HADOOP.COM to bigdata-37-201/192.168.37.201:8020
javax.security.sasl.SaslException: GSS initiate failed [Caused by GSSException: No valid credentials provided (Mechanism level: Clock skew too great (37) - PROCESS_TGS)]
	at com.sun.security.sasl.gsskerb.GssKrb5Client.evaluateChallenge(GssKrb5Client.java:211)
	at org.apache.hadoop.security.SaslRpcClient.saslConnect(SaslRpcClient.java:408)
	at org.apache.hadoop.ipc.Client$Connection.setupSaslConnection(Client.java:613)
	at org.apache.hadoop.ipc.Client$Connection.access$2200(Client.java:409)
	at org.apache.hadoop.ipc.Client$Connection$2.run(Client.java:798)
	at org.apache.hadoop.ipc.Client$Connection$2.run(Client.java:794)
	at java.security.AccessController.doPrivileged(Native Method)
	at javax.security.auth.Subject.doAs(Subject.java:422)
	at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1962)
	at org.apache.hadoop.ipc.Client$Connection.setupIOstreams(Client.java:794)
	at org.apache.hadoop.ipc.Client$Connection.access$3500(Client.java:409)
	at org.apache.hadoop.ipc.Client.getConnection(Client.java:1552)
	at org.apache.hadoop.ipc.Client.call(Client.java:1383)
	at org.apache.hadoop.ipc.Client.call(Client.java:1347)
	at org.apache.hadoop.ipc.ProtobufRpcEngine$Invoker.invoke(ProtobufRpcEngine.java:228)
	at org.apache.hadoop.ipc.ProtobufRpcEngine$Invoker.invoke(ProtobufRpcEngine.java:116)
	at com.sun.proxy.$Proxy11.getListing(Unknown Source)
	at org.apache.hadoop.hdfs.protocolPB.ClientNamenodeProtocolTranslatorPB.getListing(ClientNamenodeProtocolTranslatorPB.java:653)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.hadoop.io.retry.RetryInvocationHandler.invokeMethod(RetryInvocationHandler.java:422)
	at org.apache.hadoop.io.retry.RetryInvocationHandler$Call.invokeMethod(RetryInvocationHandler.java:165)
	at org.apache.hadoop.io.retry.RetryInvocationHandler$Call.invoke(RetryInvocationHandler.java:157)
	at org.apache.hadoop.io.retry.RetryInvocationHandler$Call.invokeOnce(RetryInvocationHandler.java:95)
	at org.apache.hadoop.io.retry.RetryInvocationHandler.invoke(RetryInvocationHandler.java:359)
	at com.sun.proxy.$Proxy12.getListing(Unknown Source)
	at org.apache.hadoop.hdfs.DFSClient.listPaths(DFSClient.java:1678)
	at org.apache.hadoop.hdfs.DFSClient.listPaths(DFSClient.java:1662)
	at org.apache.hadoop.hdfs.DistributedFileSystem.listStatusInternal(DistributedFileSystem.java:977)
	at org.apache.hadoop.hdfs.DistributedFileSystem.access$1000(DistributedFileSystem.java:118)
	at org.apache.hadoop.hdfs.DistributedFileSystem$24.doCall(DistributedFileSystem.java:1041)
	at org.apache.hadoop.hdfs.DistributedFileSystem$24.doCall(DistributedFileSystem.java:1038)
	at org.apache.hadoop.fs.FileSystemLinkResolver.resolve(FileSystemLinkResolver.java:81)
	at org.apache.hadoop.hdfs.DistributedFileSystem.listStatus(DistributedFileSystem.java:1048)
	at com.hdfs.krb6.HdfsTest.main(HdfsTest.java:35)
Caused by: GSSException: No valid credentials provided (Mechanism level: Clock skew too great (37) - PROCESS_TGS)
	at sun.security.jgss.krb5.Krb5Context.initSecContext(Krb5Context.java:770)
	at sun.security.jgss.GSSContextImpl.initSecContext(GSSContextImpl.java:248)
	at sun.security.jgss.GSSContextImpl.initSecContext(GSSContextImpl.java:179)
	at com.sun.security.sasl.gsskerb.GssKrb5Client.evaluateChallenge(GssKrb5Client.java:192)
	... 36 more
Caused by: KrbException: Clock skew too great (37) - PROCESS_TGS
	at sun.security.krb5.KrbTgsRep.<init>(KrbTgsRep.java:73)
	at sun.security.krb5.KrbTgsReq.getReply(KrbTgsReq.java:251)
	at sun.security.krb5.KrbTgsReq.sendAndGetCreds(KrbTgsReq.java:262)
	at sun.security.krb5.internal.CredentialsUtil.serviceCreds(CredentialsUtil.java:308)
	at sun.security.krb5.internal.CredentialsUtil.acquireServiceCreds(CredentialsUtil.java:126)
	at sun.security.krb5.Credentials.acquireServiceCreds(Credentials.java:458)
	at sun.security.jgss.krb5.Krb5Context.initSecContext(Krb5Context.java:693)
	... 39 more
Caused by: KrbException: Identifier doesn't match expected value (906)
	at sun.security.krb5.internal.KDCRep.init(KDCRep.java:140)
	at sun.security.krb5.internal.TGSRep.init(TGSRep.java:65)
	at sun.security.krb5.internal.TGSRep.<init>(TGSRep.java:60)
	at sun.security.krb5.KrbTgsRep.<init>(KrbTgsRep.java:55)
	... 45 more
Exception in thread "main" java.io.IOException: Failed on local exception: java.io.IOException: Couldn't setup connection for hdfs_test1/hdfs_test1@HADOOP.COM to bigdata-37-201/192.168.37.201:8020; Host Details : local host is: "WB20200528/172.16.137.39"; destination host is: "bigdata-37-201":8020;
	at org.apache.hadoop.net.NetUtils.wrapException(NetUtils.java:808)
	at org.apache.hadoop.ipc.Client.getRpcResponse(Client.java:1495)
	at org.apache.hadoop.ipc.Client.call(Client.java:1437)
	at org.apache.hadoop.ipc.Client.call(Client.java:1347)
	at org.apache.hadoop.ipc.ProtobufRpcEngine$Invoker.invoke(ProtobufRpcEngine.java:228)
	at org.apache.hadoop.ipc.ProtobufRpcEngine$Invoker.invoke(ProtobufRpcEngine.java:116)
	at com.sun.proxy.$Proxy11.getListing(Unknown Source)
	at org.apache.hadoop.hdfs.protocolPB.ClientNamenodeProtocolTranslatorPB.getListing(ClientNamenodeProtocolTranslatorPB.java:653)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)

错误日志分析一

2021-02-18 15:34:17,628 WARN [org.apache.hadoop.ipc.Client] - Couldn't setup connection for hdfs_test1/hdfs_test1@HADOOP.COM to bigdata-37-201/192.168.37.201:8020
javax.security.sasl.SaslException: GSS initiate failed [Caused by GSSException: No valid credentials provided (Mechanism level: Clock skew too great (37) - PROCESS_TGS)]

Clock skew too great 时钟偏差太大

查找一下windows的时间和集群的时间，发现还真的相差半小时，修改windows的时间和集群时间同步再次执行上面代码

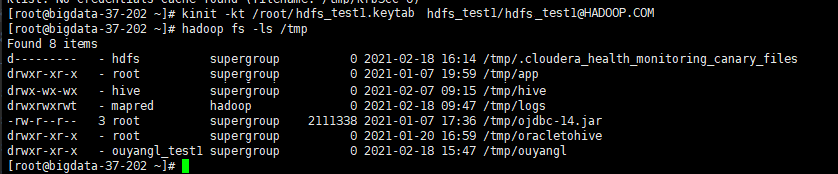

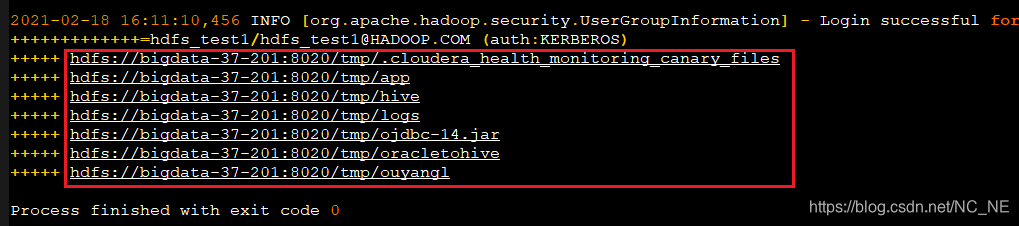

显示结果和在shell下查询相同

错误日志分析二

Exception in thread "main" java.io.IOException: Failed on local exception: java.io.IOException: Couldn't setup connection for hdfs_test1/hdfs_test1@HADOOP.COM to bigdata-37-201/192.168.37.201:8020; Host Details : local host is: "WB20200528/172.16.137.39"; destination host is: "bigdata-37-201":8020;

注意： hadoop.rpc.protection必须与集群的配置保持一致(core-site.xml)

conf.set("hadoop.rpc.protection", "authentication");

//conf.set("hadoop.rpc.protection", "privacy");

参考链接：https://blog.youkuaiyun.com/zhouyuanlinli/article/details/78581510
