笔记：二叉树序列化（转广义表）

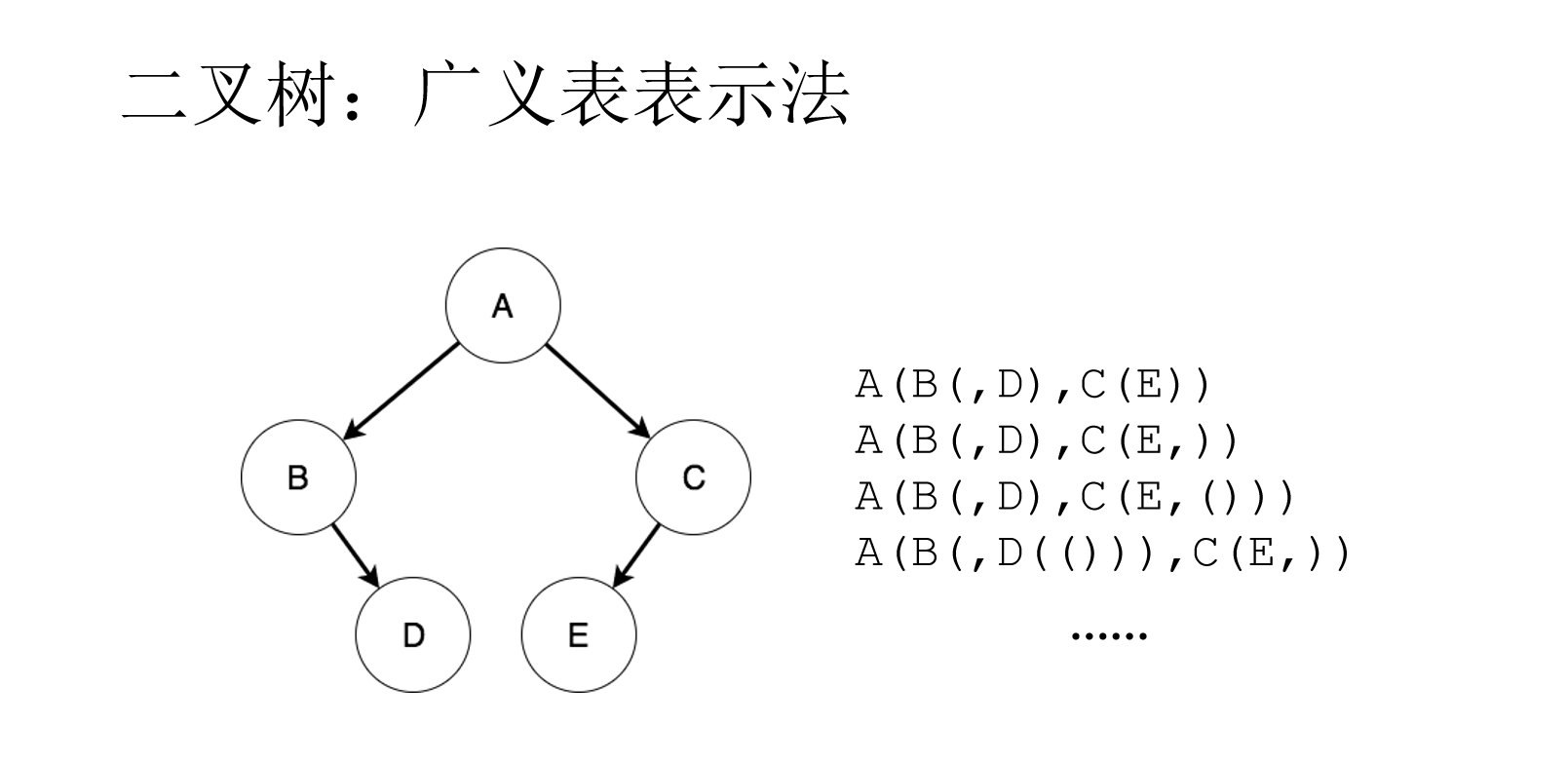

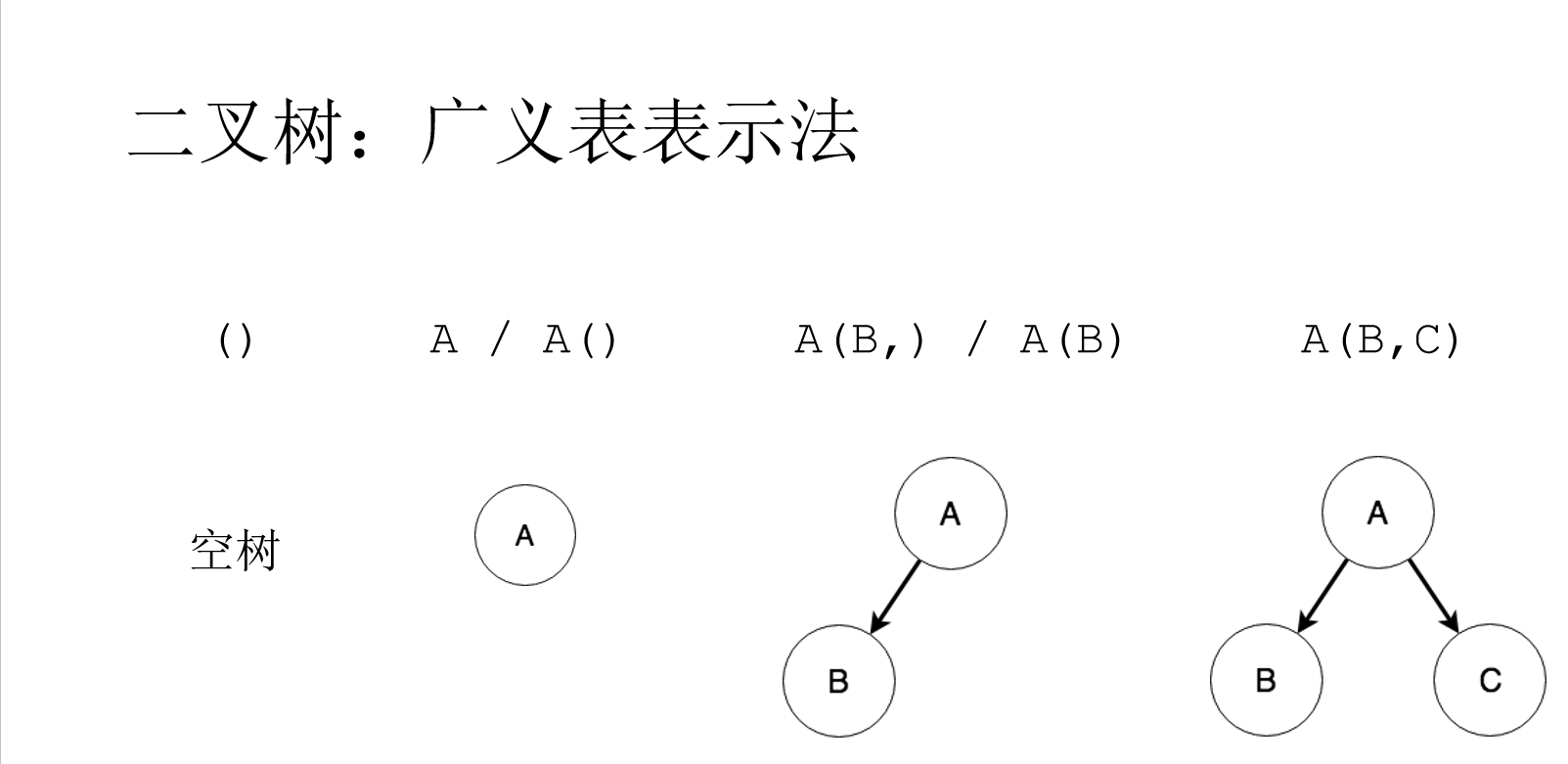

什么是广义表？





之前我们探究了如何进行二叉树的前序遍历，二叉树序列化只是在其基础上加上括号和逗号而已。

关键代码如下：

char buff[1000];
int len=0;

void __serialize(Node *root){
	if(root==NULL) return;
	len+=snprintf(buff + len,100,"%d",root->key);//向字符数组中输出信息
	if(root->lchild==NULL&&root->rchild==NULL) return;
	len+=snprintf(buff+len,100,"(");
	__serialize(root->lchild);
	if(root->rchild){
		len+=snprintf(buff+len,100,",");
		__serialize(root->rchild);
	}
	len+=snprintf(buff+len,100,")");
	return;
}

void serialize(Node *root){
	memset(buff,0,sizeof(buff));//初始化buff
	len=0;
	__serialize(root);
	return;
}

测试代码（随机生成二叉树）

#include<iostream>
#include<cstdio>
#include<time.h>
#include<string.h>
#define MAX_NODE 10
#define KEY(n) (n? n->key:-1)
using namespace std;
typedef struct Node{
	int key;
	Node *lchild,*rchild;
}Node;

Node *getNewNode(int key){
	Node *p=new Node;
	p->key = key;
	p->lchild=p->rchild=NULL;
	return p;
}

void clear(Node *root){
	if(root==NULL) return;
	clear(root->lchild);
	clear(root->rchild);
	delete root;
}
Node *insert(Node *root,int key){
	if(root==NULL) return getNewNode(key);
	if(rand()%2) root->lchild = insert(root->lchild,key);
	else root->rchild=insert(root->rchild,key);
	return root;
}

Node *getRandomBinaryTree(int n){
	Node *root=NULL;
	for(int i=0;i<n;i++){
		root=insert(root,rand()%100);
	}
	return root;
}
char buff[1000];
int len=0;

void __serialize(Node *root){
	if(root==NULL) return;
	len+=snprintf(buff + len,100,"%d",root->key);//向字符数组中输出信息
	if(root->lchild==NULL&&root->rchild==NULL) return;
	len+=snprintf(buff+len,100,"(");
	__serialize(root->lchild);
	if(root->rchild){
		len+=snprintf(buff+len,100,",");
		__serialize(root->rchild);
	}
	len+=snprintf(buff+len,100,")");
	return;
}

void serialize(Node *root){
	memset(buff,0,sizeof(buff));//初始化buff
	len=0;
	__serialize(root);
	return;
}

void print(Node *node){
	printf("%d(%d,%d)\n",KEY(node),
		KEY(node->lchild),
		KEY(node->rchild));
	return;
}

void output(Node *root){
	if(root==NULL) return;
	print(root);
	output(root->lchild);
	output(root->rchild);
	return;
}


int main(){
	srand(time(0));
	Node *root=getRandomBinaryTree(MAX_NODE);
	serialize(root);//调用序列化
	output(root);
	printf("Buff[]:%s\n",buff);
	return 0;
}

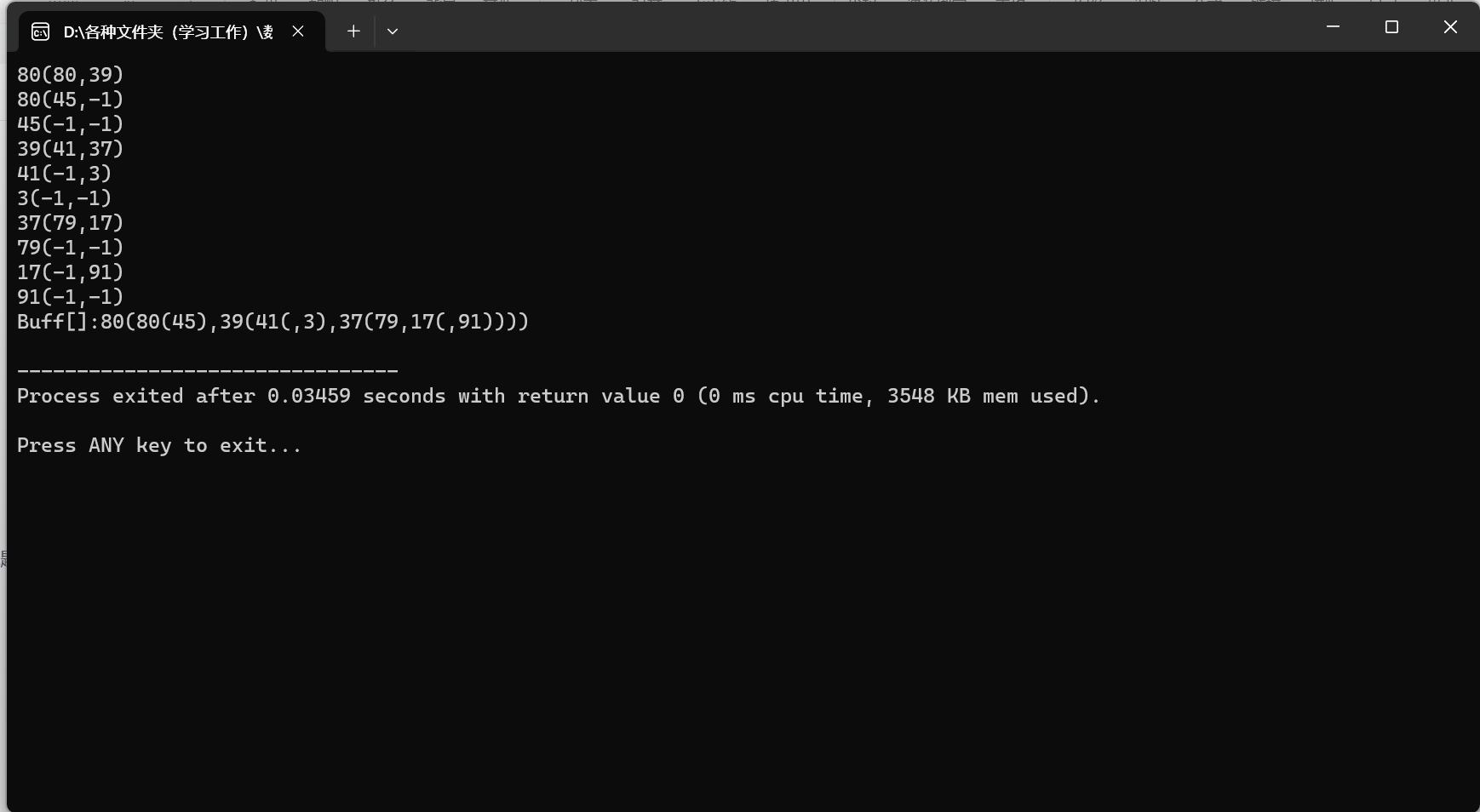

运行结果：



之后会更新广义表转二叉树的代码哦！
