一、简介

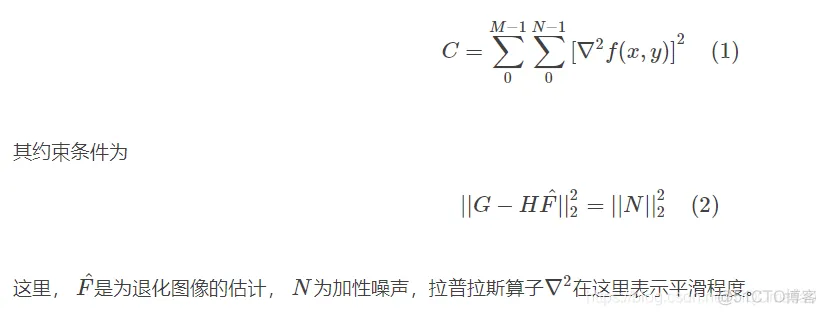

约束最小二乘方滤波(Constrained Least Squares Filtering，aka Tikhonov filtration,Tikhonov regularization)核心是H对噪声的敏感性问题。减少噪声敏感新问题的一种方法是以平滑度量的最佳复原为基础的，因此我们可以建立下列约束条件：【图像修复】基于约束最小二乘方滤波实现图像复原matlab源码GUI_matlab

二、源代码

function varargout = zuixiaoercheng(varargin)
% ZUIXIAOERCHENG M-file for zuixiaoercheng.fig
%      ZUIXIAOERCHENG, by itself, creates a new ZUIXIAOERCHENG or raises the existing
%      singleton*.
%
%      H = ZUIXIAOERCHENG returns the handle to a new ZUIXIAOERCHENG or the handle to
%      the existing singleton*.
%
%      ZUIXIAOERCHENG('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in ZUIXIAOERCHENG.M with the given input arguments.
%
%      ZUIXIAOERCHENG('Property','Value',...) creates a new ZUIXIAOERCHENG or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before zuixiaoercheng_OpeningFunction gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to zuixiaoercheng_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help zuixiaoercheng

% Last Modified by GUIDE v2.5 20-May-2009 15:56:50

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @zuixiaoercheng_OpeningFcn, ...
                   'gui_OutputFcn',  @zuixiaoercheng_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin & isstr(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before zuixiaoercheng is made visible.
function zuixiaoercheng_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to zuixiaoercheng (see VARARGIN)
img = imread('squarebox.bmp');
axes(handles.axes1);
imshow(img);
PSF = fspecial('motion',20,45);
MF = imfilter(img,PSF,'circular');
noise = imnoise(zeros(size(img)),'gaussian',0,0.01);
MF = double(MF);
MFN = MF+noise;
axes(handles.axes2);
imshow(uint8(MFN));
fr = deconvreg(MFN,PSF,4,[1e-7,1e7]);
axes(handles.axes3);
imshow(uint8(fr));
set(handles.noisepower_edit,'string',4);
% Choose default command line output for zuixiaoercheng
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes zuixiaoercheng wait for user response (see UIRESUME)
% uiwait(handles.zuixiaoercheng);


% --- Outputs from this function are returned to the command line.
function varargout = zuixiaoercheng_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes during object creation, after setting all properties.
function image_pop_menu_CreateFcn(hObject, eventdata, handles)
% hObject    handle to image_pop_menu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: popupmenu controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end


% --- Executes on selection change in image_pop_menu.
function image_pop_menu_Callback(hObject, eventdata, handles)
% hObject    handle to image_pop_menu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
noisepower = str2num(get(handles.noisepower_edit,'string'));
val = get(hObject,'value');
str = get(hObject,'string');
switch str{val}
    case 'Squarebox'
        squarebox = [];
        squarebox = imread('squarebox.bmp');
        img = squarebox;
    case 'Lena'
        lena = [];
        lena = imread('lena.bmp');
        img = lena;
    case 'Saturn'
        saturn = [];
        load imdemos saturn
        img = saturn;
    case 'Quarter'
        quarter = [];
        load imdemos quarter
        img = quarter;
    case 'Circuit'
        circuit = [];
        load imdemos circuit
        img = circuit;
    case 'Fingerprint'
        fingerprint = [];
        fingerprint = imread('fingerprint.jpg');
        img = fingerprint;
    case 'Licenceplate'
        licenceplate = [];
        licenceplate = imread('licenceplate.jpg');
        img = licenceplate;

    case 'Cloudy'
        cloudy = [];
        cloudy = imread('cloudy.tif');
        img = cloudy;
end
axes(handles.axes1);
imshow(img);
PSF = fspecial('motion',20,45);
MF = imfilter(img,PSF,'circular');
noise = imnoise(zeros(size(img)),'gaussian',0,0.01);
MF = double(MF);
MFN = MF+noise;
axes(handles.axes2);
imshow(uint8(MFN));
fr = deconvreg(MFN,PSF,noisepower,[1e-7,1e7]);
axes(handles.axes3);
imshow(uint8(fr));
% Hints: contents = get(hObject,'String') returns image_pop_menu contents as cell array
%        contents{get(hObject,'Value')} returns selected item from image_pop_menu


% --- Executes during object creation, after setting all properties.
function noisepower_edit_CreateFcn(hObject, eventdata, handles)
% hObject    handle to noisepower_edit (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end
