一、简介

FFT(Fast Fourier transform):快速傅里叶变换,是DFT的工程化实现方法。
DFT直接求解太过于复杂,FFT方法根据DFT求解过程中旋转因子的性质并引入分治算法思想,大大简化计算过程,被广泛应用在频谱分析的工程实践中,如matlab,C,C++,CUDA等底层实现

1 DFT简介
频谱分析是信号处理中的重要环节,从傅里叶变换FT,到拉普拉斯变换LT,离散时间傅里叶变换DTFT,Z变换ZT,到我们所讲的离散傅里叶变换DFT(他们之间的联系和区别见我的其他博客)。
相比于其他变换,DFT被广泛应用的原因是其输入的时域信号是离散的,输出的频域结果也是离散的。这就极大方便了我们进行基于计算机的频谱计算,存储和分析,没办法数字信号处理是大趋势。

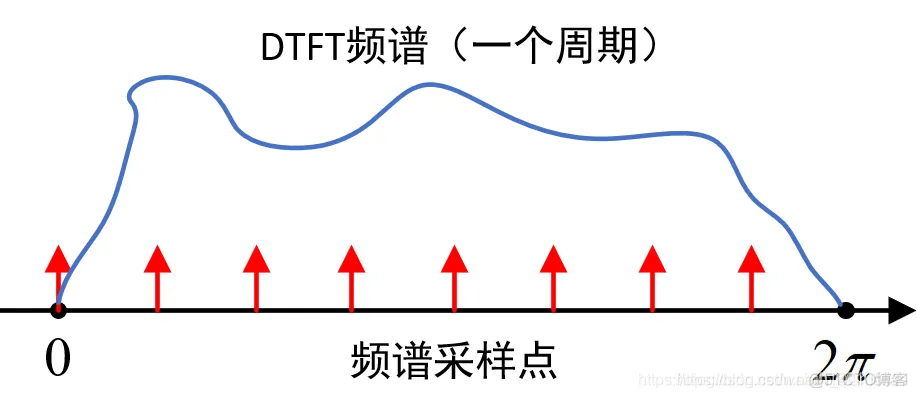

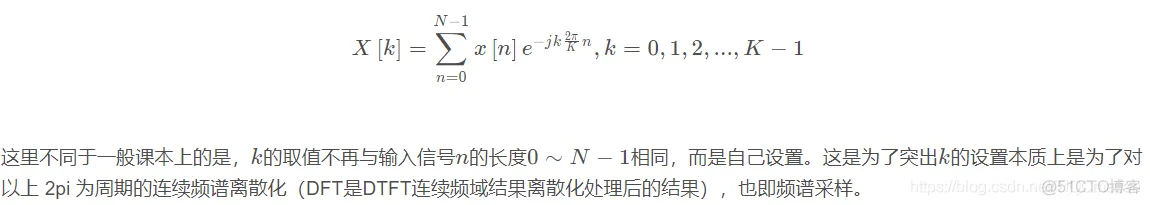

​ DFT变换的公式为:【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_图像处理【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_matlab_02

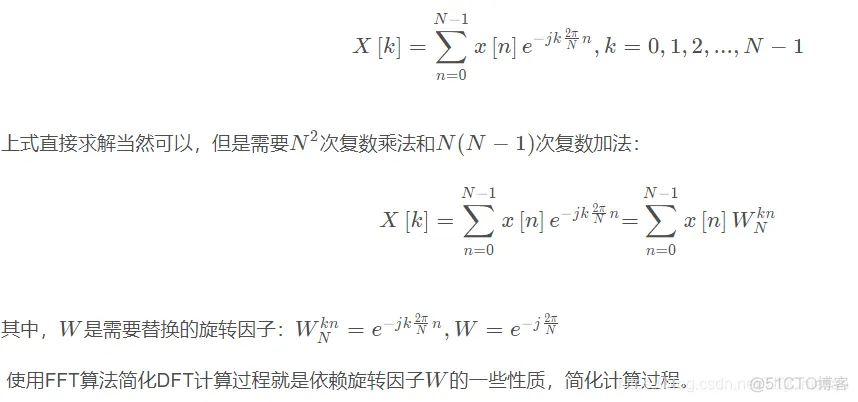

但为了分析方便,在FFT的计算过程中,我们依然使用k = 0 ∼ N − 1 k = 0 \sim N-1k=0∼N−1的选取策略。也即,如下:【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_matlab_03

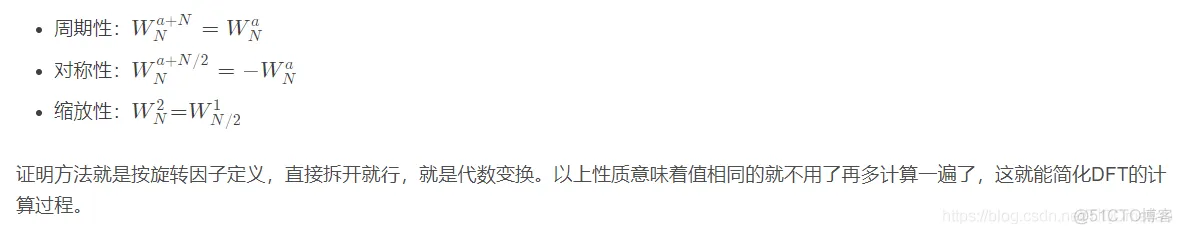

2 旋转因子WWW的性质【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_图像处理_04

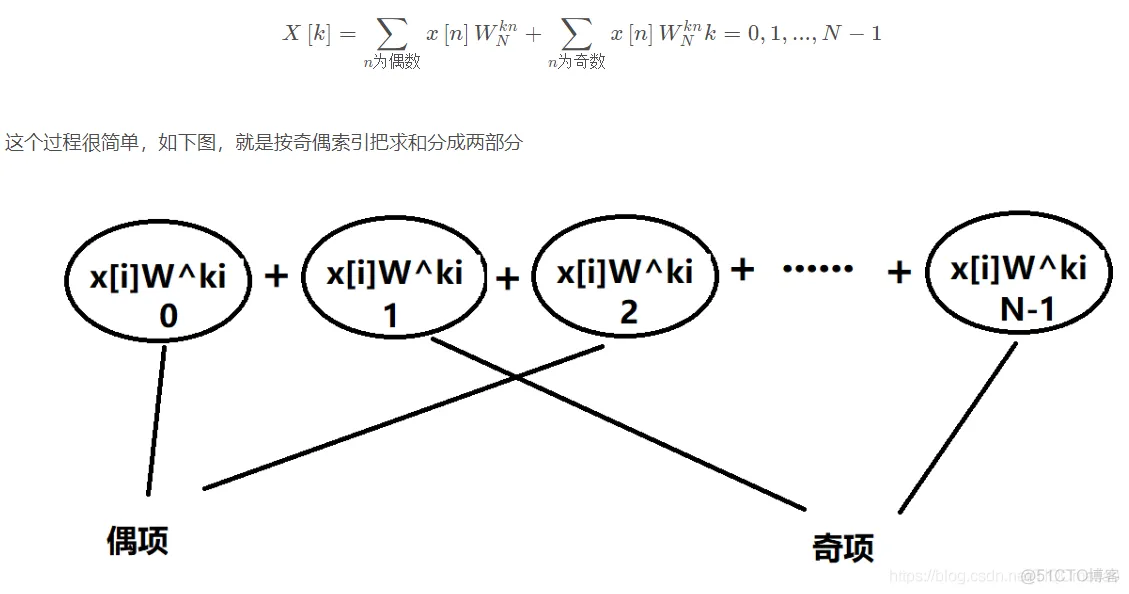

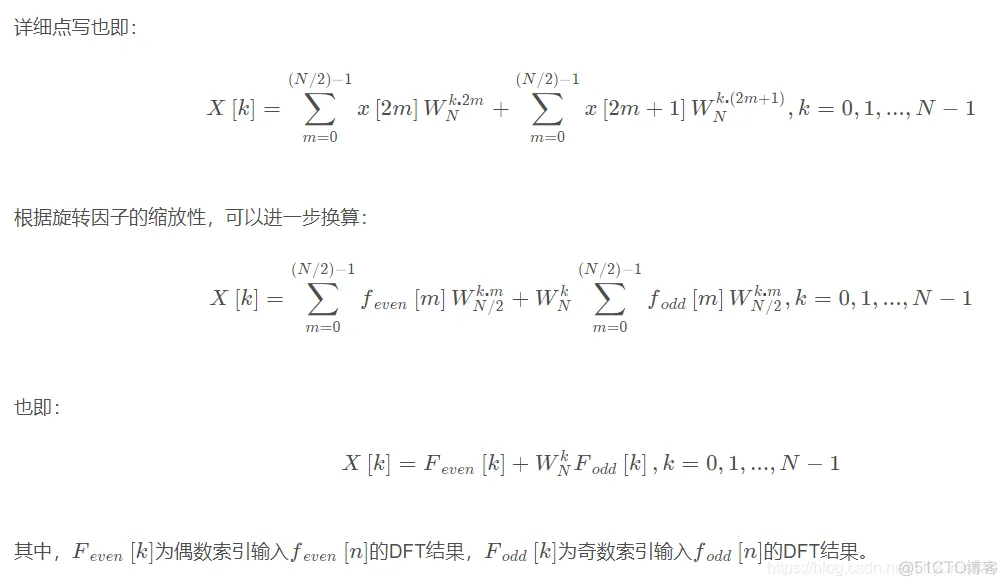

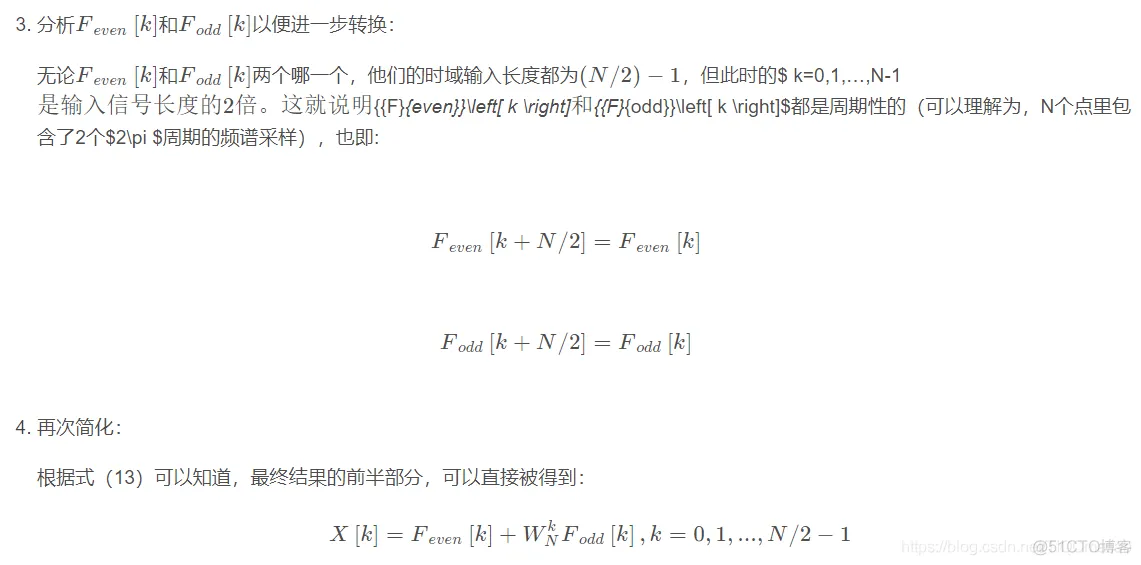

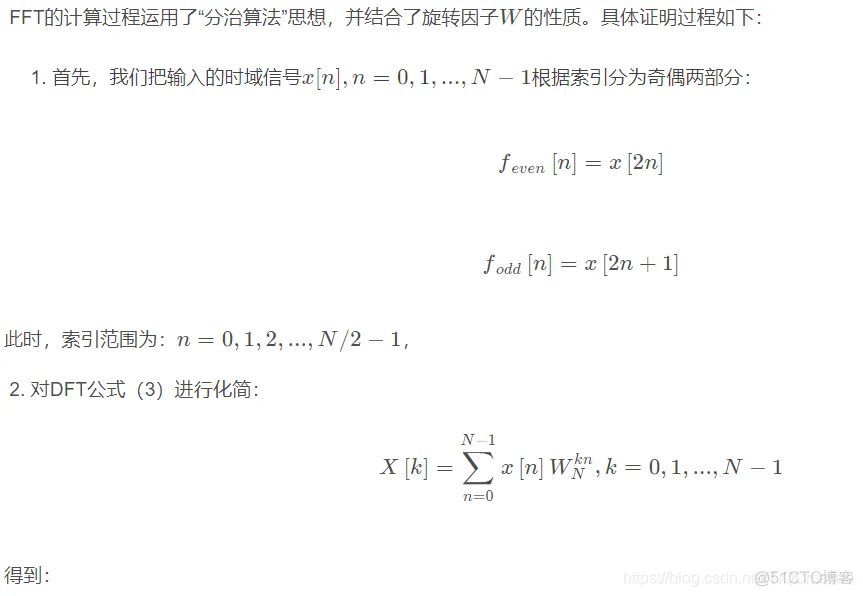

3 FFT蝶形计算证明【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_图像处理_05【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_matlab_06【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_图像处理_07【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_图像处理_08【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_matlab_09【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_matlab_10

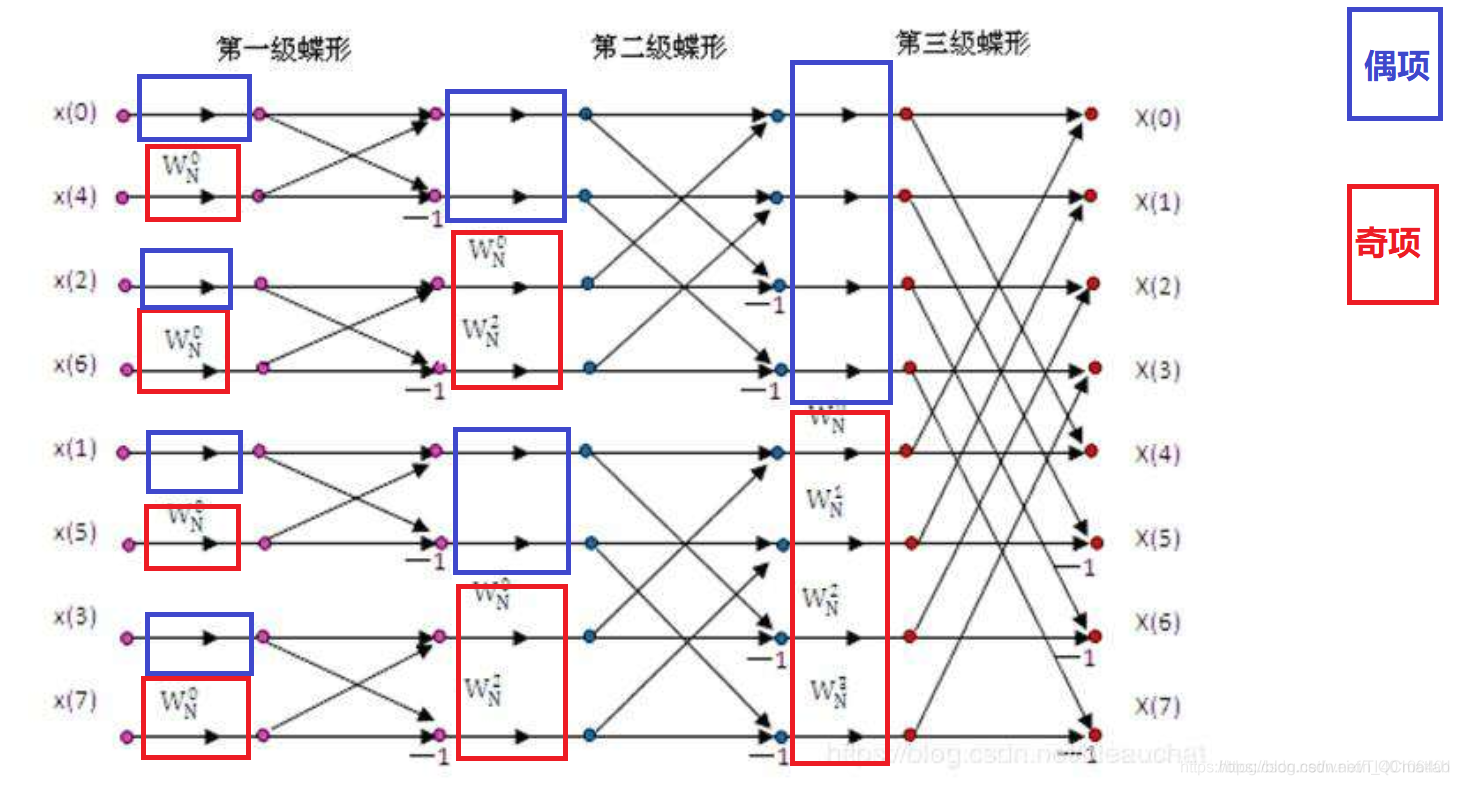

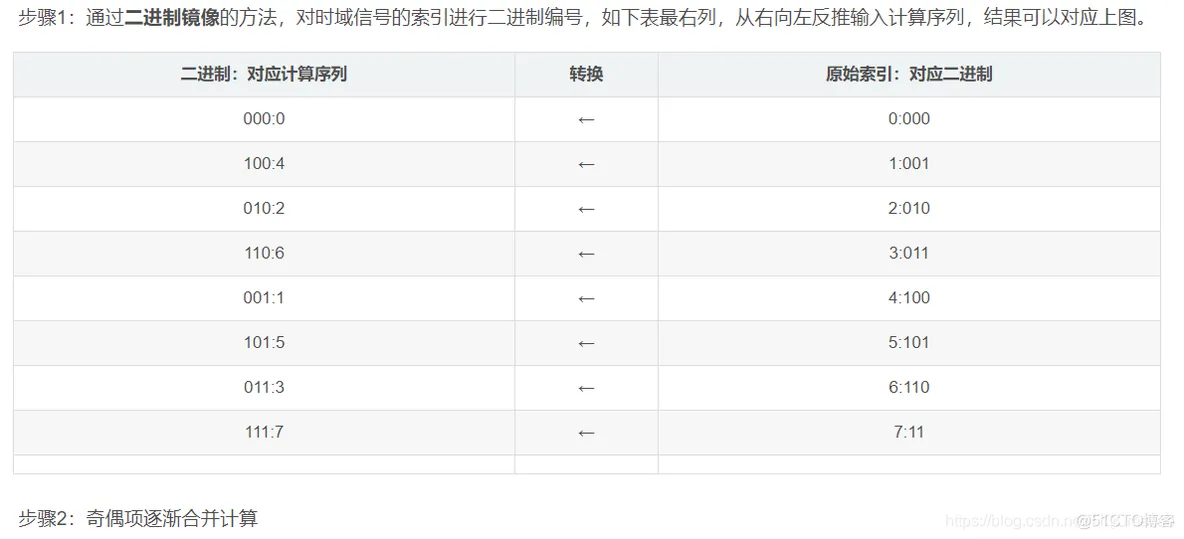

4 FFT计算过程【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_图像处理_11

二、源代码

function varargout = fushidctbianhuan(varargin)
% FUSHIDCTBIANHUAN M-file for fushidctbianhuan.fig
%      FUSHIDCTBIANHUAN, by itself, creates a new FUSHIDCTBIANHUAN or raises the existing
%      singleton*.
%
%      H = FUSHIDCTBIANHUAN returns the handle to a new FUSHIDCTBIANHUAN or the handle to
%      the existing singleton*.
%
%      FUSHIDCTBIANHUAN('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in FUSHIDCTBIANHUAN.M with the given input arguments.
%
%      FUSHIDCTBIANHUAN('Property','Value',...) creates a new FUSHIDCTBIANHUAN or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before fushidctbianhuan_OpeningFunction gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to fushidctbianhuan_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help fushidctbianhuan

% Last Modified by GUIDE v2.5 06-Apr-2014 17:16:14

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @fushidctbianhuan_OpeningFcn, ...
                   'gui_OutputFcn',  @fushidctbianhuan_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before fushidctbianhuan is made visible.
function fushidctbianhuan_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to fushidctbianhuan (see VARARGIN)
axes(handles.axes1);
img=imread('lena.bmp');
imshow(img);
axes(handles.axes2);
imgf=double(img);
imgs=fftshift(fft2(imgf));
imshow(log(1+abs(imgs)),[]);
set(handles.dct_radiobutton,'value',0);
set(handles.fft_radiobutton,'value',1);
% Choose default command line output for fushidctbianhuan
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes fushidctbianhuan wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = fushidctbianhuan_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in fft_radiobutton.
function fft_radiobutton_Callback(hObject, eventdata, handles)
% hObject    handle to fft_radiobutton (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
set(handles.dct_radiobutton,'value',0);
set(handles.fft_radiobutton,'value',1);
img = getimage(handles.axes1);
axes(handles.axes2);
imgf=double(img);
imgs=fftshift(fft2(imgf));
imshow(log(1+abs(imgs)),[]);
 set(handles.text2,'string','傅立叶变换谱');
 set(handles.text2,'fontsize',12);
 set(handles.text2,'fontname','宋体');
 set(handles.text2,'fontweight','bold');

% Hint: get(hObject,'Value') returns toggle state of fft_radiobutton


% --- Executes on button press in dct_radiobutton.
function dct_radiobutton_Callback(hObject, eventdata, handles)
% hObject    handle to dct_radiobutton (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
set(handles.dct_radiobutton,'value',1);
set(handles.fft_radiobutton,'value',0);
img = getimage(handles.axes1);
axes(handles.axes2);
imgd=img;
imgs=dct2(imgd);
imshow(log(abs(imgs)));
set(handles.text2,'string','DCT变换系数');
set(handles.text2,'fontsize',12);
set(handles.text2,'fontname','宋体');
set(handles.text2,'fontweight','bold');
% Hint: get(hObject,'Value') returns toggle state of dct_radiobutton


% --- Executes on button press in close_button.
function close_button_Callback(hObject, eventdata, handles)
% hObject    handle to close_button (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
close(fushidctbianhuan);

% --- Executes on selection change in fft_dct_pop.
function fft_dct_pop_Callback(hObject, eventdata, handles)
% hObject    handle to fft_dct_pop (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
val=get(hObject,'value');
str=get(hObject,'string');
switch str{val};
    case 'lena'
        lena = [];
        lena = imread('lena.bmp');
        img = lena;
    case 'Saturn',
        saturn = [];
        load imdemos saturn
        img = saturn;
    case 'Tire',
        tire = [];
        load imdemos tire
        img = tire;
    case 'Pout',
        pout = [];
        load imdemos pout
        img = pout;
    case 'Trees',
        trees = [];
        load imdemos trees
        img = trees;
    case 'Quarter',
        quarter = [];
        load imdemos quarter
        img = quarter;
    case 'Circuit',
        circuit = [];
        load imdemos circuit
        img = circuit;
    case 'Rice',
        rice = [];
        load imdemos rice
        img = rice;
    case 'Fingerprint'
        fingerprint = [];
        fingerprint = imread('fingerprint.jpg');
        img = fingerprint;
    case 'Licenceplate'
        licenceplate = [];
        licenceplate = imread('licenceplate.jpg');
        img = licenceplate;
    case 'Haze'
        haze = [];
        haze = imread('haze.jpg');
        img = haze;
    case 'Cloudy'
        cloudy = [];
        cloudy = imread('cloudy.tif');
        img = cloudy;
end
axes(handles.axes1);
imshow(img);
control=get(handles.fft_radiobutton,'value');
switch control;
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27.
  • 28.
  • 29.
  • 30.
  • 31.
  • 32.
  • 33.
  • 34.
  • 35.
  • 36.
  • 37.
  • 38.
  • 39.
  • 40.
  • 41.
  • 42.
  • 43.
  • 44.
  • 45.
  • 46.
  • 47.
  • 48.
  • 49.
  • 50.
  • 51.
  • 52.
  • 53.
  • 54.
  • 55.
  • 56.
  • 57.
  • 58.
  • 59.
  • 60.
  • 61.
  • 62.
  • 63.
  • 64.
  • 65.
  • 66.
  • 67.
  • 68.
  • 69.
  • 70.
  • 71.
  • 72.
  • 73.
  • 74.
  • 75.
  • 76.
  • 77.
  • 78.
  • 79.
  • 80.
  • 81.
  • 82.
  • 83.
  • 84.
  • 85.
  • 86.
  • 87.
  • 88.
  • 89.
  • 90.
  • 91.
  • 92.
  • 93.
  • 94.
  • 95.
  • 96.
  • 97.
  • 98.
  • 99.
  • 100.
  • 101.
  • 102.
  • 103.
  • 104.
  • 105.
  • 106.
  • 107.
  • 108.
  • 109.
  • 110.
  • 111.
  • 112.
  • 113.
  • 114.
  • 115.
  • 116.
  • 117.
  • 118.
  • 119.
  • 120.
  • 121.
  • 122.
  • 123.
  • 124.
  • 125.
  • 126.
  • 127.
  • 128.
  • 129.
  • 130.
  • 131.
  • 132.
  • 133.
  • 134.
  • 135.
  • 136.
  • 137.
  • 138.
  • 139.
  • 140.
  • 141.
  • 142.
  • 143.
  • 144.
  • 145.
  • 146.
  • 147.
  • 148.
  • 149.
  • 150.
  • 151.
  • 152.
  • 153.
  • 154.
  • 155.
  • 156.
  • 157.
  • 158.
  • 159.
  • 160.
  • 161.
  • 162.
  • 163.
  • 164.
  • 165.
  • 166.
  • 167.
  • 168.
  • 169.
  • 170.
  • 171.
  • 172.
  • 173.
  • 174.
  • 175.
  • 176.
  • 177.
  • 178.
  • 179.
  • 180.
  • 181.
  • 182.
  • 183.
  • 184.
  • 185.
  • 186.
  • 187.
  • 188.
  • 189.
  • 190.

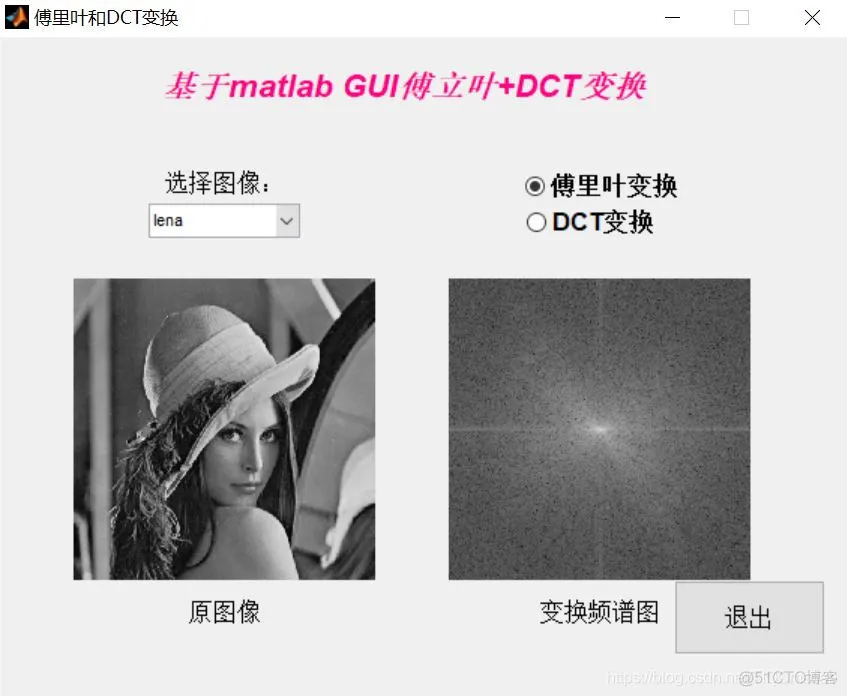

三、运行结果

【图像几何】基于傅立叶+DCT图像变换matlab源码含GUI_图像处理_12
