知识要点

padding= valid和same, 图片大小的变化.
卷积图片尺寸的变换.

一 padding 研究

from tensorflow import keras
import tensorflow as tf
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

1.1 padding = valid

$N = \frac{W - F + 1}{S}$ (向上取整)

model = keras.Sequential([keras.layers.Input(shape = (7, 7, 3), dtype = 'float32'),
                          keras.layers.MaxPool2D(pool_size = 3, strides = 2, padding = 'valid')])

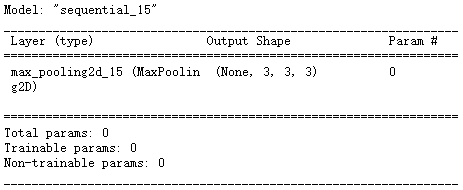

model.summary()

model = keras.Sequential([keras.layers.Input(shape = (8, 8, 3), dtype = 'float32'),
                          keras.layers.MaxPool2D(pool_size = 4, strides = 2, padding = 'same')])

model.summary()

1.2 padding = same

$N = \frac{W}{S}$ (向上取整)

model = keras.Sequential([keras.layers.Input(shape = (8, 8, 3), dtype = 'float32'),
                          keras.layers.MaxPool2D(pool_size = 3, strides = 2, padding = 'valid')])

model.summary()

model = keras.Sequential([keras.layers.Input(shape = (8, 8, 3), dtype = 'float32'),
                          keras.layers.MaxPool2D(pool_size = 3, strides = 2, padding = 'same')])
model.summary()

model = keras.Sequential([keras.layers.Input(shape = (8, 8, 3), dtype = 'float32'),
                          keras.layers.MaxPool2D(pool_size = 3, strides = 2, padding = 'SAME')])

model.summary()
