该文介绍了一个基于Keras的图像分类项目，使用10-monkey-species数据集训练卷积神经网络（CNN）。首先，对训练和验证数据进行预处理，包括数据增强。接着，构建了两个CNN模型：一个自定义的CNN模型和VGG16模型。最后，还展示了AlexNet模型的实现。所有模型均用Adam优化器和交叉熵损失函数训练，并在验证集上评估准确性。

项目要点

10-monkey-species，是十个种类的猴子的图像集。
txt 文件读取: labels = pd.read_csv( './monkey_labels.txt' , header= 0)
训练数据图片数据增强: # 图片数据生成器

# 图片数据生成器
train_datagen = keras.preprocessing.image.ImageDataGenerator(rescale = 1.0/ 255,
                                             rotation_range= 40,
                                             width_shift_range= 0.2,
                                             height_shift_range= 0.2,
                                             shear_range = 0.2,
                                             zoom_range = 0.2,
                                             horizontal_flip = True,
                                             vertical_flip= True,
                                             fill_mode= 'nearest')

训练数据读取并统一尺寸:

train_generator = train_datagen.flow_from_directory(train_dir,
                                  target_size= (height, width),
                                  batch_size = batch_size,
                                  shuffle= True,
                                  seed = 7,
                                  class_mode = 'categorical')

valid_dategen = keras.preprocessing.image.ImageDataGenerator(rescale = 1. / 255) # 目标数据转换
目标数据读取并转换尺寸:

valid_generator = valid_dategen.flow_from_directory(valid_dir,
                                  target_size= (height, width),
                                  batch_size = batch_size,
                                  shuffle= True,
                                  seed = 7,
                                  class_mode = 'categorical')

创建模型:
- model = keras.models.Sequential()
- model.add(keras.layers.Conv2D(filters = 32, kernel_size = 3, padding = 'same', activation = 'relu', input_shape = (128, 128, 3))) # 添加输入层
- model.add(keras.layers.Conv2D(filters = 32, kernel_size = 3, padding = 'same', activation = 'relu')) # 添加卷积层
- model.add(keras.layers.MaxPool2D()) # 添加池化层
- 维度转换: model.add(keras.layers.Flatten())
- 添加卷积层: model.add(keras.layers.Dense(32, activation = 'relu'))
- 添加输出层; model.add(keras.layers.Dense(10, activation = 'softmax'))
配置模型:

model.compile(loss = 'categorical_crossentropy',   # 独热编码, 所以不用sparse
              optimizer = 'adam',
              metrics = 'accuracy')

查看模型: model.summary()
模型训练:

histroy = model.fit(train_generator,
                    steps_per_epoch= train_num // batch_size,
                    epochs = 10,
                    validation_data = valid_generator,
                    validation_steps= valid_num // batch_size)

一 10-monkey-species

10-monkey-species 数据集是一个10类不同品种猴子的数据集，这个数据集是从 kaggle 平台中下载到本地使用的。

1.1 导包

import tensorflow as tf
from tensorflow import keras
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

cpu=tf.config.list_physical_devices("CPU")
tf.config.set_visible_devices(cpu)
print(tf.config.list_logical_devices())

1.2 数据导入

train_dir = './training/training/'
valid_dir = './validation/validation/'
label_file = './monkey_labels.txt'

labels = pd.read_csv(label_file, header= 0)
labels

# 图片数据生成器
train_datagen = keras.preprocessing.image.ImageDataGenerator(rescale = 1.0/ 255,
                                             rotation_range= 40,
                                             width_shift_range= 0.2,
                                             height_shift_range= 0.2,
                                             shear_range = 0.2,
                                             zoom_range = 0.2,
                                             horizontal_flip = True,
                                             vertical_flip= True,
                                             fill_mode= 'nearest')

height = 128
width = 128
channels = 3
batch_size = 32
num_classes = 10
train_generator = train_datagen.flow_from_directory(train_dir,
                                  target_size= (height, width),
                                  batch_size = batch_size,
                                  shuffle= True,
                                  seed = 7,
                                  class_mode = 'categorical')

valid_dategen = keras.preprocessing.image.ImageDataGenerator(rescale = 1. / 255)
valid_generator = valid_dategen.flow_from_directory(valid_dir,
                                  target_size= (height, width),
                                  batch_size = batch_size,
                                  shuffle= True,
                                  seed = 7,
                                  class_mode = 'categorical')

print(train_generator.samples)   # 1098
print(valid_generator.samples)   # 272

1.3 创建模型

model = keras.models.Sequential()
model.add(keras.layers.Conv2D(filters = 32,   # 卷积
                              kernel_size = 3,
                              padding = 'same',
                              activation = 'relu',
                              input_shape = (128, 128, 3)))  # 128, 128, 3
model.add(keras.layers.Conv2D(filters = 32,
                              kernel_size = 3,
                              padding = 'same',
                              activation = 'relu'))
model.add(keras.layers.MaxPool2D())  # 池化

model.add(keras.layers.Conv2D(filters = 64,   # 卷积
                              kernel_size = 3,
                              padding = 'same',
                              activation = 'relu'))
model.add(keras.layers.Conv2D(filters = 64,
                              kernel_size = 3,
                              padding = 'same',
                              activation = 'relu'))
model.add(keras.layers.MaxPool2D())  # 池化

model.add(keras.layers.Conv2D(filters = 128,   # 卷积
                              kernel_size = 3,
                              padding = 'same',
                              activation = 'relu'))
model.add(keras.layers.Conv2D(filters = 128,
                              kernel_size = 3,
                              padding = 'same',
                              activation = 'relu'))
model.add(keras.layers.MaxPool2D())   # 池化

model.add(keras.layers.Flatten())
model.add(keras.layers.Dense(32, activation = 'relu'))
model.add(keras.layers.Dense(32, activation = 'relu'))
model.add(keras.layers.Dense(10, activation = 'softmax'))

model.compile(loss = 'categorical_crossentropy',   # 独热编码, 所以不用sparse
              optimizer = 'adam',
              metrics = 'accuracy')
model.summary()

1.4 模型训练

train_num = train_generator.samples
valid_num = valid_generator.samples
print(train_num, valid_num, batch_size)   # 1098, 272, 32

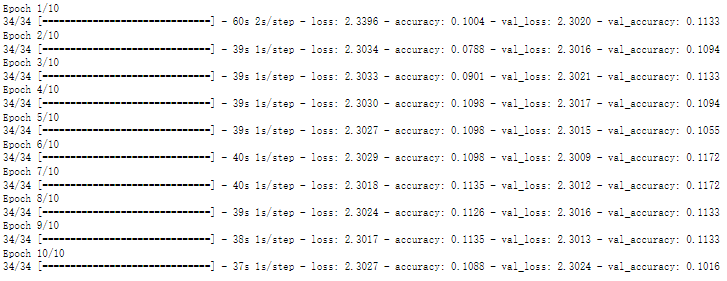

histroy = model.fit(train_generator,
                    steps_per_epoch= train_num // batch_size,
                    epochs = 10,
                    validation_data = valid_generator,
                    validation_steps= valid_num // batch_size)

二 VGG 模型分类

# 函数式写法    # M:池化
cfgs = {'vgg11': [64, 'M', 128, 'M', 256, 256, 'M', 512, 512, 'M', 512, 512, 'M'],
        'vgg13': [64, 64, 'M', 128, 128, 'M', 256, 256, 'M', 512, 512, 'M', 512, 512, 'M'],
        'vgg16': [64, 64, 'M', 128, 128, 'M', 256, 256, 256, 'M', 512, 512, 512, 'M', 512, 512, 512, 'M'],
        'vgg19': [64, 64, 'M', 128, 128, 'M', 256, 256, 256, 256, 'M', 512, 512, 512, 512, 'M', 512, 512, 512, 512, 'M']}

def make_feature(cfg):
    feature_layers = []
    for v in cfg:
        if v == 'M':
            feature_layers.append(keras.layers.MaxPool2D(pool_size = 2, strides = 2))
        else:
            feature_layers.append(keras.layers.Conv2D(v, kernel_size = 3,
                                                      padding = 'SAME',
                                                      activation = 'relu'))
    return keras.Sequential(feature_layers, name = 'feature')  # 整体当做一层

# 定义网络结构
def VGG(feature, im_height = 224, im_width = 224, num_classes = 1000):
    input_image = keras.layers.Input(shape = (im_height, im_width, 3), dtype = 'float32')
    x = feature(input_image)
    x = keras.layers.Flatten()(x)  # 将flatten当做一个函数
    # dropout, 防止过拟合, 每次放弃部分参数
    x = keras.layers.Dropout(rate = 0.5)(x)
    # 原论文为4096
    x = keras.layers.Dense(512, activation = 'relu')(x)
    x = keras.layers.Dropout(rate = 0.5)(x)
    x = keras.layers.Dense(512, activation = 'relu')(x)

    x = keras.layers.Dense(num_classes)(x)
    output = keras.layers.Softmax()(x)

    model = keras.models.Model(inputs = input_image, outputs = output)
    return model

# 定义网络模型

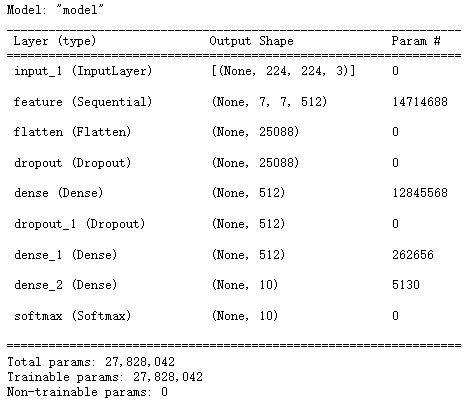

def vgg(model_name = 'vgg16', im_height = 224, im_width = 224, num_classes = 1000):
    cfg = cfgs[model_name]
    model = VGG(make_feature(cfg), im_height = im_height, im_width= im_width, num_classes= num_classes)
    return model

vgg16 = vgg(num_classes = 10)

vgg16.compile(optimizer = 'adam',   # optimizer 优化器, 防止过拟合
              loss = 'categorical_crossentropy',
              metrics = ['accuracy'])

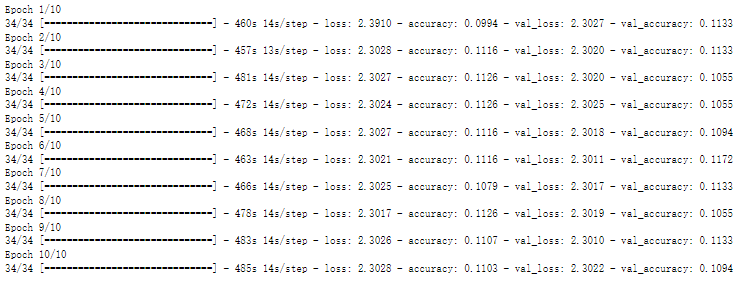

histroy = vgg16.fit(train_generator,
                    steps_per_epoch= train_generator.samples // batch_size,
                    epochs = 10,
                    validation_data= valid_generator,
                    validation_steps= valid_generator.samples // batch_size)

三 Alexnet 模型分类

# 函数式写法
def AlexNet(im_height=224, im_width=224, num_classes=1000):
    # 输入层
    input_image = keras.layers.Input(shape =(im_height, im_width, 3), dtype = tf.float32)
    # 手动实现padding, 周边补零填充
    x = keras.layers.ZeroPadding2D(((1, 2), (1, 2)))(input_image)
    # 卷积
    x = keras.layers.Conv2D(48, kernel_size = 11, strides = 4, activation = 'relu')(x)
    # 池化
    x = keras.layers.MaxPool2D(pool_size = 3, strides = 2)(x)
    # 第二层卷积
    x = keras.layers.Conv2D(128, kernel_size = 5, padding = 'same', activation = 'relu')(x)
    # 池化
    x = keras.layers.MaxPool2D(pool_size = 3, strides = 2)(x)
    # 卷积
    x = keras.layers.Conv2D(192, kernel_size = 3, padding = 'same', activation = 'relu')(x)
    x = keras.layers.Conv2D(192, kernel_size = 3, padding = 'same', activation = 'relu')(x)
    x = keras.layers.Conv2D(128, kernel_size = 3, padding = 'same', activation = 'relu')(x)
    # 池化 pool_size
    x = keras.layers.MaxPool2D(pool_size = 3, strides = 2)(x)
    # 传链接
    x = keras.layers.Flatten()(x)
    # 加dropout
    x = keras.layers.Dropout(0.2)(x)
    x = keras.layers.Dense(2048, activation = 'relu')(x)
    x = keras.layers.Dropout(0.2)(x)
    x = keras.layers.Dense(2048, activation = 'relu')(x)

    # 输出层
    x = keras.layers.Dense(num_classes)(x)
    # 预测
    predict = keras.layers.Softmax()(x)

    model = keras.models.Model(inputs = input_image, outputs = predict)
    return model

model = AlexNet(im_height= 224, im_width= 224, num_classes= 10)

model.compile(optimizer = 'adam',   # optimizer 优化器, 防止过拟合
              loss = 'categorical_crossentropy',
              metrics = ['accuracy'])

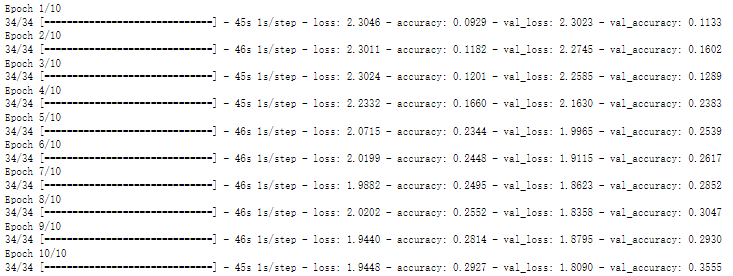

histroy = model.fit(train_generator,
                    steps_per_epoch= train_generator.samples // batch_size,
                    epochs = 10,
                    validation_data= valid_generator,
                    validation_steps= valid_generator.samples // batch_size)
