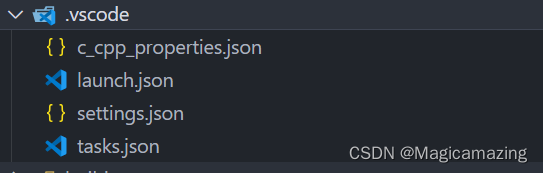

launch.json

{
    "version": "0.2.0",
    "configurations": [
      {

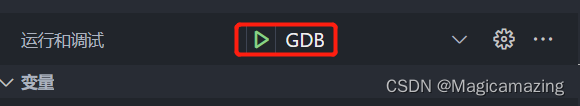

        "name": "GDB",
        "type": "cppdbg",
        "request": "launch",
        "MIMode": "gdb",
        "miDebuggerPath": "${command:espIdf.getXtensaGdb}",
        "program": "${workspaceFolder}/build/${command:espIdf.getProjectName}.elf",
        "windows": {
          "program": "${workspaceFolder}\\build\\${command:espIdf.getProjectName}.elf"
        },
        "cwd": "${workspaceFolder}",
        "environment": [{ "name": "PATH", "value": "${config:idf.customExtraPaths}" }],
        "setupCommands": [
          { "text": "target remote :3333" },
          { "text": "set remote hardware-watchpoint-limit 2"},
          { "text": "mon reset halt" },
          { "text": "thb app_main" },
          { "text": "flushregs" }
        ],
        "externalConsole": false,
        "logging": {
          "engineLogging": true
        }
      }
    ]
}

settings.json

{
    "C_Cpp.intelliSenseEngine": "Tag Parser",
    "idf.flashType": "UART",						//接口类型必须为JTAG
    "idf.adapterTargetName": "esp32",
    "idf.portWin": "COM10",						//替换成自己的串口
    "idf.openOcdConfigs": [
        "interface/jlink.cfg",
        "target/esp32.cfg"
    ],
    "terminal.integrated.defaultProfile.windows": "Windows PowerShell",
    "files.associations": {
        "sdkconfig.h": "c",
        "led_strip.h": "c",
        "gpio.h": "c"
    }
}

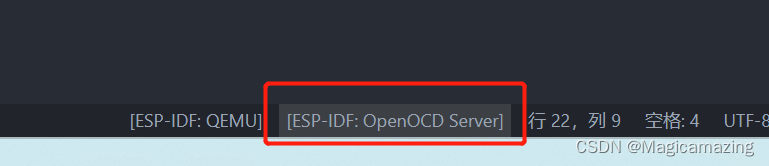

先执行（也可以跟下面的颠倒，具体的看实际情况）
