本文简单介绍了Cesium中的分屏对比和卷帘对比功能。分屏对比通过创建两个同步的Viewer实现，而卷帘对比则利用单个Viewer展示两个不同的地图。文章提供了相关代码示例和效果图。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

参考地址：https://blog.youkuaiyun.com/qq_29808089/article/details/108895254

简单介绍一下：分屏对比和卷帘对比的区别（只是个人理解，不对请指正）
分屏对比：创建了左右两个地球，有两个viewer，两个viewer会同步。
卷帘对比：只有一个地球，一个viewer，只不过这个地球有两个地图。
想看卷帘对比请在我的文章中寻找

使用该段代码请将js和css换成自己的或者网上的

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width,initial-scale=1.0">
    <!-- <link rel="icon" href="<%= BASE_URL %>favicon.ico"> -->
    <script src="../../Build/Cesium/Cesium.js"></script>
    <!-- <link rel="stylesheet" href="Cesium/Widgets/widgets.css"> -->
</head>

<body>
    <div id="cesiumContainer" class="mapview"></div>
    <div id="cesiumContainer2" class="mapview"></div>
</body>
<style>
    @import url(../../Build/Cesium/Widgets/widgets.css);

    html,
    body {
        width: 100%;
        height: 100%;
        margin: 0;
    }

    .mapview {
        float: left;
        width: 50%;
        height: 100%;
        margin: 0;
    }
</style>
<script>
    var viewer0, viewer1
    viewer0 = new Cesium.Viewer('cesiumContainer', {
        baseLayerPicker: false,
        imageryProvider: new Cesium.ArcGisMapServerImageryProvider({
            url: 'http://map.geoq.cn/arcgis/rest/services/ChinaOnlineStreetWarm/MapServer'
        })
    });
    viewer1 = new Cesium.Viewer('cesiumContainer2', {
        baseLayerPicker: false,
        imageryProvider: new Cesium.ArcGisMapServerImageryProvider({
            url: 'http://map.geoq.cn/arcgis/rest/services/ChinaOnlineStreetWarm/MapServer'
        })
    });
    initHandler(viewer0, viewer1)

    function initHandler(viewer0, viewer1) {
        var _self = this;
        if (_self.handler && _self.handler.getInputAction(Cesium.ScreenSpaceEventType.MOUSE_MOVE)) {
            return;
        }
        _self.handler = new Cesium.ScreenSpaceEventHandler(viewer0.scene.canvas);
        _self.handler1 = new Cesium.ScreenSpaceEventHandler(viewer1.scene.canvas);
        _self.handler.setInputAction(function (movement) {
            var _camerca = viewer0.camera;
            viewer1.camera.setView({
                destination: _camerca.position,
                orientation: {
                    direction: _camerca._direction,
                    up: _camerca.up,
                    heading: _camerca.heading,
                    pitch: _camerca.pitch,
                    roll: _camerca.roll
                }
            });
        }, Cesium.ScreenSpaceEventType.MOUSE_MOVE);

        _self.handler.setInputAction(function (movement) {
            var _camerca = viewer0.camera;
            viewer1.camera.setView({
                destination: _camerca.position,
                orientation: {
                    direction: _camerca._direction,
                    up: _camerca.up,
                    heading: _camerca.heading,
                    pitch: _camerca.pitch,
                    roll: _camerca.roll
                }
            });
        }, Cesium.ScreenSpaceEventType.WHEEL);


        _self.handler1.setInputAction(function (movement) {
            var _camerca = viewer1.camera;
            viewer0.camera.setView({
                destination: _camerca.position,
                orientation: {
                    direction: _camerca._direction,
                    up: _camerca.up,
                    heading: _camerca.heading,
                    pitch: _camerca.pitch,
                    roll: _camerca.roll
                }
            });
        }, Cesium.ScreenSpaceEventType.MOUSE_MOVE);

        _self.handler1.setInputAction(function (movement) {
            var _camerca = viewer1.camera;
            viewer0.camera.setView({
                destination: _camerca.position,
                orientation: {
                    direction: _camerca._direction,
                    up: _camerca.up,
                    heading: _camerca.heading,
                    pitch: _camerca.pitch,
                    roll: _camerca.roll
                }
            });
        }, Cesium.ScreenSpaceEventType.WHEEL);
    }

    function clearHandler() {
        var _self = this;
        if (_self.handler) {
            _self.handler.removeInputAction(Cesium.ScreenSpaceEventType.MOUSE_MOVE);
            _self.handler.removeInputAction(Cesium.ScreenSpaceEventType.WHEEL);
        }
        if (_self.handler1) {
            _self.handler1.removeInputAction(Cesium.ScreenSpaceEventType.MOUSE_MOVE);
            _self.handler1.removeInputAction(Cesium.ScreenSpaceEventType.WHEEL);
        }
    }
</script>

</html>

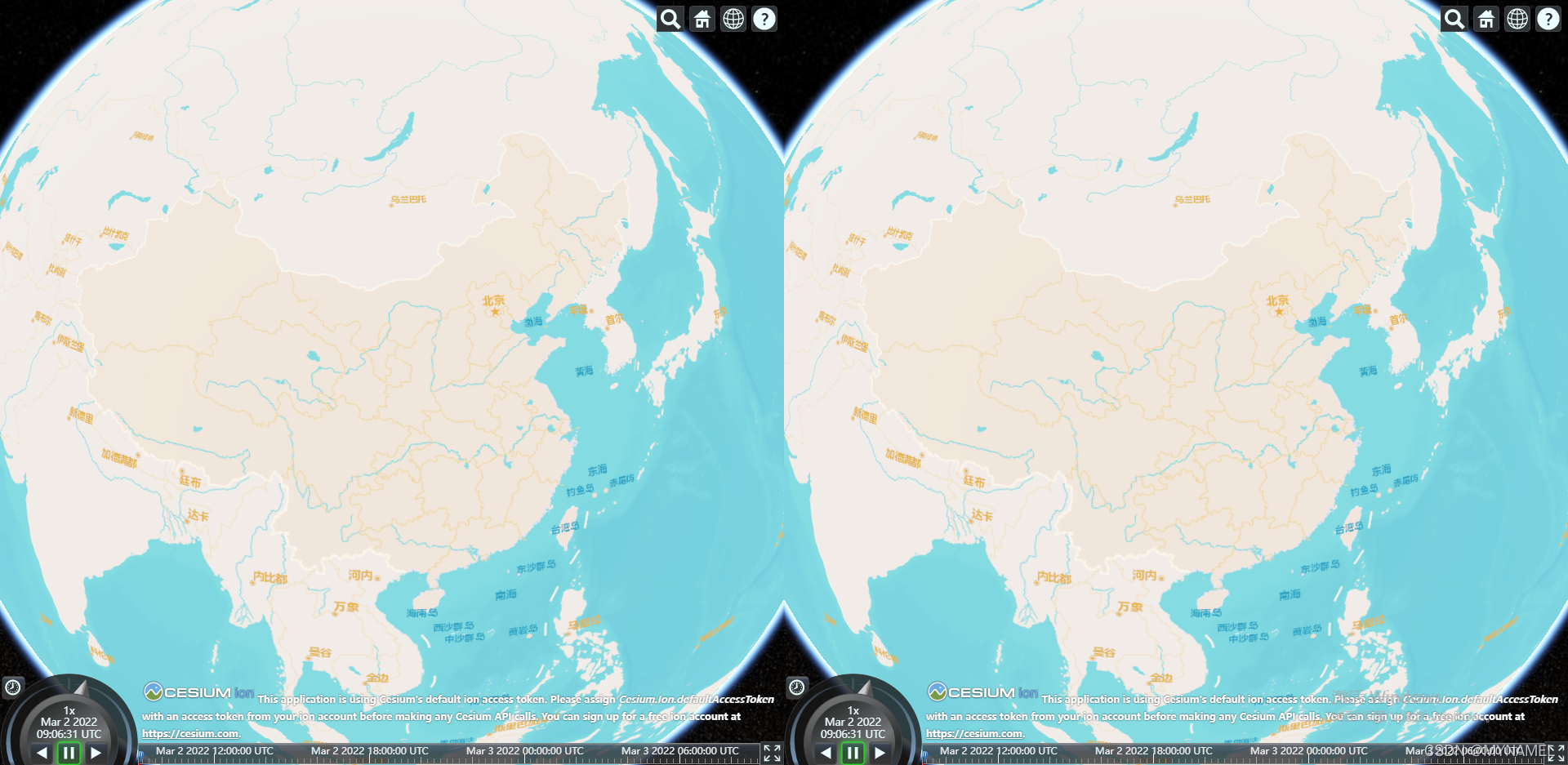

效果图：
在这里插入图片描述
