Linux 设备驱动模型

做Linux做么多年，虽然说看了很多，还没有写过这边方便的博客，今天接学习的机会，来记录下同时复习下

1. 引入设备驱动模型的目的

关于linux设备驱动模型应该有很多文章和博客已经记录和阐述了，至于为什么linux要设计这么一个设备驱动的软件架构，可以看看宋宝华老师的《Linux驱动设备开发详解》第十二章

设备驱动模型有三个重要组件，分别是总线(bus type)、设备(device)和驱动(driver)

• 总线，主要起连接设备和驱动的作用
• 设备，顾名思义对应硬件上的设备
• 驱动，一套操作硬件的方法

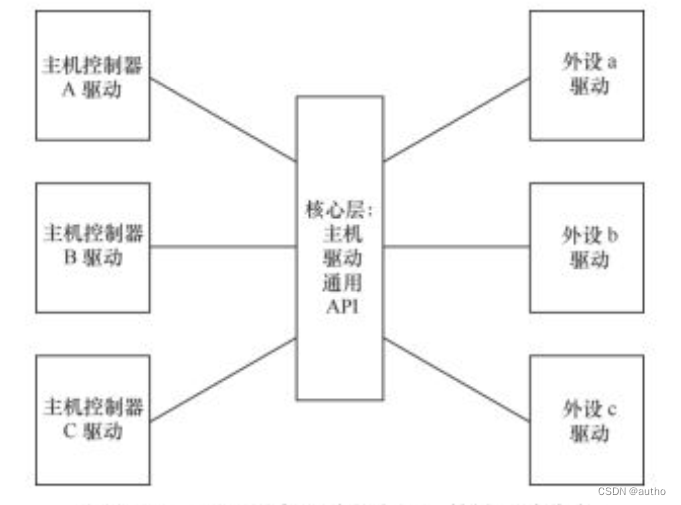

在不使用设备驱动模型是，一个外设的驱动在特定的CPU上运行需要一套特定的驱动，那么在多个不同的CPU上就需要多个驱动，按照这种逻辑，N个同类型的外设在M个不同的CPU上就需要N*M份驱动，这种是典型的强耦合，不符合软件工程的基本原则，引用宋宝华老师书上的图片如下

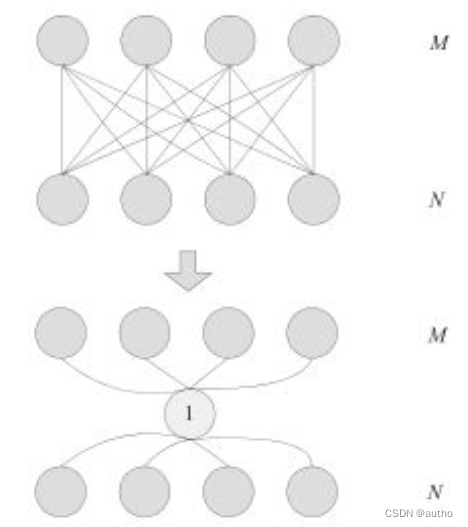

使用了设备驱动模型后只需要N+M个驱动

2. 设备驱动模型分析

典型的设备驱动模型有platform设备驱动、i2c/spi驱动、块设备、input设备、tty、usb等诸多设备驱动，下面我们具体分析从platform驱动设备来理清bus、driver、device之前的关系

2.1 bus注册

汇编代码.S文件调用
kernel-5.10/init/main.c start_kernel ---->arch_call_rest_init----->rest_init---->kernel_init ---->kernel_init_freeable ---->do_basic_setup ---->driver_init ---->platform_bus_init---->bus_register

struct bus_type platform_bus_type = {
	.name		= "platform",
	.dev_groups	= platform_dev_groups,
	.match		= platform_match,
	.uevent		= platform_uevent,
	.dma_configure	= platform_dma_configure,
	.pm		= &platform_dev_pm_ops,
};


struct bus_type {
	const char		*name;
	const char		*dev_name;
	struct device		*dev_root;
	const struct attribute_group **bus_groups;
	const struct attribute_group **dev_groups;
	const struct attribute_group **drv_groups;

	int (*match)(struct device *dev, struct device_driver *drv);
	int (*uevent)(struct device *dev, struct kobj_uevent_env *env);
	int (*probe)(struct device *dev);
	void (*sync_state)(struct device *dev);
	int (*remove)(struct device *dev);
	void (*shutdown)(struct device *dev);

	int (*online)(struct device *dev);
	int (*offline)(struct device *dev);

	int (*suspend)(struct device *dev, pm_message_t state);
	int (*resume)(struct device *dev);

	int (*num_vf)(struct device *dev);

	int (*dma_configure)(struct device *dev);

	const struct dev_pm_ops *pm;

	const struct iommu_ops *iommu_ops;

	struct subsys_private *p;
	struct lock_class_key lock_key;

	bool need_parent_lock;

	ANDROID_KABI_RESERVE(1);
	ANDROID_KABI_RESERVE(2);
	ANDROID_KABI_RESERVE(3);
	ANDROID_KABI_RESERVE(4);
};

static int platform_match(struct device *dev, struct device_driver *drv)
{
	struct platform_device *pdev = to_platform_device(dev);
	struct platform_driver *pdrv = to_platform_driver(drv);

	/* When driver_override is set, only bind to the matching driver */
	if (pdev->driver_override)
		return !strcmp(pdev->driver_override, drv->name);

	/* Attempt an OF style match first */
	if (of_driver_match_device(dev, drv))
		return 1;

	/* Then try ACPI style match */
	if (acpi_driver_match_device(dev, drv))
		return 1;

	/* Then try to match against the id table */
	if (pdrv->id_table)
		return platform_match_id(pdrv->id_table, pdev) != NULL;

	/* fall-back to driver name match */
	return (strcmp(pdev->name, drv->name) == 0);
}



上面是bus_register时注册的platform_bus_type，其中需要注意的是.match函数，当挂在platform总线上的driver和device匹配时会调用，会根据of_match_table、acpi、id_table、drv_name来匹配，至于bus_register函数中的其他调用有兴趣的可以自行去了解kobject/kset，这里不再赘述
相关也可以看看博客linux驱动 平台设备驱动模型，我看看写的比较详细，注意这篇博客的kernel版本和我的不一样，我这是kernel5.10

2.2 driver注册

这里已display中的panel注册为例

static struct mipi_dsi_driver panel_simple_dsi_driver = {
	.driver = {
		.name = "panel-simple-dsi",
		.of_match_table = dsi_of_match,
	},
	.probe = panel_simple_dsi_probe,
	.remove = panel_simple_dsi_remove,
	.shutdown = panel_simple_dsi_shutdown,
};

static int __init panel_simple_init(void)
{
	int err;
//注册platform设备
	err = platform_driver_register(&panel_simple_platform_driver);
	if (err < 0)
		return err;

	if (IS_ENABLED(CONFIG_DRM_MIPI_DSI)) {
		err = mipi_dsi_driver_register(&panel_simple_dsi_driver);
		if (err < 0)
			return err;
	}

	return 0;
}
module_init(panel_simple_init);

在kernel开始运行时会调用运行.init.text代码段的函数，而运行module_init宏定义的内容，关于module_init、late_initcall、subsys_init等可以查看kernel-5.10/include/linux/module.h、init.h

platform_driver_register

#define platform_driver_register(drv) \
	__platform_driver_register(drv, THIS_MODULE)

int __platform_driver_register(struct platform_driver *drv,
				struct module *owner)
{
	drv->driver.owner = owner;
	drv->driver.bus = &platform_bus_type;
	drv->driver.probe = platform_drv_probe;
	drv->driver.remove = platform_drv_remove;
	drv->driver.shutdown = platform_drv_shutdown;

	return driver_register(&drv->driver);
}

int driver_register(struct device_driver *drv)
{
	int ret;
	struct device_driver *other;

	if (!drv->bus->p) {
		pr_err("Driver '%s' was unable to register with bus_type '%s' because the bus was not initialized.\n",
			   drv->name, drv->bus->name);
		return -EINVAL;
	}

	if ((drv->bus->probe && drv->probe) ||
	    (drv->bus->remove && drv->remove) ||
	    (drv->bus->shutdown && drv->shutdown))
		pr_warn("Driver '%s' needs updating - please use "
			"bus_type methods\n", drv->name);
//检查driver是否已经注册在bus上
	other = driver_find(drv->name, drv->bus);
	if (other) {
		pr_err("Error: Driver '%s' is already registered, "
			"aborting...\n", drv->name);
		return -EBUSY;
	}
//这个函数下面分析
	ret = bus_add_driver(drv);
	if (ret)
		return ret;
	ret = driver_add_groups(drv, drv->groups);
	if (ret) {
		bus_remove_driver(drv);
		return ret;
	}
	kobject_uevent(&drv->p->kobj, KOBJ_ADD);

	return ret;
}
EXPORT_SYMBOL_GPL(driver_register);


int bus_add_driver(struct device_driver *drv)
{
	struct bus_type *bus;
	struct driver_private *priv;
	int error = 0;

	bus = bus_get(drv->bus);
	if (!bus)
		return -EINVAL;

	pr_debug("bus: '%s': add driver %s\n", bus->name, drv->name);

	priv = kzalloc(sizeof(*priv), GFP_KERNEL);
	if (!priv) {
		error = -ENOMEM;
		goto out_put_bus;
	}
	klist_init(&priv->klist_devices, NULL, NULL);
	priv->driver = drv;
	drv->p = priv;
	priv->kobj.kset = bus->p->drivers_kset;
	error = kobject_init_and_add(&priv->kobj, &driver_ktype, NULL,
				     "%s", drv->name);
	if (error)
		goto out_unregister;
//将knode_bus加入到bus的klist_drivers链表中
	klist_add_tail(&priv->knode_bus, &bus->p->klist_drivers);
	if (drv->bus->p->drivers_autoprobe) {
//调用bus中的match函数
		error = driver_attach(drv);
		if (error)
			goto out_unregister;
	}
	module_add_driver(drv->owner, drv);

	error = driver_create_file(drv, &driver_attr_uevent);
	if (error) {
		printk(KERN_ERR "%s: uevent attr (%s) failed\n",
			__func__, drv->name);
	}
	error = driver_add_groups(drv, bus->drv_groups);
	if (error) {
		/* How the hell do we get out of this pickle? Give up */
		printk(KERN_ERR "%s: driver_create_groups(%s) failed\n",
			__func__, drv->name);
	}

	if (!drv->suppress_bind_attrs) {
		error = add_bind_files(drv);
		if (error) {
			/* Ditto */
			printk(KERN_ERR "%s: add_bind_files(%s) failed\n",
				__func__, drv->name);
		}
	}

	return 0;

out_unregister:
	kobject_put(&priv->kobj);
	/* drv->p is freed in driver_release()  */
	drv->p = NULL;
out_put_bus:
	bus_put(bus);
	return error;
}

int driver_attach(struct device_driver *drv)
{
	return bus_for_each_dev(drv->bus, NULL, drv, __driver_attach);
}
EXPORT_SYMBOL_GPL(driver_attach);

static int __driver_attach(struct device *dev, void *data)
{
	struct device_driver *drv = data;
	int ret;

	/*
	 * Lock device and try to bind to it. We drop the error
	 * here and always return 0, because we need to keep trying
	 * to bind to devices and some drivers will return an error
	 * simply if it didn't support the device.
	 *
	 * driver_probe_device() will spit a warning if there
	 * is an error.
	 */

//调用bus_type中的match函数
	ret = driver_match_device(drv, dev);
	if (ret == 0) {
		/* no match */
		return 0;
	} else if (ret == -EPROBE_DEFER) {
		dev_dbg(dev, "Device match requests probe deferral\n");
		driver_deferred_probe_add(dev);
	} else if (ret < 0) {
		dev_dbg(dev, "Bus failed to match device: %d\n", ret);
		return ret;
	} /* ret > 0 means positive match */

	if (driver_allows_async_probing(drv)) {
		/*
		 * Instead of probing the device synchronously we will
		 * probe it asynchronously to allow for more parallelism.
		 *
		 * We only take the device lock here in order to guarantee
		 * that the dev->driver and async_driver fields are protected
		 */
		dev_dbg(dev, "probing driver %s asynchronously\n", drv->name);
		device_lock(dev);
		if (!dev->driver) {
			get_device(dev);
			dev->p->async_driver = drv;
			async_schedule_dev(__driver_attach_async_helper, dev);
		}
		device_unlock(dev);
		return 0;
	}
//driver和device匹配完成，调用driver中的probe函数完成注册
	device_driver_attach(drv, dev);

	return 0;
}

static inline int driver_match_device(struct device_driver *drv,
				      struct device *dev)
{
	return drv->bus->match ? drv->bus->match(dev, drv) : 1;
}

2.3 device注册

在kernel未引入dts之前和引入dts之后的device注册时不同的

具体可参考platform_device的生成过程

总之引入设备驱动模型后，隔离了bsp和驱动，使得驱动有更好的可扩展性和跨平台性，另外一个驱动可以支持多个设备
