按下物理开关时，舵机旋转160度，延迟几秒后喇叭发出声音。

通过AP网络连接后，通过网页的开门1/2/3按钮控制舵机旋转，延迟几秒后喇叭发出声音。

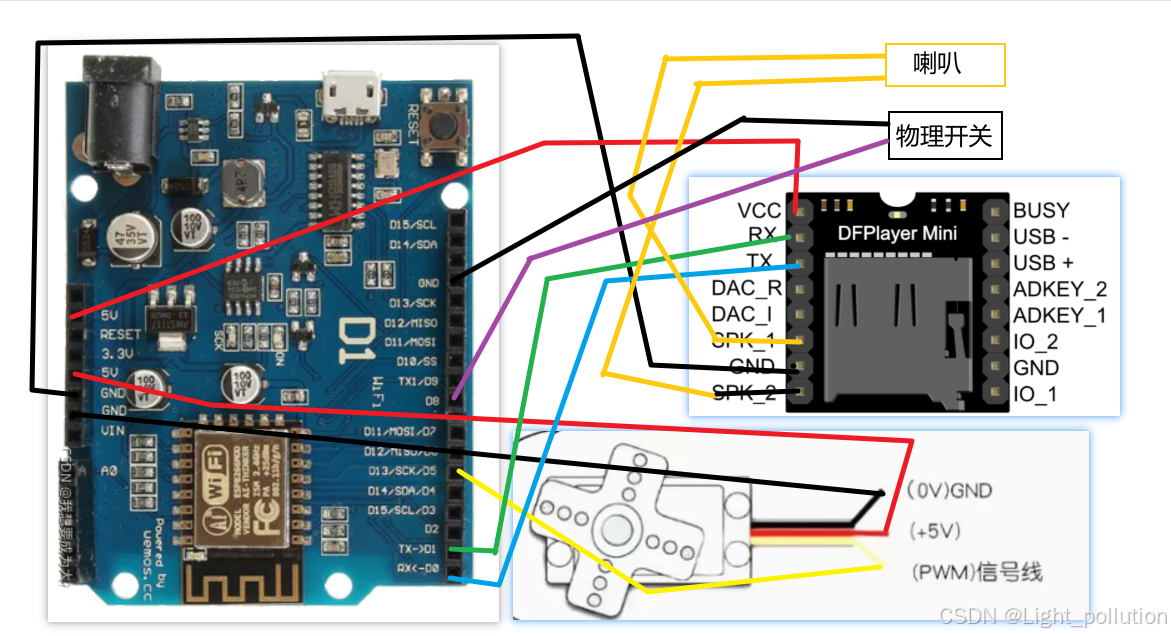

附上接线图：

全部代码：

#include <Servo.h>
#include <Arduino.h>
#include "ESP8266WiFi.h"
#include "ESP8266WebServer.h"
#include <SoftwareSerial.h>
#include <DFPlayer_Mini_Mp3.h>


Servo myservo;
SoftwareSerial mySerial(D0, D1); // RX, TX。与mp3有关
ESP8266WebServer server(80);
const int switchPin1 = D8;  // 定义外置开关的一个引脚
bool switchState = false;  // 用于存储开关状态

void handleRoot() {
    String html = "<!DOCTYPE html>\n"
    "<html lang=\"en\">\n"
    "<head>\n"
    "<meta charset=\"UTF-8\">\n"
    "<meta name=\"viewport\" content=\"width=device-width, initial-scale=1.0\">\n"
    "<style>\n"
    "body, html {\n"
    "  height: 100%;\n"
    "  margin: 0;\n"
    "  display: flex;\n"
    "  justify-content: center;\n"
    "  align-items: center;\n"
    "  font-family: Arial, sans-serif;\n"
    "  box-sizing: border-box;\n"
    "}\n"
    "\n"
    ".button-container {\n"
    "  display: flex;\n"
    "  flex-direction: column;\n"
    "  align-items: center;\n"
    "  width: 100%;\n"
    "  padding: 10px;\n"
    "  text-align: center;\n"
    "}\n"
    "\n"
    ".button {\n"
    "  width: calc(100% - 40px);\n" /* 减去左右padding的宽度，保持按钮内部内容居中 */
    "  padding: 15px 20px;\n"
    "  font-size: 16px;\n"
    "  font-weight: bold;\n"
    "  text-align: center;\n"
    "  text-decoration: none;\n"
    "  color: #fff;\n"
    "  background-color: #007BFF;\n"
    "  border: none;\n"
    "  border-radius: 5px;\n"
    "  cursor: pointer;\n"
    "  margin: 10px 0;\n"
    "  box-sizing: border-box;\n"
    "  transition: background-color 0.3s ease;\n"
    "}\n"
    "\n"
    "@media (min-width: 600px) {\n" /* 当屏幕宽度大于或等于600px时 */
    "  .button {\n"
    "    font-size: 18px;\n" /* 增大字体 */
    "    padding: 20px 30px;\n" /* 增大内边距 */
    "  }\n"
    "}\n"
    "\n"
    ".button:hover {\n"
    "  background-color: #0056b3;\n"
    "}\n"
    "\n"
    ".button:active {\n"
    "  background-color: #004085;\n"
    "}\n"
    "</style>\n"
    "</head>\n"
    "<body>\n"
    "<div class=\"button-container\">\n"
    "<h2>WIFI控制开关</h2>\n"
    "<a href=\"/on\" class=\"button\">开门1</a>\n"
    "<a href=\"/off\" class=\"button\">开门2</a>\n"
    "<a href=\"/fw\" class=\"button\">开门3</a>\n"
    "<a href=\"/xh\" class=\"button\">测试舵机</a>\n"
    "</div>\n"
    "</body>\n"
    "</html>\n";
    server.send(200, "text/html", html);
}

void handleOn() {
    myservo.write(135); // 旋转到135度
    delay(1000);
    myservo.write(0);
    delay(2000);
    mp3_play(2); //播放第0002
    server.sendHeader("Location", "/");
    server.send(303);
}

void handleOff() {
    myservo.write(160); // 旋转到160度
    delay(1000);
    myservo.write(0);
    delay(2000);
    mp3_play(2); //播放第0002
    server.sendHeader("Location", "/");
    server.send(303);
}

void handleFw() {
    myservo.write(180); // 旋转到180度
    delay(1000);
    myservo.write(0);
    mp3_set_volume(15);//mp3声音
    mp3_play(1); //播放第0001
    server.sendHeader("Location", "/");
    server.send(303);
}

void handleXh() {
    myservo.write(0); // 旋转到0度
    delay(2000);
    myservo.write(90);// 旋转到90度
    delay(2000);
    myservo.write(180);// 旋转到180度
    delay(2000);
    myservo.write(0);// 旋转到0度
    server.sendHeader("Location", "/");
    server.send(303);
}


void setup() {
  Serial.begin(115200); //设置舵机波特率
  mySerial.begin(9600); //设置MP3波特率
  myservo.attach(D5,500,2500);//定义舵机引脚和频率
  mp3_set_serial(mySerial);//这是MP3模块
  mp3_set_volume(30);//初始化声音为30
  myservo.write(0); // 初始化舵机-舵机初始位置
  WiFi.mode(WIFI_AP);  //设置WiFi模式为AP
  WiFi.softAP("WIFI_AP", "12345678");  //设置名称，密码

  server.begin();  //开启服务
  //设置网页的跳转四个按钮
  server.on("/", handleRoot);
  server.on("/on", handleOn);
  server.on("/off", handleOff);
  server.on("/fw", handleFw);
  server.on("/xh", handleXh);

  pinMode(switchPin1, INPUT_PULLUP);  // 设置开关引脚为上拉输入模式

}


void loop() {
  server.handleClient();

  // 读取开关状态
  bool currentState = digitalRead(switchPin1) == LOW;  // 假设按下开关时引脚电平为LOW
   // 如果开关状态发生变化
  if (currentState != switchState) {
    switchState = currentState;
    // 根据开关状态控制舵机旋转
    if (switchState) {
      myservo.write(160);  // 例如，按下开关时舵机旋转到160度

    } else {
      myservo.write(0);  // 例如，松开开关时舵机旋转到0度
      delay(2500);
      mp3_play(1); //播放第0001

    }
    // 打印调试信息
     Serial.println(switchState ? "Switch ON" : "Switch OFF");
      // 延时一段时间，避免过于频繁的读取开关状态
    delay(1500);
}
}
