Kotlin协程分析之CoroutineScheduler

概述

看这篇文章，可以跳着看，遇到哪个方法不懂就跳到哪个方法去看，上下对照着理解。

常量

companion object {
        // A symbol to mark workers that are not in parkedWorkersStack
        @JvmField
        val NOT_IN_STACK = Symbol("NOT_IN_STACK")

        // Worker ctl states
        private const val PARKED = -1    // 在parkedWorkersStack栈上
        private const val CLAIMED = 0    // 初始状态
        private const val TERMINATED = 1 // 终止状态

        // Masks of control state
        /**
         * |------------------------------------|---------------------|----------------------|
         * |         cpu permit(22bit)          |    BLOCKING(21bit)  |   CREATED(21bit)     |
         * |------------------------------------|---------------------|----------------------|
         */
        private const val BLOCKING_SHIFT = 21 // 2M threads max
        private const val CREATED_MASK: Long = (1L shl BLOCKING_SHIFT) - 1
        private const val BLOCKING_MASK: Long = CREATED_MASK shl BLOCKING_SHIFT
        private const val CPU_PERMITS_SHIFT = BLOCKING_SHIFT * 2
        private const val CPU_PERMITS_MASK = CREATED_MASK shl CPU_PERMITS_SHIFT

        internal const val MIN_SUPPORTED_POOL_SIZE = 1 // we support 1 for test purposes, but it is not usually used
        internal const val MAX_SUPPORTED_POOL_SIZE = (1 shl BLOCKING_SHIFT) - 2

        // Masks of parkedWorkersStack
        /**
         * |------------------------------------|---------------------|
         * |         PARKED_VERSION(43bit)      |  PARKED_INDEX(21bit)|
         * |------------------------------------|---------------------|
         */
        private const val PARKED_INDEX_MASK = CREATED_MASK
        private const val PARKED_VERSION_MASK = CREATED_MASK.inv()
        private const val PARKED_VERSION_INC = 1L shl BLOCKING_SHIFT
    }

理论上最大支持2M的线程数量

CoroutineScheduler

CoroutineScheduler实现了java的Executor接口，是Dispatchers.Default的调度器，它的调度逻辑就是，IO任务到IO线程中执行，CPU密集任务CPU型线程中去执行，对于调度的任务来说，什么io线程，什么cpu型线程，都是透明的，对任务来说都是线程。

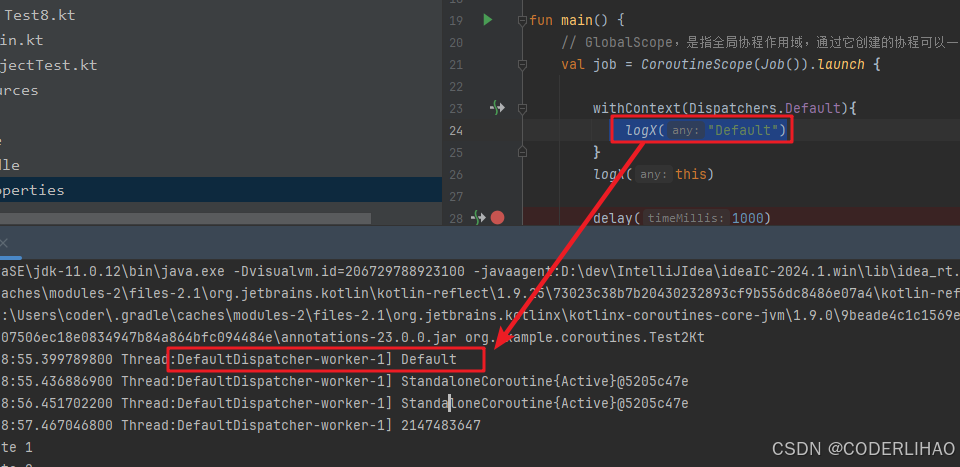

线程池里面的线程名字叫做 DefaultDispatcher-worker-1,DefaultDispatcher-worker-2,DefaultDispatcher-worker-3等之类的。

public actual object Dispatchers {
	@JvmStatic
    public actual val Default: CoroutineDispatcher = DefaultScheduler
}

internal val DEFAULT_SCHEDULER_NAME = systemProp(
    "kotlinx.coroutines.scheduler.default.name", "DefaultDispatcher"
)

internal object DefaultScheduler : SchedulerCoroutineDispatcher(
    CORE_POOL_SIZE, MAX_POOL_SIZE,
    // DEFAULT_SCHEDULER_NAME的值默认就是 "DefaultDispatcher"
    IDLE_WORKER_KEEP_ALIVE_NS, DEFAULT_SCHEDULER_NAME
) {
	......
}

internal open class SchedulerCoroutineDispatcher(
    private val corePoolSize: Int = CORE_POOL_SIZE,
    private val maxPoolSize: Int = MAX_POOL_SIZE,
    private val idleWorkerKeepAliveNs: Long = IDLE_WORKER_KEEP_ALIVE_NS,
    // schedulerName的值默认就是 "DefaultDispatcher"
    private val schedulerName: String = "CoroutineScheduler",
) : ExecutorCoroutineDispatcher() {

    override val executor: Executor
        get() = coroutineScheduler

    // This is variable for test purposes, so that we can reinitialize from clean state
    private var coroutineScheduler = createScheduler()

    private fun createScheduler() =
    	// 使用 CoroutineScheduler 作为调度器
        CoroutineScheduler(corePoolSize, maxPoolSize, idleWorkerKeepAliveNs, schedulerName)

    override fun dispatch(context: CoroutineContext, block: Runnable): Unit = coroutineScheduler.dispatch(block)

    override fun dispatchYield(context: CoroutineContext, block: Runnable): Unit =
        coroutineScheduler.dispatch(block, tailDispatch = true)

    internal fun dispatchWithContext(block: Runnable, context: TaskContext, tailDispatch: Boolean) {
        coroutineScheduler.dispatch(block, context, tailDispatch)
    }

	....
}

internal class CoroutineScheduler(
    // 核心线程数量，保证核心线程的存活，核心线程干cpu密集型任务，io任务（Blocking）不能占有许可（会主动释放）
    @JvmField val corePoolSize: Int,
    // 最大线程数量
    @JvmField val maxPoolSize: Int,
    // 空闲线程可以存活的时间，大于corePoolSize的数量的线程闲下来时都是空闲线程
    @JvmField val idleWorkerKeepAliveNs: Long = IDLE_WORKER_KEEP_ALIVE_NS,
    // 调度器的名字
    @JvmField val schedulerName: String = DEFAULT_SCHEDULER_NAME
) : Executor, Closeable {

    // CPU密集型任务队列
    @JvmField
    val globalCpuQueue = GlobalQueue()

    // IO型任务队列
    @JvmField
    val globalBlockingQueue = GlobalQueue()

    // 处于parked状态的线程都在这个栈上，这个值是栈顶的值，这个值分成2部分，PARKED_INDEX表示一个workers数组索引位置
    // 通过这个索引可以在workers数组中找到这个worker，另一部分就是版本号，记录被修改的次数
    /**
     * |------------------------------------|----------------------|
     * |         PARKED_VERSION(43bit)      |  PARKED_INDEX(21bit) |
     * |------------------------------------|--------------------——|
     */
    private val parkedWorkersStack = atomic(0L)

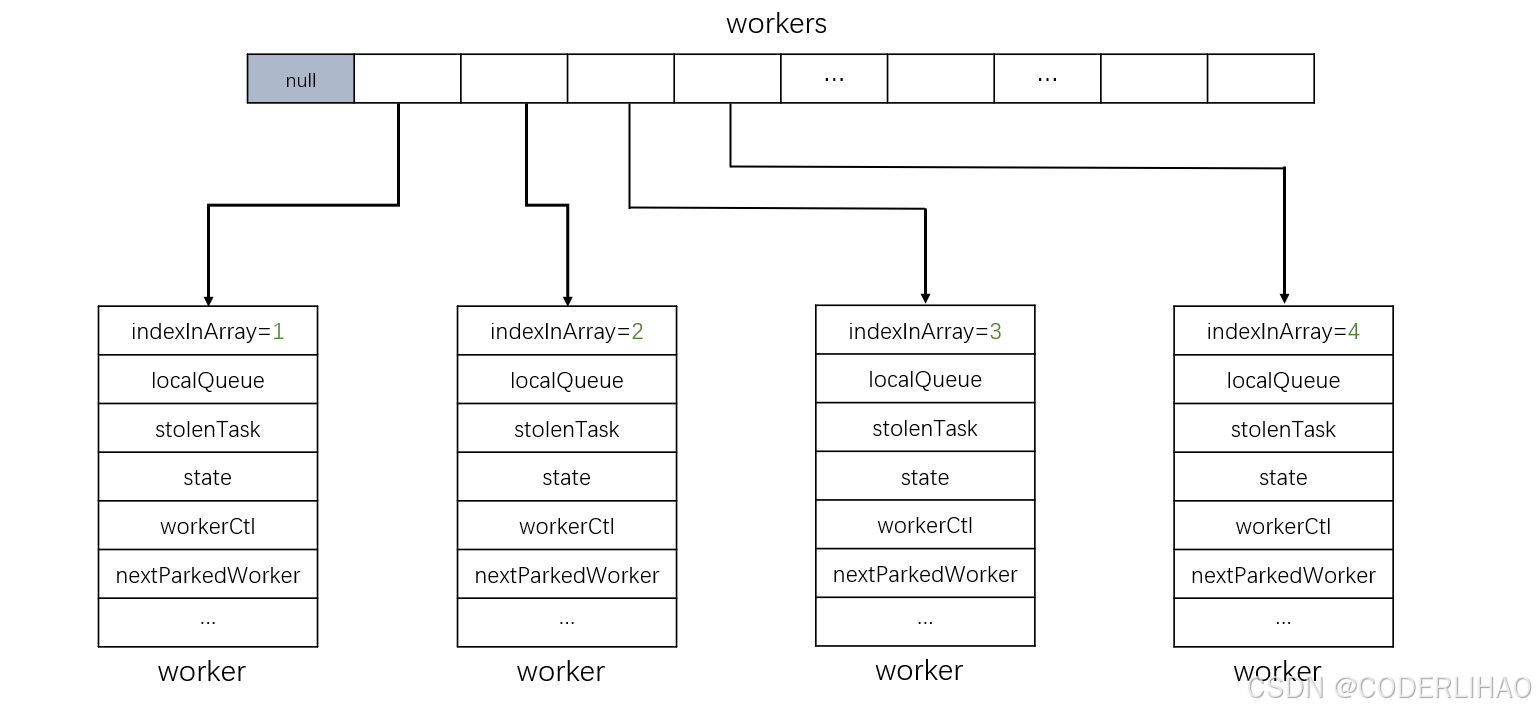

    // 存储线程的数组，workers[0]这个位置不用，是null。从1开始才是有效的worker
    @JvmField
    val workers = ResizableAtomicArray<Worker>((corePoolSize + 1) * 2)

    /**
     * |------------------------------------|---------------------|----------------------|
     * |         cpu permit(22bit)          |    BLOCKING(21bit)  |   CREATED(21bit)     |
     * |------------------------------------|---------------------|----------------------|
     */
    // 也就是说这里的cpu permit初始值是corePoolSize
    private val controlState = atomic(corePoolSize.toLong() shl CPU_PERMITS_SHIFT)

    // 当前创建的线程数量
    private val createdWorkers: Int inline get() = (controlState.value and CREATED_MASK).toInt()

    // cpu permit的数量，初始值是corePoolSize
    private val availableCpuPermits: Int inline get() = availableCpuPermits(controlState.value)

    // 计算当前创建的线程数量
    private inline fun createdWorkers(state: Long): Int = (state and CREATED_MASK).toInt()
    // 计算当前阻塞的线程数量
    private inline fun blockingTasks(state: Long): Int = (state and BLOCKING_MASK shr BLOCKING_SHIFT).toInt()
    inline fun availableCpuPermits(state: Long): Int = (state and CPU_PERMITS_MASK shr CPU_PERMITS_SHIFT).toInt()
	.....
}

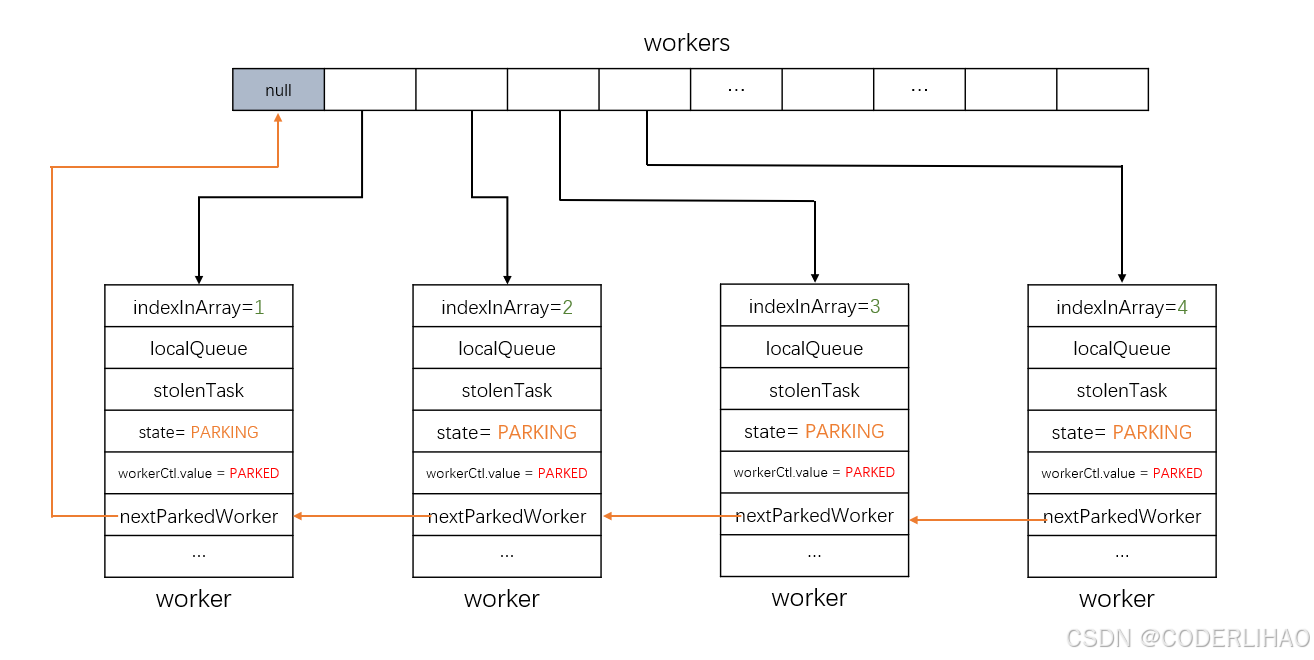

先来理解下parkedWorkersStack是什么样的，描述的是一种栈结构类型，top表示栈顶。通过nextParkedWorker指向下一个worker，栈低的那个worker的nextParkedWorker指向的是数组第0项，即null。

parkedWorkersStackPush

这个方法的所用就是将当前worker的nextParkedWorker指向上一个处于PARKED的worker。注意这里没有修改worker的状态。

fun parkedWorkersStackPush(worker: Worker): Boolean {
    	// nextParkedWorker初始值就是NOT_IN_STACK,
        if (worker.nextParkedWorker !== NOT_IN_STACK) return false // already in stack, bail out
        /*
         * The below loop can be entered only if this worker was not in the stack and, since no other thread
         * can add it to the stack (only the worker itself), this invariant holds while this loop executes.
         */
        // top表示栈顶
        parkedWorkersStack.loop { top ->
            // 第一次top的值是0
            val index = (top and PARKED_INDEX_MASK).toInt()
            val updVersion = (top + PARKED_VERSION_INC) and PARKED_VERSION_MASK
            // Worker的indexInArray是从1开始的
            val updIndex = worker.indexInArray
            assert { updIndex != 0 } // only this worker can push itself, cannot be terminated
            // nextParkedWorker 指向的是下一个处于parked的worker，但是第一次index是0，即nextParkedWorker指向null
            worker.nextParkedWorker = workers[index]
            /*
             * Other thread can be changing this worker's index at this point, but it
             * also invokes parkedWorkersStackTopUpdate which updates version to make next CAS fail.
             * Successful CAS of the stack top completes successful push.
             */
            // 更新值，如果下一次worker的 nextParkedWorker就会指向刚刚的worker
            if (parkedWorkersStack.compareAndSet(top, updVersion or updIndex.toLong())) return true
        }
    }

parkedWorkersStackPop

从栈顶弹出一个worker

private fun parkedWorkersStackPop(): Worker? {
        parkedWorkersStack.loop { top ->
            //  数组中index
            val index = (top and PARKED_INDEX_MASK).toInt()
            val worker = workers[index] ?: return null // stack is empty
            val updVersion = (top + PARKED_VERSION_INC) and PARKED_VERSION_MASK
            // 下一个worker
            val updIndex = parkedWorkersStackNextIndex(worker)
            // updIndex < 0表示可能被其他线程修改了，继续loop循环
            if (updIndex < 0) return@loop // retry
            /*
             * Other thread can be changing this worker's index at this point, but it
             * also invokes parkedWorkersStackTopUpdate which updates version to make next CAS fail.
             * Successful CAS of the stack top completes successful pop.
             */
            // 修改栈顶
            if (parkedWorkersStack.compareAndSet(top, updVersion or updIndex.toLong())) {
                /*
                 * We've just took worker out of the stack, but nextParkerWorker is not reset yet, so if a worker is
                 * currently invoking parkedWorkersStackPush it would think it is in the stack and bail out without
                 * adding itself again. It does not matter, since we are going it invoke unpark on the thread
                 * that was popped out of parkedWorkersStack anyway.
                 */
                // 修改成功，将worker的nextParkedWorker重新改为NOT_IN_STACK
                worker.nextParkedWorker = NOT_IN_STACK
                return worker
            }
        }
    }

// 找到下一个Park的线程处于数组中的位置
private fun parkedWorkersStackNextIndex(worker: Worker): Int {
        var next = worker.nextParkedWorker
        findNext@ while (true) {
            when {
                next === NOT_IN_STACK -> return -1 // we are too late -- other thread popped this element, retry
                // 说明栈已经空了
                next === null -> return 0 // stack becomes empty
                else -> {
                    val nextWorker = next as Worker
                    // nextWorker在数组中的位置
                    val updIndex = nextWorker.indexInArray
                    // Worker的index是从1开始的
                    if (updIndex != 0) return updIndex // found good index for next worker
                    // Otherwise, this worker was terminated and we cannot put it to top anymore, check next
                    // nextWorker可能已经处于终止态了，找下一个
                    next = nextWorker.nextParkedWorker
                }
            }
        }
    }

parkedWorkersStackTopUpdate

fun parkedWorkersStackTopUpdate(worker: Worker, oldIndex: Int, newIndex: Int) {
        parkedWorkersStack.loop { top ->
            val index = (top and PARKED_INDEX_MASK).toInt()
            val updVersion = (top + PARKED_VERSION_INC) and PARKED_VERSION_MASK
            val updIndex = if (index == oldIndex) {
                if (newIndex == 0) {
                    parkedWorkersStackNextIndex(worker)
                } else {
                    newIndex
                }
            } else {
                index // no change to index, but update version
            }
            if (updIndex < 0) return@loop // retry
            if (parkedWorkersStack.compareAndSet(top, updVersion or updIndex.toLong())) return
        }
    }

Worker

看到出Worker就是Thread。处于WorkerState.TERMINATED状态的Worker不在接收和处理任务，迎接它的将会是死亡。

internal inner class Worker private constructor() : Thread() {

     @Volatile // volatile for push/pop operation into parkedWorkersStack
     var indexInArray = 0
         set(index) {
             // schedulerName默认值是"DefaultDispatcher"
             // 线程的名字就是DefaultDispatcher-worker-1,DefaultDispatcher-worker-2,DefaultDispatcher-worker-3等之类的
             name = "$schedulerName-worker-${if (index == 0) "TERMINATED" else index.toString()}"
             field = index
         }

    // index的值是从1开始的
    constructor(index: Int) : this() {
         indexInArray = index
    }

    //  scheduler指向CoroutineScheduler对象
    inline val scheduler get() = this@CoroutineScheduler

    // 本地队列，每个Worker都有，私有的，可以存io型任务，也可以存cpu型任务
    @JvmField
    val localQueue: WorkQueue = WorkQueue()

   	// Worker干完事后，还可以从其他Worker的localQueue中偷取任务，那么这个偷来的任务就会存在stolenTask中
    private val stolenTask: ObjectRef<Task?> = ObjectRef()

    // DORMANT初始值
    @JvmField
    var state = WorkerState.DORMANT

    val workerCtl = atomic(CLAIMED)

    private var terminationDeadline = 0L

    // 指向的是下一个处于PARKED状态的Worker
    @Volatile
    var nextParkedWorker: Any? = NOT_IN_STACK

    // 偷取任务时，没有偷成功，那就暂停一会，暂停的时间就是minDelayUntilStealableTaskNs
    private var minDelayUntilStealableTaskNs = 0L

    // 表示本地队列localQueue中是否有任务
    @JvmField
    var mayHaveLocalTasks = false

    .....
}

// 表示Worker的状态
enum class WorkerState {
    // 获取到cpu权限
    CPU_ACQUIRED,
    // 正在执行IO阻塞任务
    BLOCKING,
    // 已处理完所有任务，线程挂起
    PARKING,
    // 初始态
    DORMANT,
    // 终止状态，將不再被使用
    TERMINATED
}

BLOCKING指的是Worker正在执行一个IO密集型的coroutine，此时它已经释放了CPU的许可，cpu的许可数量是corePoolSize。同时还会唤醒其他线程，让唤醒的线程去尽可能的利用cpu执行任务。

PARKING状态，指的是线程已经完成了所有任务，但暂时还没有销毁的必要，所以先挂起。

submitToLocalQueue

将任务提交到Worker的本地队列中，tailDispatch如果为true，就表示添加到队列中的操作是一个公平的操作，即进入队列就要排队，如果是false表示可以插队。

WorkQueue中lastScheduledTask可以保存新插进来的任务，Worker从本地队列中取任务时，如果lastScheduledTask中有任务，直接拿出来，这就是插队的原理。

submitToLocalQueue方法的返回值如果是非null，表示提交到本地队列失败了，失败的原因可能是还没有创建Worker。

    private fun Worker?.submitToLocalQueue(task: Task, tailDispatch: Boolean): Task? {
        // 没有创建Woker对象，添加失败
        if (this == null) return task
        /*
         * This worker could have been already terminated from this thread by close/shutdown and it should not
         * accept any more tasks into its local queue.
         */
        // Worker处于终止状态，不再接收任务
        if (state === WorkerState.TERMINATED) return task
        // Do not add CPU tasks in local queue if we are not able to execute it

        if (!task.isBlocking && state === WorkerState.BLOCKING) {
            // Worker处于BLOCKING，任务又是非BLOCKING的，就不要往线程本地队列中提交了
            // 放到全局队列中，给其他线程处理
            return task
        }
        // 记录下，本地队列中有任务
        mayHaveLocalTasks = true
        return localQueue.add(task, fair = tailDispatch)
    }

Permit

private inline fun tryAcquireCpuPermit(): Boolean = controlState.loop { state ->
        // 当前cpu许可还剩多少，一开始有corePoolSize个许可
        val available = availableCpuPermits(state)
        // 没有，返回false
        if (available == 0) return false
        // 还有剩的，减去1
        val update = state - (1L shl CPU_PERMITS_SHIFT)
        // 更新状态，更新失败，重新loop
        if (controlState.compareAndSet(state, update)) return true
    }

private fun tryAcquireCpuPermit(): Boolean = when {
    // 已经获得了许可，返回true
	state == WorkerState.CPU_ACQUIRED -> true
    // 获取许可
	this@CoroutineScheduler.tryAcquireCpuPermit() -> {
         // 拿到许可后，修改Worker的state
		state = WorkerState.CPU_ACQUIRED
		true
	}
	// 无法获取许可
	else -> false
}

findTask

fun findTask(mayHaveLocalTasks: Boolean): Task? {
    // 先获得cpu许可，再去获取任务
    if (tryAcquireCpuPermit()) return findAnyTask(mayHaveLocalTasks)
    /*
     * If we can't acquire a CPU permit, attempt to find blocking task:
     * - Check if our queue has one (maybe mixed in with CPU tasks)
     * - Poll global and try steal
     */
    // 没有获得许可，也就是说现在核心线程都在干活，当前线程就找一个io任务来处理
    // 没有拿到许可的线程只能处理io任务，因为io任务容易阻塞，你可不想让核心线程一会执行一会阻塞吧？
    return findBlockingTask()
}


// NB: ONLY for runSingleTask method
private fun findBlockingTask(): Task? {
    // 先从本地队列中弹出任务，本地没有，再去全局阻塞队列中找，全局阻塞队列中也没有，就去偷其他Worker中的本地任务
    return localQueue.pollBlocking()
    ?: globalBlockingQueue.removeFirstOrNull()
    ?: trySteal(STEAL_BLOCKING_ONLY)
}

private fun findAnyTask(scanLocalQueue: Boolean): Task?
    // scanLocalQueue表示是否扫描本地队列
    if (scanLocalQueue) {
        // 基于Marsaglia xorshift RNG算法
        // 生成2^32-1范围內的随机数值
        // globalFirst表示要不要先从全局队列中取任务
        val globalFirst = nextInt(2 * corePoolSize) == 0
        if (globalFirst) pollGlobalQueues()?.let { return it }
        // 不是从全局队列中取，那么就从本地队列中取任务
        localQueue.poll()?.let { return it }
        // 本地队列都已经没有任务了，还是从全局队列中取
        if (!globalFirst) pollGlobalQueues()?.let { return it }
    } else {
        // 本地队列没有任务，直接从全局队列里找
        pollGlobalQueues()?.let { return it }
    }
	// 本地队列没有，全局队列也没有，就偷别的Worker中的任务
    return trySteal(STEAL_ANY)
}

private fun trySteal(stealingMode: StealingMode): Task? {
    // 当前创建的线程数
    val created = createdWorkers
    // 0 to await an initialization and 1 to avoid excess stealing on single-core machines
    if (created < 2) {
        // 只有一个线程，没有可偷的
        return null
    }

    //
    // 下一个随机值
    var currentIndex = nextInt(created)
    var minDelay = Long.MAX_VALUE
    // 把当前创建的线程循环遍历一次，除了自己这个线程外，看看能不能从其他Worker中偷任务
    repeat(created) {
        ++currentIndex
        if (currentIndex > created) currentIndex = 1
        val worker = workers[currentIndex]
        if (worker !== null && worker !== this) {
            // 偷取别的Woker中的本地任务
            val stealResult = worker.localQueue.trySteal(stealingMode, stolenTask)
            if (stealResult == TASK_STOLEN) {
                // 已经偷到了，任务就是stolenTask.element
                val result = stolenTask.element
                stolenTask.element = null
                return result
            } else if (stealResult > 0) {
                // 没有偷到，stealResult>0表示当前线程可以park的时间
                // 取最小值
                minDelay = min(minDelay, stealResult)
            }
        }
    }

    // 下次偷任务的时间，意思就是给自己设置一个闹钟，时间到了再去偷
    minDelayUntilStealableTaskNs = if (minDelay != Long.MAX_VALUE) minDelay else 0
    return null
}

runWorker

Worker就是线程，线程运行的时候就会执行run方法

override fun run() = runWorker()

private fun runWorker() {
    var rescanned = false
	// Worker没有终止就不停地处理任务
    while (!isTerminated && state != WorkerState.TERMINATED) {
        // 获取任务
        val task = findTask(mayHaveLocalTasks)
        // Task found. Execute and repeat
        if (task != null) {
            // 任务找到了，不需要重新扫描了
            rescanned = false
            // 也不需要休眠了
            minDelayUntilStealableTaskNs = 0L
            // 执行任务
            executeTask(task)
            continue
        } else {
            // 什么任务都找不到，本地队列也就没有任务了
            mayHaveLocalTasks = false
        }

        if (minDelayUntilStealableTaskNs != 0L) {

            if (!rescanned) {
                rescanned = true
            } else {
                rescanned = false
                // 释放许可，Worker的状态变成PARKING
                tryReleaseCpu(WorkerState.PARKING)
                // 清除中断标记
                interrupted()
                // 线程park一段时间
                LockSupport.parkNanos(minDelayUntilStealableTaskNs)
                //
                minDelayUntilStealableTaskNs = 0L
            }
            continue
        }
      	// 很长时间没有执行任务，没有在idleWorkerKeepAliveNs时间内醒来，在保证核心线程数量的同时，其他的线程即将迎来死亡
        tryPark()
    }

    // 释放许可，Worker的状态改为TERMINATED
    tryReleaseCpu(WorkerState.TERMINATED)
}

private fun tryPark() {
    if (!inStack()) {
        // 长时间没有任务，先进入park栈中
        parkedWorkersStackPush(this)
        return
    }
    //
    workerCtl.value = PARKED // Update value once
    /*
             * inStack() prevents spurious wakeups, while workerCtl.value == PARKED
             * prevents the following race:
             *
             * - T2 scans the queue, adds itself to the stack, goes to rescan
             * - T2 suspends in 'workerCtl.value = PARKED' line
             * - T1 pops T2 from the stack, claims workerCtl, suspends
             * - T2 fails 'while (inStack())' check, goes to full rescan
             * - T2 adds itself to the stack, parks
             * - T1 unparks T2, bails out with success
             * - T2 unparks and loops in 'while (inStack())'
             */
    while (inStack() && workerCtl.value == PARKED) { // Prevent spurious wakeups
        if (isTerminated || state == WorkerState.TERMINATED) break
        // 进入park栈了，修改worker的状态
        tryReleaseCpu(WorkerState.PARKING)
        interrupted() // Cleanup interruptions
        // 要是idleWorkerKeepAliveNs时间内没有唤醒，可能就要转变成终止态了，接下来就是死亡了
        park()
    }
}

private fun inStack(): Boolean = nextParkedWorker !== NOT_IN_STACK

park

private fun park() {
    // set termination deadline the first time we are here (it is reset in idleReset)
    if (terminationDeadline == 0L) terminationDeadline = System.nanoTime() + idleWorkerKeepAliveNs
    // actually park
    LockSupport.parkNanos(idleWorkerKeepAliveNs)
    // try terminate when we are idle past termination deadline
    // note that comparison is written like this to protect against potential nanoTime wraparound
    if (System.nanoTime() - terminationDeadline >= 0) {
        terminationDeadline = 0L // if attempt to terminate worker fails we'd extend deadline again
        tryTerminateWorker()
    }
}

tryTerminateWorker

/**
         * Stops execution of current thread and removes it from [createdWorkers].
         */
private fun tryTerminateWorker() {
    synchronized(workers) {
        // Make sure we're not trying race with termination of scheduler
        if (isTerminated) return
        // Someone else terminated, bail out
        // 保持核心线程存活
        if (createdWorkers <= corePoolSize) return
        /*
                 * See tryUnpark for state reasoning.
                 * If this CAS fails, then we were successfully unparked by other worker and cannot terminate.
                 */

        if (!workerCtl.compareAndSet(PARKED, TERMINATED)) return
        /*
                 * At this point this thread is no longer considered as usable for scheduling.
                 * We need multi-step choreography to reindex workers.
                 *
                 * 1) Read current worker's index and reset it to zero.
                 */
        // 进入终止态
        val oldIndex = indexInArray
        indexInArray = 0
        /*
                 * Now this worker cannot become the top of parkedWorkersStack, but it can
                 * still be at the stack top via oldIndex.
                 *
                 * 2) Update top of stack if it was pointing to oldIndex and make sure no
                 *    pending push/pop operation that might have already retrieved oldIndex could complete.
                 */
        parkedWorkersStackTopUpdate(this, oldIndex, 0)
        /*
                 * 3) Move last worker into an index in array that was previously occupied by this worker,
                 *    if last worker was a different one (sic!).
                 */
        // 创建的线程数量减去1
        val lastIndex = decrementCreatedWorkers()
        if (lastIndex != oldIndex) {
            val lastWorker = workers[lastIndex]!!
            workers.setSynchronized(oldIndex, lastWorker)
            lastWorker.indexInArray = oldIndex
            /*
                     * Now lastWorker is available at both indices in the array, but it can
                     * still be at the stack top on via its lastIndex
                     *
                     * 4) Update top of stack lastIndex -> oldIndex and make sure no
                     *    pending push/pop operation that might have already retrieved lastIndex could complete.
                     */
            parkedWorkersStackTopUpdate(lastWorker, lastIndex, oldIndex)
        }
        /*
                 * 5) It is safe to clear reference from workers array now.
                 */
        // 删除数组中的worker
        workers.setSynchronized(lastIndex, null)
    }
    state = WorkerState.TERMINATED
}

executeTask

private fun executeTask(task: Task) {
    terminationDeadline = 0L // reset deadline for termination
    // 如果处于PARKING状态的，醒来后，发现还是PARKING状态。说明什么？
    // 如果拿到cpu许可，状态就是WorkerState.CPU_ACQUIRED
    // 如果拿不到许可，只能执行IO任务，这里与findTask方法对应
    // 所以这里判断如果是PARKING状态，直接设置成BLOCKING状态，表示要执行io任务了
    if (state == WorkerState.PARKING) {
        assert { task.isBlocking }
        state = WorkerState.BLOCKING
    }

    // io型任务会释放cpu许可
    if (task.isBlocking) {
        // Always notify about new work when releasing CPU-permit to execute some blocking task
        // 如果是io任务，尝试释放许可，为什么这样做呢？
        // 因为，拿到许可得线程应该尽量让cpu运行起来，不要阻塞
        // 这里释放许可，然后这样worker的状态变成BLOCKING，唤醒其他阻塞的线程，尽可能的利用cpu
        if (tryReleaseCpu(WorkerState.BLOCKING)) {
            // 唤醒其他线程或者创建新的线程来执行其他任务
            signalCpuWork()
        }
        // 自己主动释放许可，有一种舍身成仁的奉献精神
        // 执行io任务
        runSafely(task)
        decrementBlockingTasks()
        val currentState = state
        // Shutdown sequence of blocking dispatcher
        if (currentState !== WorkerState.TERMINATED) {
            assert { currentState == WorkerState.BLOCKING } // "Expected BLOCKING state, but has $currentState"
            state = WorkerState.DORMANT
        }
    } else {
        runSafely(task)
    }
}

dispatch

有了上面的知识，我们看下CoroutineScheduler的dispatch方法，CoroutineScheduler实现了java的Executor接口，执行任务时实际执行的是dispatch方法

override fun execute(command: Runnable) = dispatch(command)

先将Runnable转换成Task，里面的submissionTime是我们提交到队列中的时间，后面其他线程偷任务时，用来计算偷任务那个时刻的时间与submissionTime之间的差值，如果值太小，是不许偷这个任务的，因为这个任务刚刚放到队列中就要被偷，干嘛不直接放到小偷Worker那个线程中呢。

fun createTask(block: Runnable, taskContext: TaskContext): Task {
    // 当前时间
    val nanoTime = schedulerTimeSource.nanoTime()
    if (block is Task) {
        // 更新时间
        block.submissionTime = nanoTime
        // 表示什么类型的任务
        block.taskContext = taskContext
        return block
    }

    return block.asTask(nanoTime, taskContext)
}

tailDispatch默认值false，含义参考上面的submitToLocalQueue方法讲解

fun dispatch(block: Runnable, taskContext: TaskContext = NonBlockingContext, tailDispatch: Boolean = false) {
        trackTask() // this is needed for virtual time support
    	// 包装成Task,因为task还包含了任务类型（io型或者CPU型），还有提交任务的时间（给其他线程偷取这个准备的）
        val task = createTask(block, taskContext)
    	// 是不是IO任务
        val isBlockingTask = task.isBlocking
        // Invariant: we increment counter **before** publishing the task
        // so executing thread can safely decrement the number of blocking tasks
    	//如果任务时阻塞类型的，更新controlState中阻塞任务的值
        val stateSnapshot = if (isBlockingTask) incrementBlockingTasks() else 0

        // try to submit the task to the local queue and act depending on the result
        // 当前的worker线程
        val currentWorker = currentWorker()
    	// 添加到Worker的本地队列中，没有添加成功返回task，添加成功返回null
        val notAdded = currentWorker.submitToLocalQueue(task, tailDispatch)
        if (notAdded != null) {
            // 没有添加成功，往全局队列中添加
            if (!addToGlobalQueue(notAdded)) {
                // Global queue is closed in the last step of close/shutdown -- no more tasks should be accepted
                throw RejectedExecutionException("$schedulerName was terminated")
            }
        }
    	// tailDispatch默认false
    	// 第一次肯定是null，如果不为null，表示当前有线程了，不需要唤醒，因为，线程自己会醒来
        val skipUnpark = tailDispatch && currentWorker != null
        // Checking 'task' instead of 'notAdded' is completely okay
        if (isBlockingTask) {
            // Use state snapshot to better estimate the number of running threads
            signalBlockingWork(stateSnapshot, skipUnpark = skipUnpark)
        } else {
            if (skipUnpark) return
            // 我们就当做是第一次运行，currentWorker == null
            signalCpuWork()
        }
    }

signalCpuWork

fun signalCpuWork() {
    if (tryUnpark()) return
    // 还没有处于PARKED状态的worker，那么就尝试创建
    if (tryCreateWorker()) return
    // 线程创建失败，可能是线程创建过多，尝试唤醒其他线程
    tryUnpark()
}

private fun tryUnpark(): Boolean {
    while (true) {
        // 先弹出一个worker
        val worker = parkedWorkersStackPop() ?: return false
        if (worker.workerCtl.compareAndSet(PARKED, CLAIMED)) {
            // 唤醒线程
            LockSupport.unpark(worker)
            return true
        }
    }
}

tryCreateWorker

private fun tryCreateWorker(state: Long = controlState.value): Boolean {
        val created = createdWorkers(state)
        val blocking = blockingTasks(state)
        val cpuWorkers = (created - blocking).coerceAtLeast(0)
        /*
         * We check how many threads are there to handle non-blocking work,
         * and create one more if we have not enough of them.
         */
        if (cpuWorkers < corePoolSize) {
            val newCpuWorkers = createNewWorker()
            // If we've created the first cpu worker and corePoolSize > 1 then create
            // one more (second) cpu worker, so that stealing between them is operational
            // 只有一个线程干活，并且允许线程数量大于1，那就在创建一个线程，用来偷任务执行
            if (newCpuWorkers == 1 && corePoolSize > 1) createNewWorker()
            // 创建线程成功
            if (newCpuWorkers > 0) return true
        }
        return false
    }

private fun createNewWorker(): Int {
        val worker: Worker
        // 同步块
        return synchronized(workers) {
            // Make sure we're not trying to resurrect terminated scheduler
            if (isTerminated) return -1
            //
            val state = controlState.value
            // 创建线程的数量
            val created = createdWorkers(state)
            // 阻塞任务的数量
            val blocking = blockingTasks(state)
            // 正在干活的线程数量
            val cpuWorkers = (created - blocking).coerceAtLeast(0)
            // Double check for overprovision
            // 干活的线程数量不能超过corePoolSize
            if (cpuWorkers >= corePoolSize) return 0
            // 线程数量的最大值不能超过maxPoolSize
            if (created >= maxPoolSize) return 0
            // start & register new worker, commit index only after successful creation
            // 从1开始
            val newIndex = createdWorkers + 1
            require(newIndex > 0 && workers[newIndex] == null)
            /*
             * 1) Claim the slot (under a lock) by the newly created worker
             * 2) Make it observable by increment created workers count
             * 3) Only then start the worker, otherwise it may miss its own creation
             */
            // 创建线程
            worker = Worker(newIndex)
            // 将这个worker线程放到数组中
            workers.setSynchronized(newIndex, worker)
            require(newIndex == incrementCreatedWorkers())
            // 返回干活的线程数量
            cpuWorkers + 1
            // 直接启动
        }.also { worker.start() } // Start worker when the lock is released to reduce contention, see #3652
    }
