tensorflow2.3 + 循环神经网络实现空气污染预测(RNN + LSTM)(三）

tensorflow2.3循环神经网络实现空气污染预测

参数列表

No year month day hour pm2.5 DEWP TEMP PRES cbwd Iws Is Ir
序号 年 月 日 小时 pm2.5颗粒 浓度 露点 温度 大气压 风向 风速 累积雪量 累积雨量

导入包

import tensorflow as tf
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd

查看tensorflow 的版本，

tf.__version__
tf.test.is_gpu_available()

• ‘2.3.0’
• True

读取数据

data = pd.read_csv('./dataset/PRSA_data_2010.1.1-2014.12.31.csv')
data.head()

No year month day hour pm2.5 DEWP TEMP PRES cbwd Iws Is Ir
0 1 2010 1 1 0 NaN -21 -11.0 1021.0 NW 1.79 0 0
1 2 2010 1 1 1 NaN -21 -12.0 1020.0 NW 4.92 0 0
2 3 2010 1 1 2 NaN -21 -11.0 1019.0 NW 6.71 0 0
3 4 2010 1 1 3 NaN -21 -14.0 1019.0 NW 9.84 0 0
4 5 2010 1 1 4 NaN -20 -12.0 1018.0 NW 12.97 0 0

数据每小时记录一次
数据信息解析

data.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 43824 entries, 0 to 43823
Data columns (total 13 columns):
 #   Column  Non-Null Count  Dtype
---  ------  --------------  -----
 0   No      43824 non-null  int64
 1   year    43824 non-null  int64
 2   month   43824 non-null  int64
 3   day     43824 non-null  int64
 4   hour    43824 non-null  int64
 5   pm2.5   41757 non-null  float64
 6   DEWP    43824 non-null  int64
 7   TEMP    43824 non-null  float64
 8   PRES    43824 non-null  float64
 9   cbwd    43824 non-null  object
 10  Iws     43824 non-null  float64
 11  Is      43824 non-null  int64
 12  Ir      43824 non-null  int64
dtypes: float64(4), int64(8), object(1)
memory usage: 4.3+ MB

我们目标值是pm2.5这一列，取出数据中pm2.5是null的数据

data[data['pm2.5'].isna()]

No year month day hour pm2.5 DEWP TEMP PRES cbwd Iws Is Ir
0 1 2010 1 1 0 NaN -21 -11.0 1021.0 NW 1.79 0 0
1 2 2010 1 1 1 NaN -21 -12.0 1020.0 NW 4.92 0 0
2 3 2010 1 1 2 NaN -21 -11.0 1019.0 NW 6.71 0 0
3 4 2010 1 1 3 NaN -21 -14.0 1019.0 NW 9.84 0 0
4 5 2010 1 1 4 NaN -20 -12.0 1018.0 NW 12.97 0 0
… … … … … … … … … … … … … …
43548 43549 2014 12 20 12 NaN -18 0.0 1030.0 NW 244.97 0 0
43549 43550 2014 12 20 13 NaN -19 1.0 1029.0 NW 249.89 0 0
43550 43551 2014 12 20 14 NaN -20 1.0 1029.0 NW 257.04 0 0
43551 43552 2014 12 20 15 NaN -20 2.0 1028.0 NW 262.85 0 0
43552 43553 2014 12 20 16 NaN -21 1.0 1028.0 NW 270.00 0 0
2067 rows × 13 columns

因为前24条数据pm2.5是null，去掉，并填充剩下的null数据（也可以删除，但是删除会打乱顺序，序列问题顺序打乱会对结果有很大影响）

data = data.iloc[24:].copy()
data.fillna(method='ffill', inplace=True)  #ffill是前向填充，把前一个数据赋给这个null值
data.info()

<class ‘pandas.core.frame.DataFrame’>
RangeIndex: 43800 entries, 24 to 43823
Data columns (total 13 columns):
#Column Non-Null Count Dtype 0 No 43800 non-null int64
1 year 43800 non-null int64
2 month 43800 non-null int64
3 day 43800 non-null int64
4 hour 43800 non-null int64
5 pm2.5 43800 non-null float64
6 DEWP 43800 non-null int64
7 TEMP 43800 non-null float64
8 PRES 43800 non-null float64
9 cbwd 43800 non-null object
10 Iws 43800 non-null float64
11 Is 43800 non-null int64
12 Ir 43800 non-null int64
dtypes: float64(4), int64(8), object(1)
memory usage: 4.3+ MB

---

所有数据都non-null 。

把时间year month day hour 合并成时间格式，把多列合并成一列，

import datetime
datetime.datetime(year=2021, month=5, day=6, hour=1）

• datetime.datetime（2021, 5, 6, 1, 0）

data['time'] = data.apply(lambda x: datetime.datetime(year=x['year'],
                                                      month=x['month'],
                                                      day=x['day'],
                                                      hour=x['hour']), axis=1)

把time列设置为索引列，同时可以删除No year month day hour ,inplace=True是在原数据上生效

data.set_index('time', inplace=True)
data = data.drop(columns=['No','year', 'month', 'day', 'hour'])
data.head()

pm2.5 DEWP TEMP PRES cbwd Iws Is Ir
time
2010-01-02 00:00:00 129.0 -16 -4.0 1020.0 SE 1.79 0 0
2010-01-02 01:00:00 148.0 -15 -4.0 1020.0 SE 2.68 0 0
2010-01-02 02:00:00 159.0 -11 -5.0 1021.0 SE 3.57 0 0
2010-01-02 03:00:00 181.0 -7 -5.0 1022.0 SE 5.36 1 0
2010-01-02 04:00:00 138.0 -7 -5.0 1022.0 SE 6.25 2 0

把数据的列名更改

data.columns = ['pm2.5', 'dew', 'temp', 'press', 'cbwd', 'iws', 'snow', 'rain']
data

pm2.5 dew temp press cbwd iws snow rain
time
2010-01-02 00:00:00 129.0 -16 -4.0 1020.0 SE 1.79 0 0
2010-01-02 01:00:00 148.0 -15 -4.0 1020.0 SE 2.68 0 0
2010-01-02 02:00:00 159.0 -11 -5.0 1021.0 SE 3.57 0 0
2010-01-02 03:00:00 181.0 -7 -5.0 1022.0 SE 5.36 1 0
2010-01-02 04:00:00 138.0 -7 -5.0 1022.0 SE 6.25 2 0
… … … … … … … … …
2014-12-31 19:00:00 8.0 -23 -2.0 1034.0 NW 231.97 0 0
2014-12-31 20:00:00 10.0 -22 -3.0 1034.0 NW 237.78 0 0
2014-12-31 21:00:00 10.0 -22 -3.0 1034.0 NW 242.70 0 0
2014-12-31 22:00:00 8.0 -22 -4.0 1034.0 NW 246.72 0 0
2014-12-31 23:00:00 12.0 -21 -3.0 1034.0 NW 249.85 0 0
43800 rows × 8 columns

cbwb：风向

data.cbwd.unique()

• array([‘SE’, ‘cv’, ‘NW’, ‘NE’], dtype=object)

把风向转换为one-hot编码加入到数据列中

data = data.join(pd.get_dummies(data.cbwd))
data

pm2.5 dew temp press cbwd iws snow rain NE NW SE cv
time
2010-01-02 00:00:00 129.0 -16 -4.0 1020.0 SE 1.79 0 0 0 0 1 0
2010-01-02 01:00:00 148.0 -15 -4.0 1020.0 SE 2.68 0 0 0 0 1 0
2010-01-02 02:00:00 159.0 -11 -5.0 1021.0 SE 3.57 0 0 0 0 1 0
2010-01-02 03:00:00 181.0 -7 -5.0 1022.0 SE 5.36 1 0 0 0 1 0
2010-01-02 04:00:00 138.0 -7 -5.0 1022.0 SE 6.25 2 0 0 0 1 0
。。。。。.。。。。。。。。。。。
2014-12-31 19:00:00 8.0 -23 -2.0 1034.0 NW 231.97 0 0 0 1 0 0
2014-12-31 20:00:00 10.0 -22 -3.0 1034.0 NW 237.78 0 0 0 1 0 0
2014-12-31 21:00:00 10.0 -22 -3.0 1034.0 NW 242.70 0 0 0 1 0 0
2014-12-31 22:00:00 8.0 -22 -4.0 1034.0 NW 246.72 0 0 0 1 0 0
2014-12-31 23:00:00 12.0 -21 -3.0 1034.0 NW 249.85 0 0 0 1 0 0
43800 rows × 12 columns

删除cbwd

del data['cbwd']
data

pm2.5 dew temp press iws snow rain NE NW SE cv
time
2010-01-02 00:00:00 129.0 -16 -4.0 1020.0 1.79 0 0 0 0 1 0
2010-01-02 01:00:00 148.0 -15 -4.0 1020.0 2.68 0 0 0 0 1 0
2010-01-02 02:00:00 159.0 -11 -5.0 1021.0 3.57 0 0 0 0 1 0
2010-01-02 03:00:00 181.0 -7 -5.0 1022.0 5.36 1 0 0 0 1 0
2010-01-02 04:00:00 138.0 -7 -5.0 1022.0 6.25 2 0 0 0 1 0
。。。。。。。。。。。。。。
2014-12-31 19:00:00 8.0 -23 -2.0 1034.0 231.97 0 0 0 1 0 0
2014-12-31 20:00:00 10.0 -22 -3.0 1034.0 237.78 0 0 0 1 0 0
2014-12-31 21:00:00 10.0 -22 -3.0 1034.0 242.70 0 0 0 1 0 0
2014-12-31 22:00:00 8.0 -22 -4.0 1034.0 246.72 0 0 0 1 0 0
2014-12-31 23:00:00 12.0 -21 -3.0 1034.0 249.85 0 0 0 1 0 0
43800 rows × 11 columns

最终数据样式

data.info()

<class ‘pandas.core.frame.DataFrame’> DatetimeIndex: 43800 entries,
2010-01-02 00:00:00 to 2014-12-31 23:00:00
Data columns (total 11 columns):
#Column Non-Null Count Dtype

---

0 pm2.5 43800 non-null float64
1 dew 43800 non-null int64
2 temp 43800 non-null float64
3 press 43800 non-null float64
4 iws 43800 non-null float64
5 snow 43800 non-null int64
6 rain 43800 non-null int64
7 NE 43800 non-null uint8
8 NW 43800 non-null uint8
9 SE 43800 non-null uint8
10 cv 43800 non-null uint8
dtypes: float64(4), int64(3), uint8(4)
memory usage: 4.1 MB

data.head(3)

pm2.5 dew temp press iws snow rain NE NW SE cv time
2010-01-02 00:00:00 129.0 -16 -4.0 1020.0 1.79 0 0 0 0 1 0
2010-01-02 01:00:00 148.0 -15 -4.0 1020.0 2.68 0 0 0 0 1 0
2010-01-02 02:00:00 159.0 -11 -5.0 1021.0 3.57 0 0 0 0 1 0

显示最后1000条数据的pm2.5的值

data['pm2.5'][-1000:].plot()

显示最后1000条数据的temp的值

data['temp'][-1000:].plot()

样本中是每隔一小时采集一次数据，
我们可以用前5天的数据去预测明天的pm2.5的值
相当于前5天的数据为训练集的x， 后一天的数据为y即label，探究x于y的关系
如 今天是 2020年1月6日 我们手里有1月1日到5日的数据 那么我们需要预测的数据就是明天的值

sequence_length = 5 * 24
delay = 24

data_ = []
for i in range(len(data) -sequence_length - delay):
    data_.append(data.iloc[i:i + sequence_length + delay])

data[0].shape

• (144,11)

data_ = np.array([df.values for df in data_])
data_

array([[[129., -16., -4., …, 0., 1., 0.],
[148., -15., -4., …, 0., 1., 0.],
[159., -11., -5., …, 0., 1., 0.],
…,
[159., -19., -14., …, 0., 0., 1.],
[198., -21., -14., …, 0., 0., 1.],
[190., -21., -16., …, 0., 0., 1.]],
…,
[ 8., -23., -2., …, 1., 0., 0.],
[ 10., -22., -3., …, 1., 0., 0.],
[ 10., -22., -3., …, 1., 0., 0.]],
[[ 69., -11., -2., …, 0., 1., 0.],
[ 93., -11., -3., …, 0., 1., 0.],
[ 94., -11., -3., …, 0., 0., 1.],
…,
[ 10., -22., -3., …, 1., 0., 0.],
[ 10., -22., -3., …, 1., 0., 0.],
[ 8., -22., -4., …, 1., 0., 0.]]])

data_.shape

• (43656, 144, 11)
  共有43656条数据，每条数据长度是144(6天的数据6*24=144），每条数据共有11个特征

np.random.shuffle(data_)
x = data_[:, :5*24, :]   #特征
y = data_[:,-1, 0]  #目标
split_boundary = int(data_.shape[0] * 0.8)
x.shape
y.shape

• (43656, 120, 11)
• (43656,)

划分训练和测试集

train_x = x[:split_boundary]
train_y = y[:split_boundary]
test_x = x[split_boundary:]
test_y = y[split_boundary:]

train_x.shape, train_y.shape, test_x.shape, test_y.shape

• ((34924, 120, 11), (34924,), (8732, 120, 11), (8732,))

数据标准化 减均值除方差

mean = train_x.mean(axis=0)
std = train_x.std(axis=0)
mean.shape

• (120, 11)

train_x = (train_x - mean) / std
test_x =(test_x - mean) / std

设置批次

batch_size = 128

基础建模-多层感知机进行预测

model = tf.keras.Sequential()
model.add(tf.keras.layers.Flatten(input_shape=(train_x.shape[1:])))
model.add(tf.keras.layers.Dense(32, activation='relu'))
model.add(tf.keras.layers.Dense(1))

模型编译和训练

model.compile(optimizer=tf.keras.optimizers.Adam(), loss='mae')
history = model.fit(train_x, train_y,
                    batch_size = 128,
                    epochs=50,
                    validation_data=(test_x, test_y))

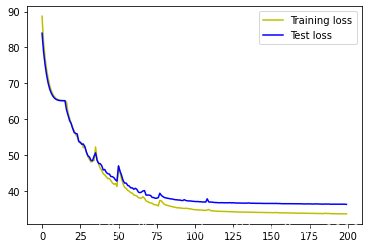

模型训练可视化

plt.plot(history.epoch, history.history.get('loss'), 'y', label='Training loss')
plt.plot(history.epoch, history.history.get('val_loss'), 'b', label='Test loss')
plt.legend()

建立循环神经网络LSTM模型

model = tf.keras.Sequential()
model.add(tf.keras.layers.LSTM(32, input_shape=(train_x.shape[1:])))
model.add(tf.keras.layers.Dense(1))

模型编译

model.compile(optimizer=tf.keras.optimizers.Adam(), loss='mae')
history = model.fit(train_x, train_y,
                    batch_size = 128,
                    epochs=50,
                    validation_data=(test_x, test_y))

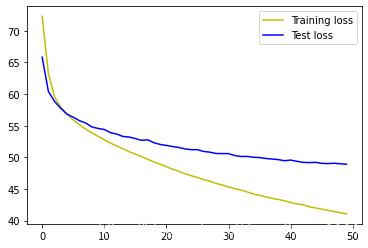

plt.plot(history.epoch, history.history.get('loss'), 'y', label='Training loss')
plt.plot(history.epoch, history.history.get('val_loss'), 'b', label='Test loss')
plt.legend()

LSTM层的优化（堆叠）

model = tf.keras.Sequential()
model.add(tf.keras.layers.LSTM(32, input_shape=(train_x.shape[1:]), return_sequences=True))
model.add(tf.keras.layers.LSTM(32, return_sequences=True))
model.add(tf.keras.layers.LSTM(32))
model.add(tf.keras.layers.Dense(1))

model.compile(optimizer=tf.keras.optimizers.Adam(), loss='mae')

降低学习速率

learning_rate_reduction = tf.keras.callbacks.ReduceLROnPlateau(monitor='val_loss', patience=3, factor=0.5, min_lr=0.00001)

history = model.fit(train_x, train_y,
                    batch_size = 128,
                    epochs=200,
                    validation_data=(test_x, test_y),
                    callbacks=[learning_rate_reduction])

plt.plot(history.epoch, history.history.get('loss'), 'y', label='Training loss')
plt.plot(history.epoch, history.history.get('val_loss'), 'b', label='Test loss')
plt.legend()
