摘要 (Abstract)
HarmonyOS作为面向万物互联时代的分布式操作系统,其UI框架ArkUI采用了先进的声明式范式(Declarative Paradigm)。仓颉语言作为HarmonyOS生态的首选原生开发语言,与ArkUI深度融合,旨在提供极致的性能、内存安全以及高效的开发体验。本文将深入剖析使用仓颉进行ArkUI组件开发的核心原理与实践,涵盖声明式UI语法精髓、组件生命周期管理(Component Lifecycle)、强大的状态管理机制(State Management)、自定义组件构建以及布局和样式系统,并通过实战案例,帮助开发者全面掌握利用仓颉构建流畅、响应式HarmonyOS应用的关键技术。
一、背景介绍 (Background)
用户界面(UI, User Interface)是应用程序与用户交互的直接媒介,其质量直接影响用户体验。传统的UI开发模式,如Android View系统或iOS UIKit,大多采用命令式(Imperative)编程,开发者需要手动操作UI元素来响应状态变化,代码往往冗长且难以维护。
HarmonyOS引入了ArkUI框架,拥抱了现代UI开发的趋势——声明式编程。开发者只需描述在特定状态下UI应该呈现的样子,框架会自动处理UI的创建、更新和销毁,极大地简化了开发逻辑。仓颉语言的静态类型、内存安全(通过所有权和借用机制)以及面向性能的设计,使其成为实现ArkUI声明式描述的理想选择。理解仓颉如何驱动ArkUI,掌握组件化、状态驱动的开发思想,是高效构建高质量HarmonyOS应用的基石。本篇旨在深入这些核心概念,并通过实践加深理解。
二、ArkUI核心概念与架构 (ArkUI Core Concepts & Architecture)

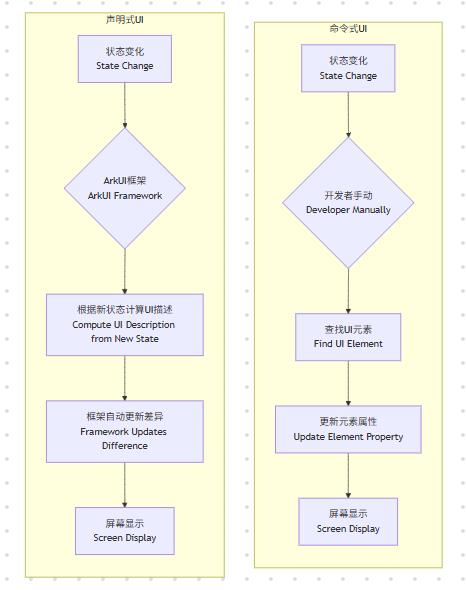

2.1 声明式UI范式 vs 命令式UI范式 (Declarative vs. Imperative UI)
理解声明式UI是掌握式UI是掌握ArkUI的关键。

核心区别:
- 命令式: 开发者告诉框架“如何”一步步修改UI。
- 声明式: 开发者告诉框架“什么”UI应该在当前状态下显示,框架负责“如何”实现。
优势: 代码更简洁、可读性更高、状态与UI自动同步、更易于维护和测试。

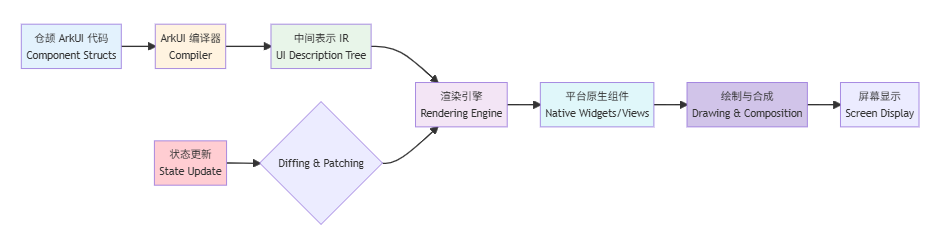

2.2 ArkUI渲染管线 (Rendering Pipeline)
从仓颉代码到屏幕显示,大致经历以下过程:

仓颉代码被编译成与平台无关的UI描述,渲染引擎负责将其转换为具体平台的原生UI元素并进行高效渲染。状态更新时,框架计算出最小化的UI变更并应用。
2.3 关键装饰器 (Key Decorators)
ArkUI大量使用装饰器(类似Java注解或Python装饰器)来赋予struct或函数特定的意义。
| 装饰器 | 作用 | 示例 |
|---|---|---|
@Entry | 标记UI页面的入口组件 | @Entry @Component |
@Component | 标记一个struct为可复用的自定义UI组件 | @Component struct MyCard |
@Builder | 标记一个函数为可复用的UI构建片段 | @Builder func header() |
@State | 声明组件内部的可变状态,其变化会自动触发UI更新 | @State count: Int32 |
Prop | 声明从父组件接收的不可变属性 | @Prop title: String |
@Link | 声明从父组件接收的可双向绑定的状态 | @Link isEnabled: Bool |
@Observed | (通常用于Class) 标记一个对象是可观察的,其属性变化可被追踪 | @Observed class UserData |
@ObjectLink | 声明对@Observed对象的引用,用于在组件间传递和响应变化 | @ObjectLinkuser: UserData |
@Styles | 定义可复用的样式集合 | @Styles func buttonStyle() |
@Extend | 为内置组件扩展统一样式或属性 | @Extend(Text) func titleText() |
@tomDialog | 标记一个组件作为自定义弹窗 | @CustomDialog struct MyDialog |
2.4 基本项目结构 (Basic Project Structure - Simplified)
MyHarmonyApp/
├── entry/ # 主模块 (通常是应用入口)
│ ├── src/
│ │ ├── main/
│ │ │ ├── cangjie/ # 仓颉源代码
│ │ │ │ ├── entryability/
│ │ │ │ │ └── EntryAbility.cj # 应用/服务入口
│ │ │ │ └── pages/
│ │ │ │ └── Index.cj # @Entry UI页面
│ │ │ ├── resources/ # 资源文件 (图片, 字符串, 布局XML - 如果混合使用)
│ │ │ └── config.json # 模块配置文件
│ ├── build.gradle # 模块构建脚本
│ ...
├── build.gradle # 项目构建脚本
└── settings.gradle # 项目设置
三、构建基础组件与布局 (Building Basic Components and Layouts)
ArkUI提供了一系列丰富的内置组件,通过链式调用设置属性和样式。
3.1 常用内置组件 (Common Built-in Components)
import ohos.arkui.*
@Entry
@Component
struct BasicComponentsDemo {
@State sliderValue: Float = 50.0
build() {
Column({ space: 15 }) {
// 文本
Text("欢迎使用ArkUI与仓颉!")
.fontSize(24)
.fontWeight(FontWeight.Bold)
.fontColor(Color.rgb(50, 50, 150)) // 使用RGB颜色
// 按钮
Button("点我交互")
.type(ButtonType.Capsule) // 胶囊样式
.backgroundColor(Color.Blue)
.fontColor(Color.White)
.width(200)
.height(45)
.onClick(() => {
console.log("按钮被点击!")
// 显示提示
promptAction.showToast({ message: "按钮点击成功" })
})
// 图片
Image($r("app.media.my_logo")) // 引用资源文件
.width(80)
.height(80)
.borderRadius(40) // 圆形图片
.objectFit(ImageFit.Contain) // 图片适应模式
.interpolation(ImageInterpolation.High) // 高质量插值
// 输入框
TextInput({ placeholder: "请输入内容..." })
.height(40)
.backgroundColor(Color.White)
.border({ width: 1, color: Color.Gray, radius: 5 })
// 滑块
Slider({
value: this.sliderValue,
min: 0,
max: 100,
step: 1,
style: SliderStyle.OutSet // 样式
})
.width("80%")
.onChange((value: Float, mode: SliderChangeMode) => {
this.sliderValue = value
if (mode == SliderChangeMode.End) {
console.log("滑块最终值: ${value}")
}
})
Text("当前值: ${this.sliderValue.toFixed(0)}") // 显示滑块值
}
.width("100%")
.padding(20)
.alignItems(HorizontalAlign.Center) // 子元素水平居中
}
}
关键点:
- 组件通过
struct定义,使用`@omponent`装饰。 build()方法描述UI结构。- 属性和样式通过链式调用设置(`.fontSize(20).ontWeight(…)`)。
- 事件处理通过
onClick,onChange等属性设置闭包。 - 资源引用使用
$r(...)。
3.2 核心布局容器 (Core Layout Containers)
ArkUI主要使用基于Flexbox的布局模型。
@Component
struct LayoutsDemo {
build() {
Column({ space: 20 }) {
// Row: 水平布局
Text("Row Layout").fontSize(18).fontWeight(FontWeight.Bold)
Row({ space: 10 }) {
Square(Color.Red)
Square(Color.Green)
Square(Color.Blue)
}
.width("100%").height(60)
.padding(5).border({ width: 1 })
.justifyContent(FlexAlign.SpaceAround) // 水平均匀分布
.alignItems(VerticalAlign.Center) // 垂直居中
// Column: 垂直布局
Text("Column Layout").fontSize(18).fontWeight(FontWeight.Bold)
Column({ space: 10 }) {
Square(Color.Orange)
Square(Color.Purple)
Square(Color.Pink)
}
.width("100%").height(200)
.padding(5).border({ width: 1 })
.justifyContent(FlexAlign.SpaceBetween) // 垂直两端对齐
.alignItems(HorizontalAlign.End) // 水平靠右
// Flex: 弹性布局 (默认Row)
Text("Flex Layout (Wrap)").fontSize(18).fontWeight(FontWeight.Bold)
Flex({ wrap: FlexWrap.Wrap, justifyContent: FlexAlign.Start }) {
ForEach(Array.range(0, 8), (index: Int32) => {
Square(Color.fromARGB(255, index * 30, 150, 255 - index * 30))
.margin(5)
})
}
.width("100%").padding(5).border({ width: 1 })
// Stack: 层叠布局
Text("Stack Layout").fontSize(18).fontWeight(FontWeight.Bold)
Stack({ alignContent: Alignment.BottomEnd }) {
Square(Color.LightGray).width(150).height(150) // 底层
Square(Color.Cyan).width(100).height(100) // 中层
Text("Top") // 顶层
.width(50).height(30).backgroundColor(Color.Yellow)
.margin({ right: 10, bottom: 10 }) // 相对右下角偏移
}
.width(150).height(150).border({ width: 1 })
}
.width("100%").padding(20)
}
// 辅助构建方块
@Builder func Square(color: Color) {
Rectangle()
.width(50)
.height(50)
.fill(color)
}
}
属性:
direction: 主轴方向 (Row,Column)。justifyContent: 主轴对齐方式 (Start,Center,End,SpaceBetween,SpaceAround,SpaceEvenly)。alignItems: 交叉轴对齐方式 (Start,Center,End,Stretch,Baseline)。wrap: 是否换行 (`Norap,Wrap,WrapReverse`)。layoutWeight: 弹性因子,用于分配额外空间。- **`alignf`**: 单个元素在交叉轴上的对齐。
Stack的alignContent: 控制子元素在层叠容器中的对齐。
3.3 样式系统 (Styling System)
- 链式属性: 最直接的方式,如`.ontSize(20).fontColor(Color.Red)`。
@Styles: 定义可复用的样式函数。
-----@Extend**: 为内置组件扩展通用样式。
- 全局样式: 定义应用范围的主题和样式。
// 定义可复用样式
@Styles func primaryButtonStyle() {
.width(200)
.height(45)
.backgroundColor(Color.Blue)
.fontColor(Color.White)
.borderRadius(8)
}
@Styles func dangerTextStyle() {
.fontColor(Color.Red)
.fontWeight(FontWeight.Bold)
}
// 扩展Text组件
@Extend(Text) func warningText() {
.fontColor(Color.Orange)
.fontSize(14)
.italic(true)
}
@Component
struct StylingDemo {
build() {
Column({ space: 20 }) {
Button("主要按钮")
.applyStyle(primaryButtonStyle) // 应用@Styles
Text("危险操作")
.applyStyle(dangerTextStyle)
Text("这是一个警告")
.warningText() // 使用@Extend
}
}
}
四、组件生命周期详解 (Component Lifecycle in Detail)
理解组件生命周期对于在合适的时机执行初始化、数据加载和清理操作至关重要。
核心生命周期方法:
-
aboutToAppear(): 组件即将显示在界面上时调用,通常用于初始化数据、订阅事件、启动定时器等。只调用一次。 -
build(): 核心方法,描述组件的UI结构。当组件首次创建或其依赖的状态(@State,@Link,@Prop等)发生变化时调用。可能调用多次。 -
onAppear(): 组件完全显示在界面上后调用。通常用于启动动画、上报曝光等。 -
onDisappear(): 组件从界面上完全消失后调用。 -
aboutToDisappear(): 组件即将销毁时调用,通常用于清理资源、取消订阅、停止定时器等。**只调用一次。
@Component
struct LifecycleLogger {
@State message: String = "Initializing..."
timer: Option<Timer> = None
aboutToAppear() {
console.log("Lifecycle: aboutToAppear called")
// 初始化数据,例如从存储加载
this.message = "Loading data..."
// 启动定时器
this.timer = Some(Timer.interval(Duration.seconds(2), () => {
console.log("Lifecycle: Timer tick")
this.message = "Updated at ${DateTime.now()}"
}))
}
onAppear() {
console.log("Lifecycle: onAppear called")
// 组件已显示,可以启动动画或上报
}
build() {
console.log("Lifecycle: build called") // 状态变化会触发
Column() {
Text("Lifecycle Demo")
.fontSize(24)
Text(this.message)
.fontSize(18)
.margin({ top: 10 })
}
.width("100%")
.height("100%")
.justifyContent(FlexAlign.Center)
}
onDisappear() {
console.log("Lifecycle: onDisappear called")
}
aboutToDisappear() {
console.log("Lifecycle: aboutToDisappear called")
// 清理资源
if let Some(t) = this.timer {
t.cancel()
console.log("Lifecycle: Timer cancelled")
}
this.timer = None
}
}
五、状态管理深度剖析 (State Management Deep Dive)
状态是驱动ArkUI更新的核心,理解不同状态装饰器的机制和适用场景非常重要。
5.1 UI = f(state)
ArkUI的核心思想:UI是状态的函数 (UI is a function of state)。开发者只需管理状态,框架负责将状态的变化映射到UI的更新。
graph TD
A[状态 State<br/>(e.g., @State count = 0)] --> B[ArkUI build() function<br/>UI = f(State)]
B --> C[UI描述<br/>(UI Description)]
C --> D[渲染引擎<br/>(Rendering Engine)]
D --> E[屏幕显示<br/>(UI Display)]
F[用户交互 / 数据更新<br/>(User Interaction / Data Update)] --> G[修改状态<br/>(Mutate State, e.g., this.count += 1)]
G --> A
style G fill:#ffcdd2
5.2 @State: 组件内部状态
-
作用: 定义属于组件自身的、可变的状态。
-
特点:
- 状态是私有的 (
private通常推荐)。 - 当
@State变量的值被重新赋值时,ArkUI框架会检测到变化,并重新调用该组件及其子组件的build()方法。 - 适用于简单的、仅在组件内部使用的状态。
- 状态是私有的 (
@Component
struct Counter {
@State private count: Int32 = 0 // 私有状态
build() {
Row({ space: 15 }) {
Button("-").onClick(() => this.count -= 1)
Text("Count: ${this.count}").fontSize(20)
Button("+").onClick(() => this.count += 1) // 重新赋值触发build
}
}
}
5.3 @Prop: 单向数据流 (Parent -> Child)
-
作用: 父组件向子组件传递数据。
-
特点:
- 子组件中的
@Prop变量是只读的。子组件不能直接修改它。 - 当父组件中传递给
@Prop的数据源(通常是父组件的@State或其他变量)发生变化时,子组件会接收到新的值,并触发子组件的build()。 - 实现了自顶向下的单向数据流。
- 子组件中的
@Component
struct UserCard {
@Prop username: String // 从父组件接收
@Prop avatarUrl: String
build() {
Row({ space: 10 }) {
Image(this.avatarUrl).width(40).height(40).borderRadius(20)
Text(this.username).fontSize(16)
}
.padding(10).backgroundColor(Color.LightGray)
}
}
@Component
struct ProfilePage {
@State private currentUsername: String = "Alice"
@State private currentAvatar: String = $r("app.media.alice_avatar")
build() {
Column({ space: 20 }) {
UserCard({ // 传递数据给子组件
username: this.currentUsername,
avatarUrl: this.currentAvatar
})
Button("切换用户")
.onClick(() => {
this.currentUsername = "Bob" // 父组件状态变化
this.currentAvatar = $r("app.media.bob_avatar") // 子组件的@Prop会更新
})
}
}
}
5.4 @Link: 双向数据绑定 (Parent <-> Child)
-
作用: 实现父子组件之间状态的双向同步。
-
特点:
** 父组件传递一个@State变量的引用(通过$前缀)给子组件的@Link变量。- 子组件可以修改
@Link变量的值。 - 当子组件修改
@Link变量时,父组件对应的`@State变量也会同步更新,反之亦然。 - 适用于需要子组件修改父组件状态的场景(如表单控件)。
- 子组件可以修改
@Component
struct EditableField {
@Prop label: String
@Link textValue: String // 接收双向绑定
build() {
Column({ space: 5 }) {
Text(this.label).fontSize(14).fontColor(Color.Gray)
TextInput({ text: this.textValue }) // 显示父组件的值
.height(40)
.onChange((value: String) => {
this.textValue = value // 修改@Link,父组件的@State也会变
})
}
}
}
@Component
struct UserForm {
@State private username: String = ""
@State private email: String = ""
build() {
Column({ space: 15 }) {
EditableField({ label: "用户名", textValue: $username }) // 使用 $ 传递绑定
EditableField({ label: "邮箱", textValue: $email })
Text("当前用户名: ${this.username}") // 会实时更新
Text("当前邮箱: ${this.email}")
}
.padding(20)
}
}
数据流对比:
graph TD
subgraph "@Prop (One-Way)"
P1[Parent (@State)] -- Pass Value --> C1[Child (@Prop Read-only)]
style P1 fill:#e3f2fd
style C1 fill:#ffebee
end
subgraph "@Link (Two-Way)"
P2[Parent (@State)] <- Sync Changes -- Pass Binding ($) --> C2[Child (@Link Read/Write)]
P2 -- Sync Changes -> C2
style P2 fill:#e3f2fd
style C2 fill:#c8e6c9
end
5.5 @Observed 和 @ObjectLink: 复杂对象状态
对于嵌套较深或需要在多个组件间共享的复杂对象(通常是class实例),@State可能不够用。
@Observed: 标记一个class,使其属性的变化能够被ArkUI框架观察到。@ObjectLink: 在组件中持有对@Observed对象的引用。当@Observed对象的任何被观察的属性发生变化时,所有持有@ObjectLink引用的组件都会触发build()。
// 可观察的用户数据模型
@Observed
class UserProfileData {
public username: String
public followers: Int32
public bio: String
constructor(name: String) {
this.username = name
this.followers = 0
this.bio = "No bio yet."
}
public func updateBio(newBio: String) {
this.bio = newBio // 属性变化会被观察到
}
public func addFollower() {
this.followers += 1
}
}
// 显示用户信息的组件
@Component
struct UserHeader {
@ObjectLink profile: UserProfileData // 链接到可观察对象
build() {
Row({ space: 10 }) {
Text(this.profile.username).fontWeight(FontWeight.Bold)
Text("Followers: ${this.profile.followers}")
}
}
}
// 编辑用户信息的组件
@Component
struct EditBio {
@ObjectLink profile: UserProfileData
build() {
Column() {
TextInput({ text: this.profile.bio })
.onChange((value: String) => {
this.profile.updateBio(value) // 修改对象属性,UserHeader也会更新
})
}
}
}
// 父组件
@Component
struct UserPage {
// 通常在ViewModel或AppStorage中创建和管理
@State userData: UserProfileData = UserProfileData("Charlie")
build() {
Column({ space: 20 }) {
UserHeader({ profile: this.userData })
EditBio({ profile: this.userData })
Button("增加粉丝")
.onClick(() => this.userData.addFollower()) // 修改对象属性,UserHeader会更新
}
}
}
状态管理选型:
- 组件内部简单状态 ->
@State - 父传子单向数据 ->
@Prop - 父子双向绑定 ->
@Link - 跨组件共享复杂对象 -> `@Observed +
@ObjectLink(或更高级的状态管理库/模式如ViewModel, Redux等)
六、自定义组件与复用 (Custom Components and Reusability)
6.1 创建自定义组件 (@Component)
将UI逻辑封装成独立的、可复用的单元。
// 可复用的卡片组件
@Component
struct InfoCard {
@Prop title: String
@Prop content: String
@Prop icon: Resource
build() {
Row({ space: 15 }) {
Image(this.icon)
.width(30)
.height(30)
.margin({ right: 5 })
Column({ space: 5 }) {
Text(this.title)
.fontSize(16)
.fontWeight(FontWeight.Medium)
Text(this.content)
.fontSize(14)
.fontColor(Color.Gray)
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
}
.width("100%")
.padding(15)
.backgroundColor(Color.White)
.borderRadius(12)
.shadow({ radius: 5, color: Color.Gray, offsetX: 2, offsetY: 2 })
}
}
// 使用自定义组件
@Component
struct Dashboard {
build() {
Column({ space: 20 }) {
InfoCard({
title: "当前温度",
content: "25°C",
icon: $r("app.media.ic_temperature")
})
InfoCard({
title: "空气质量",
content: "良好",
icon: $r("app.media.ic_air_quality")
})
}
.padding(20)
}
}
6.2 使用@Builder复用UI片段
当某些UI结构在同一个组件内部重复出现,但又不足以拆分成独立组件时,使用@Builder。
@Component
struct ArticlePage {
build() {
Column() {
this.renderHeader("文章标题") // 调用Builder函数
Scroll() {
Column({ space: 15 }) {
Text("这是第一段内容...")
Image($r("app.media.article_image"))
Text("这是第二段内容...")
}
.padding(20)
}
.layoutWeight(1)
this.renderFooter("版权所有") // 调用Builder函数
}
}
// 可复用的头部UI
@Builder func renderHeader(title: String) {
Row() {
Text(title)
.fontSize(20)
.fontWeight(FontWeight.Bold)
.layoutWeight(1)
Button("分享")
}
.width("100%")
.height(50)
.padding({ left: 15, right: 15 })
.backgroundColor(Color.LightGray)
}
// 可复用的底部UI
@Builder func renderFooter(copyright: String) {
Text(copyright)
.fontSize(12)
.fontColor(Color.Gray)
.width("100%")
.height(40)
.textAlign(TextAlign.Center)
.backgroundColor(Color.White)
}
}
6.3 条件渲染 (if/else) 与循环渲染 (ForEach)
@Component
struct DynamicUI {
@State isLoading: Bool = true
@State items: Array<String> = []
@State error: Option<String> = None
aboutToAppear() {
this.fetchData()
}
private async func fetchData() {
this.isLoading = true
this.error = None
try {
// 模拟网络请求
await Task.sleep(Duration.seconds(2))
// 模拟成功或失败
if (Math.random() > 0.3) {
this.items = ["列表项 1", "列表项 2", "列表项 3"]
} else {
throw Error("加载失败")
}
} catch (e: Error) {
this.error = Some(e.message)
} finally {
this.isLoading = false
}
}
build() {
Column() {
// 条件渲染:加载状态
if (this.isLoading) {
LoadingProgress().width(50).height(50).margin({ top: 50 })
}
// 条件渲染:错误状态
else if let Some(errMsg) = this.error {
Column({ space: 10 }) {
Text("加载错误: ${errMsg}")
.fontColor(Color.Red)
Button("重试")
.onClick(() => this.fetchData())
}
.margin({ top: 50 })
}
// 条件渲染:成功状态
else {
// 循环渲染:列表
List({ space: 10 }) {
ForEach(this.items, (item: String) => {
ListItem() {
Text(item).fontSize(16)
}
.padding(15)
.backgroundColor(Color.White)
})
}
.layoutWeight(1)
}
}
.width("100%")
.height("100%")
.alignItems(HorizontalAlign.Center)
}
}
七、总结与关键要点 (Summary and Key Takeaways)
7.1 核心回顾 (Core Recap)
- 声明式思维: 描述UI“是什么”,而非“如何变”。
- 组件化: 使用
@Component构建可复用的UI单元。 - 状态驱动: UI是状态的函数,通过
@State,@Prop,@Link,@ObjectLink管理数据流。 - 生命周期: 在
aboutToAppear,build,aboutToDisappear等方法中执行副作用。 - 布局与样式: 利用Flexbox布局容器和链式调用/
@Styles定义界面外观。 - 动态UI: 使用
if/else和ForEach构建动态界面。
7.2 最佳实践 (Best Practices)
- 组件拆分: 保持组件功能单一、体积小巧。
- 状态最小化: 只将必要的数据声明为状态。
- 合理选择状态装饰器: 根据数据流向选择
@Prop, `@ink,@ObjectLink`。 - 性能考量: 避免在
build方法中执行耗时操作;使用`LazyForEach优化长列表。 - 代码复用: 优先使用
@Component,其次@Builder,最后@Styles和@Extend。
7.3 讨论问题 (Discussion Questions)
- 状态管理: 在大型应用中,
@Observed/@ObjectLink是否足够?你认为引入类似ViewModel或全局状态管理库(如Redux/MobX概念)是否有必要? - 性能: ArkUI的声明式更新机制(Diffing)与传统命令式UI相比,在哪些场景下性能更好?哪些场景下可能遇到挑战?
- 开发体验: 相比其他声明式框架(如React Native, Flutter, SwiftUI),你认为ArkUI+仓颉的开发体验有哪些优势和劣势?
- 跨端: ArkUI的跨设备(手机、平板、手表、智慧屏等)适配能力如何?在组件开发中需要注意哪些适配问题?
1563

被折叠的 条评论
为什么被折叠?
