Android系统 —— 源码编译错误整理（持续更新）

记录一些日常遇到的编译问题及解决方法，查找的时候可以直接搜索问题描述的关键部分。

1. 更改源码目录名引发的错误

FAILED: out/target/product/gin/abl.elf /bin/bash -c "\$(pwd)/prebuilts/build-tools/linux-x86/bin/make -C bootable/bootloader/edk2 BOOTLOADER_OUT=../../../out/target/product/gin/obj/ABL_OBJ all PREBUILT_HOST_TOOLS=CC=/home/sun/project/Android10_Project/prebuilts/clang/host/linux-x86/clang-r353983c1/bin/clang\\ CXX=/home/sun/project/Android10_Project/prebuilts/clang/host/linux-x86/clang-r353983c1/bin/clang++\\ LDPATH=\"-fuse-ld=/home/sun/project/Android10_Project/prebuilts/clang/host/linux-x86/clang-r353983c1/bin/ld.lld\"\\ AR=/home/sun/project/Android10_Project/prebuilts/clang/host/linux-x86/clang-r353983c1/bin/llvm-ar PREBUILT_PYTHON_PATH=\$(pwd)/prebuilts/python/linux-x86/2.7.5/bin/python2 MAKEPATH=\$(pwd)/prebuilts/build-tools/linux-x86/bin/ BUILD_SYSTEM_ROOT_IMAGE=0 VERIFIED_BOOT=0 VERIFIED_BOOT_2=1 VERIFIED_BOOT_LE=0 USER_BUILD_VARIANT=0 DISABLE_PARALLEL_DOWNLOAD_FLASH=0 AB_RETRYCOUNT_DISABLE=0 DYNAMIC_PARTITION_SUPPORT=1 TARGET_SUPPORTS_EARLY_USB_INIT=0 CLANG_BIN=/home/sun/project/Android10_Project/vendor/qcom/proprietary/llvm-arm-toolchain-ship/8.0/bin/ CLANG_PREFIX=/home/sun/project/Android10_Project/prebuilts/gcc/linux-x86/aarch64/aarch64-linux-android-4.9/bin/aarch64-linux-android- ABL_USE_SDLLVM=true ABL_SAFESTACK=true SAFESTACK_SUPPORTED_CLANG_VERSION=6.0 CLANG_GCC_TOOLCHAIN=/home/sun/project/Android10_Project/prebuilts/gcc/linux-x86/aarch64/aarch64-linux-android-4.9 TARGET_ARCHITECTURE=AARCH64 BOARD_BOOTLOADER_PRODUCT_NAME=gin USERDATAIMAGE_FILE_SYSTEM_TYPE=f2fs" make: Entering directory '/home/sun/project/Android10_Project/bootable/bootloader/edk2' Loading previous configuration from /home/sun/project/Android10_Project/bootable/bootloader/edk2/Conf/BuildEnv.sh WORKSPACE: /home/sun/project/Android10_Project/bootable/bootloader/edk2 EDK_TOOLS_PATH: /home/sun/Project/Android10_Project/bootable/bootloader/edk2/BaseTools CONF_PATH: /home/sun/project/Android10_Project/bootable/bootloader/edk2/Conf make[1]: Entering directory '/home/sun/project/Android10_Project/bootable/bootloader/edk2/BaseTools' /home/sun/project/Android10_Project/prebuilts/build-tools/linux-x86/bin/make -C Source/C make[2]: Entering directory '/home/sun/project/Android10_Project/bootable/bootloader/edk2/BaseTools/Source/C' Attempting to detect ARCH from 'uname -m': x86_64 Detected ARCH of X64 using uname. mkdir -p . /home/sun/project/Android10_Project/prebuilts/build-tools/linux-x86/bin/make -C Common make[3]: Entering directory '/home/sun/project/Android10_Project/bootable/bootloader/edk2/BaseTools/Source/C/Common' make[3]: *** No rule to make target '/home/sun/Project/Android10_Project/prebuilts/clang/host/linux-x86/clang-r353983c1/lib64/clang/9.0.3/include/stdint.h', needed by 'BasePeCoff.o'. Stop. make[3]: Leaving directory '/home/sun/project/Android10_Project/bootable/bootloader/edk2/BaseTools/Source/C/Common' make[2]: *** [GNUmakefile:79: Common] Error 2 make[2]: Leaving directory '/home/sun/project/Android10_Project/bootable/bootloader/edk2/BaseTools/Source/C' make[1]: *** [GNUmakefile:25: Source/C] Error 2 make[1]: Leaving directory '/home/sun/project/Android10_Project/bootable/bootloader/edk2/BaseTools' make: *** [makefile:138: EDK_TOOLS_BIN] Error 2 make: Leaving directory '/home/sun/project/Android10_Project/bootable/bootloader/edk2' 17:08:52 Disallowed PATH tool "pkg-config" used: []string{"pkg-config", "--cflags", "ncursesw"} 17:08:52 See https://android.googlesource.com/platform/build/+/master/Changes.md#PATH_Tools for more information.

错误一： “EDK_TOOLS_PATH: /home/sun/Project/Android10_Project/bootable/bootloader/edk2/BaseTools”

(1) 问题描述：
同步代码的时候我建的文件夹确实叫做"Project"，但是后来我把"P"改成小写的"p"，而在编译的时候edk2的路径EDK_TOOLS_PATH并不会重新生成，所以路径无效最终导致编译失败。

(2) 解决办法：
进入EDK_TOOLS_PATH的上一级目录，即/home/sun/project/Android10_Project/bootable/bootloader/edk2，然后执行下面命令重新生成edk2的路径

rm -rf Conf/BuildEnv.sh   #EDK_TOOLS_PATH就在这个文件中
unset EDK_TOOLS_PATH
./edksetup.sh BaseTools

错误二： “make[3]: *** No rule to make target ‘/home/sun/Project/Android10_Project/prebuilts/clang/host/linux-x86/clang-r353983c1/lib64/clang/9.0.3/include/stdint.h’, needed by ‘BasePeCoff.o’. Stop.”

(1) 问题描述：
这个其实和上面的错误一个道理，都是旧目录名称没有更新(旧目录叫“Project”，新目录叫“project”)

(2) 解决办法：
上个错误已解决的基础上，在EDK_TOOLS_PATH目录，执行make clean即可。

使用git clean -df和git checkout .重置仓库再编译也会报这个错误，原因是 edk2/Conf 包含.gitignore，这个文件中忽略了Conf目录的新增文件，所以使用git是无法重置的。

---

2. 添加VNDK库(Vendor Native Development Kit)报错

[ 5% 634/10974] build out/target/product/trinket/obj/PACKAGING/vndk_intermediates/check-list-timestamp FAILED: out/target/product/trinket/obj/PACKAGING/vndk_intermediates/check-list-timestamp /bin/bash -c "(( diff --old-line-format=\"Removed %L\" --new-line-format=\"Added %L\" --unchanged-line-format=\"\" build/make/target/product/gsi/29.txt out/target/product/trinket/obj/PACKAGING/vndk_intermediates/libs.txt || ( echo -e \" error: VNDK library list has been changed.\\n\" \" Changing the VNDK library list is not allowed in API locked branches.\"; exit 1 )) ) && (mkdir -p out/target/product/trinket/obj/PACKAGING/vndk_intermediates/ ) && (touch out/target/product/trinket/obj/PACKAGING/vndk_intermediates/check-list-timestamp )" Added VNDK-core: libturbo_jpeg.so error: VNDK library list has been changed. Changing the VNDK library list is not allowed in API locked branches.

问题描述： 看报错内容，可以知道是用diff命令对29.txt和libs.txt的内容进行了逐行比较，因两个文件内容不一致而导致的问题。至于为什么不一样，那是因为由于项目原因，需要添加一个名为libturbo_jpeg的VNDK动态库，在编译的时候新库名字被写到了libs.txt，而29.txt还是原先内容
动态库的创建是在external/libjpeg-turbo/Android.bp中，如下

cc_library {
    name: "libturbo_jpeg",
    host_supported: true,
    vendor_available: true,  //VNDK库需要设置为true
    vndk: {
        enabled: true,      //VNDK库需要设置为true
    },
    defaults: ["libjpeg-defaults"],
    export_include_dirs: ["."],
    target: {
        windows: {
            enabled: true,
        },
    },
    srcs: [
        "jdatadst-tj.c",
        "jdatasrc-tj.c",
		"turbojpeg.c",
		"transupp.c",
		"rdbmp.c",
		"rdppm.c",
		"wrbmp.c",
        "wrppm.c",
            ],
    cflags: [
        "-DBMP_SUPPORTED",
        "-DPPM_SUPPORTED",
        "-Werror",
        "-Wno-unused-parameter",
    ],
}

解决方法：
将libs.txt的内容直接全部拷贝到29.txt中即可

---

3. 头文件被重复包含

FAILED: build/make/core/main.mk:1158: warning: "zxh : _modules_xxx_cut" = build/make/core/Makefile:76: warning: Duplicate header copy: out/target/product/myproject/obj/include/mycarcam/mycarcam.h build/make/core/Makefile:76: warning: _ Using vendor/qcom/proprietary/mm-camera/ais/API/inc/mycarcam.h build/make/core/Makefile:76: warning: __ from vendor/qcom/proprietary/mm-camera/ais/libais_client.mk build/make/core/Makefile:76: warning: _ Ignoring vendor/qcom/proprietary/mm-camera/ais/API/inc/mycarcam.h build/make/core/Makefile:76: warning: __ from vendor/qcom/proprietary/mm-camera/ais/libais_client.mk build/make/core/Makefile:76: warning: Duplicate header copy: out/target/product/myproject/obj/include/mycarcam/mycarcam_types.h build/make/core/Makefile:76: warning: _ Using vendor/qcom/proprietary/mm-camera/ais/API/inc/mycarcam_types.h build/make/core/Makefile:76: warning: __ from vendor/qcom/proprietary/mm-camera/ais/libais_client.mk build/make/core/Makefile:76: warning: _ Ignoring vendor/qcom/proprietary/mm-camera/ais/API/inc/mycarcam_types.h build/make/core/Makefile:76: warning: __ from vendor/qcom/proprietary/mm-camera/ais/libais_client.mk build/make/core/Makefile:95: error: duplicate header copies are no longer allowed. For more information about headers, see: https://android.googlesource.com/platform/build/soong/+/master/docs/best_practices.md#headers.

问题描述： 看error那行，意思是不再允许拷贝重复的头文件，然后我们再看上面的warning，发现编译过程中mycarcam.h和mycarcam_types.h被重复拷贝了，这是不被允许的（不过我试过只重复一个文件就没问题，费解。。。）

解决方法： 经过排查是mk文件中，这两个头文件被重复拷贝了，可根据项目实际情况进行添加条件避免重复拷贝

---

4. 无法链接库文件，库文件丢失

[ 99% 365/366] finishing build rules ... FAILED: vendor/qcom/proprietary/pis/test/test_util/Android.mk: error: "libpis_test_util (native:platform) can not link against libimg (native:vendor)" vendor/qcom/proprietary/pis/test/test_util/Android.mk: error: "libpis_test_util (SHARED_LIBRARIES android-arm64) missing libjpeg (SHARED_LIBRARIES android-arm64)" You can set ALLOW_MISSING_DEPENDENCIES=true in your environment if this is intentional, but that may defer real problems until later in the build. ... build/make/core/main.mk:959: error: exiting from previous errors. 14:45:48 ckati failed with: exit status 1 #### failed to build some targets (02:46 (mm:ss)) ####

错误一： “libpis_test_util (native:platform) can not link against libimg (native:vendor)”
(1) 错误分析：
  这个error表达的是库libpis_test_util(native:platform)不能链接库libimg (native:vendor)。看下面两个Android.mk文件，libpis_test_util(native:platform)用链接系统库的方式链接了vendor库，这个肯定是不行。

libpis_test_util的Android.mk:

...//省略
LOCAL_MODULE := libpis_test_util
LOCAL_HEADER_LIBRARIES := libtest_headers
LOCAL_SHARED_LIBRARIES += libtest libimg libjpeg      //LOCAL_SHARED_LIBRARIES这个flag是用来链接系统库的
...//省略

libimg的Android.mk:

...//省略
include $(CLEAR_VARS)
LOCAL_MODULE        := libimg
LOCAL_MODULE_CLASS  := SHARED_LIBRARIES
LOCAL_MODULE_SUFFIX := .so
LOCAL_STRIP_MODULE  := false
LOCAL_MULTILIB      := 64
LOCAL_MODULE_OWNER  := qcom
LOCAL_MODULE_TAGS   := optional
LOCAL_SRC_FILES     := ../../.././target/product/xxx/system/lib64/libimg.so
LOCAL_MODULE_PATH   := $(PRODUCT_OUT)/system/lib64
LOCAL_PROPRIETARY_MODULE := true     //这里可以看到libimg库是属于proprietary的，也就是vendor的模块
include $(BUILD_PREBUILT)
...//省略

(2) 解决方法：
 把libimg的Android.mk中的LOCAL_PROPRIETARY_MODULE置为false，或者把libpis_test_util的Android.mk中的LOCAL_SHARED_LIBRARIES改为LOCAL_LDFLAGS(就是把链接方式由链接系统库改为链接第三方库)

错误二： “libpis_test_util (SHARED_LIBRARIES android-arm64) missing libjpeg (SHARED_LIBRARIES android-arm64)”
(1) 错误分析：
  这个error表达的是编译系统没有找到libjpeg库，通过查看是没有为libjpeg库添加编译规则

(2) 解决方法：
  在对应的Android.mk中加入编译规则，对应内容如下所示：

include $(CLEAR_VARS)
LOCAL_MODULE        := libjpeg
LOCAL_MODULE_CLASS  := SHARED_LIBRARIES
LOCAL_MODULE_SUFFIX := .so
LOCAL_STRIP_MODULE  := false
LOCAL_MULTILIB      := 64
LOCAL_MODULE_OWNER  := qcom
LOCAL_MODULE_TAGS   := optional
LOCAL_SRC_FILES     := ../../.././target/product/xxx/system/lib64/libjpeg.so
LOCAL_MODULE_PATH   := $(PRODUCT_OUT)/system/lib
include $(BUILD_PREBUILT)

---

5. 检查Soong进程唯一性报错

刚开始编译就报了下面的错误：

13:46:41 Waiting up to 10s to lock out/.lock to ensure no other Soong process is running in the same output directory 13:46:51 Tried to lock out/.lock, but timed out polling every 1s until 10s . Make sure no other Soong process is using it

(1) 问题分析：
Android 7以后在编译系统方面，谷歌使用了Soong+Blueprint+Android.bp替代Makefile+Android.mk的方案(并未完全替代)。
在真正开始编译源码之前，会检查Soong进程是否唯一，核心代码如下：

//路径：build/soong/ui/build/proc_sync.go
func lockSynchronous(lock lockable, waiter waiter, logger logger.Logger) (err error) {
	waited := false
	for {
	  //[part 1]：使用tryLock()上锁，如果成功代表soong进程只有一个，则return nil，退出for循环
		err = lock.tryLock()  //成功返回空(nil)
		if err == nil {
			if waited {
				// If we had to wait at all, then when the wait is done, we inform the user
				logger.Printf("Acquired lock on %v; previous Soong process must have completed. Continuing...\n", lock.description())
			}
			return nil
		}

		//[part 2]：如果上边上锁失败，则会执行下面的代码。
		done, description := waiter.checkDeadline()  //waiter先检查是否超时，超时done置为true
		if !waited {
			logger.Printf("Waiting up to %s to lock %v to ensure no other Soong process is running in the same output directory\n", description, lock.description())
		}
		waited = true
		if done {        //如果done为true，则return错误信息，退出for循环
			return fmt.Errorf("Tried to lock %s, but timed out %s . Make sure no other Soong process is using it",
				lock.description(), waiter.summarize())
		} else {
			waiter.wait()   //如果done不为true，则继续等待，进入下一次循环
		}
	}
}

(2) 解决方法：
保证不要对同一套代码同时编译多次，比如下面这个错误的编译指令就会造成同时编译两次。使用管道符连接make update-api和make -j8，众所周知，管道符两侧的命令是并行执行的，所以这样相当于同时执行两次make，而锁的机制大家也都知道，不能在锁没有释放的情况下再次上锁，所以后执行的make会报错退出。

错误的编译命令：

make update-api | make -j8 | tee build-android.log

正确编译命令：

make update-api && make -j8 | tee build-android.log

※ 上面的错误例子只是抛砖引玉，只要记住同一套代码，在编译还没完成的情况下，禁止再开个终端进行编译该套代码。

---

6. TEMPORARY_DISABLE_PATH_RESTRICTIONS问题

TEMPORARY_DISABLE_PATH_RESTRICTIONS was a temporary migration method, and is now obsolete

(1) 问题分析：

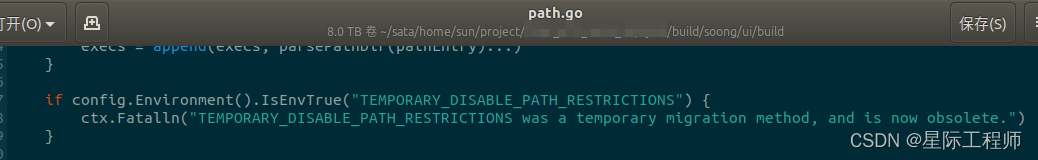

上面的问题翻译过来是：临时禁用路径限制是一种临时迁移方法，现已过时。报错脚本源码如下：
在终端用echo命令打印TEMPORARY_DISABLE_PATH_RESTRICTIONS的值，发现确实为true。

(2) 解决方法：
方法一： 不知道是什么原因导致TEMPORARY_DISABLE_PATH_RESTRICTIONS被设置为了true，导致编译到这里报错。在终端执行下面的语句临时将TEMPORARY_DISABLE_PATH_RESTRICTIONS设置为false即可。

export TEMPORARY_DISABLE_PATH_RESTRICTIONS=false

方法二： 新打开一个终端，重新执行source build/envsetup.sh和lunch <设备平台>后，再次执行make命令即可。

---

7. 高通平台在打包阶段报/tmp空间不足

2022-08-09 13:27:22 - build_image_standalone.py - INFO    : Script Version : 1.2
2022-08-09 13:27:22 - build_image_standalone.py - INFO    : Starting up builds merge..
2022-08-09 13:27:22 - build_image_standalone.py - INFO    : QSSI build path = /home/sun/sata/home/sun/project/AOSP/QSSI
2022-08-09 13:27:22 - build_image_standalone.py - INFO    : Target build path = /home/sun/sata/home/sun/project/AOSP/VENDOR
2022-08-09 13:27:22 - build_image_standalone.py - INFO    : Merged build path = /home/sun/sata/home/sun/project/AOSP/VENDOR
2022-08-09 13:27:22 - build_image_standalone.py - INFO    : Free Space available on /tmp = 15.3445320129G
2022-08-09 13:27:22 - build_image_standalone.py - ERROR   : Not enough free space available on /tmp, aborting, min free space required = 24G !!
2022-08-09 13:27:22 - build_image_standalone.py - ERROR   : Free up /tmp manually, and/or Increase it using: sudo mount -o remount,size=24G tmpfs /tmp
2022-08-09 13:27:22 - build_image_standalone.py - ERROR   : Or Alternatively, Use --no_tmp option while triggering build_image_standalone, to not use /tmp if it is a low RAM machine

(1) 问题分析：
上面的build_image_standalone.py正常会调用vendor下的build.sh脚本中的打包功能。这期间检查用于存放临时文件的/tmp目录，发现只剩下16G左右，少于最低24G空间。

sun@sun-pc:~$ df -h
文件系统        容量  已用  可用 已用% 挂载点
udev             16G     0   16G    0% /dev
tmpfs           3.2G  4.1M  3.2G    1% /run
/dev/nvme1n1p3   47G   29G   16G   66% /      #分区的时候只分了47G给根目录，剩下的空间仅有16G，所以/tmp最大只能申请到16G
...

(2) 解决方法：
上面报错的地方已经提供了两个解决方法，下面说明一下
● 方法一(不建议)
如果内存空间够大，可以将tmpfs挂载到/tmp上。

sudo mount -t tmpfs -o size=24G tmpfs /tmp

注：tmpfs是一种基于内存的文件系统，android系统打包期间产生的临时文件还是比较大的，这样会占用内存，导致ubuntu系统卡顿。这里倒是可以在磁盘剩余空间上再做一个分区出来，挂载到/tmp上使用。

● 方法二
直接在调用build_image_standalone.py的时候添加–no_tmp选项即可，这样产生的临时文件都会被放到项目根目录下的tmp目录中，打包完成后此tmp目录会被清理。

function packagesupper()
{
  cd ${ROOT_DIR}/../..
  python VENDOR/vendor/qcom/opensource/core-utils/build/build_image_standalone.py \
 --image super \
 --qssi_build_path QSSI \
 --target_build_path VENDOR \
 --merged_build_path VENDOR \
 --target_lunch xxx \
 --output_ota \
 --skip_qiifa \
 --no_tmp   #添加--no_tmp选项
  return 0
}

---

8. flex词汇分析器与本地化字符集不匹配导致编译出错

[ 32% 1301/3980] Lex: aidl <= system/tools/aidl/aidl_language_l.ll
FAILED: /bin/bash -c "prebuilts/misc/linux-x86/flex/flex-2.5.39 -oout/host/linux-x86/obj/STATIC_LIBRARIES/libaidl-common_intermediates/aidl_language_l.cpp system/tools/aidl/aidl_language_l.ll"
flex-2.5.39: loadlocale.c:130:_nl_intern_locale_data: ?? 'cnt < (sizeof (_nl_value_type_LC_TIME) / sizeof (_nl_value_type_LC_TIME[0]))' ???
Aborted (core dumped)
ninja: build stopped: subcommand failed.
build/core/ninja.mk:148: recipe for target 'ninja_wrapper' failed
make: *** [ninja_wrapper] Error 1

(1) 问题分析：
● bash执行命令：

prebuilts/misc/linux-x86/flex/flex-2.5.39 -o out/host/linux-x86/obj/STATIC_LIBRARIES/libaidl-common_intermediates/aidl_language_l.cpp system/tools/aidl/aidl_language_l.ll

flex-2.5.39是个词汇分析器，上述命令成功后，会将aidl_language_l.ll翻译为aidl_language_l.cpp。

● 提示语句：

flex-2.5.39: loadlocale.c:130:_nl_intern_locale_data: ?? ‘cnt < (sizeof (_nl_value_type_LC_TIME) / sizeof (_nl_value_type_LC_TIME[0]))’ ???

可以看到flex-2.5.39在加载locale.c的时候，locale.c中有语句乱码，这个其实就是当前系统的字符集不能对这条语句正确解码。(locale.c我也没找到在哪里，有知道的同学可以告诉我一下谢谢。)

(2) 解决方法：
既然是字符集的问题，直接使用下面命令去除本地化配置，再次编译即可。

export LC_ALL=C  或者  export LC_ALL=POSIX

有关本地化配置的知识后续有时间会进行整理。

---

9. 连接jack server失败导致编译停止

FAILED: /bin/bash -c "(prebuilts/sdk/tools/jack-admin stop-server 2>&1 || (exit 0) ) && (prebuilts/sdk/tools/jack-admin kill-server 2>&1 || (exit 0) ) && (prebuilts/sdk/tools/jack-admin uninstall-server 2>&1 || (exit 0) ) && (prebuilts/sdk/tools/jack-admin install-server prebuilts/sdk/tools/jack-launcher.jar prebuilts/sdk/tools/jack-server-4.8.ALPHA.jar  2>&1 || (exit 0) ) && (mkdir -p \"out/dist/logs/jack/\" ) && (JACK_SERVER_VM_ARGUMENTS=\"-Dfile.encoding=UTF-8 -XX:+TieredCompilation -Dcom.android.jack.server.log.file=/home/sun/code/8953_7120/out/dist/logs/jack/jack-server-%u-%g.log\" prebuilts/sdk/tools/jack-admin start-server 2>&1 || exit 0 ) && (prebuilts/sdk/tools/jack-admin update server prebuilts/sdk/tools/jack-server-4.8.ALPHA.jar 4.8.ALPHA 2>&1 || exit 0 ) && (prebuilts/sdk/tools/jack-admin update jack prebuilts/sdk/tools/jacks/jack-2.28.RELEASE.jar 2.28.RELEASE || exit 47; prebuilts/sdk/tools/jack-admin update jack prebuilts/sdk/tools/jacks/jack-3.36.CANDIDATE.jar 3.36.CANDIDATE || exit 47; prebuilts/sdk/tools/jack-admin update jack prebuilts/sdk/tools/jacks/jack-4.7.BETA.jar 4.7.BETA || exit 47 )"
Writing client settings in /home/sun/.jack-settings
Stopping background server
No Jack server running. Try 'jack-admin start-server'
Killing background server
No Jack server to kill
Jack server in "/home/sun/.jack-server" not found
Installing jack server in "/home/sun/.jack-server"

Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore /home/sun/.jack-server/server.jks -destkeystore /home/sun/.jack-server/server.jks -deststoretype pkcs12".

Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore /home/sun/.jack-server/client.jks -destkeystore /home/sun/.jack-server/client.jks -deststoretype pkcs12".
Launching Jack server java -XX:MaxJavaStackTraceDepth=-1 -Djava.io.tmpdir=/tmp -Dfile.encoding=UTF-8 -XX:+TieredCompilation -Dcom.android.jack.server.log.file=/home/sun/code/8953_7120/out/dist/logs/jack/jack-server-%u-%g.log -Xmx4096m -cp /home/sun/.jack-server/launcher.jar com.android.jack.launcher.ServerLauncher
Jack server failed to (re)start, try 'jack-diagnose' or see Jack server log
SSL error when connecting to the Jack server. Try 'jack-diagnose'
SSL error when connecting to the Jack server. Try 'jack-diagnose'

(1) 问题分析：
这里报错信息特别多而且乱，为了简化分析，将bash命令拆成下面这些命令，然后分别执行看一下结果：

● 停止 jack server进程

sun@sun-pc:~/code$ prebuilts/sdk/tools/jack-admin stop-server Stopping background server SSL error when connecting to the Jack server. Try 'jack-diagnose'

● kill掉 jack server进程

sun@sun-pc:~/code$ prebuilts/sdk/tools/jack-admin kill-server Killing background server

● 卸载并重新安装 jack server，jack-server默认安装路径/home/sun/.jack-server

sun@sun-pc:~/code$ prebuilts/sdk/tools/jack-admin uninstall-server Removing jack server from "/home/sun/.jack-server" sun@sun-pc:~/code$ prebuilts/sdk/tools/jack-admin install-server prebuilts/sdk/tools/jack-launcher.jar prebuilts/sdk/tools/jack-server-4.8.ALPHA.jar Installing jack server in "/home/sun/.jack-server" Warning: The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore /home/sun/.jack-server/server.jks -destkeystore /home/sun/.jack-server/server.jks -deststoretype pkcs12". Warning: The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore /home/sun/.jack-server/client.jks -destkeystore /home/sun/.jack-server/client.jks -deststoretype pkcs12".

● 创建 jack存储log的目录
\" 这个是转义双引号，特意用红字体标注出来了

sun@sun-pc:~/code$ mkdir -p \"out/dist/logs/jack/\"

● 开启 jack server

sun@sun-pc:~/code$ JACK_SERVER_VM_ARGUMENTS="-Dfile.encoding=UTF-8 -XX:+TieredCompilation -Dcom.android.jack.server.log.file=/home/sun/code/8953_7120/out/dist/logs/jack/jack-server-%u-%g.log" prebuilts/sdk/tools/jack-admin start-server Launching Jack server java -XX:MaxJavaStackTraceDepth=-1 -Djava.io.tmpdir=/tmp -Dfile.encoding=UTF-8 -XX:+TieredCompilation -Dcom.android.jack.server.log.file=/home/sun/code/8953_7120/out/dist/logs/jack/jack-server-%u-%g.log -Xmx4096m -cp /home/sun/.jack-server/launcher.jar com.android.jack.launcher.ServerLauncher Jack server failed to (re)start, try 'jack-diagnose' or see Jack server log

这条命令语句里又包含了两个命令：

# jack server的虚拟内存参数，jack-admin脚本默认定义了这个变量，这里多添加了一个log路径
JACK_SERVER_VM_ARGUMENTS="-Dfile.encoding=UTF-8 -XX:+TieredCompilation -Dcom.android.jack.server.log.file=/home/sun/code/8953_7120/out/dist/logs/jack/jack-server-%u-%g.log"

# 开启jack server进程，需要用到上面的参数
prebuilts/sdk/tools/jack-admin start-server

为什么没有分开执行？
是因为JACK_SERVER_VM_ARGUMENTS这里用 = 进行赋值的，这种方式无法被子shell继承使用。也就是说如果和 jack-admin 脚本分开执行，jack-admin脚本将无法获得JACK_SERVER_VM_ARGUMENTS的值，所以这里两句话放在一起执行才行。
当然分开执行也行，只需要在赋值操作前加上export，即export JACK_SERVER_VM_ARGUMENTS=xxx，这样就可以被子shell继承使用了。

● jack server升级
没有涉及本次报错，暂不分析

prebuilts/sdk/tools/jack-admin update server prebuilts/sdk/tools/jack-server-4.8.ALPHA.jar 4.8.ALPHA
prebuilts/sdk/tools/jack-admin update jack prebuilts/sdk/tools/jacks/jack-2.28.RELEASE.jar 2.28.RELEASE
prebuilts/sdk/tools/jack-admin update jack prebuilts/sdk/tools/jacks/jack-3.36.CANDIDATE.jar 3.36.CANDIDATE
prebuilts/sdk/tools/jack-admin update jack prebuilts/sdk/tools/jacks/jack-4.7.BETA.jar 4.7.BETA

(2) 解决方法：
这个先说答案，分析过程等有时间再补。
(1) 编辑/etc/java-8-openjdk/security/java.security，将jdk.tls.disabledAlgorithms=SSLv3, TLSv1, TLSv1.1, … 里边的TLSv1, TLSv1.1删除。
(2) 重启jack-server

./prebuilts/sdk/tools/jack-admin kill-server
./prebuilts/sdk/tools/jack-admin start-server

---

10. 缺少libssl-dev导致编译错误

/home/sun/code/android/kernel/msm-5.4/scripts/extract-cert.c:21:10: fatal error: 'openssl/bio.h' file not found

解决方法：
安装libssl-dev即可

sudo apt install libssl-dev

---

11. Android.mk缺少连接符号（反斜杠）

vendor/qcom/proprietary/mm-still/ipl/Android.mk:16: *** 配方在第一个目标前开始。 停止。

解决方法：
如下所示，本来15行最后面没有反斜杠( \ )，加上反斜杠就可以了。

 12 libmmipl_cflags := -g -O3 \
 13         $(CPU)
 14         -Dlrintf=_ffix_r \
 15         -D__alignx\(x\)=__attribute__\(\(__aligned__\(x\)\)\) \
 16         -D_POSIX_SOURCE \
 17         -DPOSIX_C_SOURCE=199506L \

---

12. 缺少current.txt文件

make: *** No rule to make target 'frameworks/base/api/current.txt', needed by 'out/target/common/obj/PACKAGING/checkpublicapi-current-timestamp'.  Stop.

解决方法：
1.提示"No rule to make target xxx"，大部分情况就是这个文件不存在。

2.提示没有规则去编译目标"frameworks/base/api/current.txt"，而这个编译是被"out/target/common/obj/PACKAGING/checkpublicapi-current-timestamp"所需要的。这个一看就是检查android api用的，我们直接执行make update-api就可以生成这个所需要的current.txt。

---

13. 链接器ld报错"unsupported reloc 43"

prebuilts/gcc/linux-x86/host/x86_64-linux-glibc2.11-4.6//x86_64-linux/bin/ld: error: out/host/linux-x86/obj32/EXECUTABLES/third_party_libvpx_libvpx_obj_int_extract_arm_host_gyp_intermediates/third_party/libvpx/source/libvpx/build/make/obj_int_extract.o: unsupported reloc 43 against global symbol stderr external/chromium_org/third_party/libvpx/source/libvpx/build/make/obj_int_extract.c:31: error: unsupported reloc 43 clang: error: linker command failed with exit code 1 (use -v to see invocation)

问题分析：
结合上面三部分的错误信息，链接器在链接.o文件时候报错unsupported reloc 43。
我们回想一下编译的四个步骤：预处理，编译，汇编，链接。链接是属于编译的最后步骤，只是将所有.o文件链接成可执行文件，并没有什么特殊的语法检查的作用，所以我们可以把这个有问题的链接器替换掉。

解决方法：
使用/usr/bin/ld.gold替换有问题的ld

cp /usr/bin/ld.gold prebuilts/gcc/linux-x86/host/x86_64-linux-glibc2.11-4.6/x86_64-linux/bin/ld

---

14. fatal error: ‘linux/msm_ion.h’ file not found

问题分析：
缺少libion-dev库，这个是linux中一个用来管理内存的库。

解决方法：

sudo apt install libion-dev

---

15. 文件损坏导致的错误

FAILED: out/target/product/qssi/obj/PACKAGING/gpl_source_intermediates/gpl_source.tgz /bin/bash -c "tar cfz out/target/product/qssi/obj/PACKAGING/gpl_source_intermediates/gpl_source.tgz --exclude \".git*\" art/dt_fd_forward art/openjdkjvm art/openjdkjvmti external/blktrace external/bpftool external/dnsmasq external/dtc external/e2fsprogs external/eigen external/elfutils external/erofs-utils external/error_prone/checkerframework external/error_prone/jFormatString external/error_prone/javac external/exfatprogs external/f2fs-tools external/fec external/gptfdisk external/iproute2 external/iproute2/ip external/iproute2/lib external/iproute2/tc external/iptables external/jdiff external/kmod external/kotlinc external/libcap-ng external/libconfig external/libcups external/libexif external/libfuse external/libiio external/libkmsxx external/libnetfilter_conntrack external/libnfnetlink external/libnl external/liburing external/libusb external/linux-kselftest external/ltp external/lz4 external/mtools external/oj-libjdwp external/openwrt-prebuilts external/seccomp-tests external/selinux external/squashfs-tools external/wmediumd frameworks/native/opengl/tests/angeles libcore/ojluni prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8 prebuilts/tools/common/netbeans-visual" tar: short read

问题分析：
问题比较明显，看红色部分，其实就是tar压缩文件的时候发生了错误。既然这个命令已经完整的显示出来了，我们不妨拷贝这段命令到终端上执行一下，看看会出现什么问题，执行后输出如下内容：

tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmsvcp120_app.a：文件缩小 1352580 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmsvcr100.a：文件缩小 1082716 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmsvcr120.a：文件缩小 46614 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmsvcr90.a：文件缩小 407116 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmingwex.a：文件缩小 668360 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmmutilse.a：文件缩小 68002 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmsvcr120_app.a：文件缩小 178076 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmsvcr110.a：文件缩小 471726 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmsvcp60.a：文件缩小 2153882 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmsvcirt.a：文件缩小 194428 字节；用零填充 tar: prebuilts/gcc/linux-x86/host/x86_64-w64-mingw32-4.8/x86_64-w64-mingw32/lib/libmsvcr120d.a：读入 10240 字节时，在 208896 字节处发生读错误: 输入/输出错误 tar: 由于前次错误，将以上次的错误状态退出

可以看到tar命令报告了上面这些文件有问题，尤其最后还看到有输入/输出错误，很明显这些文件有损坏。

解决方法：
删除上面有问题的文件，然后重新使用 git checkout 命令检出这些文件到本地。有人可能有疑问了，为什么不可以直接做检出操作进行覆盖呢？我的理解是git无法检测到损坏的文件是有变化的，至少从文件的时间上来说是没有变化的，既然检测不出文件有变化，那无论是使用 git checkout 还是 git reset 那都是没有用的。
