关键字:
CacheManage:缓存接口,定义缓存操作。实现有:RedisCache、EhCacheCache、ConcurrentMapCache等
@Cacheable :缓存管理器,管理各种缓存(Cache)组件
keyGenerator:缓存数据时key生成策略
使用方式:
在查询方法上使用@Cacheable注解,①当此方法第一次被调用的时候将会先查询缓存里是否有结果,如果在缓存内没有查询到,②将会使用此方法到数据库内查询数据,查询到的数据将会被存入缓存中。
@Cacheable(cacheNames = {"emp"})
public Employee getEmp(Integer id){
System.out.println("查询"+id+"员工");
Employee emp = employeeMapper.getEmpById(id);
return emp;
}

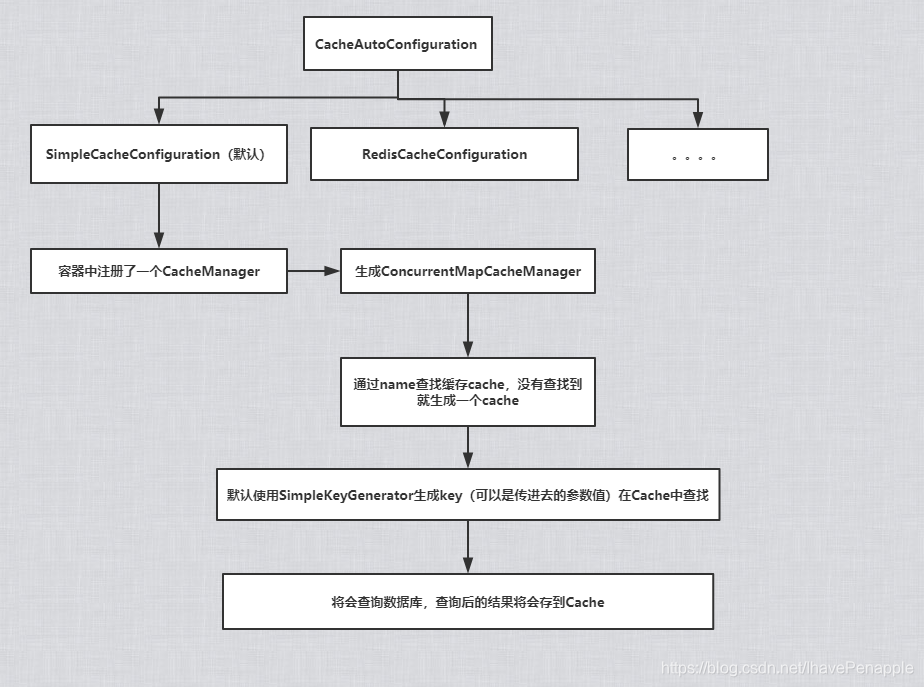

原理:
1、自动配置类:CacheAutoConfiguration ,用来选择哪一种缓存技术
* org.springframework.boot.autoconfigure.cache.GenericCacheConfiguration * org.springframework.boot.autoconfigure.cache.JCacheCacheConfiguration * org.springframework.boot.autoconfigure.cache.EhCacheCacheConfiguration * org.springframework.boot.autoconfigure.cache.HazelcastCacheConfiguration * org.springframework.boot.autoconfigure.cache.InfinispanCacheConfiguration * org.springframework.boot.autoconfigure.cache.CouchbaseCacheConfiguration * org.springframework.boot.autoconfigure.cache.RedisCacheConfiguration * org.springframework.boot.autoconfigure.cache.CaffeineCacheConfiguration * org.springframework.boot.autoconfigure.cache.GuavaCacheConfiguration * org.springframework.boot.autoconfigure.cache.SimpleCacheConfiguration * org.springframework.boot.autoconfigure.cache.NoOpCacheConfiguration
一共有以上这些缓存技术,如果使用redis,就应该配置RedisCacheConfiguration。
2.在没有任何配置的情况下,默认使用SimpleCacheConfiguration
3.SimpleCacheConfiguration配置类默认生效。这个配置类给容器中注册了一个CacheManager
@Bean
public ConcurrentMapCacheManager cacheManager() {
ConcurrentMapCacheManager cacheManager = new ConcurrentMapCacheManager();
List<String> cacheNames = this.cacheProperties.getCacheNames();
if (!cacheNames.isEmpty()) {
cacheManager.setCacheNames(cacheNames);
}
return this.customizerInvoker.customize(cacheManager);
}
4.生成一个CacheManager会返回一个ConcurrentMapCacheManager,该类会先通过Name查找缓存Cache,如果没有找到,就会生成一个Cache
@Override
public Cache getCache(String name) {
Cache cache = this.cacheMap.get(name);
if (cache == null && this.dynamic) {
synchronized (this.cacheMap) {
cache = this.cacheMap.get(name);
if (cache == null) {
cache = createConcurrentMapCache(name);
this.cacheMap.put(name, cache);
}
}
}
return cache;
}
5.通过key,key默认是通过SimpleKeyGenerator类生成的,生成后的key(可以是传进去的参数值)会在cache中查询。
public static Object generateKey(Object... params) {
if (params.length == 0) {
return SimpleKey.EMPTY;
}
if (params.length == 1) {
Object param = params[0];
if (param != null && !param.getClass().isArray()) {
return param;
}
}
return new SimpleKey(params);
}
6.如果没有在Cache中查询到,将会查询数据库,查询后的结果将会存到Cache,第二次查找该key的值就可以在Cache中查询到了。
