MyBatis关联映射ResultMap（一对多查询）

一：搭建mybatis框架

二：创建数据库

三：创建查询映射 与 代码补齐

        1：创建Orders实体

        2：创建mapper

        3：创建映射

        4：写测试类

        5：运行结果

一：搭建原始框架

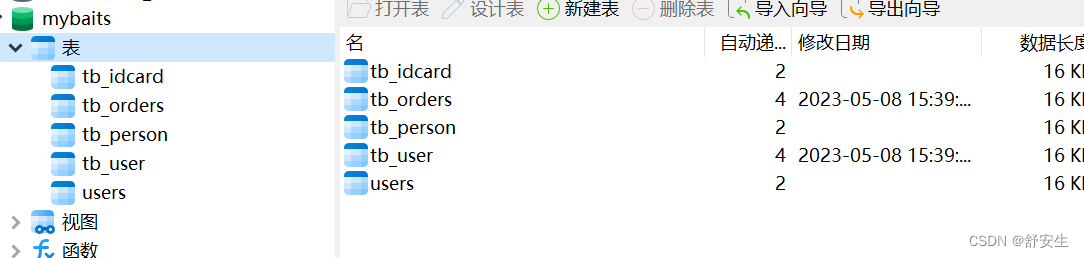

二：数据库准备（一对多查询）

USE mybatis;
# 创建一个名称为tb_user的表
CREATE TABLE tb_user (
  id int(32) PRIMARY KEY AUTO_INCREMENT,
  username varchar(32),
  address varchar(256)
 );
# 插入3条数据
INSERT INTO tb_user VALUES ('1', '小明', '北京');
INSERT INTO tb_user VALUES ('2', '李华', '上海');
INSERT INTO tb_user VALUES ('3', '李刚', '上海');
# 创建一个名称为tb_orders的表
CREATE TABLE tb_orders (
  id int(32) PRIMARY KEY AUTO_INCREMENT,
  number varchar(32) NOT NULL,
  user_id int(32) NOT NULL,
  FOREIGN KEY(user_id) REFERENCES tb_user(id)
);
# 插入3条数据
INSERT INTO tb_orders VALUES ('1', '1000011', '1');
INSERT INTO tb_orders VALUES ('2', '1000012', '1');
INSERT INTO tb_orders VALUES ('3', '1000013', '2');

三：创建查询映射 与 代码补齐

        （

1：创建Orders实体       2：创建mapper     3：创建映射       4：写测试类    5：运行结果）

1：创建Orders实体

package com.biem.pojo;

import lombok.*;

@Getter
@Setter
@NoArgsConstructor
@AllArgsConstructor
@ToString
public class Orders {
    private Integer id;
    private String number;
}

        创建Users实体

package com.biem.pojo;

import lombok.*;

import java.util.List;

@Getter
@Setter
@NoArgsConstructor
@AllArgsConstructor
@ToString
public class Users {
    private Integer id;
    private String username;
    private String address;
    private List<Orders> ordersList;
}

2：创建mapper

orders

package com.biem.Mapper;

import com.biem.pojo.Orders;

public interface OrdersMapper {
    public Orders findOrdersById(int id);

}

        Users

package com.biem.Mapper;

import com.biem.pojo.Users;

public interface UsersMapper {

    public Users findUserById(int id);
}

3：创建映射

orders

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- mapper为映射的根节点-->
<!-- mapper为映射的根节点，namespace指定Dao接口的完整类名
mybatis会依据这个接口动态创建一个实现类去实现这个接口，
而这个实现类是一个Mapper对象-->
<mapper namespace="com.biem.Mapper.OrdersMapper">

    <select id="selectOrders" parameterType="Integer" resultType="Orders">
        select * from tb_orders where user_id=#{userId}
    </select>


</mapper>

        users

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- mapper为映射的根节点-->
<!-- mapper为映射的根节点，namespace指定Dao接口的完整类名
mybatis会依据这个接口动态创建一个实现类去实现这个接口，
而这个实现类是一个Mapper对象-->
<mapper namespace="com.biem.Mapper.UsersMapper">

    <resultMap id="usersWithOrders1" type="Users">
        <id property="id" column="id"></id>
        <result property="username" column="username"/>
        <result property="address" column="address"/>
        <collection property="ordersList" javaType="ArrayList" ofType="orders" select="com.biem.Mapper.OrdersMapper.selectOrders" column="id"/>
    </resultMap>

    <!-- public Users findUserById(Integer id); -->
    <select id="findUserById" parameterType="Integer" resultMap="usersWithOrders1">
        select * from tb_user where id = #{id}
    </select>

</mapper>

4：写测试类

package com.biem.test;

import com.biem.Mapper.UsersMapper;
import com.biem.Util.MybatisUtil;
import com.biem.pojo.Users;
import org.apache.ibatis.session.SqlSession;
import org.junit.Test;

public class UsersTest {


    @Test
    public void testFindUserById() {
        SqlSession session = MybatisUtil.openSession();
        UsersMapper mapper = session.getMapper(UsersMapper.class);
        Users user = mapper.findUserById(1);
        System.out.println("user = " + user);
        session.close();
    }


}

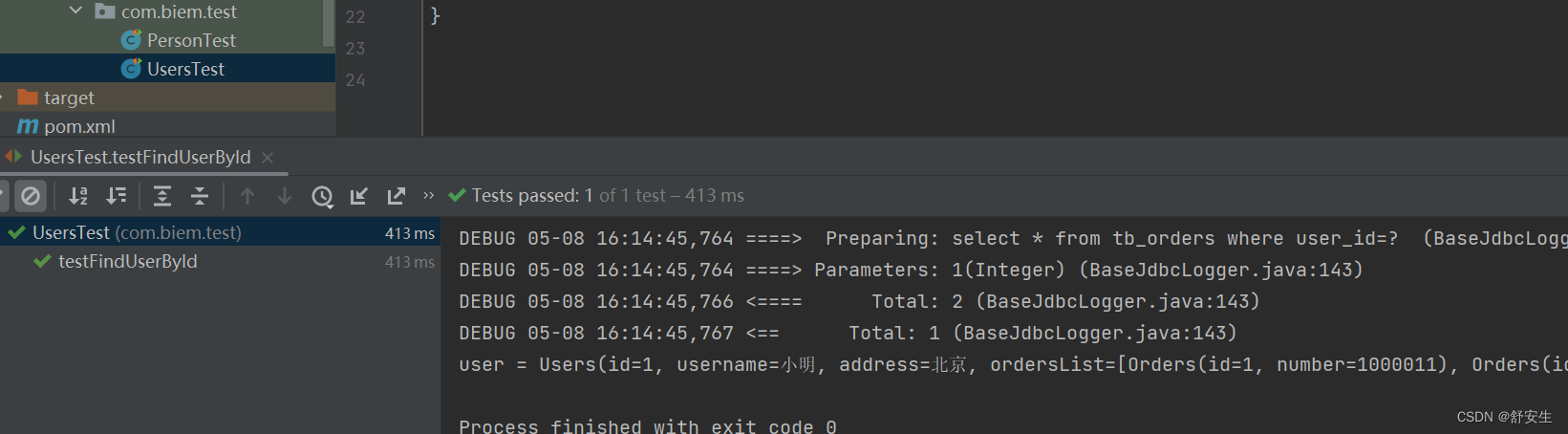

5：查看运行结果
