CK7406 4CH Rail-to-Rail Operational Amplifiers 可以兼容G1584、AAT7207 针对TFT LCD应用

CK7406 是一颗4通道OP，专门应用于TFT LCD Buffer

Features

 4.5V to 18V Wide Input Voltage Range

 Rail to Rail Output Voltage Swing

 Maximum Peak Output Current 600mA

 Low Input Offset Voltage 2mV (Typ.)

 Wide -3dB Bandwidth 30MHz

 Quiescent Current 5mA

 Large DC Voltage Gain 80dB(Typ.)

 Slew- Rate 50 V/us

 Unit Gain Buffer

 Over Current Protection ±300mA per Channel

 Over Temperature Protection

 OTP with Auto Recovery

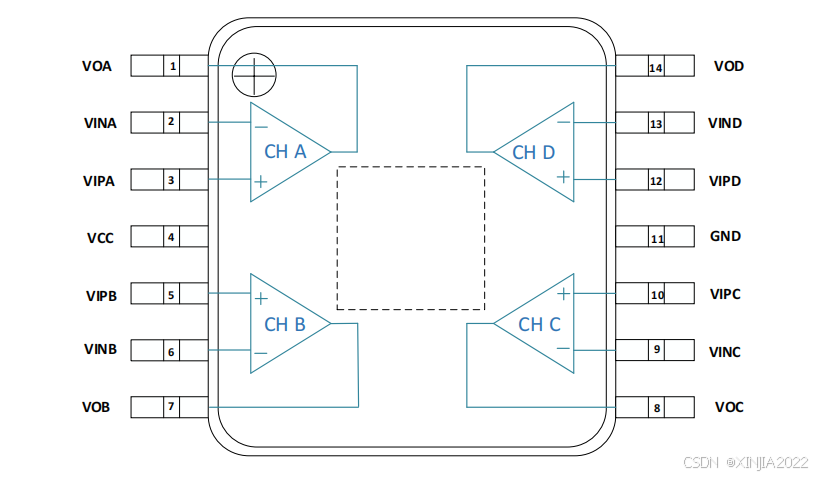

 Package Available

 WQFN16 4mmx4mm

 TSSOP14

Description

The CK7406 consists of one independent, high gain,

internally frequency compensated operational

amplifiers which was designed to operate from a

single power supply over a wide range of voltages.

The input common mode range of the CK7406 can be

closely the rails, and the CK7406 is with rail-to-rails

output voltage swing. The quiescent current is 5mA,

typically.

The CK7406 also feature fast slewing, as well as high

output drive capability (source/sink). These features

make this amplifier ideal for use as reference buffers

for TFT-LCD. Other applications include battery

power, portable devices, and anywhere low power

consumption is important.

Other features include over current protection (OCP)

and thermal shutdown protection (OTP). The CK7406

is available in a space saving WQFN16, TSSOP14

package.

Applications

 TFT-LCD Buffer

 ASIC Input or Output Equipment

 Portable Equipment

​​​​​​​
