ANX6732 Multi-Channel TFT LCD 电源管理，兼容LP6286

FEATURES

 2.5V to 5.5V input supply

 Current-mode boost regulator

- 1.2MHz switching frequency

- Integrated 20V/3.0A 160m Ω FET

- Fast transient response to pulsed load

- High efficiency up to 90%

- Adjustable high-accuracy output voltage

( ± 1%)

- Over current protection

- Over voltage protection

 VGH positive charge pump controller

 VGL negative charge pump controller

 Integrated high performance operational

amplifier

- ± 200mA output short-circuit current

- 40V/us fast slew rate

- 20MHz Bandwidth

- rail-to-rail output

 Low-voltage detection circuit

 GPM controller

- Adjustable falling time

- Adjustable delay

 Thermal shutdown

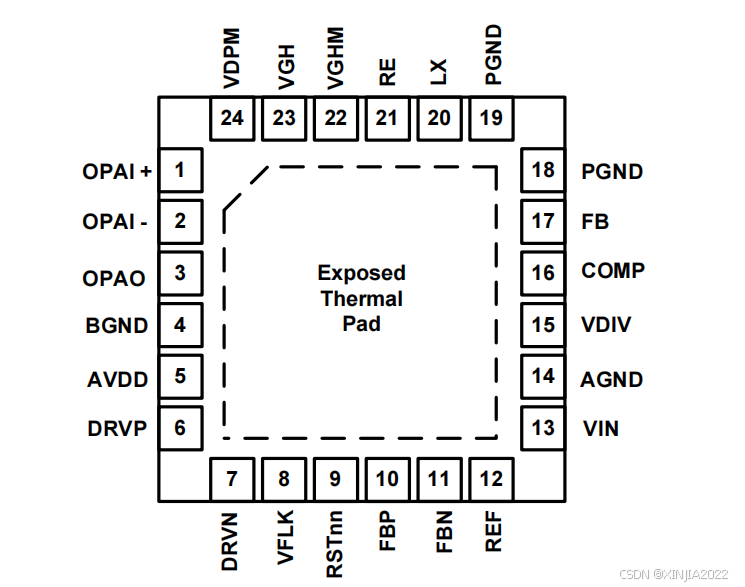

 Thin 4x4 mm 24-lead VQFN package

APPLICATIONS

 TFT LCD for Notebooks

 TFT LCD for Monitors

 Car Navigation Display

 Portable equipment
