前端关系图推荐-relation-graph

Relation-Graph是一个开源的免费关系图谱组件，支持Vue2、Vue3和React框架。它提供开箱即用的体验，配置简单，文档清晰，并支持通过插槽自定义节点样式。文章详细介绍了在Vue2、Vue3和React中的安装和使用方法，包含完整的代码示例和运行效果图。该组件具有高度可定制性，支持节点点击事件等交互功能，适用于构建各种关系图谱应用。作者强烈推荐该工具，并分享了实际项目中的使用效果。

二、relation-graph官网地址

relation-graph - A Relationship Graph Component

三、推荐relation-graph的原因

超级容易上手，基本开箱即用
官方文档清晰明了，有在线示例、可自定义配置，配置完可直接复制配置的代码
完全支持 VUE2、VUE3、React 三种框架
关系节点可通过插槽完全自定义定制
免费！！！免费！！！免费！！！

四、relation-graph的使用

1.Vue2使用

1.1、安装relation-graph

npm install --save relation-graph

1.2、可直接复制到vue文件中运行使用

<template>
   <div>
     <div style="height:calc(100vh - 60px);">
        <RelationGraph ref="graphRef" :options="graphOptions" :on-node-click="onNodeClick" :on-line-click="onLineClick" />
     </div>
   </div>
 </template>

 <script>
// relation-graph也支持在main.js文件中使用Vue.use(RelationGraph);这样，你就不需要下面这一行代码来引入了。
 import RelationGraph from 'relation-graph'
 export default {
   name: 'Demo',
   components: { RelationGraph },
   data() {
     return {
       graphOptions: {
         defaultJunctionPoint: 'border'
         // 这里可以参考"Graph 图谱"中的参数进行设置 https://www.relation-graph.com/#/docs/graph
       }
     }
   },
   mounted() {
     this.showGraph()
   },
   methods: {
     showGraph() {
       const jsonData = {
         rootId: 'a',
         nodes: [
           { id: 'a', text: 'A', borderColor: 'yellow' },
           { id: 'b', text: 'B', color: '#43a2f1', fontColor: 'yellow' },
           { id: 'c', text: 'C', nodeShape: 1, width: 80, height: 60 },
           { id: 'e', text: 'E', nodeShape: 0, width: 150, height: 150 }
         ],
         lines: [
           { from: 'a', to: 'b', text: '关系1', color: '#43a2f1' },
           { from: 'a', to: 'c', text: '关系2' },
           { from: 'a', to: 'e', text: '关系3' },
           { from: 'b', to: 'e', color: '#67C23A' }
         ]
       }
       // 以上数据中的node和link可以参考"Node节点"和"Link关系"中的参数进行配置
       this.$refs.graphRef.setJsonData(jsonData, (graphInstance) => {
         // Called when the relation-graph is completed
       })
     },
     onNodeClick(nodeObject, $event) {
       console.log('onNodeClick:', nodeObject)
     },
     onLineClick(lineObject, $event) {
       console.log('onLineClick:', lineObject)
     }
   }
 }
 </script>

2. Vue3使用

2.1、安装relation-graph

npm install --save relation-graph-vue3

2.2、可直接复制到vue文件中运行使用

<template>
  <div>
    <div style="border: #efefef solid 1px; height: calc(100vh - 100px);width: 100%;">
      <relation-graph ref="graphRef$" :options="options" />
    </div>
  </div>
</template>

<script setup lang="ts">
import { onMounted, ref } from 'vue'
import RelationGraph from 'relation-graph-vue3'
const graphRef$ = ref<RelationGraph>()
const options = {
  defaultExpandHolderPosition: 'right'
}
onMounted(() => {
  const jsonData = {
    rootId: 'a',
    nodes: [
      { id: 'a', text: 'a', },
      { id: 'b', text: 'b', },
      { id: 'c', text: 'c', },
      { id: 'd', text: 'd', },
      { id: 'e', text: 'e', },
      { id: 'f', text: 'f', },
    ],
    lines: [
      { from: 'a', to: 'b', },
      { from: 'a', to: 'c', },
      { from: 'a', to: 'd', },
      { from: 'a', to: 'e', },
      { from: 'a', to: 'f', },
    ],
  }
  // The node and line in the above data can refer to the options in "Node" and "Link & Line" for configuration.
  // Node: https://www.relation-graph.com/#/docs/node
  // Link & Line: https://www.relation-graph.com/#/docs/link
  graphRef$.value.setJsonData(jsonData)
  // The graphRef$.value.setJsonData(jsonData, callback) method is a convenient method that is equivalent to the following code:
  //  const graphInstance = graphRef$.value.getInstance();
  //  graphInstance.addNodes(jsonData.nodes);
  //  graphInstance.addLines(jsonData.lines);
  //  graphInstance.rootNode = graphInstance.getNodeById(jsonData.rootId);
  //  await graphInstance.doLayout(); // Layout using the layouter set in graphOptions
  //  await graphInstance.moveToCenter(); // Find the center based on node distribution and center the view
  //  await graphInstance.zoomToFit(); // Zoom to fit, so that all nodes can be displayed in the visible area
})
</script>

3. React使用

1.1、安装relation-graph

npm install --save relation-graph-react

1.2、可直接复制到文件中运行使用

import React, { useEffect, useRef } from 'react';
import RelationGraph, {RelationGraphInstance} from 'relation-graph-react';
import type { MutableRefObject} from 'react';
import type {
  RGLine,
  RGLink,
  RGNode,
  RGNodeSlotProps,
  RGOptions,
  RelationGraphExpose
} from 'relation-graph-react';

const staticJsonData = {
  rootId: '2',
  nodes: [
    { id: '1', text: '节点-1', myicon: 'el-icon-star-on' },
    { id: '2', text: '节点-2', myicon: 'el-icon-setting', width: 100, height: 100 },
    { id: '3', text: '节点-3', myicon: 'el-icon-setting' },
    { id: '4', text: '节点-4', myicon: 'el-icon-star-on' },
    { id: '6', text: '节点-6', myicon: 'el-icon-setting' },
    { id: '7', text: '节点-7', myicon: 'el-icon-setting' },
    { id: '8', text: '节点-8', myicon: 'el-icon-star-on' },
    { id: '9', text: '节点-9', myicon: 'el-icon-headset' },
    { id: '71', text: '节点-71', myicon: 'el-icon-headset' },
    { id: '72', text: '节点-72', myicon: 'el-icon-s-tools' },
    { id: '73', text: '节点-73', myicon: 'el-icon-star-on' },
    { id: '81', text: '节点-81', myicon: 'el-icon-s-promotion' },
    { id: '82', text: '节点-82', myicon: 'el-icon-s-promotion' },
    { id: '83', text: '节点-83', myicon: 'el-icon-star-on' },
    { id: '84', text: '节点-84', myicon: 'el-icon-s-promotion' },
    { id: '85', text: '节点-85', myicon: 'el-icon-sunny' },
    { id: '91', text: '节点-91', myicon: 'el-icon-sunny' },
    { id: '92', text: '节点-82', myicon: 'el-icon-sunny' },
    { id: '5', text: '节点-5', myicon: 'el-icon-sunny' }
  ],
  lines: [
    { from: '7', to: '71', text: '投资' },
    { from: '7', to: '72', text: '投资' },
    { from: '7', to: '73', text: '投资' },
    { from: '8', to: '81', text: '投资' },
    { from: '8', to: '82', text: '投资' },
    { from: '8', to: '83', text: '投资' },
    { from: '8', to: '84', text: '投资' },
    { from: '8', to: '85', text: '投资' },
    { from: '9', to: '91', text: '投资' },
    { from: '9', to: '92', text: '投资' },
    { from: '1', to: '2', text: '投资' },
    { from: '3', to: '1', text: '高管' },
    { from: '4', to: '2', text: '高管' },
    { from: '6', to: '2', text: '高管' },
    { from: '7', to: '2', text: '高管' },
    { from: '8', to: '2', text: '高管' },
    { from: '9', to: '2', text: '高管' },
    { from: '1', to: '5', text: '投资' }
  ]
};

const NodeSlot: React.FC<RGNodeSlotProps> = ({node}) => {
  console.log('NodeSlot:');
  if (node.id === '2') { // if rootNode
    return <div style={{zIndex: 555, opacity: 0.5, lineHeight:'100px', width: '100px', height: '100px', color: '#000000', borderRadius:'50%', boxSizing: 'border-box', fontSize: '18px', textAlign: 'center', overflow: 'hidden'}}>
      <div style={{width: '100%', height: (node.data!.percent * 100) + '%', marginTop: ((1-node.data!.percent) * 100) + '%', background: 'linear-gradient(to bottom, #00FFFF, #FF00FF)'}}>
        {node.text}
      </div>
    </div>;
  }
  return <div style={{lineHeight: '80px', textAlign: 'center'}}>
    <span>{node.text}</span>
  </div>
};
const SimpleGraph: React.FC = () => {
  const graphRef = useRef() as MutableRefObject<RelationGraphExpose>;
  useEffect(() => {
    showGraph();
  }, []);
  const showGraph = async () => {
    // The node and line in the above data can refer to the options in "Node" and "Link & Line" for configuration.
    // Node: https://www.relation-graph.com/#/docs/node
    // Link & Line: https://www.relation-graph.com/#/docs/link
    await graphRef.current.setJsonData(staticJsonData, (graphInstance) => {
        // Do something when graph ready
    });
    // The graphRef.current.setJsonData(jsonData, callback) method is a convenient method that is equivalent to the following code:
    //  const graphInstance = graphRef.current.getInstance();
    //  graphInstance.addNodes(jsonData.nodes);
    //  graphInstance.addLines(jsonData.lines);
    //  graphInstance.rootNode = graphInstance.getNodeById(jsonData.rootId);
    //  await graphInstance.doLayout(); // Layout using the layouter set in graphOptions
    //  await graphInstance.moveToCenter(); // Find the center based on node distribution and center the view
    //  await graphInstance.zoomToFit(); // Zoom to fit, so that all nodes can be displayed in the visible area
  }
  const options:RGOptions = {
    debug: true,
    defaultLineShape: 1,
    layout: {
      layoutName: 'center',
      maxLayoutTimes: 3000
    },
    defaultExpandHolderPosition: 'right'
  };
  const onNodeClick = (node: RGNode, _e: MouseEvent | TouchEvent) => {
    console.log('onNodeClick:', node.text);
    return true;
  };
  const onLineClick = (line: RGLine, _link: RGLink, _e: MouseEvent | TouchEvent) => {
    console.log('onLineClick:', line.text, line.from, line.to);
    return true;
  };
  return <div>
    <div>ok</div>
    <div style={{ height: 600, width: 900, border: '#efefef solid 1px' }}>
      <RelationGraph
        ref={graphRef}
        options={options}
        nodeSlot={NodeSlot}
        onNodeClick={onNodeClick}
        onLineClick={onLineClick}
      />
    </div>
  </div>;
};
export default SimpleGraph;

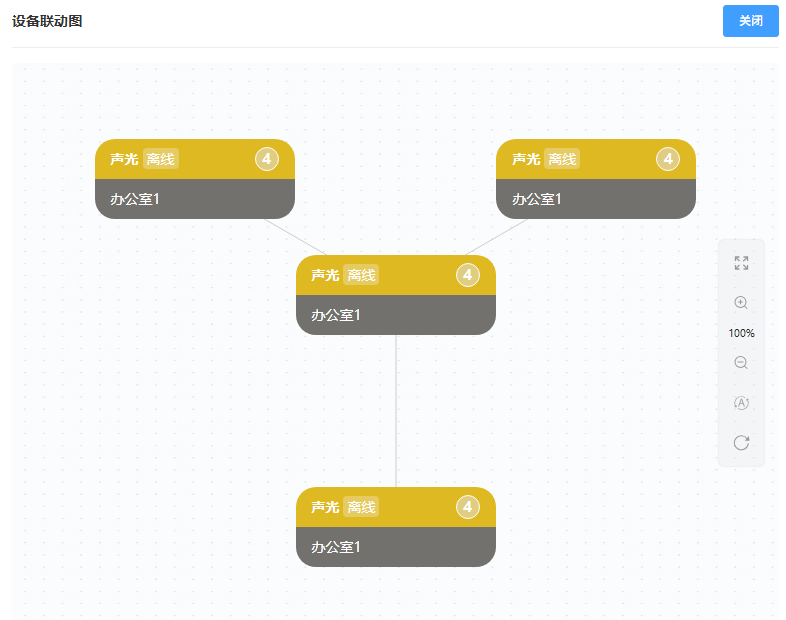

五、运行结果

因为我是Vue2项目，所以下面展示的是我在Vue2项目中的代码，可直接复制运行，需要注意的是我使用了less

<template>

    <div class="dev-linkage-diagram">

        <div class="header">

            <h3>设备联动图</h3>



        </div>

        <div class="graphRefBox">

            <RelationGraph ref="graphRef" :options="graphOptions" :on-node-click="onNodeClick" :on-line-click="onLineClick">

                <template #node="{ node }">

                    <div class="c-my-rg-node nodeBox">



                        <div class="top">

                            <div class="left">

                                <span></span>

                                <strong>声光</strong>

                                <div class="state">离线</div>

                            </div>

                            <div class="num">

                                <span>4</span>

                            </div>

                        </div>

                        <div class="bottom">

                            办公室1

                        </div>

                    </div>

                </template>

            </RelationGraph>

        </div>

    </div>

</template>



<script>

import RelationGraph from 'relation-graph'

export default {

    name: "DevLinkageDiagram",

    components: { RelationGraph },

    props: {},

    data() {

        return {

            graphOptions: {

                defaultJunctionPoint: 'border',

                allowShowDownloadButton: false,

                defaultFocusRootNode: false,

                defaultNodeWidth: 1,

                defaultNodeHeight: 1,

                defaultShowLineLabel: false,

                allowShowRefreshButton: true,



                // 这里可以参考"Graph 图谱"中的参数进行设置 https://www.relation-graph.com/#/docs/graph

            }

        };

    },

    computed: {},

    created() { },

    mounted() {

        this.showGraph()

    },

    methods: {

        showGraph() {

            const jsonData = {

                rootId: 'a',

                nodes: [

                    { id: 'a', text: 'A', },

                    { id: 'b', text: 'B', },

                    { id: 'c', text: 'C', },

                    { id: 'e', text: 'E', }

                ],

                lines: [

                    { from: 'a', to: 'b', },

                    { from: 'a', to: 'c', },

                    { from: 'a', to: 'e', },

                ]

            }

            // 以上数据中的node和link可以参考"Node节点"和"Link关系"中的参数进行配置

            this.$refs.graphRef.setJsonData(jsonData, (graphInstance) => {

                // Called when the relation-graph is completed

            })

        },

        onNodeClick(nodeObject, $event) {

            // console.log('onNodeClick:', nodeObject)

        },

        onLineClick(lineObject, $event) {

            // console.log('onLineClick:', lineObject)

        }

    },

};

</script>



<style scoped lang="less">

.dev-linkage-diagram {

    padding: 15px;

    background-color: #ffffff;

    border-radius: 4px;

    box-shadow: 0 2px 12px 0 rgba(0, 0, 0, 0.1);



    .header {

        display: flex;

        justify-content: space-between;

        align-items: center;

        margin-bottom: 15px;

        padding-bottom: 10px;

        border-bottom: 1px solid #eee;

    }



    .graphRefBox {

        height: 580px;

        background-color: #cfcece;

    }





    .rel-node-peel {

        position: relative;



        .c-my-rg-node {

            position: absolute;

            top: 50%;

            left: 50%;

            transform: translate(-50%, -50%);

        }

    }



    .nodeBox {

        width: 200px;

        border-radius: 20px;

        overflow: hidden;



        >div {

            padding: 0 16px;

        }



        .top {

            display: flex;

            justify-content: space-between;

            align-items: center;

            width: 100%;

            height: 40px;

            background-color: #deb922;



            .left {

                display: flex;

                align-items: center;

                color: #fff;



                .state {

                    padding: 1px 4px;

                    margin-left: 4px;

                    background-color: rgba(245, 245, 245, 0.3);

                    border-radius: 4px;

                }

            }



            .num {

                display: flex;

                justify-content: center;

                align-items: center;

                width: 24px;

                height: 24px;

                background-color: rgba(226, 226, 226, 0.5);

                border: 1px solid #fff;

                border-radius: 50%;

                color: #fff;

                font-weight: 700;

                font-size: 14px;

            }

        }



        .bottom {

            display: flex;

            align-items: center;

            width: 100%;

            height: 40px;

            background-color: #72716d;

            font-size: 14px;

        }

    }

}

</style>
