Qt-Advanced-Docking-System使用方法

Qt-Advanced-Docking-System开源项目，dock窗口完美布局

源码下载：
https://github.com/githubuser0xFFFF/Qt-Advanced-Docking-System

使用方法：

准备工作

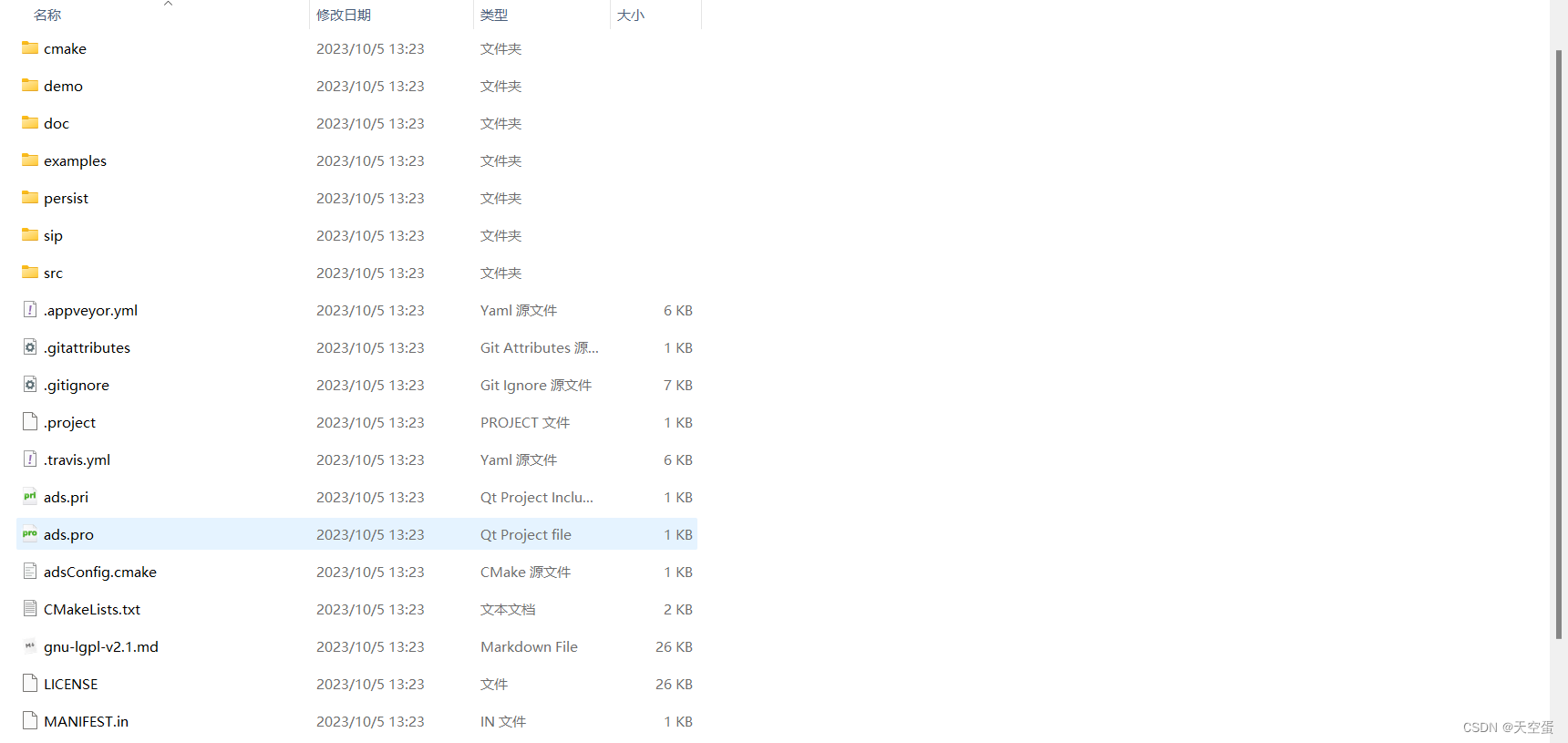

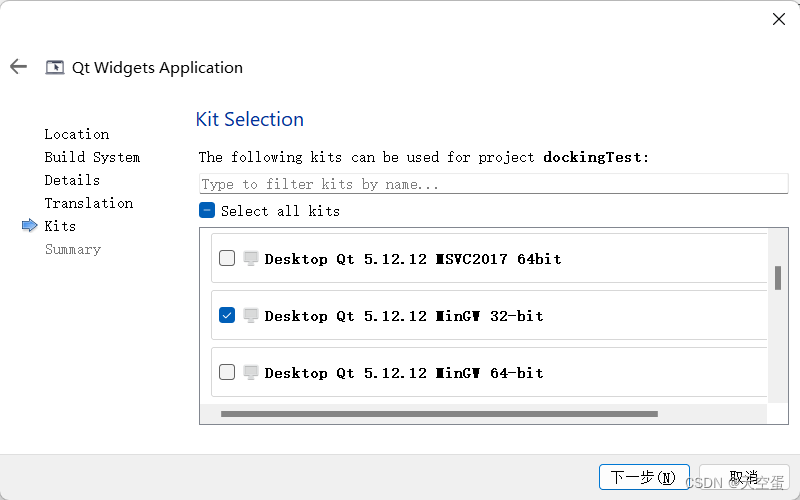

1、解压源码 Qt-Advanced-Docking-System-master ，使用Qt Creator打开 ads.pro 文件，配置我选的是 Qt 5.12.12 MinGW 32-bit 。

2、构建项目，生成debug文件夹，打开debug文件夹=>lib，这里面是一些示例，我们单独使用需要使用的是 libqtadvanceddockingd.a 和 qtadvanceddockingd.dll 两个文件

3、将源码目录src文件夹 中的头文件提取出来单独放在一个文件夹中（注意这里不是构建生成的debug目录中的src文件夹 ）

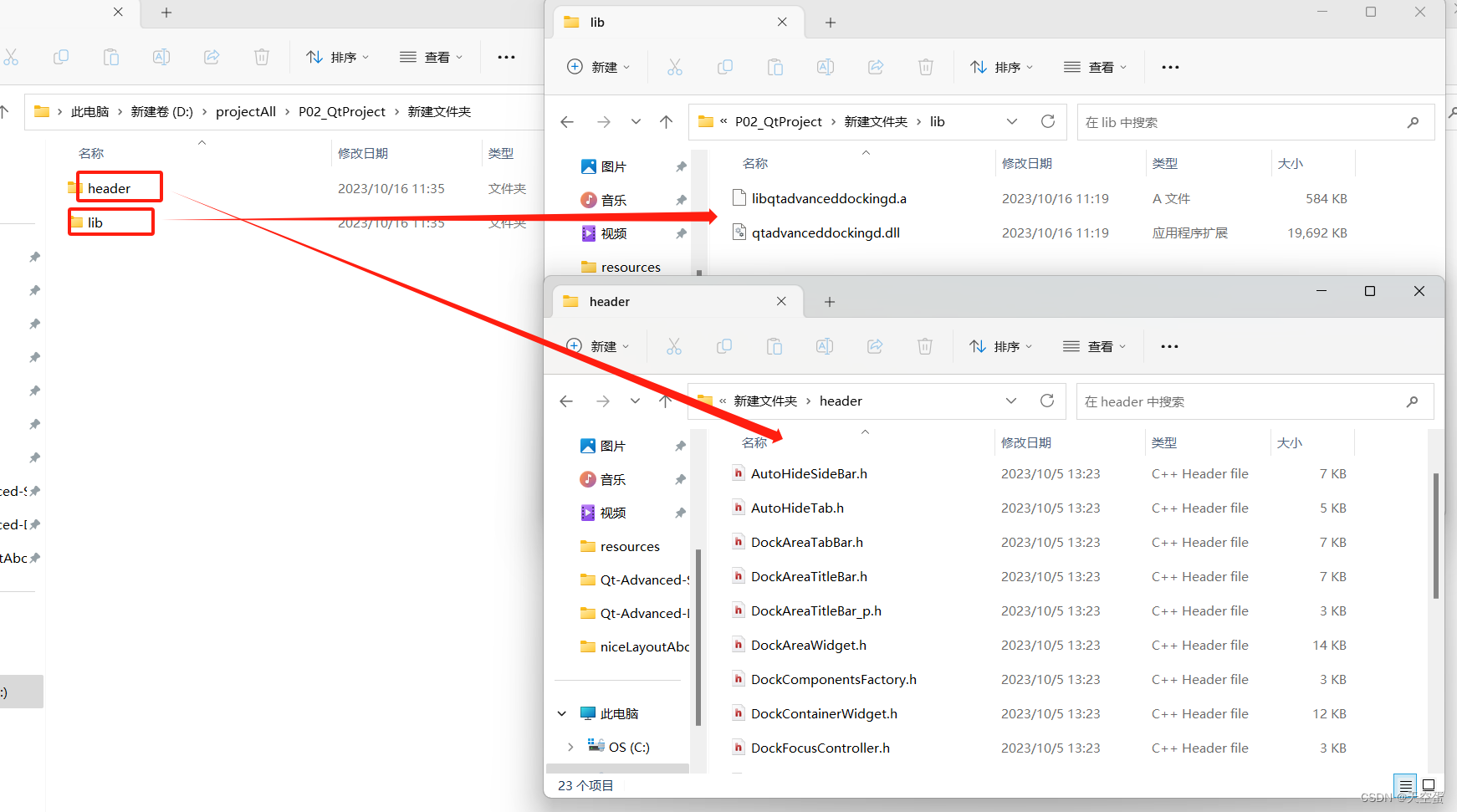

4、以上是一些准备工作，总结一下就是需要得到以下的文件。

示例使用

本示例使用的是Qt-Advanced-Docking-System中，examples文件夹=>emptydockarea项目示例

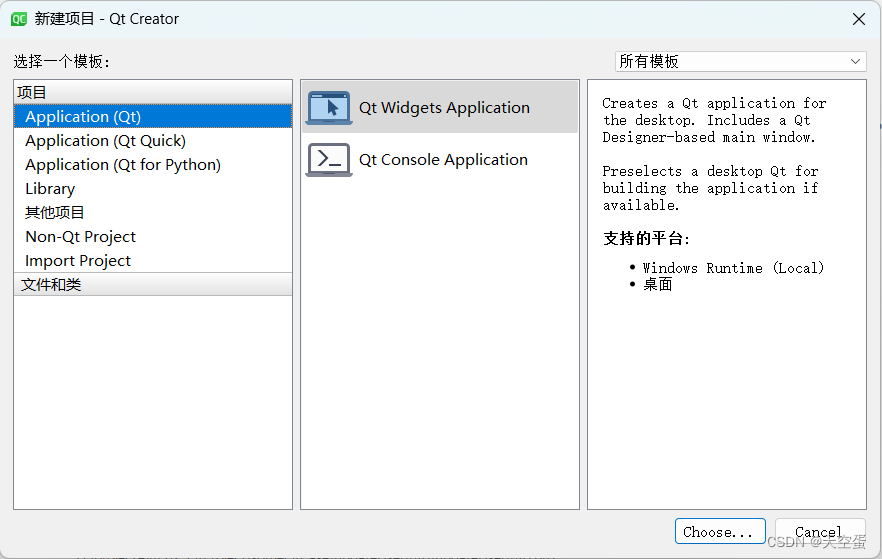

1、新建qt项目，项目名为 dockingTest (项目名随心取)

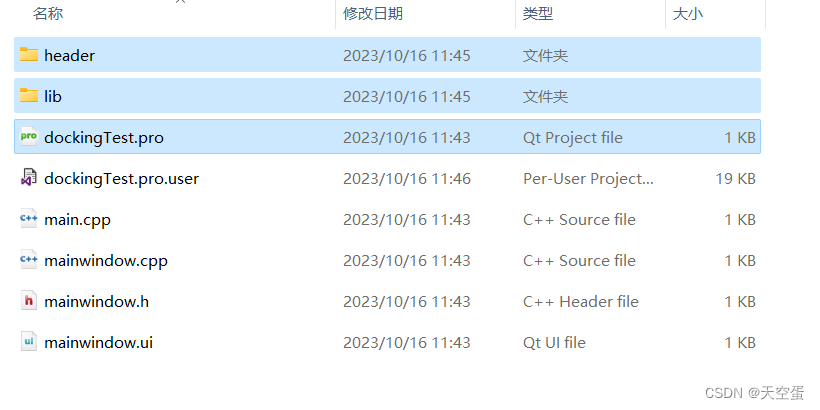

2、将准备工作得到的 header文件夹 和 lib文件夹 复制到 dockingTest.pro 的同级目录下

3、在 dockingTest.pro 中添加以下语句

win32: LIBS += -L$$PWD/lib -lqtadvanceddockingd

INCLUDEPATH += $$PWD/header
DEPENDPATH += $$PWD/header

如图：

4、mainwindow.h

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QMainWindow>
#include <QComboBox>
#include <QWidgetAction>

#include "DockManager.h"
#include "DockAreaWidget.h"
#include "DockWidget.h"

QT_BEGIN_NAMESPACE
namespace Ui { class MainWindow; }
QT_END_NAMESPACE

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    MainWindow(QWidget *parent = nullptr);
    ~MainWindow();

protected:
    virtual void closeEvent(QCloseEvent* event) override;

private:
    Ui::MainWindow *ui;

    QAction* SavePerspectiveAction = nullptr;
    QWidgetAction* PerspectiveListAction = nullptr;
    QComboBox* PerspectiveComboBox = nullptr;

    ads::CDockManager* DockManager;
    ads::CDockAreaWidget* StatusDockArea;
    ads::CDockWidget* TimeLineDockWidget;

    void createPerspectiveUi();

private slots:
    void savePerspective();
};
#endif // MAINWINDOW_H

5、mainwindow.cpp

#include "mainwindow.h"
#include "ui_mainwindow.h"

#include <QWidgetAction>
#include <QLabel>
#include <QCalendarWidget>
#include <QTreeView>
#include <QFileSystemModel>
#include <QTableWidget>
#include <QHBoxLayout>
#include <QRadioButton>
#include <QPushButton>
#include <QInputDialog>
#include <QFileDialog>
#include <QSettings>
#include <QMessageBox>
#include <QPlainTextEdit>
#include <QToolBar>

#include "DockAreaWidget.h"
#include "DockAreaTitleBar.h"
#include "DockAreaTabBar.h"
#include "FloatingDockContainer.h"
#include "DockComponentsFactory.h"
#include "DockManager.h"

using namespace ads;

MainWindow::MainWindow(QWidget *parent)
    : QMainWindow(parent)
    , ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    CDockManager::setConfigFlag(CDockManager::OpaqueSplitterResize,true);
    CDockManager::setConfigFlag(CDockManager::XmlCompressionEnabled,false);
    CDockManager::setConfigFlag(CDockManager::FocusHighlighting,true);
    DockManager = new CDockManager(this);

    QLabel* label = new QLabel();
    label->setText("this is a dockarea which is always visible, even if it does not contain any dockwidgets.");
    label->setAlignment(Qt::AlignCenter);
    CDockWidget* CentralDockWidget = new CDockWidget("CentralWidget");
    CentralDockWidget->setWidget(label);
    CentralDockWidget->setFeature(ads::CDockWidget::NoTab,true);
    auto* CentralDockArea = DockManager->setCentralWidget(CentralDockWidget);

    QTableWidget* table = new QTableWidget();
    table->setColumnCount(3);
    table->setRowCount(10);
    CDockWidget* TableDockWidget = new CDockWidget("Table 1");
    TableDockWidget->setWidget(table);
    TableDockWidget->setMinimumSizeHintMode(CDockWidget::MinimumSizeHintFromDockWidget);
    TableDockWidget->resize(250,150);
    TableDockWidget->setMinimumSize(200,150);
    DockManager->addDockWidgetTabToArea(TableDockWidget,CentralDockArea);
    auto TableArea = DockManager->addDockWidget(DockWidgetArea::LeftDockWidgetArea,TableDockWidget);
    ui->menuView->addAction(TableDockWidget->toggleViewAction());

    table = new QTableWidget();
    table->setColumnCount(5);
    table->setRowCount(200);
    TableDockWidget = new CDockWidget("Table 2");
    TableDockWidget->setWidget(table);
    TableDockWidget->setMinimumSizeHintMode(CDockWidget::MinimumSizeHintFromDockWidget);
    TableDockWidget->resize(250,150);
    TableDockWidget->setMinimumSize(200,150);
    DockManager->addDockWidget(DockWidgetArea::BottomDockWidgetArea,TableDockWidget,TableArea);
    ui->menuView->addAction(TableDockWidget->toggleViewAction());

    QTableWidget* propertiesTable = new QTableWidget();
    propertiesTable->setColumnCount(50);
    propertiesTable->setRowCount(100);
    CDockWidget* PropertiesDockWidget = new CDockWidget("Properties");
    PropertiesDockWidget->setWidget(propertiesTable);
    PropertiesDockWidget->setMinimumSizeHintMode(CDockWidget::MinimumSizeHintFromDockWidget);
    PropertiesDockWidget->resize(250,150);
    PropertiesDockWidget->setMinimumSize(200,150);
    DockManager->addDockWidget(DockWidgetArea::RightDockWidgetArea,PropertiesDockWidget,CentralDockArea);
    ui->menuView->addAction(PropertiesDockWidget->toggleViewAction());

    createPerspectiveUi();
}

MainWindow::~MainWindow()
{
    delete ui;
}

void MainWindow::createPerspectiveUi(){
    SavePerspectiveAction = new QAction("Create Perspective", this);
    connect(SavePerspectiveAction,SIGNAL(triggered()),SLOT(savePerspective()));
    PerspectiveListAction = new QWidgetAction(this);
    PerspectiveComboBox = new QComboBox(this);
    PerspectiveComboBox->setSizeAdjustPolicy(QComboBox::AdjustToContents);
    PerspectiveComboBox->setSizePolicy(QSizePolicy::Preferred,QSizePolicy::Preferred);

    connect(PerspectiveComboBox,SIGNAL(activated(const QString&)),DockManager,SLOT(openPerspective(const QString&)));

    PerspectiveListAction->setDefaultWidget(PerspectiveComboBox);
    ui->toolBar->addSeparator();
    ui->toolBar->addAction(PerspectiveListAction);
    ui->toolBar->addAction(SavePerspectiveAction);
}

void MainWindow::savePerspective(){
    QString PerspectiveName = QInputDialog::getText(this,"save perspective", "enter unique name: ");
    if(PerspectiveName.isEmpty()){
        return;
    }
    DockManager->addPerspective(PerspectiveName);
    QSignalBlocker Blocker(PerspectiveComboBox);
    PerspectiveComboBox->clear();
    PerspectiveComboBox->addItems(DockManager->perspectiveNames());
    PerspectiveComboBox->setCurrentText(PerspectiveName);
}

void MainWindow::closeEvent(QCloseEvent* event)
{

    DockManager->deleteLater();
    QMainWindow::closeEvent(event);
}

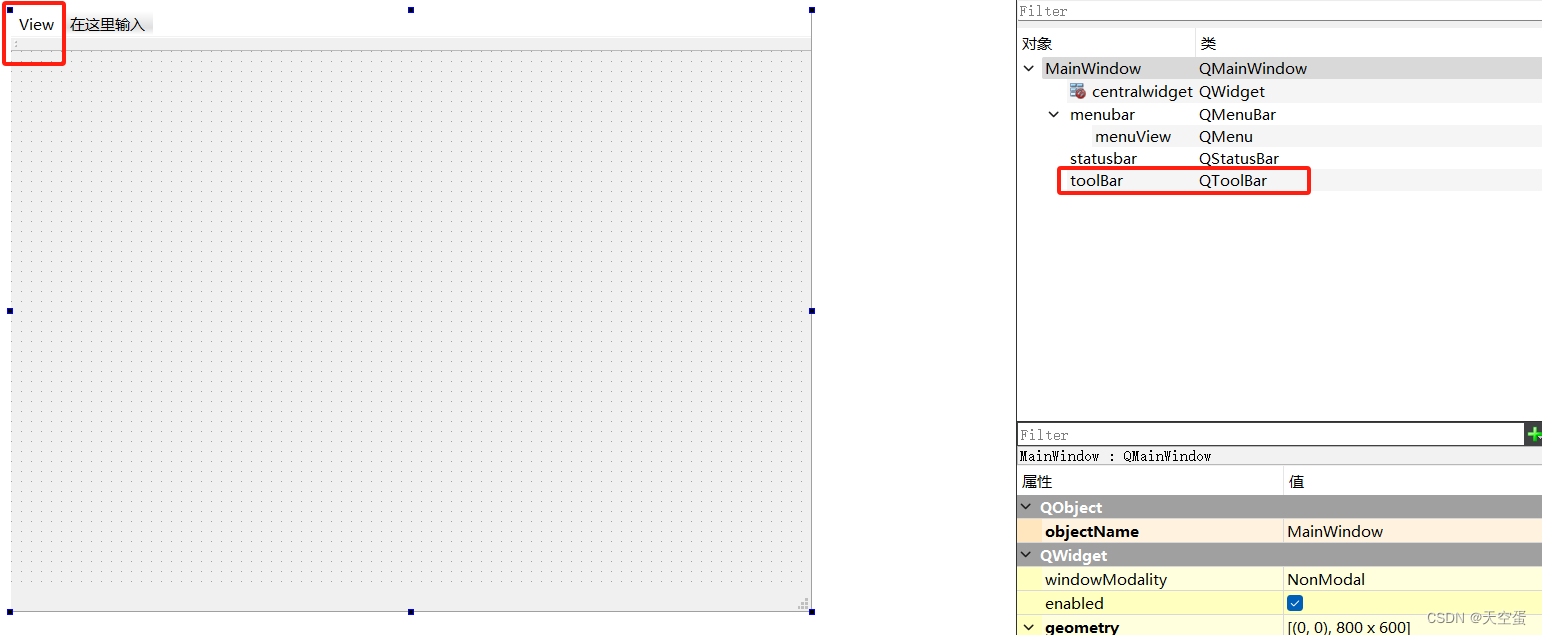

6、mainwindow.ui

7、运行结果
