一、创建权限表，生成基础代码

-- init.sys_menu_authority definition

CREATE TABLE `sys_menu_authority` (
  `id` bigint NOT NULL AUTO_INCREMENT,
  `name` varchar(64) DEFAULT NULL COMMENT '权限名称',
  `cascade_code` varchar(256) DEFAULT NULL COMMENT '层级全路径 示例 1#2#3',
  `parent_id` bigint DEFAULT NULL COMMENT '父权限id',
  `level` int NOT NULL COMMENT '级别从1开始',
  `permission_code` varchar(64) DEFAULT NULL COMMENT '权限编码字符串',
  `sort` int DEFAULT NULL COMMENT '排序',
  `button_flag` tinyint DEFAULT NULL COMMENT '是否是按钮 0：菜单 1：按钮',
  `create_time` datetime DEFAULT NULL COMMENT '创建时间',
  `delete_flag` tinyint DEFAULT '0' COMMENT ' 是否删除 0否 1是 ',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=312 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci ROW_FORMAT=DYNAMIC COMMENT='菜单权限表';


-- init.sys_role definition

CREATE TABLE `sys_role` (
  `id` bigint NOT NULL AUTO_INCREMENT,
  `role_name` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci DEFAULT NULL COMMENT '名称',
  `role_type` tinyint DEFAULT NULL COMMENT '1是系统用户 2 普通用户',
  `permission` json DEFAULT NULL COMMENT '角色权限',
  `remark` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci DEFAULT NULL COMMENT '描述',
  `create_by` bigint NOT NULL COMMENT '创建人',
  `update_by` bigint NOT NULL COMMENT '修改人',
  `create_time` datetime NOT NULL COMMENT '创建时间',
  `update_time` datetime NOT NULL COMMENT '修改时间',
  `delete_flag` tinyint NOT NULL DEFAULT '0' COMMENT ' 是否删除 0否 1是',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci ROW_FORMAT=COMPACT COMMENT='角色表';


-- init.sys_role_authority definition

CREATE TABLE `sys_role_authority` (
  `id` bigint NOT NULL AUTO_INCREMENT,
  `role_id` bigint DEFAULT NULL COMMENT '角色id',
  `authority_id` bigint DEFAULT NULL COMMENT '菜单权限id',
  `update_time` datetime DEFAULT NULL COMMENT '更新时间',
  `create_time` datetime DEFAULT NULL COMMENT '创建时间',
  `create_by` bigint DEFAULT NULL COMMENT '创建人',
  `update_by` bigint DEFAULT NULL COMMENT '更新人',
  `delete_flag` tinyint DEFAULT '0' COMMENT '是否删除 0否 1是',
  PRIMARY KEY (`id`) USING BTREE,
  KEY `index_role_id` (`role_id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=24600 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci ROW_FORMAT=DYNAMIC COMMENT='角色权限表';


-- init.sys_user_role definition

CREATE TABLE `sys_user_role` (
  `id` bigint unsigned NOT NULL AUTO_INCREMENT COMMENT '主键Id',
  `user_id` bigint unsigned DEFAULT NULL COMMENT '用户主键Id',
  `user_type` tinyint unsigned DEFAULT NULL COMMENT '用户类型：1是系统用户 2 普通用户',
  `dept_id` bigint unsigned NOT NULL COMMENT '部门id',
  `dept_name` varchar(100) COLLATE utf8mb4_general_ci DEFAULT NULL COMMENT '部门名称',
  `role_id` bigint unsigned DEFAULT NULL COMMENT '角色主键Id',
  `create_by` bigint NOT NULL COMMENT '创建人',
  `update_by` bigint NOT NULL COMMENT '更新人',
  `create_time` datetime NOT NULL COMMENT '创建时间',
  `update_time` datetime NOT NULL COMMENT '更新时间',
  `delete_flag` tinyint unsigned NOT NULL DEFAULT '0' COMMENT '是否删除 0否 1是 ',
  PRIMARY KEY (`id`) USING BTREE,
  KEY `index_user_id` (`user_id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci ROW_FORMAT=COMPACT COMMENT='用户角色表';

INSERT INTO init.sys_menu_authority
(id, name, cascade_code, parent_id, `level`, permission_code, sort, button_flag, create_time, delete_flag)
VALUES(1, '系统管理', '1', 0, 1, NULL, 3, 0, '2022-03-03 14:44:17', 0);
INSERT INTO init.sys_menu_authority
(id, name, cascade_code, parent_id, `level`, permission_code, sort, button_flag, create_time, delete_flag)
VALUES(2, '角色管理', '1#2', 1, 2, NULL, 1, 0, '2022-03-03 14:44:17', 0);
INSERT INTO init.sys_menu_authority
(id, name, cascade_code, parent_id, `level`, permission_code, sort, button_flag, create_time, delete_flag)
VALUES(3, '人员管理', '1#3', 1, 2, NULL, 2, 0, '2022-03-03 14:44:17', 0);
INSERT INTO init.sys_menu_authority
(id, name, cascade_code, parent_id, `level`, permission_code, sort, button_flag, create_time, delete_flag)
VALUES(4, '添加、编辑', '1#2#4', 2, 3, NULL, 1, 1, '2022-03-03 14:44:17', 0);
INSERT INTO init.sys_menu_authority
(id, name, cascade_code, parent_id, `level`, permission_code, sort, button_flag, create_time, delete_flag)
VALUES(5, '删除', '1#2#5', 2, 3, NULL, 2, 1, '2022-03-03 14:44:17', 0);
INSERT INTO init.sys_menu_authority
(id, name, cascade_code, parent_id, `level`, permission_code, sort, button_flag, create_time, delete_flag)
VALUES(6, '添加', '1#3#6', 3, 3, NULL, 1, 1, '2022-03-03 14:44:17', 0);
INSERT INTO init.sys_menu_authority
(id, name, cascade_code, parent_id, `level`, permission_code, sort, button_flag, create_time, delete_flag)
VALUES(7, '设置角色', '1#3#7', 3, 3, NULL, 2, 1, '2022-03-03 14:44:17', 0);
INSERT INTO init.sys_menu_authority
(id, name, cascade_code, parent_id, `level`, permission_code, sort, button_flag, create_time, delete_flag)
VALUES(8, '删除', '1#3#8', 3, 3, NULL, 3, 1, '2022-03-03 14:44:17', 0);

INSERT INTO init.sys_role
(id, role_name, role_type, permission, remark, create_by, update_by, create_time, update_time, delete_flag)
VALUES(1, '超级管理员', 0, '[{"code": "REGULAR:WORK_GROUP", "message": "工作组"}, {"code": "REGULAR:OUTSOURCING_USER", "message": "外协人员名单"}, {"code": "REGULAR:PUNCH_RECORD", "message": "打卡记录"}, {"code": "REGULAR:PUNCH_SUMMARY", "message": "打卡汇总"}, {"code": "ADMIN:PUNCH_CONFIG", "message": "打卡设置"}, {"code": "ADMIN:ROLE_MANAGE", "message": "角色管理"}, {"code": "ADMIN:USER_MANAGE", "message": "用户管理"}]', '超级管理员', 0, 0, '2021-12-31 00:00:00', '2021-12-31 00:00:00', 0);

INSERT INTO init.sys_role_authority
(id, role_id, authority_id, update_time, create_time, create_by, update_by, delete_flag)
VALUES(24569, 1, 1, '2022-03-03 15:29:42', '2022-03-03 15:29:38', 0, 0, 0);
INSERT INTO init.sys_role_authority
(id, role_id, authority_id, update_time, create_time, create_by, update_by, delete_flag)
VALUES(24570, 1, 2, '2022-03-03 15:29:42', '2022-03-03 15:29:38', 0, 0, 0);
INSERT INTO init.sys_role_authority
(id, role_id, authority_id, update_time, create_time, create_by, update_by, delete_flag)
VALUES(24571, 1, 3, '2022-03-03 15:29:42', '2022-03-03 15:29:38', 0, 0, 0);
INSERT INTO init.sys_role_authority
(id, role_id, authority_id, update_time, create_time, create_by, update_by, delete_flag)
VALUES(24572, 1, 4, '2022-03-03 15:29:42', '2022-03-03 15:29:38', 0, 0, 0);
INSERT INTO init.sys_role_authority
(id, role_id, authority_id, update_time, create_time, create_by, update_by, delete_flag)
VALUES(24573, 1, 5, '2022-03-03 15:29:42', '2022-03-03 15:29:38', 0, 0, 0);
INSERT INTO init.sys_role_authority
(id, role_id, authority_id, update_time, create_time, create_by, update_by, delete_flag)
VALUES(24574, 1, 6, '2022-03-03 15:29:42', '2022-03-03 15:29:38', 0, 0, 0);
INSERT INTO init.sys_role_authority
(id, role_id, authority_id, update_time, create_time, create_by, update_by, delete_flag)
VALUES(24575, 1, 7, '2022-03-03 15:29:42', '2022-03-03 15:29:38', 0, 0, 0);
INSERT INTO init.sys_role_authority
(id, role_id, authority_id, update_time, create_time, create_by, update_by, delete_flag)
VALUES(24576, 1, 8, '2022-03-03 15:29:42', '2022-03-03 15:29:38', 0, 0, 0);

INSERT INTO init.sys_user_role
(id, user_id, user_type, dept_id, dept_name, role_id, create_by, update_by, create_time, update_time, delete_flag)
VALUES(1, 1, 0, 1, '中华人民共和国', 1, 1, 1, '2021-12-31 00:00:00', '2021-12-31 00:00:00', 0);

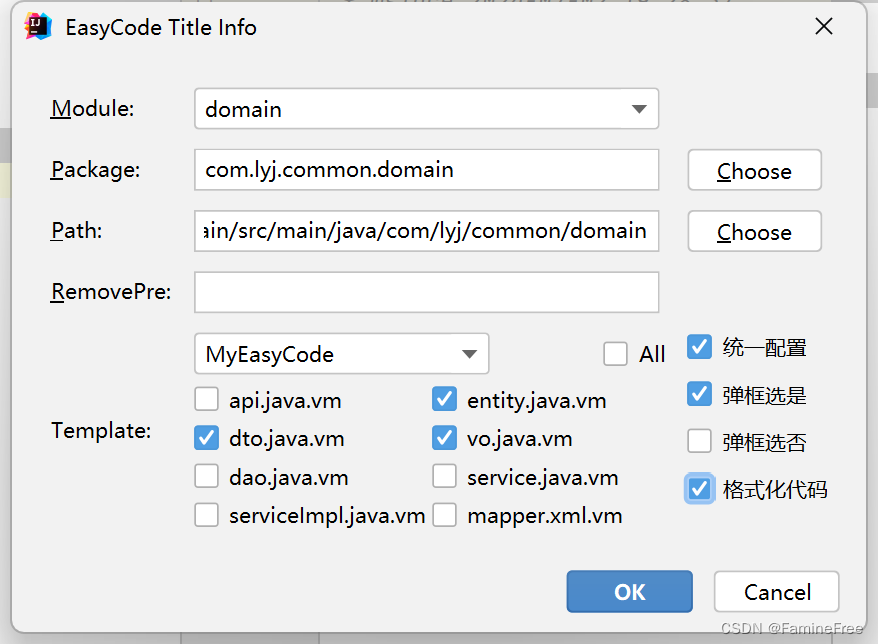

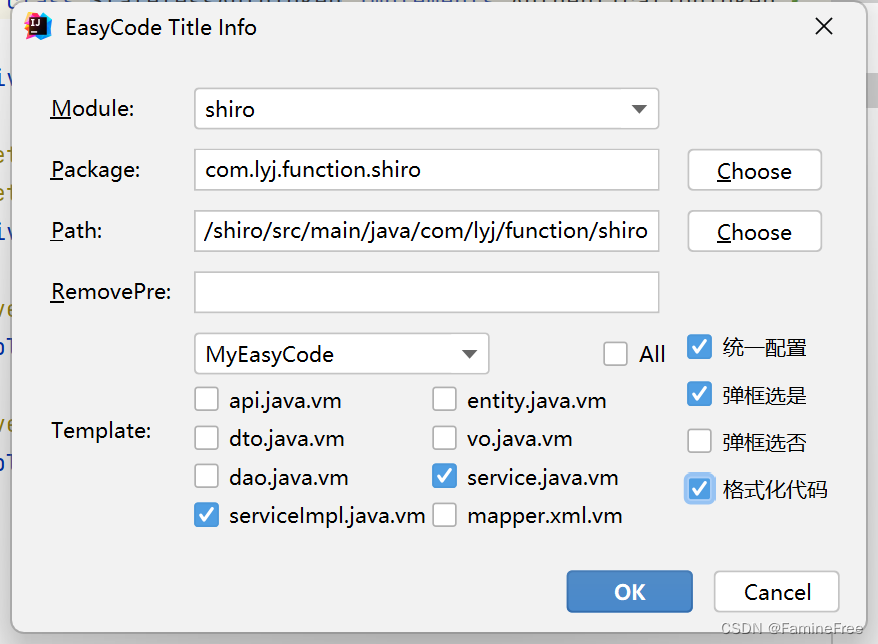

生成代码

二、spring boot整合shiro

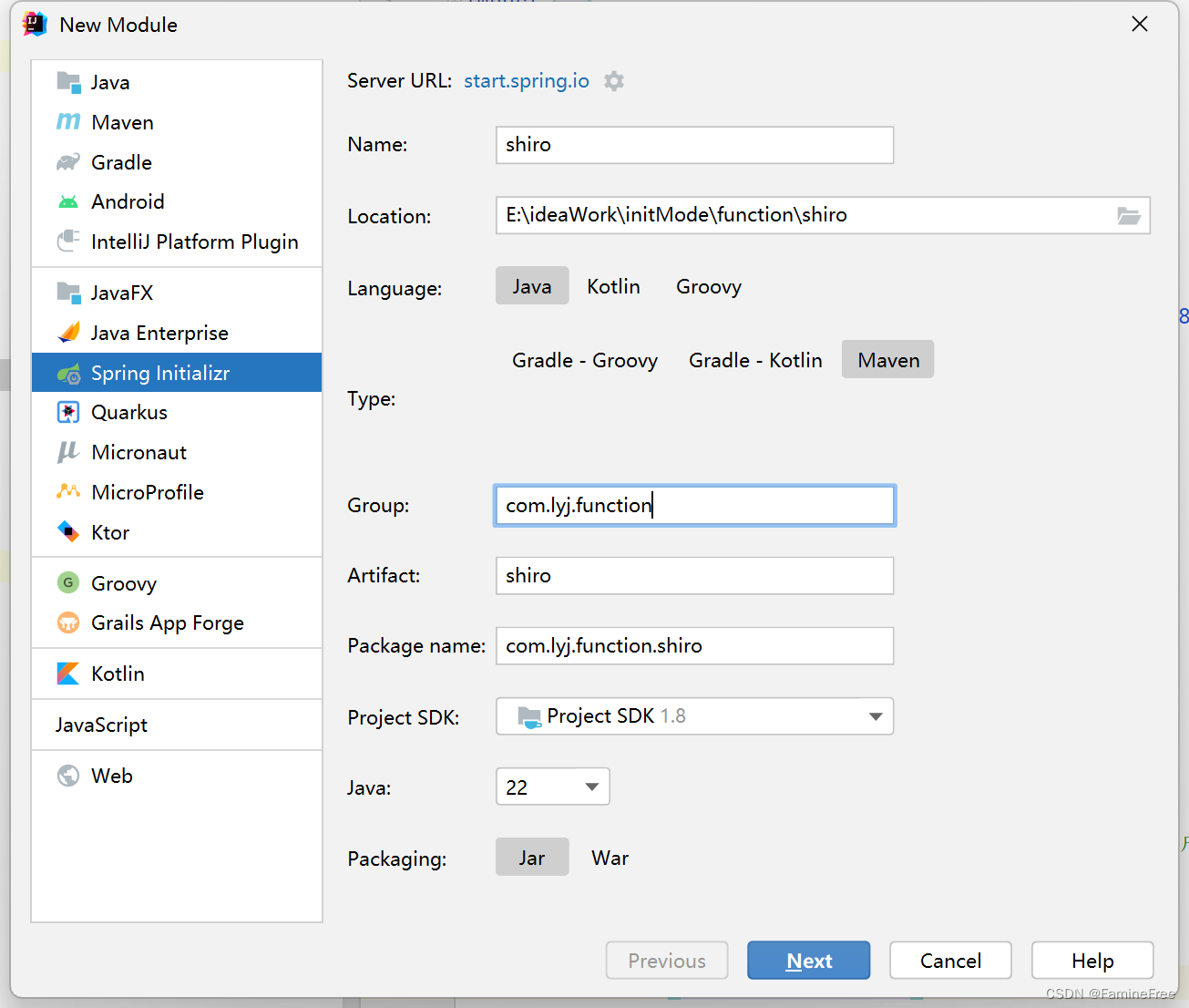

2.1创建权限管理功能模块（shiro）

2.2引入依赖pom.xml(shiro)

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.lyj.initMode</groupId>
        <artifactId>initMode-function</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>initMode-function-shiro</artifactId>

    <description>权限管理功能模块</description>

    <dependencies>
        <dependency>
            <groupId>com.lyj.initMode</groupId>
            <artifactId>initMode-function-mysql</artifactId>
        </dependency>
        <dependency>
            <groupId>com.lyj.initMode</groupId>
            <artifactId>initMode-function-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>com.lyj.initMode</groupId>
            <artifactId>initMode-common-base</artifactId>
        </dependency>

        <!--shiro-->
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-spring</artifactId>
        </dependency>
        <!--jjwt工具类 生成、解析和校验Json Web Token-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-jackson</artifactId>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-api</artifactId>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-impl</artifactId>
        </dependency>
    </dependencies>

</project>

pom.xml(initMode)


        <!--shiro 安全认证框架-->
        <shiro.verison>1.6.0</shiro.verison>
        <!--jjwt工具类 生成、解析和校验Json Web Token-->
        <jjwt.version>0.11.2</jjwt.version>


            <dependency>
                <groupId>com.lyj.initMode</groupId>
                <artifactId>initMode-function-shiro</artifactId>
                <version>${project.version}</version>
            </dependency>

            <dependency>
                <groupId>org.apache.shiro</groupId>
                <artifactId>shiro-spring</artifactId>
                <version>${shiro.verison}</version>
            </dependency>
            <dependency>
                <groupId>io.jsonwebtoken</groupId>
                <artifactId>jjwt-jackson</artifactId>
                <version>${jjwt.version}</version>
            </dependency>
            <dependency>
                <groupId>io.jsonwebtoken</groupId>
                <artifactId>jjwt-api</artifactId>
                <version>${jjwt.version}</version>
            </dependency>
            <dependency>
                <groupId>io.jsonwebtoken</groupId>
                <artifactId>jjwt-impl</artifactId>
                <version>${jjwt.version}</version>
            </dependency>

pom.xml(function)

<module>shiro</module>

2.3配置shiro

LoginTypeEnum.java(base)

package com.lyj.common.base.enums;

import lombok.Getter;

/**
 * 登录方式枚举
 */
@Getter
public enum LoginTypeEnum {

    /**
     * 登录方式
     */
    PC_LOGIN("PC", "PC端登录"),
    APP_LOGIN("APP", "APP/小程序端登录");

    /**
     * 登录方式码
     */
    private final String code;
    /**
     * 登录方式描述
     */
    private final String message;

    LoginTypeEnum(String code, String message) {
        this.code = code;
        this.message = message;
    }

    public static LoginTypeEnum getByCode(String code){
        for (LoginTypeEnum type: LoginTypeEnum.values()){
            if(type.getCode().equals(code)){
                return type;
            }
        }
        return null;
    }
}

AdminFlagEnum.java(base)

package com.lyj.service.enums;

import lombok.Getter;

/**
 * 管理员枚举
 */
@Getter
public enum AdminFlagEnum {

    /**
     * 管理员标记
     */
    NO(0, "非管理员"),
    YES(1, "管理员");

    private final Integer code;
    private final String message;

    AdminFlagEnum(Integer code, String message) {
        this.code = code;
        this.message = message;
    }
}

SecurityConstant.java(base)

package com.lyj.service.constant;

/**
 * Shiro常量池
 */
public class SecurityConstant {

    private SecurityConstant() {
    }

    /**
     * anon字符串
     */
    public static final String ANON_TAG = "anon";
    /**
     * logout字符串
     */
    public static final String LOGOUT_TAG = "logout";
    /**
     * token字符串
     */
    public static final String TOKEN_TAG = "token";
    /**
     * token请求头字段码
     */
    public static final String HEADER_KEY_AUTH_TOKEN = "Authorization";
    /**
     * 用户认证信息 key
     */
    public static final String USER_AUTH_INFO_KEY = "USER_AUTH_INFO_KEY";
    /**
     * 用户ID key
     */
    public static final String USER_ID_KEY = "USER_ID_KEY";
    /**
     * 用户账号 key
     */
    public static final String USER_ACCOUNT_KEY = "USER_ACCOUNT_KEY";
    /**
     * 用户名 key
     */
    public static final String USER_NAME_KEY = "USER_NAME_KEY";
    /**
     * 用户部门ID key
     */
    public static final String USER_DEPT_ID_K
