推荐系统-协同过滤之电影推荐



Introduction

This example demonstrates Collaborative filtering using the Movielens dataset(https://www.kaggle.com/c/movielens-100k) to recommend movies to users. The MovieLens ratings dataset lists the ratings given by a set of users to a set of movies. Our goal is to be able to predict ratings for movies a user has not yet watched. The movies with the highest predicted ratings can then be recommended to the user.

模型构建步骤：

1. Map user ID to a "user vector" via an embedding matrix
2. Map movie ID to a "movie vector" via an embedding matrix
3. Compute the dot product between the user vector and movie vector, to obtain the a match score between the user and the movie (predicted rating).
4. Train the embeddings via gradient descent using all known user-movie pairs.

参考(References):

• Collaborative Filtering
• Neural Collaborative Filtering

import pandas as pd
import numpy as np
from zipfile import ZipFile
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import layers
from pathlib import Path
import matplotlib.pyplot as plt

---

第一步，下载数据集并预处理

# Download the actual data from http://files.grouplens.org/datasets/movielens/ml-latest-small.zip"
# Use the ratings.csv file
movielens_data_file_url = (
    "http://files.grouplens.org/datasets/movielens/ml-latest-small.zip"
)
movielens_zipped_file = keras.utils.get_file(
    "ml-latest-small.zip", movielens_data_file_url, extract=False
)
keras_datasets_path = Path(movielens_zipped_file).parents[0]
movielens_dir = keras_datasets_path / "ml-latest-small"

# Only extract the data the first time the script is run.
if not movielens_dir.exists():
    with ZipFile(movielens_zipped_file, "r") as zip:
        # Extract files
        print("Extracting all the files now...")
        zip.extractall(path=keras_datasets_path)
        print("Done!")

ratings_file = movielens_dir / "ratings.csv"
df = pd.read_csv(ratings_file)

首先，需要执行一些预处理，将用户和电影编码为int.

user_ids = df["userId"].unique().tolist()
user2user_encoded = {x: i for i, x in enumerate(user_ids)}
userencoded2user = {i: x for i, x in enumerate(user_ids)}
movie_ids = df["movieId"].unique().tolist()
movie2movie_encoded = {x: i for i, x in enumerate(movie_ids)}
movie_encoded2movie = {i: x for i, x in enumerate(movie_ids)}
df["user"] = df["userId"].map(user2user_encoded)
df["movie"] = df["movieId"].map(movie2movie_encoded)

num_users = len(user2user_encoded)
num_movies = len(movie_encoded2movie)
df["rating"] = df["rating"].values.astype(np.float32)
# min and max ratings will be used to normalize the ratings later
min_rating = min(df["rating"])
max_rating = max(df["rating"])

print(
    "Number of users: {}, Number of Movies: {}, Min rating: {}, Max rating: {}".format(
        num_users, num_movies, min_rating, max_rating
    )
)

Number of users: 610, Number of Movies: 9724, Min rating: 0.5, Max rating: 5.0

准备数据训练与验证数据

df = df.sample(frac=1, random_state=42)
x = df[["user", "movie"]].values
# Normalize the targets between 0 and 1. Makes it easy to train.
y = df["rating"].apply(lambda x: (x - min_rating) / (max_rating - min_rating)).values
# Assuming training on 90% of the data and validating on 10%.
train_indices = int(0.9 * df.shape[0])
x_train, x_val, y_train, y_val = (
    x[:train_indices],
    x[train_indices:],
    y[:train_indices],
    y[train_indices:],
)

---

创建模型

把user和movies嵌入到50维向量中。

模型通过user.movie的点积计算一个分值S，然后再加上每个电影、用户的Bias.

分值S通过sigmoid函数归一化到[0,1]

EMBEDDING_SIZE = 50


class RecommenderNet(keras.Model):
    def __init__(self, num_users, num_movies, embedding_size, **kwargs):
        super(RecommenderNet, self).__init__(**kwargs)
        self.num_users = num_users
        self.num_movies = num_movies
        self.embedding_size = embedding_size
        self.user_embedding = layers.Embedding(
            num_users,
            embedding_size,
            embeddings_initializer="he_normal",
            embeddings_regularizer=keras.regularizers.l2(1e-6),
        )
        self.user_bias = layers.Embedding(num_users, 1)
        self.movie_embedding = layers.Embedding(
            num_movies,
            embedding_size,
            embeddings_initializer="he_normal",
            embeddings_regularizer=keras.regularizers.l2(1e-6),
        )
        self.movie_bias = layers.Embedding(num_movies, 1)

    def call(self, inputs):
        user_vector = self.user_embedding(inputs[:, 0])
        user_bias = self.user_bias(inputs[:, 0])
        movie_vector = self.movie_embedding(inputs[:, 1])
        movie_bias = self.movie_bias(inputs[:, 1])
        dot_user_movie = tf.tensordot(user_vector, movie_vector, 2)
        # Add all the components (including bias)
        x = dot_user_movie + user_bias + movie_bias
        # The sigmoid activation forces the rating to between 0 and 1
        return tf.nn.sigmoid(x)


model = RecommenderNet(num_users, num_movies, EMBEDDING_SIZE)
model.compile(
    loss=tf.keras.losses.BinaryCrossentropy(), optimizer=keras.optimizers.Adam(lr=0.001)
)

基于拆分的数据进行训练

history = model.fit(
    x=x_train,
    y=y_train,
    batch_size=64,
    epochs=5,
    verbose=1,
    validation_data=(x_val, y_val),
)

Epoch 1/5
1418/1418 [==============================] - 6s 4ms/step - loss: 0.6368 - val_loss: 0.6206
Epoch 2/5
1418/1418 [==============================] - 7s 5ms/step - loss: 0.6131 - val_loss: 0.6176
Epoch 3/5
1418/1418 [==============================] - 6s 4ms/step - loss: 0.6083 - val_loss: 0.6146
Epoch 4/5
1418/1418 [==============================] - 6s 4ms/step - loss: 0.6072 - val_loss: 0.6131
Epoch 5/5
1418/1418 [==============================] - 6s 4ms/step - loss: 0.6075 - val_loss: 0.6150

---

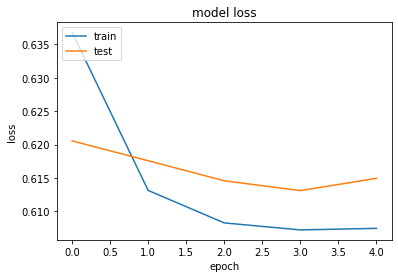

画出训练与验证loss

plt.plot(history.history["loss"])
plt.plot(history.history["val_loss"])
plt.title("model loss")
plt.ylabel("loss")
plt.xlabel("epoch")
plt.legend(["train", "test"], loc="upper left")
plt.show()

loss图如下：

---

下面展示推荐给用户的 10 movie结果

movie_df = pd.read_csv(movielens_dir / "movies.csv")

# Let us get a user and see the top recommendations.
user_id = df.userId.sample(1).iloc[0]
movies_watched_by_user = df[df.userId == user_id]
movies_not_watched = movie_df[
    ~movie_df["movieId"].isin(movies_watched_by_user.movieId.values)
]["movieId"]
movies_not_watched = list(
    set(movies_not_watched).intersection(set(movie2movie_encoded.keys()))
)
movies_not_watched = [[movie2movie_encoded.get(x)] for x in movies_not_watched]
user_encoder = user2user_encoded.get(user_id)
user_movie_array = np.hstack(
    ([[user_id]] * len(movies_not_watched), movies_not_watched)
)
ratings = model.predict(user_movie_array).flatten()
top_ratings_indices = ratings.argsort()[-10:][::-1]
recommended_movie_ids = [
    movie_encoded2movie.get(movies_not_watched[x][0]) for x in top_ratings_indices
]

print("Showing recommendations for user: {}".format(user_id))
print("====" * 9)
print("Movies with high ratings from user")
print("----" * 8)
top_movies_user = (
    movies_watched_by_user.sort_values(by="rating", ascending=False)
    .head(5)
    .movieId.values
)
movie_df_rows = movie_df[movie_df["movieId"].isin(top_movies_user)]
for row in movie_df_rows.itertuples():
    print(row.title, ":", row.genres)

print("----" * 8)
print("Top 10 movie recommendations")
print("----" * 8)
recommended_movies = movie_df[movie_df["movieId"].isin(recommended_movie_ids)]
for row in recommended_movies.itertuples():
    print(row.title, ":", row.genres)

 结果如下：

Showing recommendations for user: 474
====================================
Movies with high ratings from user
--------------------------------
Fugitive, The (1993) : Thriller
Remains of the Day, The (1993) : Drama|Romance
West Side Story (1961) : Drama|Musical|Romance
X2: X-Men United (2003) : Action|Adventure|Sci-Fi|Thriller
Spider-Man 2 (2004) : Action|Adventure|Sci-Fi|IMAX
--------------------------------
Top 10 movie recommendations
--------------------------------
Dazed and Confused (1993) : Comedy
Ghost in the Shell (Kôkaku kidôtai) (1995) : Animation|Sci-Fi
Drugstore Cowboy (1989) : Crime|Drama
Road Warrior, The (Mad Max 2) (1981) : Action|Adventure|Sci-Fi|Thriller
Dark Knight, The (2008) : Action|Crime|Drama|IMAX
Inglourious Basterds (2009) : Action|Drama|War
Up (2009) : Adventure|Animation|Children|Drama
Dark Knight Rises, The (2012) : Action|Adventure|Crime|IMAX
Star Wars: Episode VII - The Force Awakens (2015) : Action|Adventure|Fantasy|Sci-Fi|IMAX
Thor: Ragnarok (2017) : Action|Adventure|Sci-Fi
