鸿蒙next开发:循环渲染详解-ForEach

ForEach接口基于数组类型数据来进行循环渲染,需要与容器组件配合使用,且接口返回的组件应当是允许包含在ForEach父容器组件中的子组件。例如,ListItem组件要求ForEach的父容器组件必须为List组件

从API version 9开始,该接口支持在ArkTS卡片中使用。

接口描述

ForEach(
  arr: Array,
  itemGenerator: (item: Object, index: number) => void,
  keyGenerator?: (item: Object, index: number) => string
)

以下是参数的详细说明:

参数名 参数类型 是否必填 参数描述
arr Array<Object>

数据源,为Array类型的数组。

说明:

- 可以设置为空数组,此时不会创建子组件。

- 可以设置返回值为数组类型的函数,例如arr.slice(1, 3),但设置的函数不应改变包括数组本身在内的任何状态变量,例如不应使用Array.splice(),Array.sort()或Array.reverse()这些会改变原数组的函数。

itemGenerator (item: Object, index: number) => void

组件生成函数。

- 为数组中的每个元素创建对应的组件。

- item参数:arr数组中的数据项。

- index参数(可选):arr数组中的数据项索引。

说明:

- 组件的类型必须是ForEach的父容器所允许的。例如,ListItem组件要求ForEach的父容器组件必须为List组件。

keyGenerator (item: Object, index: number) => string

键值生成函数。

- 为数据源arr的每个数组项生成唯一且持久的键值。函数返回值为开发者自定义的键值生成规则。

- item参数:arr数组中的数据项。

- index参数(可选):arr数组中的数据项索引。

说明:

- 如果函数缺省,框架默认的键值生成函数为(item: T, index: number) => { return index + '__' + JSON.stringify(item); }

- 键值生成函数不应改变任何组件状态。

  • ForEach的itemGenerator函数可以包含if/else条件渲染逻辑。另外,也可以在if/else条件渲染语句中使用ForEach组件。
  • 在初始化渲染时,ForEach会加载数据源的所有数据,并为每个数据项创建对应的组件,然后将其挂载到渲染树上。如果数据源非常大或有特定的性能需求,建议使用LazyForEach组件。

事件

onMove

onMove(handler: Optional<(from: index, to: index) => void>)

拖拽排序数据移动回调。只有在List组件中使用,并且ForEach每次迭代都生成一个ListItem组件时才生效拖拽排序。

系统能力: SystemCapability.ArkUI.ArkUI.Full

参数:

参数名 类型 必填 说明
from number 数据源移动起始索引号。
to number 数据源移动目标索引号。

键值生成规则

在ForEach循环渲染过程中,系统会为每个数组元素生成一个唯一且持久的键值,用于标识对应的组件。当这个键值变化时,ArkUI框架将视为该数组元素已被替换或修改,并会基于新的键值创建一个新的组件。

ForEach提供了一个名为keyGenerator的参数,这是一个函数,开发者可以通过它自定义键值的生成规则。如果开发者没有定义keyGenerator函数,则ArkUI框架会使用默认的键值生成函数,即(item: Object, index: number) => { return index + '__' + JSON.stringify(item); }。

ArkUI框架对于ForEach的键值生成有一套特定的判断规则,这主要与itemGenerator函数的第二个参数index以及keyGenerator函数的第二个参数index有关,具体的键值生成规则判断逻辑如下图所示。

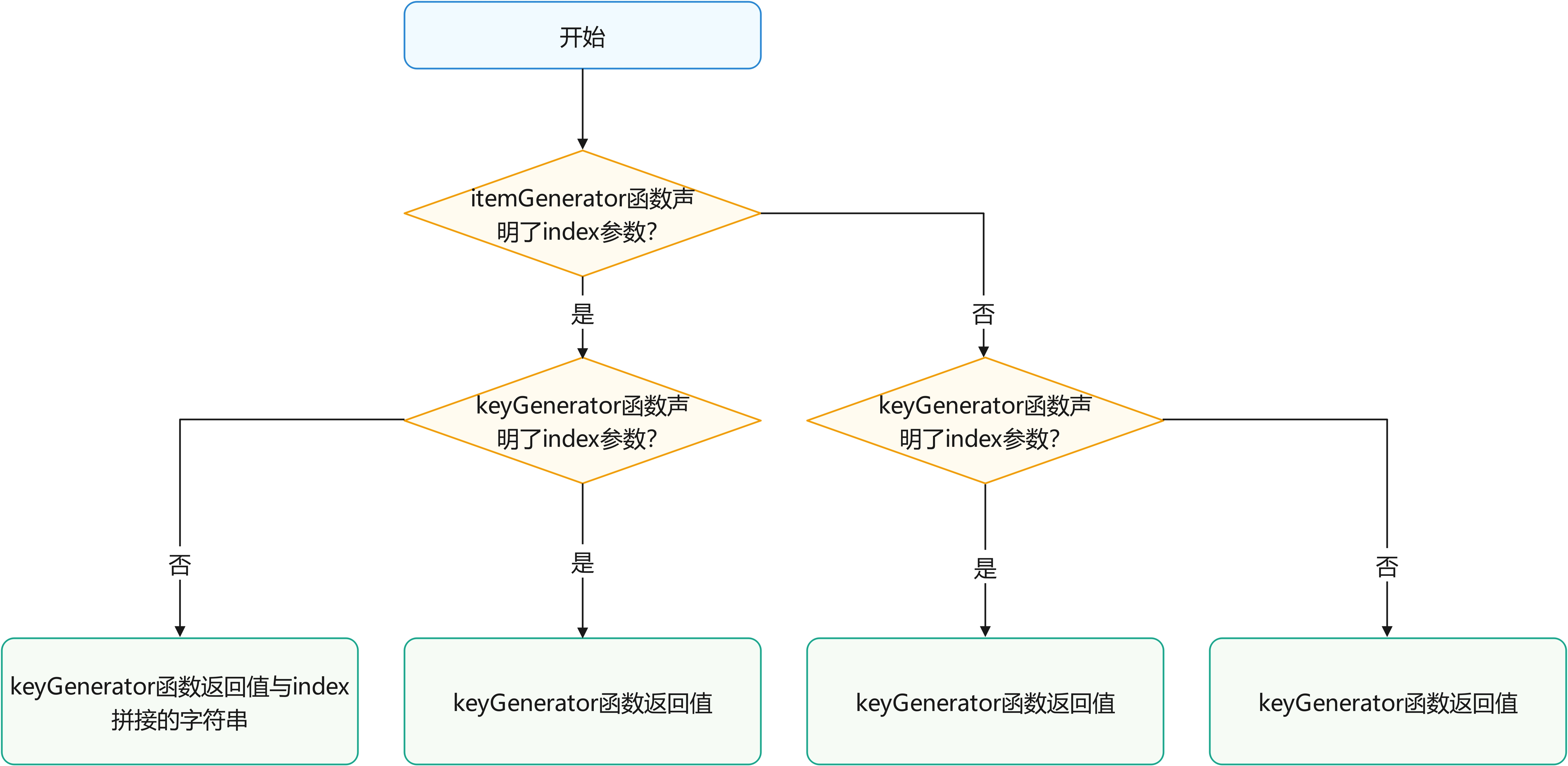

图1 ForEach键值生成规则

说明

ArkUI框架会对重复的键值发出警告。在UI更新的场景下,如果出现重复的键值,框架可能无法正常工作,具体请参见渲染结果非预期。

组件创建规则

在确定键值生成规则后,ForEach的第二个参数itemGenerator函数会根据键值生成规则为数据源的每个数组项创建组件。组件的创建包括两种情况:ForEach首次渲染和ForEach非首次渲染。

首次渲染

在ForEach首次渲染时,会根据前述键值生成规则为数据源的每个数组项生成唯一键值,并创建相应的组件。

@Entry
@Component
struct Parent {
  @State simpleList: Array<string> = ['one', 'two', 'three'];

  build() {
    Row() {
      Column() {
        ForEach(this.simpleList, (item: string) => {
          ChildItem({ item: item })
        }, (item: string) => item)
      }
      .width('100%')
      .height('100%')
    }
    .height('100%')
    .backgroundColor(0xF1F3F5)
  }
}

@Component
struct ChildItem {
  @Prop item: string;

  build() {
    Text(this.item)
      .fontSize(50)
  }
}

运行效果如下图所示。

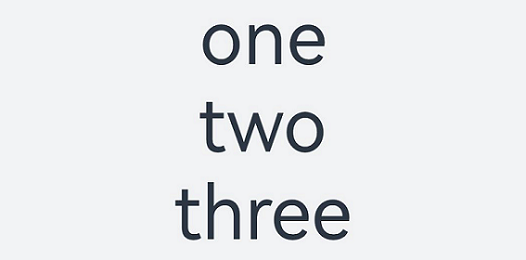

图2 ForEach数据源不存在相同值案例首次渲染运行效果图

<
