定义简介

Entity是Cesium中的一个重要概念,它代表了在三维场景中的实体对象。这些实体可以是地球上的点、线、面,也可以是飞机、汽车、船舶等动态物体。

属性

Entity具有丰富的属性,包括位置、方向、速度、外观等。通过设置这些属性,开发者可以精确地控制实体在三维场景中的表现形式。

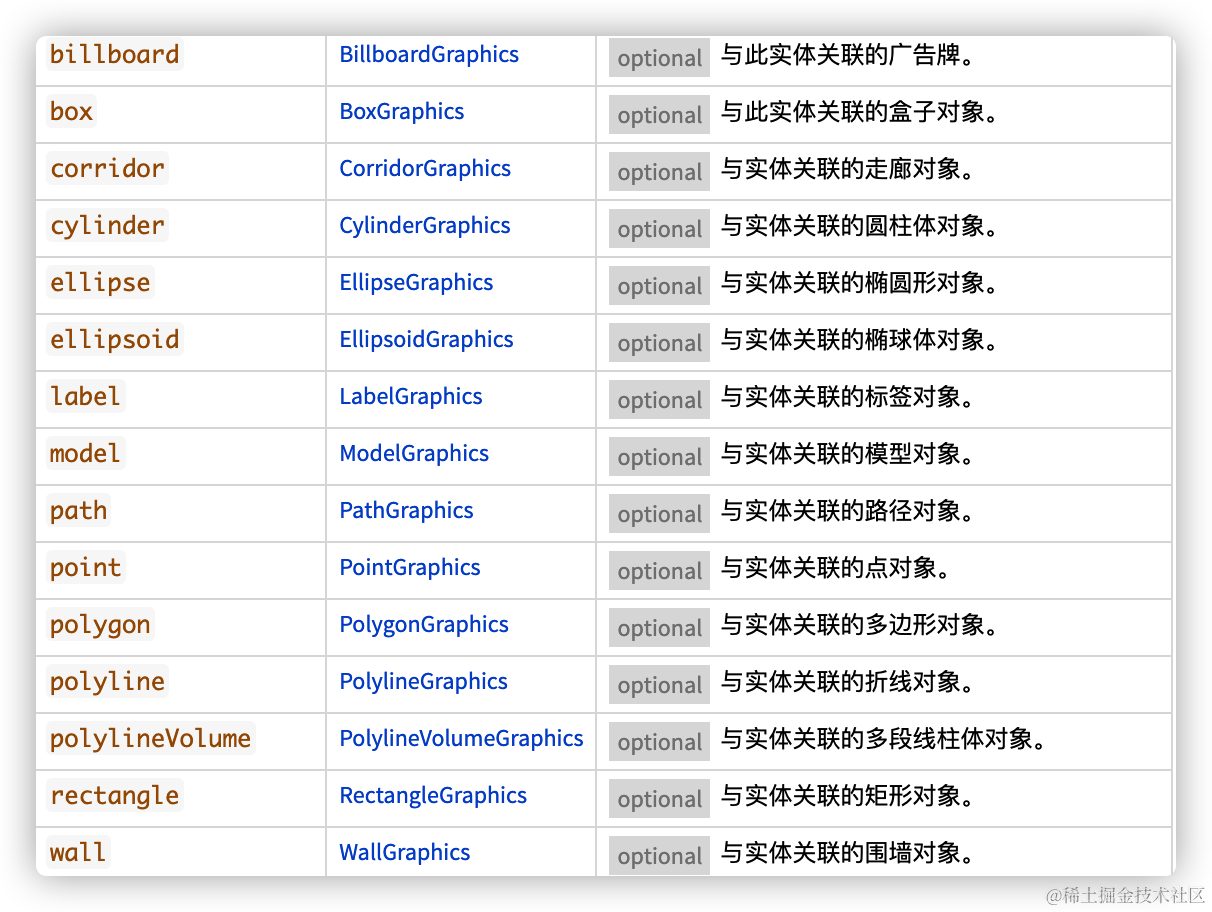

关联实体

基础属性描述
id唯一标识
name可读标识
show是否显示实体
description实体的html描述
position实体位置
orientation实体方向
viewFrom查看此实体对象的建议初始偏移量
parent与此实体关联的父实体


description设置一个html弹窗

description属性被设置为包含HTML标记的字符串。这允许您以富文本的形式呈现描述,包括段落、链接等。

var viewer = new Cesium.Viewer('cesiumContainer');

var entity = viewer.entities.add({
    name: 'Example Entity',
    position: Cesium.Cartesian3.fromDegrees(-75.1641667, 39.9522222),
    description: '<p>This is a sample description for the entity.</p>'
});

// 点击实体时显示描述
viewer.selectedEntity = entity;

当Cesium Viewer中点击实体时,它将显示实体的描述信息

其表现效果和 new Cesium.SelectionIndicator 指示器部件相同

position位置信息

position位置又称为当前实体的坐标位置,常用的坐标位置有:(球坐标系和笛卡尔坐标系)

具体详情见文章:SuperMap iClient3D for WebGL ——坐标系(世界坐标、WGS84坐标系、平面直角坐标系)

orientation当前模型的方向

一般存在方向的都是一些模型(飞机、汽车等),在方向上我们最常用的是
new Cesium.HeadingPitchRoll ( heading , pitch , roll )

heading:航向
pitch:螺距
roll:滚动

官方介绍:

航向是从当地北部来的旋转正角向东增加的方向。俯仰是从本地东西向平面的旋转。正俯仰角在飞机上方。负俯仰角在平面下方。横摇是绕局部东轴应用的第一次旋转。

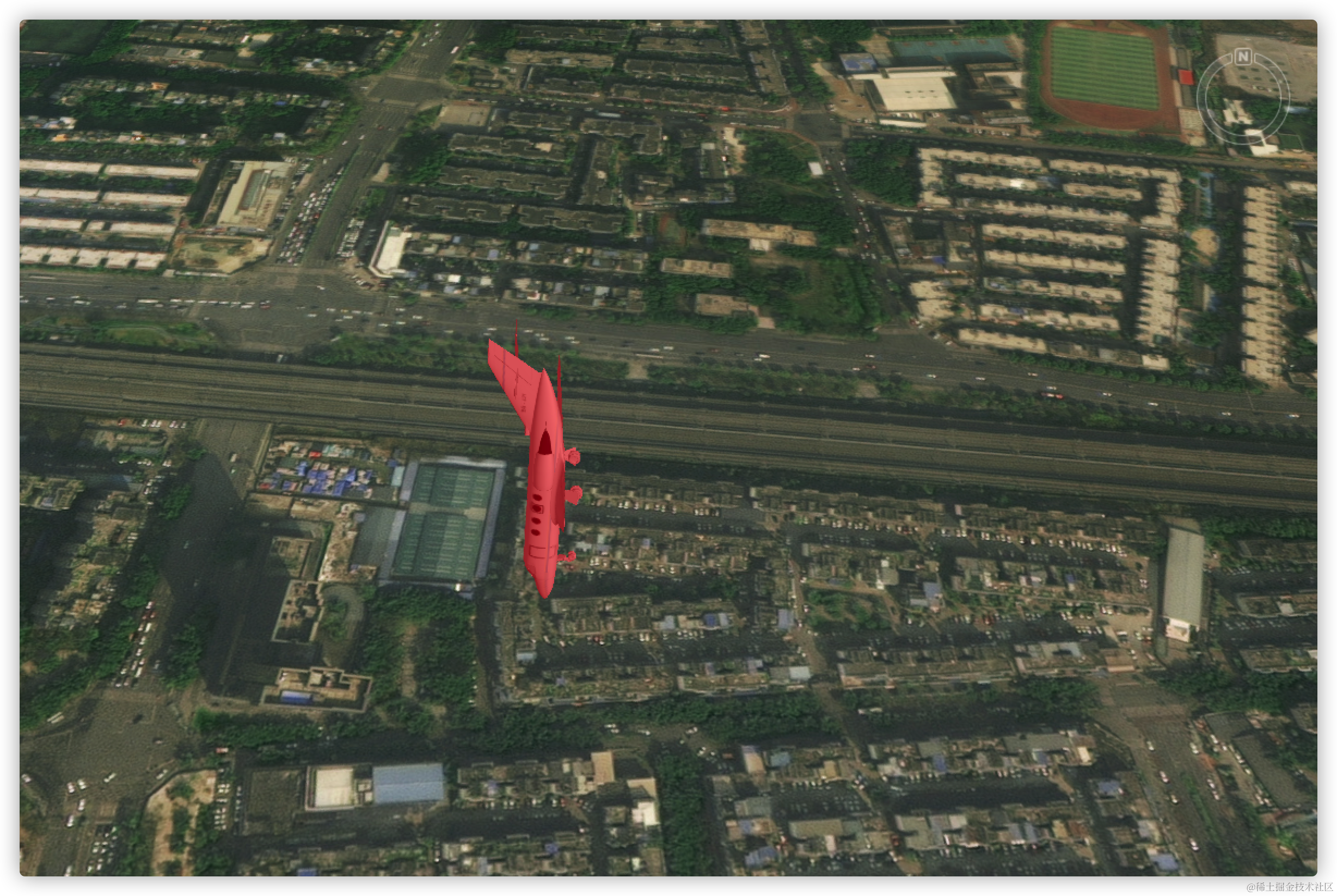

 const position = Cesium.Cartesian3.fromDegrees(104.1, 30.6,500);
    const heading = 0;
    const pitch = 0;
    const roll = 0;
    const hpr = new Cesium.HeadingPitchRoll(heading, pitch, roll);
    const orientation = Cesium.Transforms.headingPitchRollQuaternion(
      position,
      hpr
    );
    const addModeEntity = window.viewer.entities.add({
        name: '测试1',
        id:"cs1",
        position: position,
        orientation: orientation,
        model: {
          uri: '/static/SampleData/gltf/客机模型/客机模型.gltf',
          scale:0.1,
          minimumPixelSize:0.1,
          maximumScale: 20,
          shadows:true,
          color:Cesium.Color.RED,
          colorBlendMode:Cesium.ColorBlendMode.MIX// Cesium.ColorBlendMode.REPLACE//
        },
      });
    window.viewer.trackedEntity = addModeEntity;
    window.viewer.flyTo(window.viewer.entities.getById("cs1"))


相关Entity的方法实例

添加属性

viewer.entities.add()

删除指定id的实体

viewer.entities.removeById(1)
这个id就是实体entity的id

删除全部实体

viewer.entities.removeAll()

实体中材质(material)

Material在Cesium中负责定义实体的外观特性,如颜色、透明度、纹理等。

  1. ColorMaterial(颜色材质): 允许开发者定义实体的颜色,从而为实体添加生动的色彩。
entity.material = new Cesium.ColorMaterialProperty(Cesium.Color.RED);
  1. ImageMaterial(图片材质): 允许将图片应用到实体上,以展示详细的纹理。
entity.material = new Cesium.ImageMaterialProperty({
  image: 'path/to/texture.png',
});
  1. CheckerboardMaterial(棋盘格材质): 创建一个有趣的棋盘格效果,使实体更具视觉吸引力。
entity.material = new Cesium.CheckerboardMaterialProperty({
  evenColor: Cesium.Color.WHITE,
  oddColor: Cesium.Color.BLACK,
  repeat: new Cesium.Cartesian2(8, 8),
});

相关代码示例
