Python学习笔记5--人体姿势和Unity3D

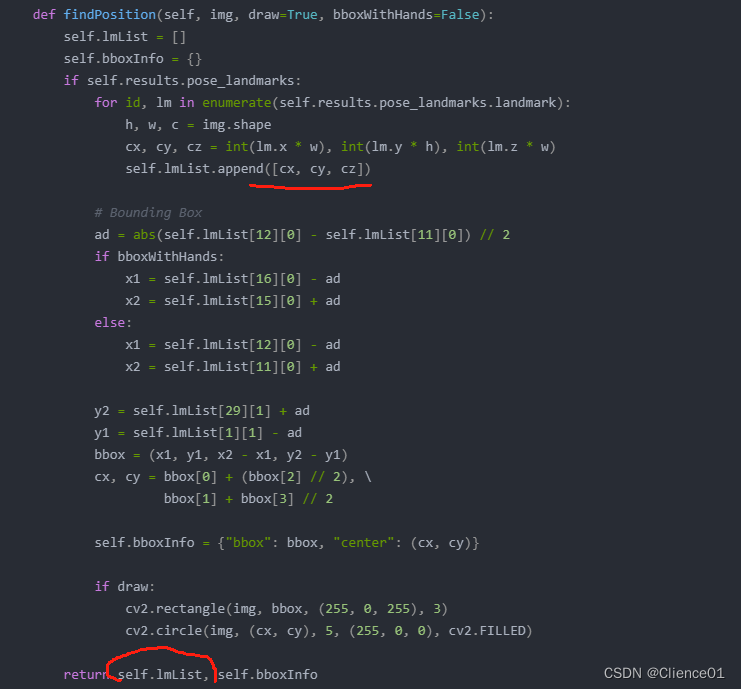

1.python获取视频人体的姿势，注意 detector.findPosition(img)方法改变了，我按照原先代码中的 lmString += f’{lm[1]},{img.shape[0] - lm[2]},{lm[3]},'会报数组长度上限，我对比一下，原先返回的版本第一个参数是id，因为自己也是新手，所以查了一下代码，

import cv2
from cvzone.PoseModule import PoseDetector

# x1,y1,z1,x2,y2,z2
cap = cv2.VideoCapture('Video.mp4')

detector = PoseDetector()
posList = []
while True:
    success, img = cap.read()
    img = detector.findPose(img)
    lmList, bboxInfo = detector.findPosition(img)

    if bboxInfo:
        lmString = ''
        for lm in lmList:
            # print(lm)
            # print(len(lm))
            lmString += f'{lm[0]},{img.shape[0] - lm[1]},{lm[2]},'
        posList.append(lmString)
        print(len(posList))
        cv2.imshow("Image", img)
        key = cv2.waitKey(1)
        if key == ord('s'):
            with open("AnimationFile.txt", 'w') as f:
                f.writelines(["%s\n" % item for item in posList])

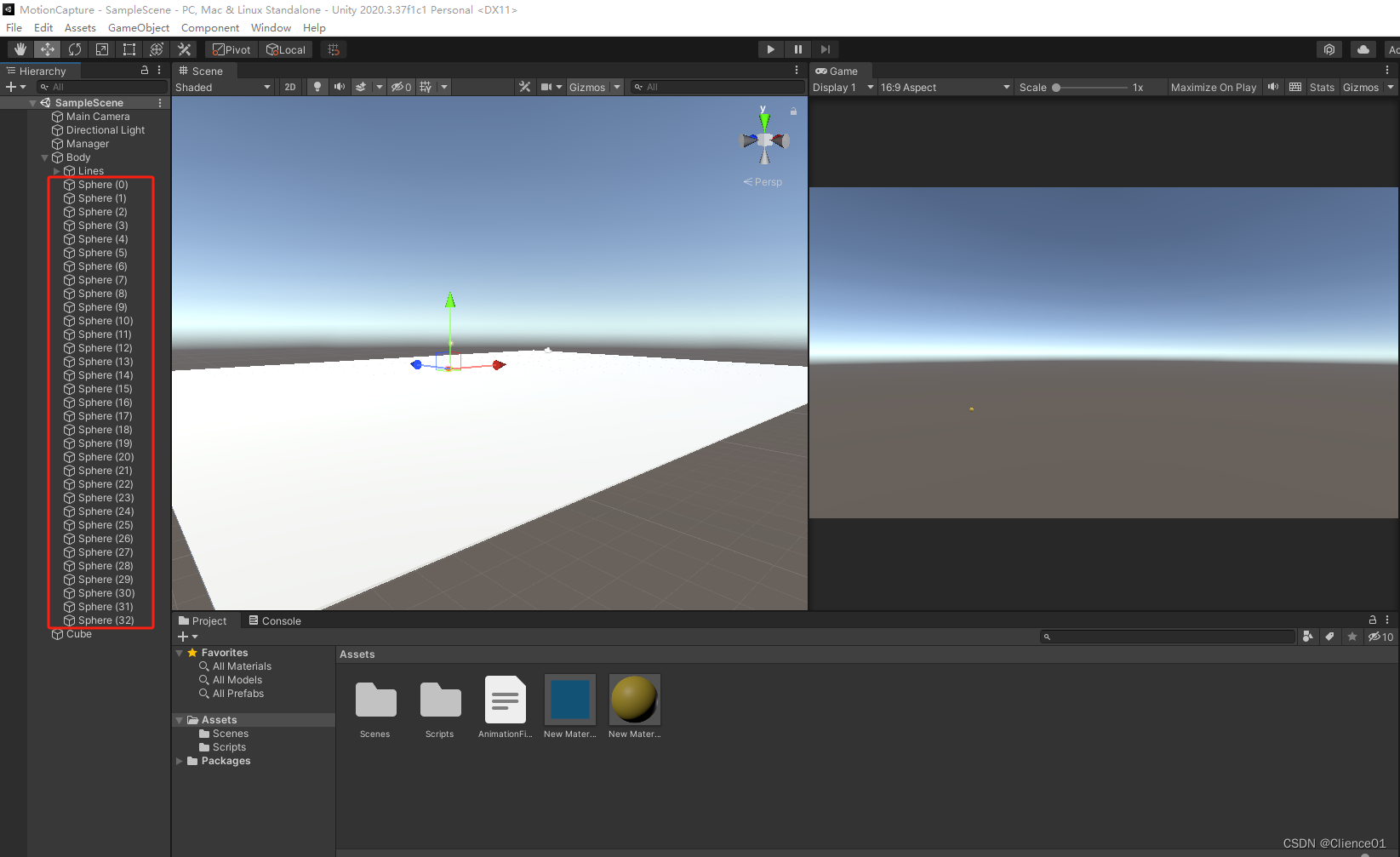

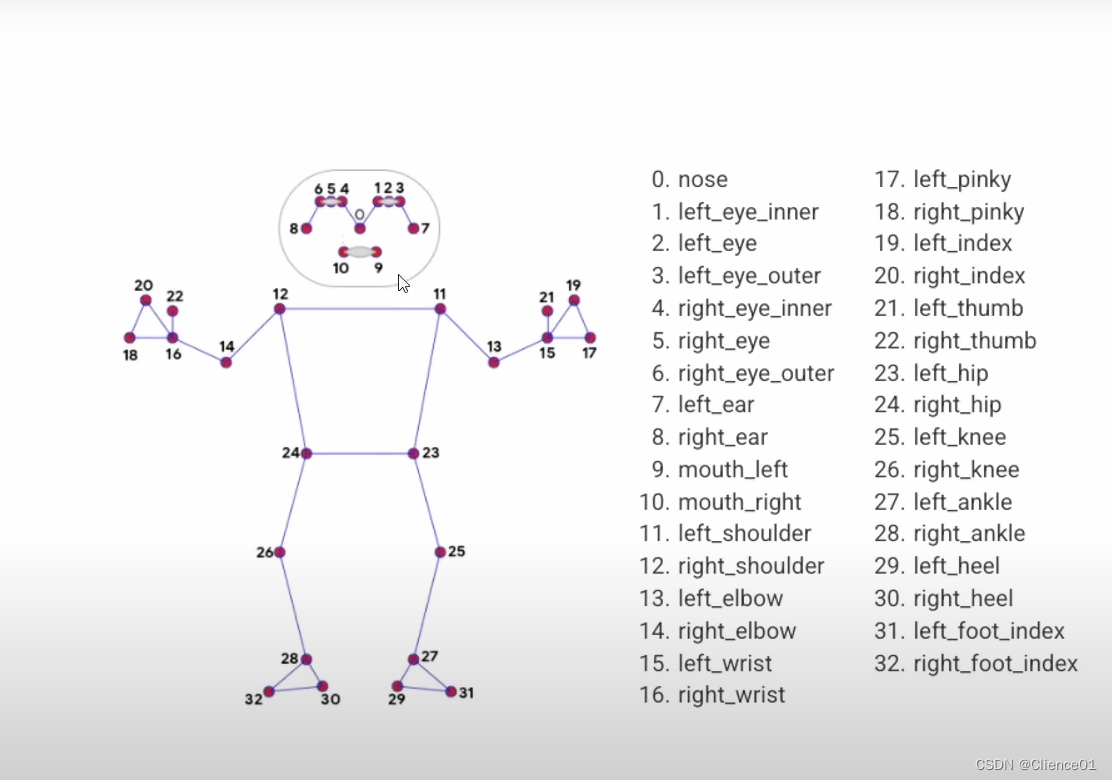

2.在Unity3D中，新建33个Sphere

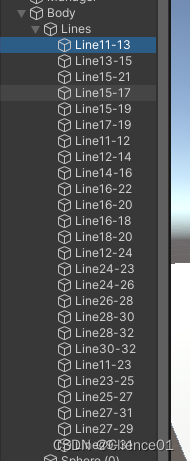

3.新建Line，继承LineCode

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class LineCode : MonoBehaviour
{
    LineRenderer lineRenderer;
    public Transform origin;
    public Transform destination;
    // Start is called before the first frame update
    void Start()
    {
        lineRenderer = GetComponent<LineRenderer>();
        lineRenderer.startWidth = 0.1f;
        lineRenderer.endWidth = 0.1f;

    }

    // Update is called once per frame
    void Update()
    {
        lineRenderer.SetPosition(0, origin.position);
        lineRenderer.SetPosition(1, destination.position);
    }
}

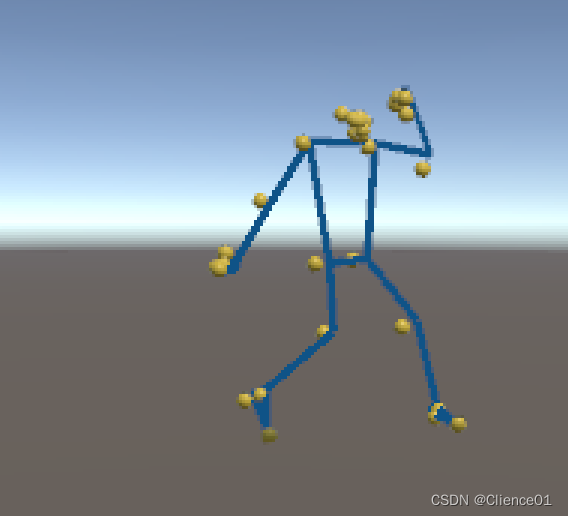

4、AnimationCode挂在body上

using System.Collections;
using System.Collections.Generic;
using System.Linq;
using UnityEngine;
using System.Threading;

public class AnimationCode : MonoBehaviour
{
    public GameObject[] Body;
    List<string> lines;
    int counter = 0;

    // Start is called before the first frame update
    void Start()
    {
        lines = System.IO.File.ReadLines("Assets/AnimationFile.txt").ToList();
    }

    // Update is called once per frame
    void Update()
    {

        string[] points = lines[counter].Split(',');
        for (int i = 0; i <= 32; i++)
        {
            float x = float.Parse(points[0 + (i * 3)]) / 100;
            float y = float.Parse(points[1 + (i * 3)]) / 100;
            float z = float.Parse(points[2 + (i * 3)]) / 100;
            Body[i].transform.localPosition = new Vector3(x, y, z);
        }


        counter++;
        if (counter == lines.Count) { counter = 0; }
        Thread.Sleep(30);


    }
}

教程视频：添加链接描述
