TMC阅读笔记

参考论文及链接：
论文：Trusted Multi-View Classification
解读链接

1 参数介绍

对模型，需要输入分类的类别个数，由于是多模态分类，要输入视图的个数，以及每个视图的维度数。

    def __init__(self, classes, views, classifier_dims, lambda_epochs=1):
        """
        :param classes: Number of classification categories
        :param views: Number of views
        :param classifier_dims: Dimension of the classifier
        :param annealing_epoch: KL divergence annealing epoch during training
        """
        super(TMC, self).__init__()
        self.views = views
        self.classes = classes
        self.lambda_epochs = lambda_epochs
        self.Classifiers = nn.ModuleList([Classifier(classifier_dims[i], self.classes) for i in range(self.views)])

对于代码中的Classifier类，需要对如下参数初始化：

class Classifier(nn.Module):
    def __init__(self, classifier_dims, classes):
        super(Classifier, self).__init__()
        self.num_layers = len(classifier_dims)
        self.fc = nn.ModuleList()
        for i in range(self.num_layers-1):
            self.fc.append(nn.Linear(classifier_dims[i], classifier_dims[i+1]))
        self.fc.append(nn.Linear(classifier_dims[self.num_layers-1], classes))
        self.fc.append(nn.Softplus())

    def forward(self, x):
        h = self.fc[0](x)
        for i in range(1, len(self.fc)):
            h = self.fc[i](h)
        return h

2 前向传递流程

前向传递流程如下：首先各输入从Classifier类前向传递的神经网络中学习证据，最后经过softplus层，得到evidence。每个evidence存储在字典中。

    def infer(self, input):
        """
        :param input: Multi-view data
        :return: evidence of every view
        """
        evidence = dict()
        for v_num in range(self.views):
            evidence[v_num] = self.Classifiers[v_num](input[v_num])
        return evidence

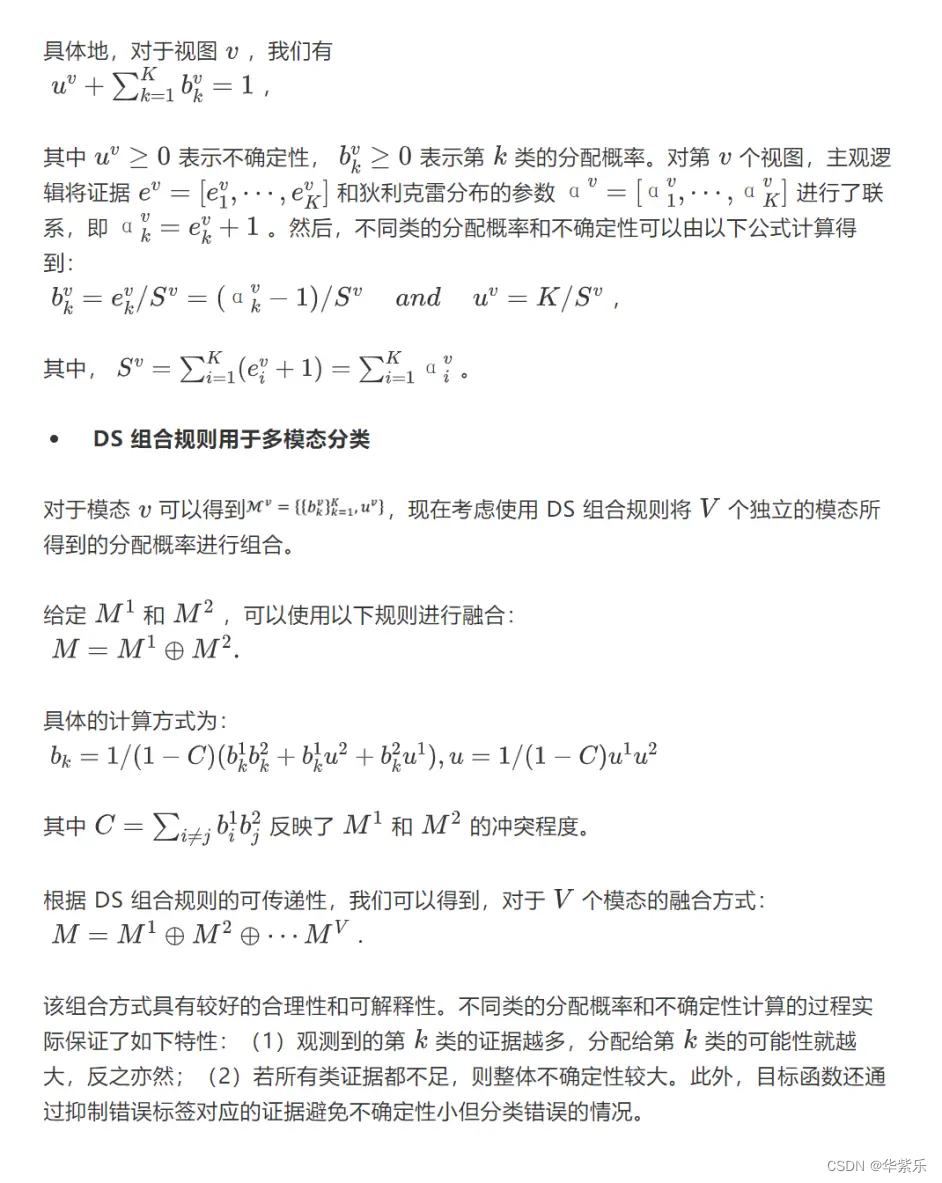

之后根据下图公式，求出u,b,S的值。在使用DS组合理论来

代码如下：

2.1 公式求值

后面的代码还计算了损失。

def ce_loss(p, alpha, c, global_step, annealing_step):
    S = torch.sum(alpha, dim=1, keepdim=True)
    E = alpha - 1
    label = F.one_hot(p, num_classes=c)
    A = torch.sum(label * (torch.digamma(S) - torch.digamma(alpha)), dim=1, keepdim=True)
    annealing_coef = min(1, global_step / annealing_step)

    alp = E * (1 - label) + 1
    B = annealing_coef * KL(alp, c)

    return (A + B)

2.2 DS组合理论

    def DS_Combin(self, alpha):
        """
        :param alpha: All Dirichlet distribution parameters.
        :return: Combined Dirichlet distribution parameters.
        """
        def DS_Combin_two(alpha1, alpha2):
            """
            :param alpha1: Dirichlet distribution parameters of view 1
            :param alpha2: Dirichlet distribution parameters of view 2
            :return: Combined Dirichlet distribution parameters
            """
            alpha = dict()
            alpha[0], alpha[1] = alpha1, alpha2
            b, S, E, u = dict(), dict(), dict(), dict()
            for v in range(2):
                S[v] = torch.sum(alpha[v], dim=1, keepdim=True)
                E[v] = alpha[v]-1
                b[v] = E[v]/(S[v].expand(E[v].shape))
                u[v] = self.classes/S[v]

            # b^0 @ b^(0+1)
            bb = torch.bmm(b[0].view(-1, self.classes, 1), b[1].view(-1, 1, self.classes))
            # b^0 * u^1
            uv1_expand = u[1].expand(b[0].shape)
            bu = torch.mul(b[0], uv1_expand)
            # b^1 * u^0
            uv_expand = u[0].expand(b[0].shape)
            ub = torch.mul(b[1], uv_expand)
            # calculate C
            bb_sum = torch.sum(bb, dim=(1, 2), out=None)
            bb_diag = torch.diagonal(bb, dim1=-2, dim2=-1).sum(-1)
            C = bb_sum - bb_diag

            # calculate b^a
            b_a = (torch.mul(b[0], b[1]) + bu + ub)/((1-C).view(-1, 1).expand(b[0].shape))
            # calculate u^a
            u_a = torch.mul(u[0], u[1])/((1-C).view(-1, 1).expand(u[0].shape))

            # calculate new S
            S_a = self.classes / u_a
            # calculate new e_k
            e_a = torch.mul(b_a, S_a.expand(b_a.shape))
            alpha_a = e_a + 1
            return alpha_a

        for v in range(len(alpha)-1):
            if v==0:
                alpha_a = DS_Combin_two(alpha[0], alpha[1])
            else:
                alpha_a = DS_Combin_two(alpha_a, alpha[v+1])
        return alpha_a

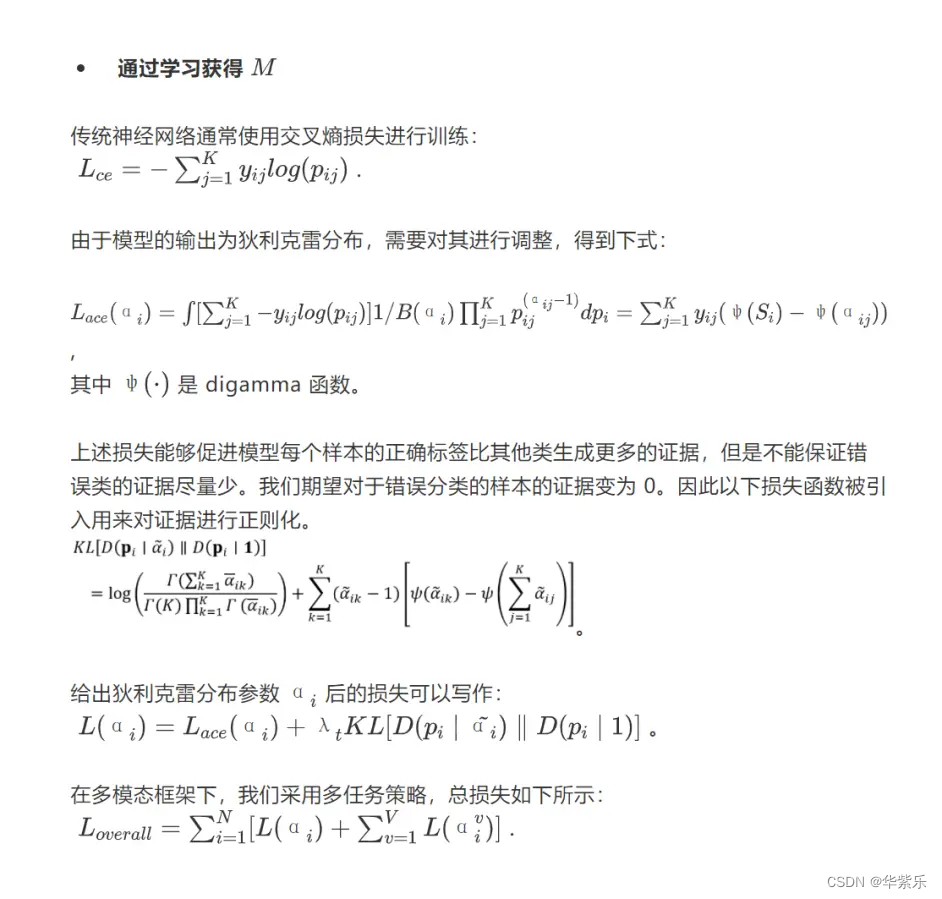

3 通过学习获得M
