ESP32S3-Cam实践(OLED显示)

0.参考

        以ESP-IDF v5.5.0 Examples中的I2C OLED example为工程进行实践。

1.挂载OLED(128X64，SSD1309，I2C)

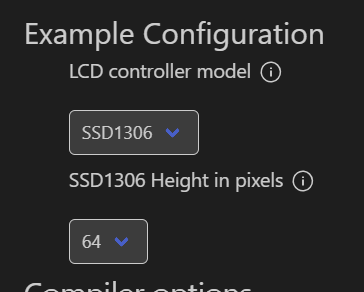

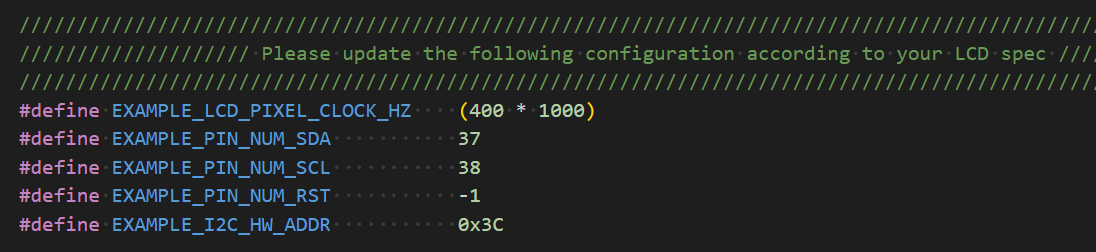

        在 SDK Configuration Editor中确认一下配置、确认I2C引脚。

2.Build,Flash and Monitor

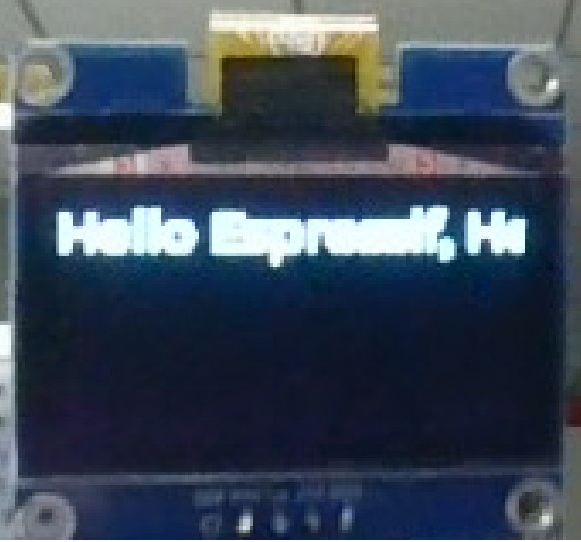

监视器输出 & OLED屏幕输出，GoodGood

I (289) main_task: Started on CPU0
I (299) main_task: Calling app_main()
I (299) example: Initialize I2C bus
I (299) example: Install panel IO
I (299) example: Install SSD1306 panel driver
I (409) example: Initialize LVGL
I (409) example: Allocate separate LVGL draw buffers
I (409) example: Register io panel event callback for LVGL flush ready notification
I (409) example: Use esp_timer as LVGL tick timer
I (419) example: Create LVGL task
I (419) example: Starting LVGL task
I (429) example: Display LVGL Scroll Text
I (449) main_task: Returned from app_main()
