Android service sample (2015.12.3)

http://www.tutorialspoint.com/android/android_services.htm

1. 新建一个service文件：MyService.java

package com.example.helloworld;

import android.app.Service;
import android.content.Intent;
import android.os.IBinder;
import android.widget.Toast;

public class MyService extends Service {

	@Override
	public IBinder onBind(Intent arg0)	{
		return null;
	}

	@Override
	public int onStartCommand(Intent intent, int flags, int startId) {

		Toast.makeText(this, "Service Started", Toast.LENGTH_LONG).show();
		return START_STICKY;
	}

	@Override
	public void onDestroy() {
		super.onDestroy();
		Toast.makeText(this, "Service Destroyed", Toast.LENGTH_LONG).show();
	}

}

2. 在Manifest.xml中声明：

 <service android:name=".MyService" />

3. 修改界面文件：增加2个buttong, 来启动和停止 service

    <Button
        android:id="@+id/button1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/textView1"
        android:layout_below="@+id/textView1"
        android:layout_marginTop="68dp"
        android:text="Start Service"
        <span style="color:#ff0000;">android:onClick="startService" /></span>

    <Button
        android:id="@+id/button2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/button1"
        android:layout_below="@+id/button1"
        android:text="Stop Service"
        <span style="color:#ff0000;">android:onClick="stopService"/></span>

4. 在界面xml中调用的两个函数：定义在MainActivity.java中

    //Method to start the service
    public void startService(View view) {
    	startService(new Intent(getBaseContext(), MyService.class));
    }

    public void stopService(View view) {
    	stopService(new Intent(getBaseContext(), MyService.class));
    }

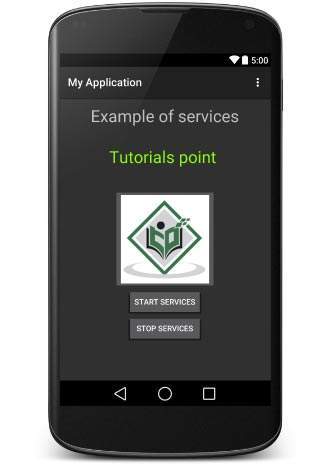

编译，运行。

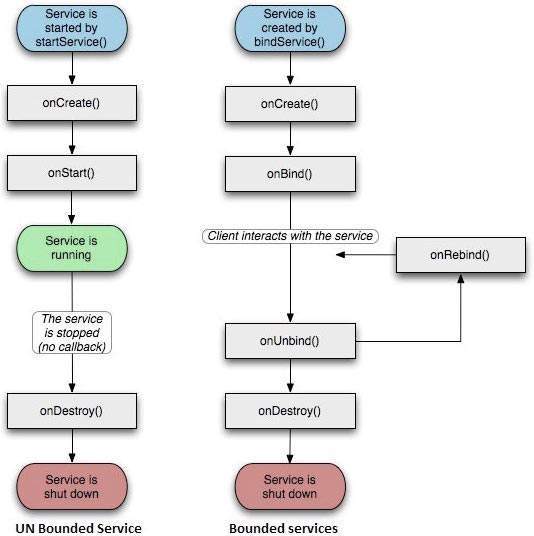

多体会下面的切换过程：
