关于gin-swagger隐藏models方法

前言：

很多后端项目接口文档会用到swagger生成api文档，但是在注释中用object和自定义的struct时，swagger页面会展示models，这并不是很好看，下面就讲下如何隐藏

首先看仓库的文档

官方文档中的示例

// @title           Swagger Example API
// @version         1.0
// @description     This is a sample server celler server.
// @termsOfService  http://swagger.io/terms/

// @contact.name   API Support
// @contact.url    http://www.swagger.io/support
// @contact.email  support@swagger.io

// @license.name  Apache 2.0
// @license.url   http://www.apache.org/licenses/LICENSE-2.0.html

// @host      localhost:8080
// @BasePath  /api/v1

// @securityDefinitions.basic  BasicAuth

// @externalDocs.description  OpenAPI
// @externalDocs.url          https://swagger.io/resources/open-api/
func main() {
    r := gin.Default()

    c := controller.NewController()

    v1 := r.Group("/api/v1")
    {
        accounts := v1.Group("/accounts")
        {
            accounts.GET(":id", c.ShowAccount)
            accounts.GET("", c.ListAccounts)
            accounts.POST("", c.AddAccount)
            accounts.DELETE(":id", c.DeleteAccount)
            accounts.PATCH(":id", c.UpdateAccount)
            accounts.POST(":id/images", c.UploadAccountImage)
        }
    //...
    }
    r.GET("/swagger/*any", ginSwagger.WrapHandler(swaggerFiles.Handler))
    r.Run(":8080")
}
//...

package main

import (
    "github.com/gin-gonic/gin"
    "github.com/swaggo/files"
    "github.com/swaggo/gin-swagger"

    "./docs" // docs is generated by Swag CLI, you have to import it.
)

// @contact.name   API Support
// @contact.url    http://www.swagger.io/support
// @contact.email  support@swagger.io

// @license.name  Apache 2.0
// @license.url   http://www.apache.org/licenses/LICENSE-2.0.html
func main() {

    // programatically set swagger info
    docs.SwaggerInfo.Title = "Swagger Example API"
    docs.SwaggerInfo.Description = "This is a sample server Petstore server."
    docs.SwaggerInfo.Version = "1.0"
    docs.SwaggerInfo.Host = "petstore.swagger.io"
    docs.SwaggerInfo.BasePath = "/v2"
    docs.SwaggerInfo.Schemes = []string{"http", "https"}

    r := gin.New()

    // use ginSwagger middleware to serve the API docs
    r.GET("/swagger/*any", ginSwagger.WrapHandler(swaggerFiles.Handler))

    r.Run()
}

从以上代码可以看到只有 use ginSwagger middleware to serve the API docs 即：使用ginSwagger中间件为API文档提供服务，我在文档中搜了一下，并没有写隐藏models的说明

隐藏models

·但其实swagger是具备这个功能的，遂在网上搜了一下，全是Java的，没有go的
那就直接看源码,注意：这里只截取部分源码，非完整版

package ginSwagger
// Config stores ginSwagger configuration variables.
type Config struct {
	// The url pointing to API definition (normally swagger.json or swagger.yaml). Default is `doc.json`.
	URL                      string
	DocExpansion             string
	InstanceName             string
	Title                    string
	DefaultModelsExpandDepth int
	DeepLinking              bool
	PersistAuthorization     bool
	Oauth2DefaultClientID    string
}

// WrapHandler wraps `http.Handler` into `gin.HandlerFunc`.
func WrapHandler(handler *webdav.Handler, options ...func(*Config)) gin.HandlerFunc {
	var config = Config{
		URL:                      "doc.json",
		DocExpansion:             "list",
		InstanceName:             swag.Name,
		Title:                    "Swagger UI",
		DefaultModelsExpandDepth: 1,
		DeepLinking:              true,
		PersistAuthorization:     false,
		Oauth2DefaultClientID:    "",
	}

	for _, c := range options {
		c(&config)
	}

	return CustomWrapHandler(&config, handler)
}

// DeepLinking se
t the swagger deep linking configuration.
func DeepLinking(deepLinking bool) func(*Config) {
	return func(c *Config) {
		c.DeepLinking = deepLinking
	}
}

// DefaultModelsExpandDepth set the default expansion depth for models
// (set to -1 completely hide the models).
func DefaultModelsExpandDepth(depth int) func(*Config) {
	return func(c *Config) {
		c.DefaultModelsExpandDepth = depth
	}
}

// InstanceName set the instance name that was used to generate the swagger documents
// Defaults to swag.Name ("swagger").
func InstanceName(name string) func(*Config) {
	return func(c *Config) {
		c.InstanceName = name
	}
}

第三个函数DefaultModelsExpandDepth这里写了传-1隐藏models
修改方法如下

// 这个是文档中的，只是使用swagger，稍作修改
r.GET("/swagger/*any", ginSwagger.WrapHandler(swaggerFiles.Handler))

//修改后的代码
r.GET("/swagger/*any", ginSwagger.WrapHandler(swaggerFiles.Handler, func(config *ginSwagger.Config) {
		config.DefaultModelsExpandDepth = -1
	}))

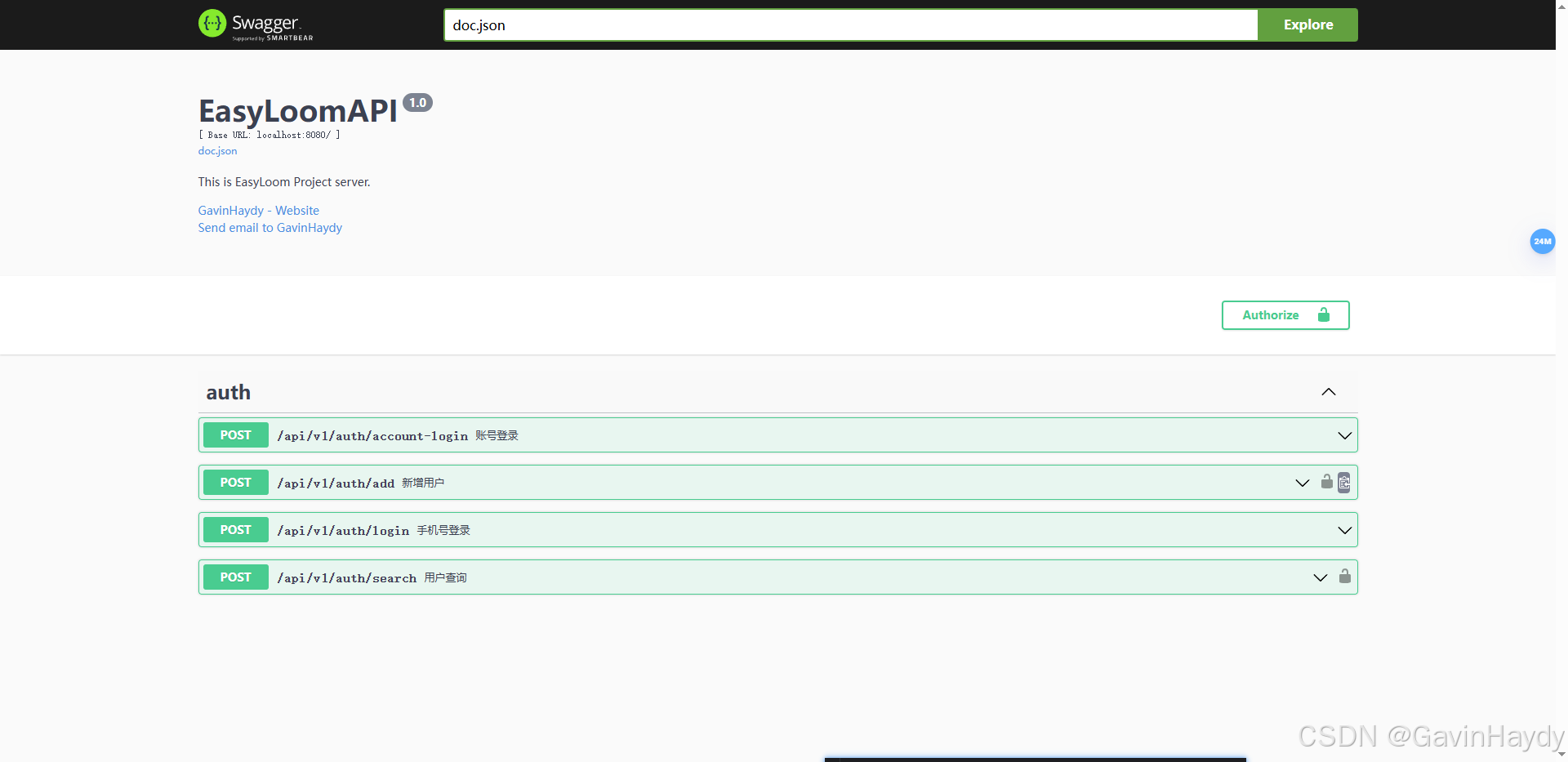

页面展示

顺带一提

除了隐藏models之外，还有几个函数，其中我觉得比较有用的是保存token信息，部分源码如下

// PersistAuthorization Persist authorization information over browser close/refresh.
// Defaults to false.
func PersistAuthorization(persistAuthorization bool) func(*Config) {
	return func(c *Config) {
		c.PersistAuthorization = persistAuthorization
	}
}


// Config stores ginSwagger configuration variables.
type Config struct {
	// The url pointing to API definition (normally swagger.json or swagger.yaml). Default is `doc.json`.
	URL                      string
	DocExpansion             string
	InstanceName             string
	Title                    string
	DefaultModelsExpandDepth int
	DeepLinking              bool
	PersistAuthorization     bool
	Oauth2DefaultClientID    string
}

func (config Config) toSwaggerConfig() swaggerConfig {
	return swaggerConfig{
		URL:                      config.URL,
		DeepLinking:              config.DeepLinking,
		DocExpansion:             config.DocExpansion,
		DefaultModelsExpandDepth: config.DefaultModelsExpandDepth,
		Oauth2RedirectURL: "`${window.location.protocol}//${window.location.host}$" +
			"{window.location.pathname.split('/').slice(0, window.location.pathname.split('/').length - 1).join('/')}" +
			"/oauth2-redirect.html`",
		Title:                 config.Title,
		PersistAuthorization:  config.PersistAuthorization,
		Oauth2DefaultClientID: config.Oauth2DefaultClientID,
	}
}

PersistAuthorization 这个字段为bool类型，持久授权，默认false，改为true后刷新及关闭浏览器，token都会保存，避免调试时，每次刷新都要重新搞一下token
使用方式和上面的隐藏models是一样的

r.GET("/swagger/*any", ginSwagger.WrapHandler(swaggerFiles.Handler, func(config *ginSwagger.Config) {
		config.DefaultModelsExpandDepth = -1	//隐藏models
		config.PersistAuthorization = true	//持久授权
	}))
