Ultralytics YOLOv8.0.226 进出计数

in_and_out_counting

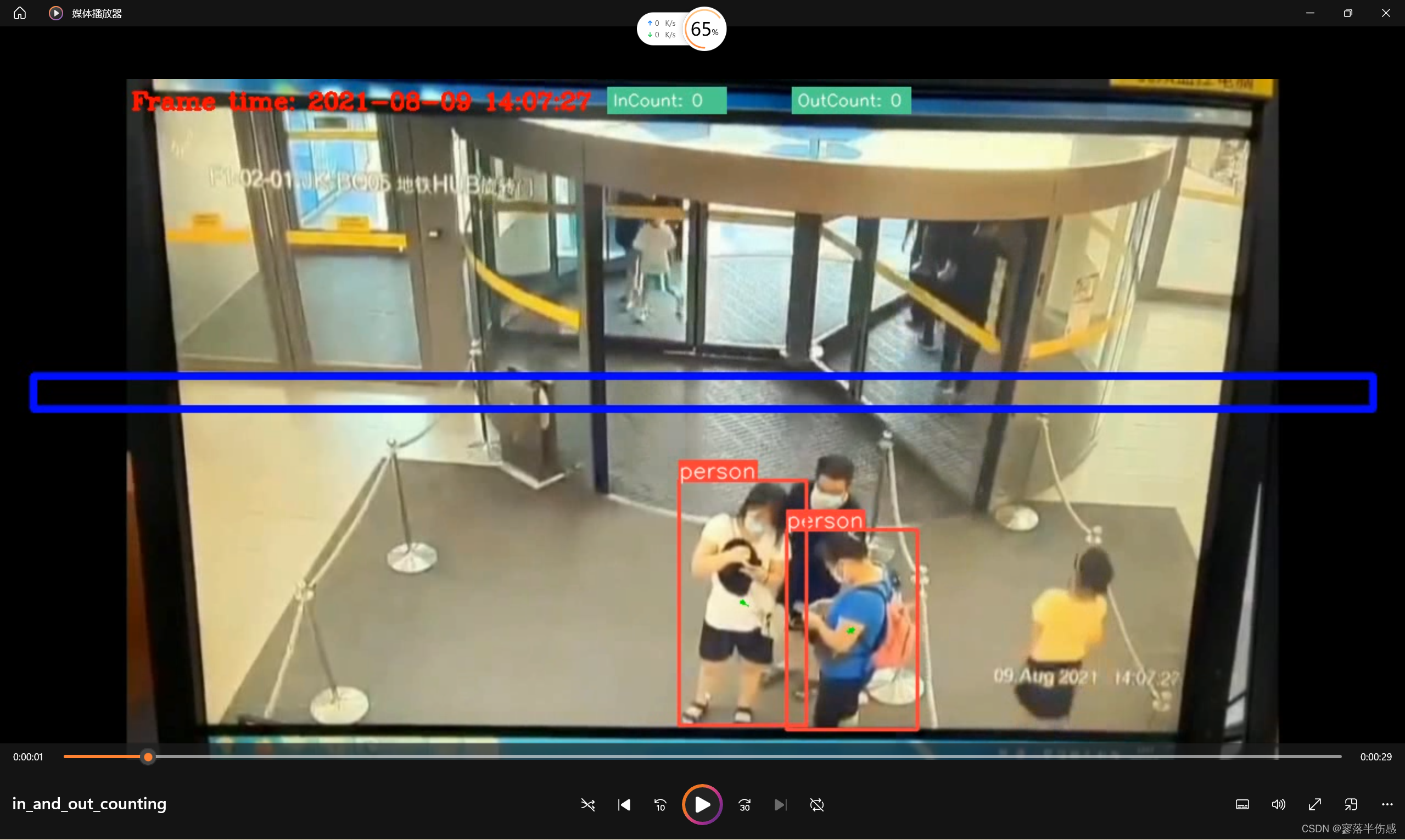

对本地视频文件进行出入计数

from ultralytics import YOLO
from collections import defaultdict
import cv2
from ultralytics.utils.checks import check_imshow, check_requirements
from ultralytics.utils.plotting import Annotator, colors
from shapely.geometry import Polygon
from shapely.geometry.point import Point
from datetime import datetime, timedelta
import re
from ultralytics.utils import LOGGER, colorstr
from openpyxl import Workbook

check_requirements('shapely>=2.0.0')


class ObjectCounter:

    def __init__(self):
        self.is_drawing = False
        self.selected_point = None
        self.reg_pts = None
        self.counting_region = None
        self.region_color = (255, 255, 255)
        self.im0 = None
        self.tf = None
        self.view_img = True
        self.names = None
        self.annotator = None
        self.in_counts = 0
        self.out_counts = 0
        self.counting_list = []
        self.track_history = defaultdict(list)
        self.track_thickness = 2
        self.draw_tracks = True
        self.env_check = check_imshow(warn=True)
        self.incount_label = 'InCount: 0'
        self.outcount_label = 'OutCount: 0'
        self.k = 1

    def set_args(self, classes_names, reg_pts, region_color=None, line_thickness=2, track_thickness=2, view_img=True, draw_tracks=True):
        self.tf = line_thickness
        self.view_img = view_img
        self.track_thickness = track_thickness
        self.draw_tracks = draw_tracks
        self.reg_pts = reg_pts
        self.counting_region = Polygon(self.reg_pts)
        self.names = classes_names
        self.region_color = region_color if region_color else self.region_color

    def mouse_event_for_region(self, event, x, y, flags, params):
        if event == cv2.EVENT_LBUTTONDOWN:
            for i, point in enumerate(self.reg_pts):
                if isinstance(point, (tuple, list)) and len(point) >= 2:
                    if abs(x - point[0]) < 10 and abs(y - point[1]) < 10:
                        self.selected_point = i
                        self.is_drawing = True
                        break
        elif event == cv2.EVENT_MOUSEMOVE:
            if self.is_drawing and self.selected_point is not None:
                self.reg_pts[self.selected_point] = (x, y)
                self.counting_region = Polygon(self.reg_pts)
        elif event == cv2.EVENT_LBUTTONUP:
            self.is_drawing = False
            self.selected_point = None

    def extract_and_process_tracks(self, tracks):
        boxes = tracks[0].boxes.xyxy.cpu()
        clss = tracks[0].boxes.cls.cpu().tolist()
        track_ids = tracks[0].boxes.id.int().cpu().tolist()
        self.annotator = Annotator(self.im0, self.tf, self.names)
        self.annotator.draw_region(reg_pts=self.reg_pts, color=self.region_color)
        for box, track_id, cls in zip(boxes, track_ids, clss):
            self.annotator.box_label(box, label=self.names[cls], color=colors(int(cls), True))
            track_line = self.track_history[track_id]
            track_line.append((float((box[0] + box[2]) / 2), float((box[1] + box[3]) / 2)))
            if len(track_line) > 30:
                track_line.pop(0)
            if self.draw_tracks:
                self.annotator.draw_centroid_and_tracks(track_line, color=(0, 255, 0), track_thickness=self.track_thickness)
            if self.counting_region.contains(Point(track_line[-1])):
                if track_id not in self.counting_list:
                    self.counting_list.append(track_id)
                    if box[0] < self.counting_region.centroid.x:
                        self.out_counts += 1
                    else:
                        self.in_counts += 1
        if self.env_check and self.view_img:
            if swap_in_and_out:
                self.incount_label = 'InCount: ' + f'{self.out_counts}'
                self.outcount_label = 'OutCount: ' + f'{self.in_counts}'
            else:
                self.incount_label = 'InCount: ' + f'{self.in_counts}'
                self.outcount_label = 'OutCount: ' + f'{self.out_counts}'
            if now_time == start_time + timedelta(seconds=self.k * record_interval_time):
                sheet.append([str(now_time), int(self.incount_label[9:]), int(self.outcount_label[10:])])

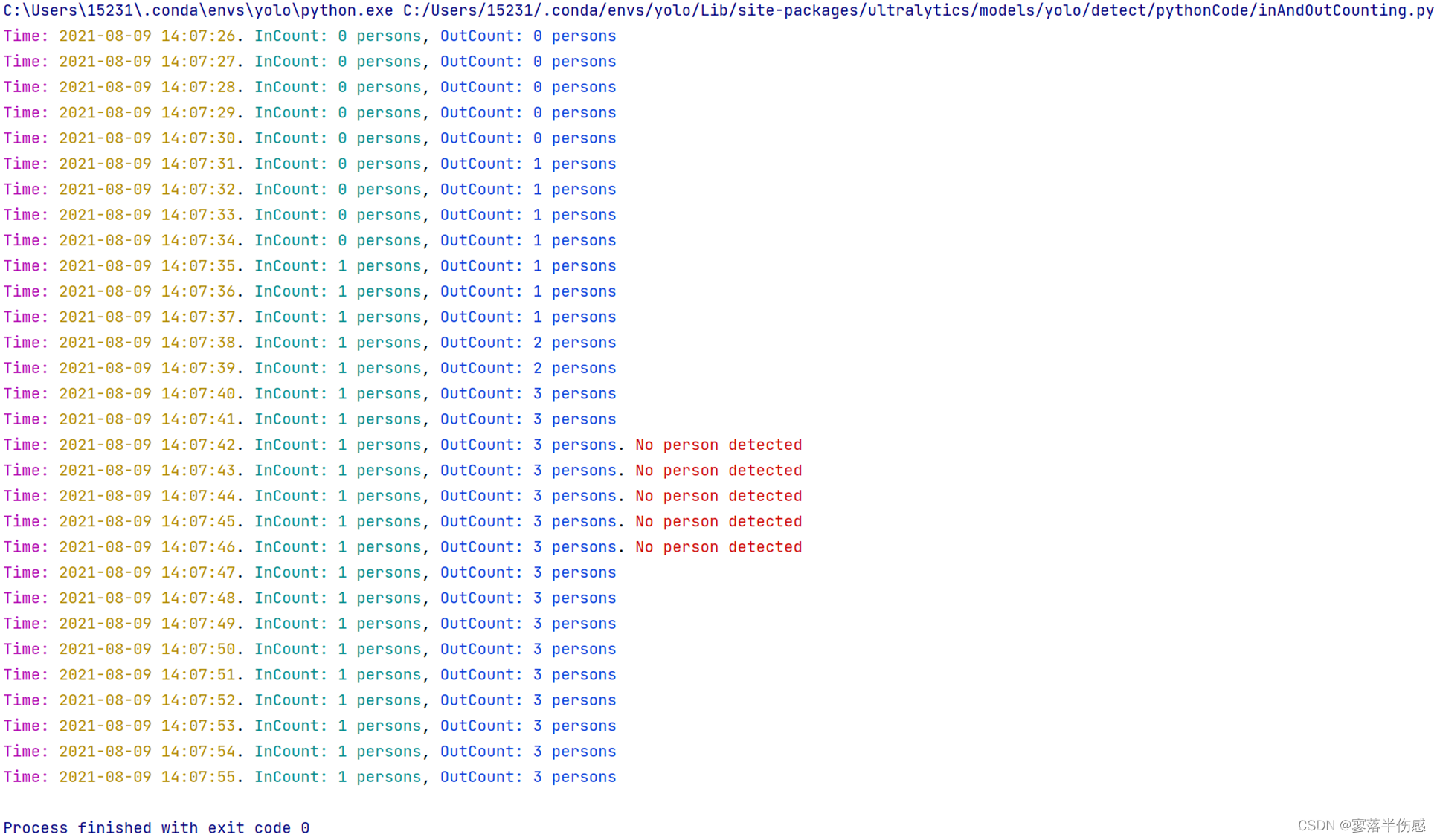

                LOGGER.info(f"{colorstr('magenta', 'Time: ')}{colorstr('yellow', now_time)}. {colorstr('cyan', self.incount_label + ' persons')}, {colorstr('blue', self.outcount_label + ' persons')}")
                self.k += 1
            self.annotator.count_labels(in_count=self.incount_label, out_count=self.outcount_label)
            cv2.namedWindow('Object Counter Powered By Anperlanch')
            cv2.setMouseCallback('Object Counter Powered By Anperlanch', self.mouse_event_for_region, {'region_points': self.reg_pts})
            cv2.imshow('Object Counter Powered By Anperlanch', self.im0)
            if cv2.waitKey(1) & 0xFF == ord('q'):
                return

    def start_counting(self, im0, tracks):
        self.im0 = im0
        if tracks[0].boxes.id is None:
            cv2.putText(self.im0, 'No person detected. ' + self.incount_label + ', ' + self.outcount_label, (400, 60), cv2.FONT_HERSHEY_COMPLEX, 0.7, (0, 255, 0), self.tf)
            cv2.imshow('Object Counter Powered By Anperlanch', self.im0)
            if now_time == start_time + timedelta(seconds=self.k * record_interval_time):
                sheet.append([str(now_time), int(self.incount_label[9:]), int(self.outcount_label[10:])])
                LOGGER.info(f"{colorstr('magenta', 'Time: ')}{colorstr('yellow', now_time)}. {colorstr('cyan', self.incount_label + ' persons')}, {colorstr('blue', self.outcount_label + ' persons')}. {colorstr('red', 'No person detected')}")
                self.k += 1
            return self.im0
        else:
            self.extract_and_process_tracks(tracks)
            return self.im0


def main():
    global start_time, now_time, sheet
    workbook = Workbook()
    sheet = workbook.active
    year, month, day, hours, minutes, seconds = map(int, re.split('[-:\s]+', video_start_time))
    start_time = datetime(year, month, day, hours, minutes, seconds)
    model = YOLO(f'{weights}')
    model.to('cuda') if device == '0' else model.to('cpu')
    cap = cv2.VideoCapture(video_path)
    fps = int(cap.get(5))
    video_writer = cv2.VideoWriter("runs/in_and_out_counting.mp4", cv2.VideoWriter_fourcc(*'mp4v'), fps, (int(cap.get(3)), int(cap.get(4))))
    counter = ObjectCounter()
    counter.set_args(view_img=view_img, line_thickness=line_thickness, reg_pts=[(x, y), (x + width, y), (x + width, y + height), (x, y + height)], classes_names=model.names, region_color=region_color, track_thickness=track_thickness, draw_tracks=draw_tracks)
    vid_frame_count = 0
    while cap.isOpened():
        success, frame = cap.read()
        if not success:
            break
        vid_frame_count += 1
        now_time = start_time + timedelta(seconds=int(vid_frame_count / fps))
        cv2.putText(frame, 'Frame time: ' + str(now_time), (120, 27), cv2.FONT_HERSHEY_COMPLEX, 0.7, (0, 0, 255), line_thickness)
        tracks = model.track(source=frame, persist=True, classes=classes)
        frame = counter.start_counting(frame, tracks)
        video_writer.write(frame)
        if cv2.waitKey(1) & 0xFF == ord('q'):
            break

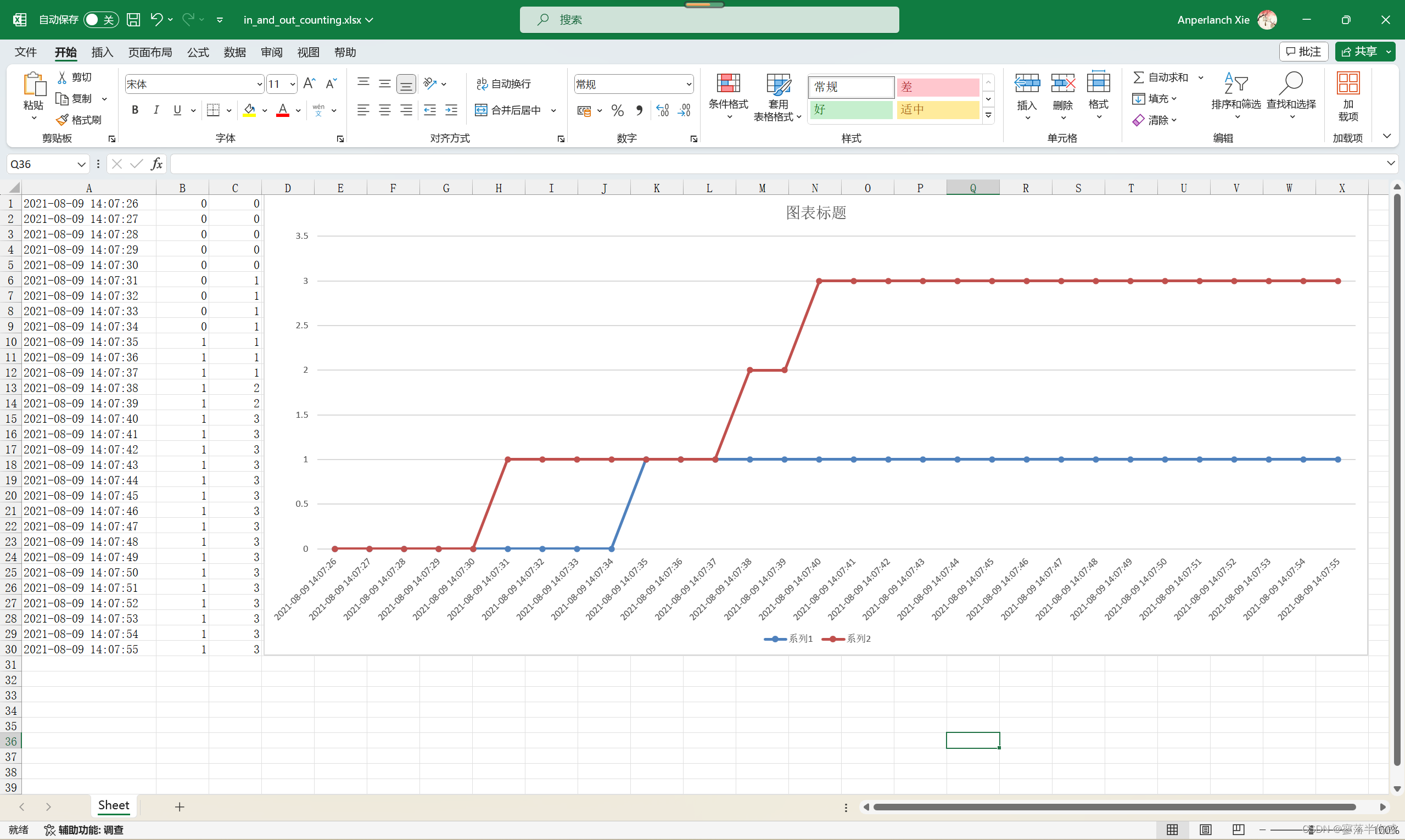

    workbook.save(r"runs\in_and_out_counting.xlsx")
    video_writer.release()


if __name__ == '__main__':
    video_path = "audioAndVideoFiles/video.mp4"
    video_start_time = '2021-08-09 14:07:25'
    x, y, height, width = 30, 270, 30, 1220
    weights = r"C:\Users\15231\.conda\envs\yolo\Lib\site-packages\ultralytics\models\yolo\detect\yolov8n.pt"
    device = '0'
    swap_in_and_out = True
    record_interval_time = 1
    classes = 0
    view_img = True
    draw_tracks = True
    line_thickness = 2
    track_thickness = 1
    region_color = (255, 0, 0)
    main()

对摄像头拍到的实时视频进行出入计数

from ultralytics import YOLO
from collections import defaultdict
import cv2
from ultralytics.utils.checks import check_imshow, check_requirements
from ultralytics.utils.plotting import Annotator, colors
from shapely.geometry import Polygon
from shapely.geometry.point import Point
from datetime import datetime, timedelta
import re
from ultralytics.utils import LOGGER, colorstr
from openpyxl import Workbook

check_requirements('shapely>=2.0.0')


class ObjectCounter:

    def __init__(self):
        self.is_drawing = False
        self.selected_point = None
        self.reg_pts = None
        self.counting_region = None
        self.region_color = (255, 255, 255)
        self.im0 = None
        self.tf = None
        self.view_img = True
        self.names = None
        self.annotator = None
        self.in_counts = 0
        self.out_counts = 0
        self.counting_list = []
        self.track_history = defaultdict(list)
        self.track_thickness = 2
        self.draw_tracks = True
        self.env_check = check_imshow(warn=True)
        self.incount_label = 'InCount: 0'
        self.outcount_label = 'OutCount: 0'
        self.printed_time = datetime.now().strftime('%Y-%m-%d %H:%M:%S')

    def set_args(self, classes_names, reg_pts, region_color=None, line_thickness=2, track_thickness=2, view_img=True, draw_tracks=True):
        self.tf = line_thickness
        self.view_img = view_img
        self.track_thickness = track_thickness
        self.draw_tracks = draw_tracks
        self.reg_pts = reg_pts
        self.counting_region = Polygon(self.reg_pts)
        self.names = classes_names
        self.region_color = region_color if region_color else self.region_color

    def mouse_event_for_region(self, event, x, y, flags, params):
        if event == cv2.EVENT_LBUTTONDOWN:
            for i, point in enumerate(self.reg_pts):
                if isinstance(point, (tuple, list)) and len(point) >= 2:
                    if abs(x - point[0]) < 10 and abs(y - point[1]) < 10:
                        self.selected_point = i
                        self.is_drawing = True
                        break
        elif event == cv2.EVENT_MOUSEMOVE:
            if self.is_drawing and self.selected_point is not None:
                self.reg_pts[self.selected_point] = (x, y)
                self.counting_region = Polygon(self.reg_pts)
        elif event == cv2.EVENT_LBUTTONUP:
            self.is_drawing = False
            self.selected_point = None

    def extract_and_process_tracks(self, tracks):
        boxes = tracks[0].boxes.xyxy.cpu()
        clss = tracks[0].boxes.cls.cpu().tolist()
        track_ids = tracks[0].boxes.id.int().cpu().tolist()
        self.annotator = Annotator(self.im0, self.tf, self.names)
        self.annotator.draw_region(reg_pts=self.reg_pts, color=self.region_color)
        for box, track_id, cls in zip(boxes, track_ids, clss):
            self.annotator.box_label(box, label=self.names[cls], color=colors(int(cls), True))
            track_line = self.track_history[track_id]
            track_line.append((float((box[0] + box[2]) / 2), float((box[1] + box[3]) / 2)))
            if len(track_line) > 30:
                track_line.pop(0)
            if self.draw_tracks:
                self.annotator.draw_centroid_and_tracks(track_line, color=(0, 255, 0), track_thickness=self.track_thickness)
            if self.counting_region.contains(Point(track_line[-1])):
                if track_id not in self.counting_list:
                    self.counting_list.append(track_id)
                    if box[0] < self.counting_region.centroid.x:
                        self.out_counts += 1
                    else:
                        self.in_counts += 1
        if self.env_check and self.view_img:
            if swap_in_and_out:
                self.incount_label = 'InCount: ' + f'{self.out_counts}'
                self.outcount_label = 'OutCount: ' + f'{self.in_counts}'
            else:
                self.incount_label = 'InCount: ' + f'{self.in_counts}'
                self.outcount_label = 'OutCount: ' + f'{self.out_counts}'
            if current_time >= self.printed_time:
                year, month, day, hours, minutes, seconds = map(int, re.split('[-:\s]+', self.printed_time))
                self.printed_time = (datetime(year, month, day, hours, minutes, seconds) + timedelta(seconds=record_interval_time)).strftime('%Y-%m-%d %H:%M:%S')
                sheet.append([current_time, int(self.incount_label[9:]), int(self.outcount_label[10:])])
                LOGGER.info(f"{colorstr('magenta', 'Time: ')}{colorstr('yellow', current_time)}. {colorstr('cyan', self.incount_label + ' persons')}, {colorstr('blue', self.outcount_label + ' persons')}")
            self.annotator.count_labels(in_count=self.incount_label, out_count=self.outcount_label)
            cv2.namedWindow('Object Counter Powered By Anperlanch')
            cv2.setMouseCallback('Object Counter Powered By Anperlanch', self.mouse_event_for_region, {'region_points': self.reg_pts})
            cv2.imshow('Object Counter Powered By Anperlanch', self.im0)

    def start_counting(self, im0, tracks):
        self.im0 = im0
        if tracks[0].boxes.id is None:
            cv2.putText(self.im0, 'No person detected. ' + self.incount_label + ', ' + self.outcount_label, (400, 60), cv2.FONT_HERSHEY_COMPLEX, 0.7, (0, 255, 0), self.tf)
            cv2.imshow('Object Counter Powered By Anperlanch', self.im0)
            if current_time >= self.printed_time:
                year, month, day, hours, minutes, seconds = map(int, re.split('[-:\s]+', self.printed_time))
                self.printed_time = (datetime(year, month, day, hours, minutes, seconds) + timedelta(seconds=record_interval_time)).strftime('%Y-%m-%d %H:%M:%S')
                sheet.append([current_time, int(self.incount_label[9:]), int(self.outcount_label[10:])])
                LOGGER.info(f"{colorstr('magenta', 'Time: ')}{colorstr('yellow', current_time)}. {colorstr('cyan', self.incount_label + ' persons')}, {colorstr('blue', self.outcount_label + ' persons')}. {colorstr('red', 'No person detected')}")
            return self.im0
        else:
            self.extract_and_process_tracks(tracks)
            return self.im0


def main():
    global sheet, current_time
    workbook = Workbook()
    sheet = workbook.active
    model = YOLO(f'{weights}')
    model.to('cuda') if device == '0' else model.to('cpu')
    cap = cv2.VideoCapture(0)
    video_writer = cv2.VideoWriter("runs/in_and_out_counting.mp4", cv2.VideoWriter_fourcc(*'mp4v'), int(cap.get(5)), (int(cap.get(3)), int(cap.get(4))))
    counter = ObjectCounter()
    counter.set_args(view_img=view_img, line_thickness=line_thickness, reg_pts=[(x, y), (x + width, y), (x + width, y + height), (x, y + height)], classes_names=model.names, region_color=region_color, track_thickness=track_thickness, draw_tracks=draw_tracks)
    while cap.isOpened():
        success, frame = cap.read()
        if not success:
            break
        current_time = datetime.now().strftime('%Y-%m-%d %H:%M:%S')
        cv2.putText(frame, current_time, (10, 60), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 0), 2)
        tracks = model.track(source=frame, persist=True, classes=classes)
        frame = counter.start_counting(frame, tracks)
        video_writer.write(frame)
        if cv2.waitKey(1) & 0xFF == ord('q'):
            break
    workbook.save(r"runs\in_and_out_counting.xlsx")
    video_writer.release()
    cap.release()
    cv2.destroyAllWindows()


if __name__ == '__main__':
    x, y, height, width = 10, 240, 15, 620
    weights = r"C:\Users\15231\.conda\envs\yolo\Lib\site-packages\ultralytics\models\yolo\detect\yolov8n.pt"
    device = '0'
    swap_in_and_out = True
    record_interval_time = 1
    classes = 0
    view_img = True
    draw_tracks = True
    line_thickness = 2
    track_thickness = 1
    region_color = (255, 0, 0)
    main()
