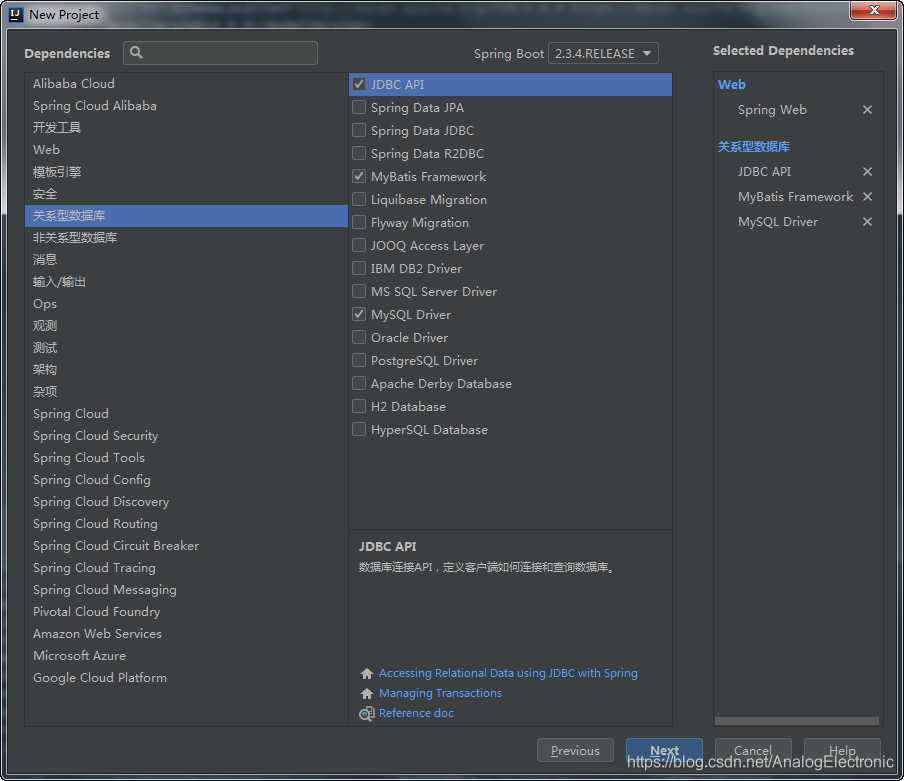

构建项目
在这里插入图片描述

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.45</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.1</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.18</version>
        </dependency>

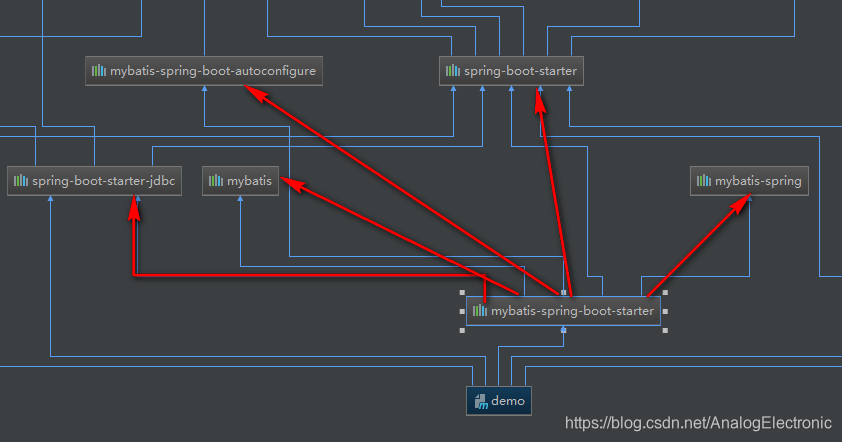

mybatis-spring-boot-starter 依赖关系
在这里插入图片描述
application.yml

spring:
  #mysql数据源配置
  datasource:
    # 强烈注意：Spring Boot 2.X 版本不再支持配置继承，多数据源的话每个数据源的所有配置都需要单独配置，否则配置不会生效
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/test?useSSL=false&useUnicode=true&characterEncoding=utf-8
    username: root
    password: 123456
    type: com.alibaba.druid.pool.DruidDataSource
    initialSize: 5
    maxActive: 20

DruidConfig.java

package com.example.demo.config;

import com.alibaba.druid.pool.DruidDataSource;
import com.alibaba.druid.support.http.StatViewFilter;
import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;

/**
 * @author *cruder
 * @version 1.0
 * @since 2020/12/10 19:46
 */
@Configuration
public class DruidConfig {

    @ConfigurationProperties(prefix = "spring.datasource")
    @Bean
    public DataSource druid(){
        return new DruidDataSource();
    }

    //配置Druid监控
    //1、配置一个后台管理的Servlet
    @Bean
    public ServletRegistrationBean statViewServlet(){
        ServletRegistrationBean bean = new ServletRegistrationBean<>(new StatViewServlet(),"/druid/*");
        Map<String,String> initParams = new HashMap<>();
        initParams.put("loginUsername","admin");
        initParams.put("loginPassword","admin");
        initParams.put("allow","");
        initParams.put("deny","192.168.1.36");
        bean.setInitParameters(initParams);
        return bean;
    }

    //2.配置一个web监控的filter
    @Bean
    public FilterRegistrationBean webStatFilter(){
        FilterRegistrationBean bean = new FilterRegistrationBean();
        bean.setFilter(new WebStatFilter());
        Map<String,String> initParams = new HashMap<>();
        initParams.put("exclusions","*.js,*.css,/druid/*");
        bean.setInitParameters(initParams);
        bean.setUrlPatterns(Arrays.asList("/*"));
        return bean;
    }
}

Person.java

package com.example.demo.bean;

/**
 * @author *cruder
 * @version 1.0
 * @since 2020/12/10 21:01
 */
public class Person {

    private Integer id;
    private Integer age;
    private String name;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }
}

PersonMapper

package com.example.demo.mapper;

import com.example.demo.bean.Person;
import org.apache.ibatis.annotations.*;

/**
 * @author *cruder
 * @version 1.0
 * @since 2020/12/10 21:03
 */
@Mapper
public interface PersonMapper {

    @Select("select * from person where id=#{id}")
    public Person getPersonById(Integer id);

    @Delete("delete  from person where id=#{id}")
    public Person deletePersonById(Integer id);

    @Options(useGeneratedKeys = true,keyProperty = "id")
    @Insert("insert into person (age,name)values(#{age},#{name})")
    public int insertPerson(Person person);

    @Update("update person set name=#{name},age={#age} where id = {#id}")
    public int updatePerson(Person person);
}

package com.example.demo.controller;

import com.example.demo.bean.Person;
import com.example.demo.mapper.PersonMapper;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * @author *cruder
 * @version 1.0
 * @since 2020/12/10 21:10
 */
@RestController
public class PersonController {
    @Resource
    PersonMapper personMapper;

    @GetMapping("/person/{id}")
    public Person getPerson(@PathVariable("id") Integer id){
        return personMapper.getPersonById(id);
    }

    @GetMapping("/person")
    public Person insertPerson(Person person){
        personMapper.insertPerson(person);
        return person;
    }
}

查询
在这里插入图片描述

添加
在这里插入图片描述

使用自定义mybatis的配置规则

MybatisConfig.java

package com.example.demo.config;

import org.mybatis.spring.boot.autoconfigure.ConfigurationCustomizer;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @author *cruder
 * @version 1.0
 * @since 2020/12/10 21:22
 */
@Configuration
public class MybatisConfig {

    @Bean
    public ConfigurationCustomizer configurationCustomizer(){
       return new ConfigurationCustomizer(){
            @Override
            public void customize(org.apache.ibatis.session.Configuration configuration) {
                configuration.setMapUnderscoreToCamelCase(true);//开启驼峰命名法
            }
        };
    }
}

如果mapper特别多的情况下，可以在启动类加上@MapperScan注解

package com.example.demo;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@MapperScan(value = "com.example.demo.mapper")
@SpringBootApplication
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }

}
