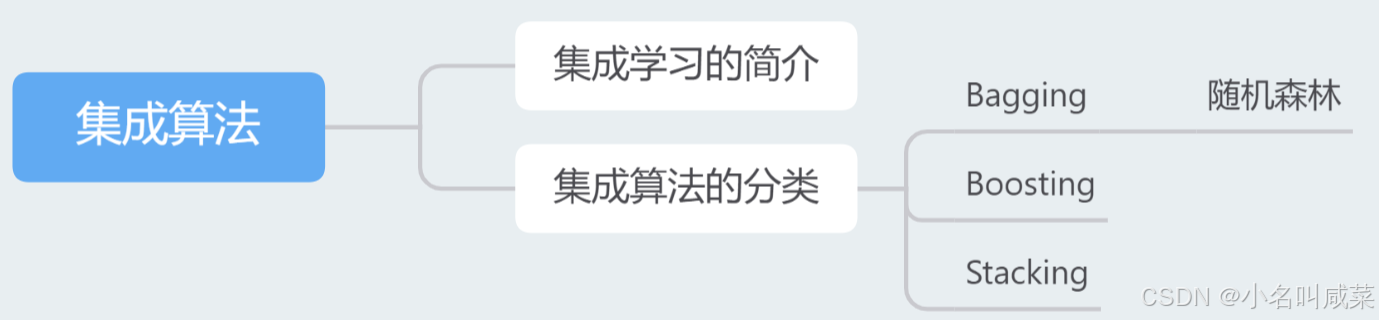

集成算法简介

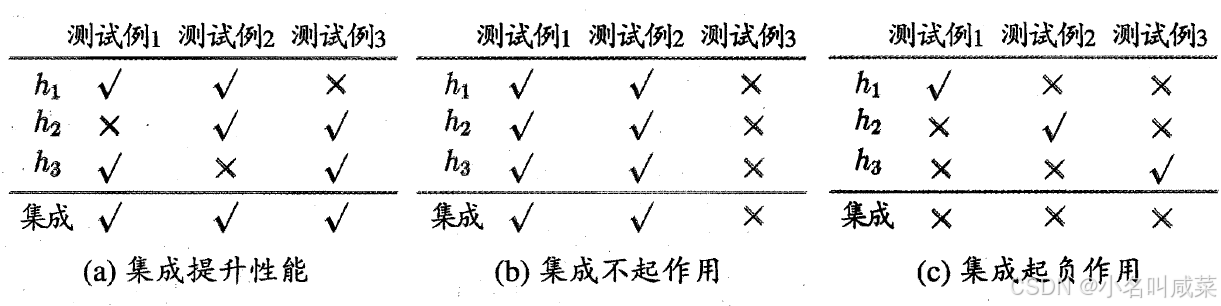

对于一个复杂任务来说，将多个专家的判断进行适当的综合所得出的判断，要比其中任何一个专家单独的判断好。

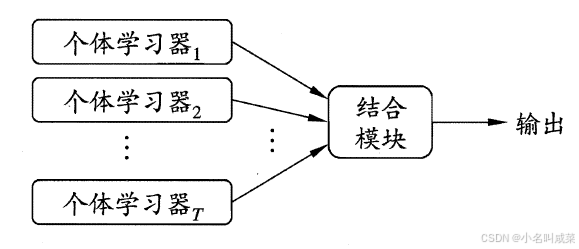

集成学习(ensemble learning)通过构建并结合多个学习器来完成学习任务等。

集成学习的结果通过投票法产生?即“少数服从多数”

代码

import torch

import torch.nn as nn

import torch.optim as optim

import torch.nn.functional as F

import torch.backends.cudnn as cudnn

import numpy as np

import torchvision

import torchvision.transforms as transforms

from torch.utils.data import DataLoader

from collections import Counter

#定义一些超参数

BATCHSIZE = 100

DOWNLOAD_MNIST = False

EPOCHES=20

LR=0.001

print("=========================================================================================")

#定义相关模型结构。这三个网络结构比较接近

class CNNet(nn.Module):

def __init__(self):

super(CNNet, self).__init__()

self.conv1 = nn.Conv2d(3, 16, kernel_size=5,stride=1)

self.pool1 = nn.MaxPool2d(kernel_size=2,stride=2)

self.conv2 = nn.Conv2d(16, 36, kernel_size=3,stride=1)

self.pool2 = nn.MaxPool2d(kernel_size=2,stride=2)

self.fc1 = nn.Linear(1296, 128)

self.fc2 = nn.Linear(128, 10)

def forward(self, x):

x = self.pool1(F.relu(self.conv1(x)))

x = self.pool2(F.relu(self.conv2(x)))

#print(x.shanpe)

x = x.view(-1,36*6*6)

x = F.relu(self.fc2(F.relu(self.fc1(x))))

return x

print("===========================================================================================")

class Net(nn.Module):

def __init__(self):

super(Net, self).__init__()

self.conv1 = nn.Conv2d(3, 16, kernel_size=5)

self.pool1 = nn.MaxPool2d(kernel_size=2,stride=2)

self.conv2 = nn.Conv2d(16, 36, kernel_size=5)

#self.fc1 = nn.Linear(16*5*5,120)

self.pool2 = nn.MaxPool2d(kernel_size=2,stride=2)

self.aap = nn.AdaptiveAvgPool2d(1)

#self.fc2 = nn.Linear(120,84)

self.fc3 = nn.Linear(36, 10)

def forward(self, x):

x = self.pool1(F.relu(self.conv1(x)))

x = self.pool2(F.relu(self.conv2(x)))

#print(x.shape)

#x = x.view(-1,16*5*5)

x = self.aap(x)

#print(x.shape)

#x = F.relu(self.fc2(x))

x = x.view(x.shape[0], -1)

#print(x.shape)

x = self.fc3(x)

return x

print("=============================================================================================")

class LeNet(nn.Module):

def __init__(self):

super(LeNet, self).__init__()

self.conv1 = nn.Conv2d(3, 6, kernel_size=5)

self.conv2 = nn.Conv2d(6, 16, kernel_size=5)

self.fc1 = nn.Linear(16 * 5 * 5, 120)

self.fc2 = nn.Linear(120, 84)

self.fc3 = nn.Linear(84, 10)

def forward(self, x):

out = F.relu(self.conv1(x))

out = F.max_pool2d(out, 2)

out = F.relu(self.conv2(out))

out = F.max_pool2d(out, 2)

out = out.view(out.size(0),-1)

out = F.relu(self.fc1(out))

out = F.max_pool2d(out, 2)

out = self.fc3(out)

return out

print("============================================================================================")

cfg = {

'VGG16': [64,64,'M',128, 128, 'M', 256, 256,256,'M', 512, 512,512,'M',512, 512,512,'M'],

'VGG19': [64,64,'M',128, 128, 'M', 256, 256,256,256,'M', 512, 512,512,512,'M',512, 512,512,512,'M']

}

class VGG(nn.Module):

def __init__(self):

super(VGG, self).__init__()

self.features = self._make_layers(cfg['VGG16'])

self.classifier = nn.Linear(512, 10)

def forward(self, x):

out = self.features(x)

out = out.view(out.size(0), -1)

out = self.classifier(out)

return out

def _make_layers(self, cfg):

layers = []

in_channels = 3

for x in cfg:

if x == 'M':

layers += [nn.MaxPool2d(kernel_size=2, stride=2)]

else:

layers += [nn.Conv2d(in_channels, x, kernel_size=3, padding=1),

nn.BatchNorm2d(x),

nn.ReLU(inplace=True)]

in_channels = x

layers += [nn.AvgPool2d(kernel_size=1, stride=1)]

return nn.Sequential(*layers)

print("===============================================================================")

#导入数据

device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")

#Data

print("==> Preparing data...")

transform_train = transforms.Compose([

transforms.RandomCrop(32, padding=4),

transforms.RandomHorizontalFlip(),

transforms.ToTensor(),

transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010)),

])

transform_test = transforms.Compose([

transforms.ToTensor(),

transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010)),

])

trainset = torchvision.datasets.CIFAR10(root='./data', train=True, download=False, transform=transform_train)

trainloader = torch.utils.data.DataLoader(trainset, batch_size=128, shuffle=True, num_workers=2)

testset = torchvision.datasets.CIFAR10(root='./data', train=False, download=False, transform=transform_test)

testloader = torch.utils.data.DataLoader(testset, batch_size=100, shuffle=False, num_workers=2)

classes = ('plane', 'car', 'bird', 'cat', 'deer','dog', 'frog', 'horse', 'ship', 'truck')

#Model

print("==> Building model...")

net1 = CNNet

net2 = Net()

net3 = LeNet

net4 = VGG('VGG16')

print("===============================================================================================")

#集成方法

#把三个网络模型放在一个列表里

mlps =[net1.to(device), net2.to(device), net3.to(device), net4.to(device)]

optimizer = torch.optim.Adam([{'params':mlps.parameters()} for mlp in mlps],Lr = LR)

loss_function=nn.CrossEntropyLoss()

for ep in range(EPOCHES):

for img,label in trainloader:

img,label=img.to(device),label.to(device)

optimizer.zero_grad()

for mlp in mlps:

mlp.train()

out=mlp(img)

loss=loss_function(out,label)

loss.backward()

optimizer.step()

pre = []

vote_correct=0

mlps_correct=[0 for i in range(len(mlps))]

for img,label in testloader:

img,label=img.to(device),label.to(device)

for i,mlp in enumerate(mlps):

mlp.eval()

out=mlp(img)

_,prediction=torch.max(out,1)

pre_num=prediction.cpu().numpy()

mlps_correct[i]+=(pre_num==label.cpu().numpy()).sum()

pre.append(pre_num)

arr=np.array(pre)

pre.clear()

result=[Counter(arr[:,i]).most_common(1)[0][0] for i in range(BATCHSIZE)]

vote_correct+=(result == label.cpu().numpy()).sum()

print('epoch:' + str(ep)+'集成模型的正确率'+str(vote_correct/len(testloader)))

for idx,coreect in enumerate(mlps_correct):

print('模型'+str(idx)+'的正确率为：'+str(coreect/len(testloader)))

print("========================================================================================")

mlps = [net4.to(device)]

optimizer=torch.optim.Adam([{'params':mlp.parameters()} for mlp in mlps],Lr=LR)

loss_function=nn.CrossEntropyLoss()

for ep in range(EPOCHES):

for img,label in trainloader:

img,label=img.to(device),label.to(device)

optimizer.zero_grad()

for mlp in mlps:

mlp.train()

out=mlp(img)

loss=loss_function(out,label)

loss.backward()

optimizer.setp()

pre=[]

vote_correct=0

mlps_correct=[0 for i in range(len(mlps))]

for img,label in testloader:

img,label=img.to(device),label.to(device)

for i,mlp in enumerate(mlps):

mlp.eval()

out=mlp(img)

_,prediction=torch.max(out,1)

pre_num=prediction.cpu().numpy()

mlps_correct[i]+=(pre_num==label.cpu().numpy()).sum()

pre.append(pre_num)

arr=np.array(pre)

pre.clear()

result=[Counter(arr[:,i]).most_common(1)[0][0] for i in range(BATCHSIZE)]

vote_correct+=(result == label.cpu().numpy()).sum()

#print('epoch:'+str(ep)+'集成模型的正确率'+str(vote_correct/len(testloader)))

for idx,coreect in enumerate(mlps_correct):

print("VGG16模型迭代"+str(ep)+"次的正确率为:"+str(coreect/len(testloader)))
