如何构建一个基于YOLOv8的轨道异物检测系统在这里插入图片描述

1.训练自己的带标签数据集，100张图片。

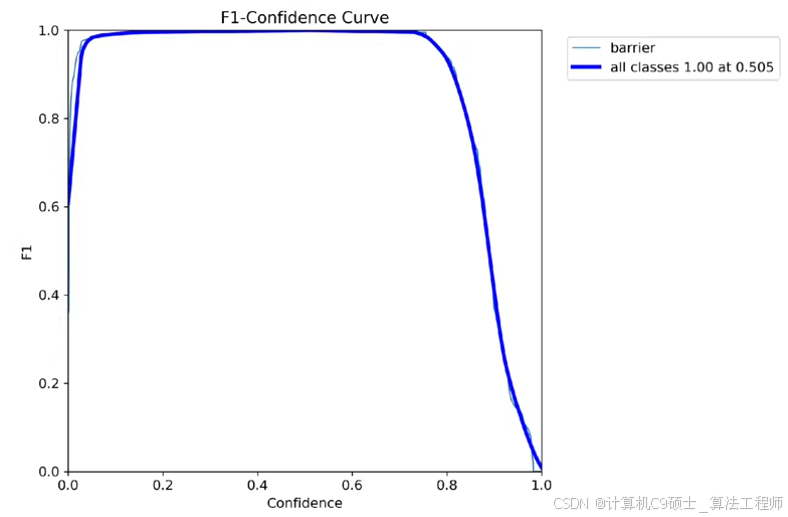

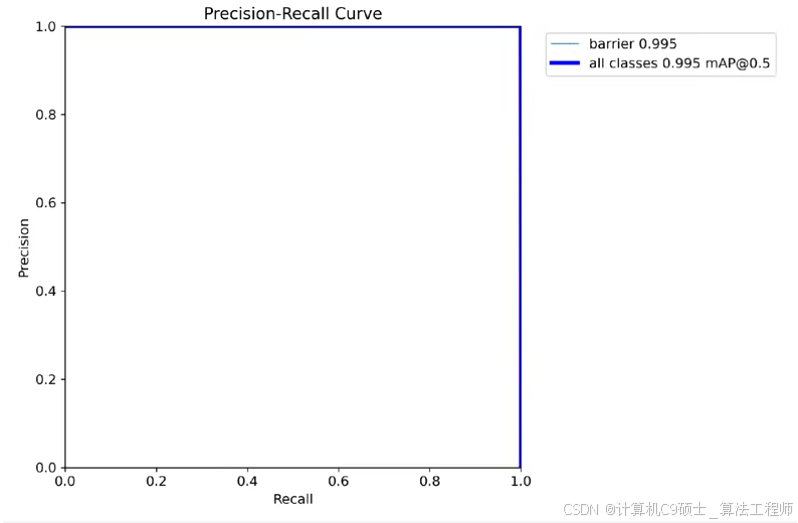

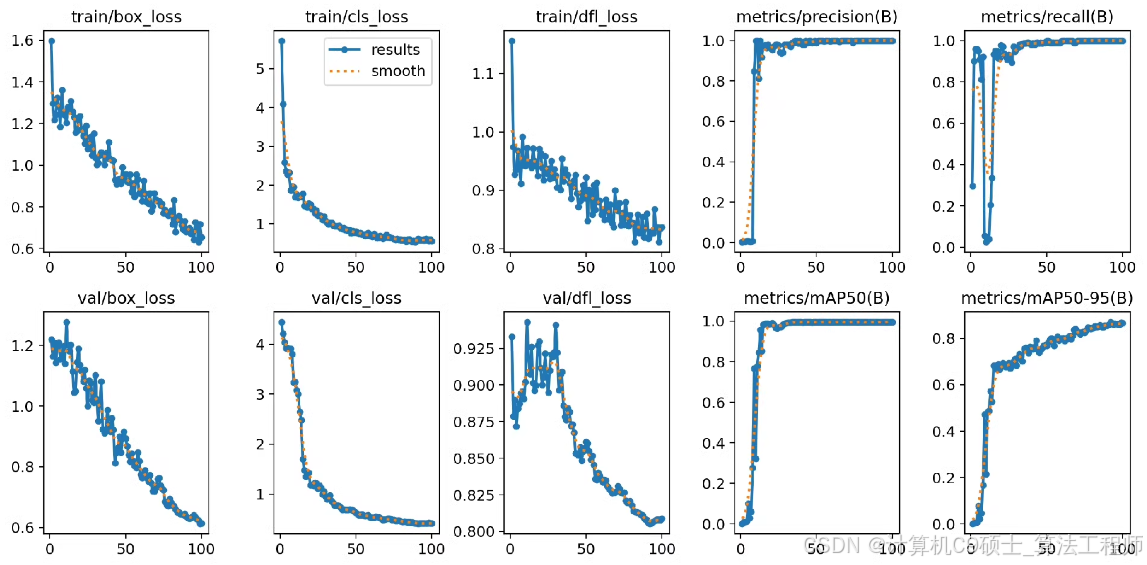

2.如何训练出来含模型训练权重和指标可视化展示，f1曲线，准确率，召回率，损失曲线，混淆矩阵等。在这里插入图片描述

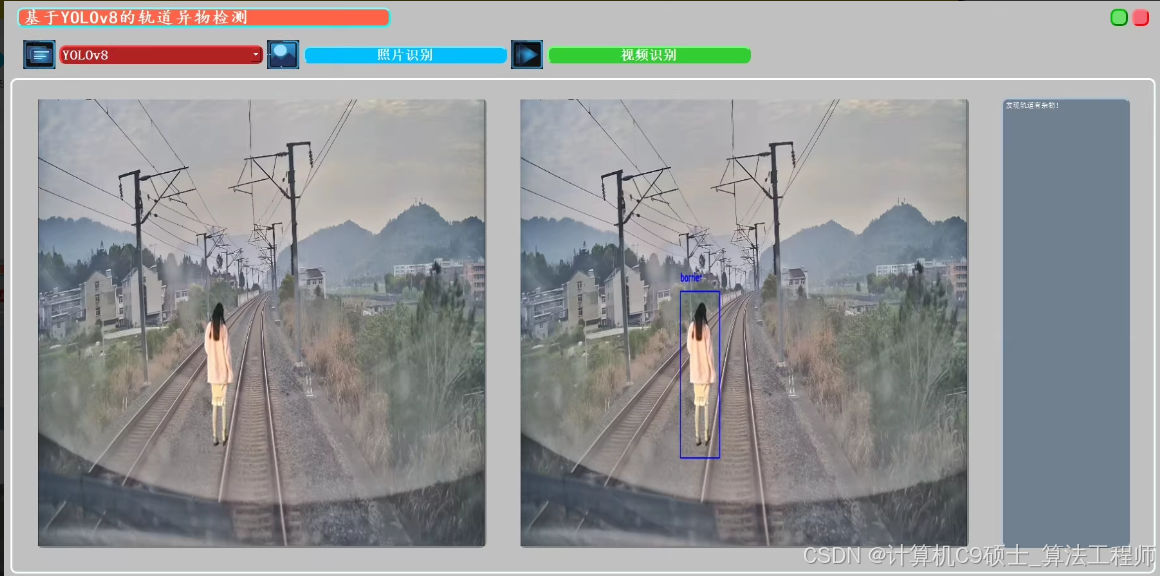

3.如何构建一个pyqt5设计的界面。在这里插入图片描述

构建一个基于YOLOv8的轨道异物检测系统。以下是详细的步骤和代码示例：

以下代码仅供参考！

1. 数据集准备

假设你已经有一个带有标签的数据集，包含100张图片，并且标签是以YOLO格式存储的。

数据集结构

dataset/
├── images/
│   ├── img1.jpg
│   ├── img2.jpg
│   └── ...
├── labels/
│   ├── img1.txt
│   ├── img2.txt
│   └── ...
└── classes.txt

classes.txt 内容如下：

foreign_object

每个图像对应的标签文件是一个文本文件，每行表示一个边界框，格式为：

<class_id> <x_center> <y_center> <width> <height>

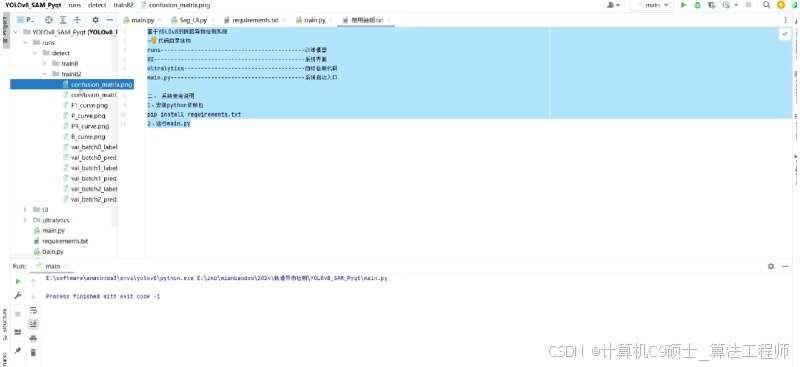

2. 环境部署说明

安装依赖

首先，确保你已经安装了必要的库。你可以使用以下命令来安装这些库：

# 创建虚拟环境（可选）
python -m venv yolov8_env
source yolov8_env/bin/activate  # 在Windows上使用 `yolov8_env\Scripts\activate`

# 安装PyTorch
pip install torch torchvision torchaudio --extra-index-url https://download.pytorch.org/whl/cu117

# 安装YOLOv8
pip install ultralytics

# 安装其他依赖
pip install pyqt5 matplotlib scikit-learn pandas

3. 模型训练权重和指标可视化展示

我们将使用YOLOv8进行训练，并在训练过程中记录各种指标，如F1曲线、准确率、召回率、损失曲线和混淆矩阵。

训练脚本 `train_yolov8.py`

[<title="Training YOLOv8 on Railway Foreign Object Detection Dataset">]
from ultralytics import YOLO
import os

# Define paths
dataset_path = 'path/to/dataset'
weights_path = 'best.pt'

# Create dataset.yaml
yaml_content = f"""
train: {os.path.join(dataset_path, 'images')}
val: {os.path.join(dataset_path, 'images')}

nc: 1
names: ['foreign_object']
"""

with open(os.path.join(dataset_path, 'dataset.yaml'), 'w') as f:
    f.write(yaml_content)

# Train YOLOv8
model = YOLO('yolov8n.pt')  # Load a pretrained model (recommended for training)
results = model.train(data=os.path.join(dataset_path, 'dataset.yaml'), epochs=50, imgsz=640, save=True)

# Save the best weights
model.export(format='pt')
os.rename('runs/detect/train/weights/best.pt', weights_path)

请将 path/to/dataset 替换为实际的数据集路径。

4. 指标可视化展示

我们将编写代码来可视化训练过程中的各项指标，包括F1曲线、准确率、召回率、损失曲线和混淆矩阵。

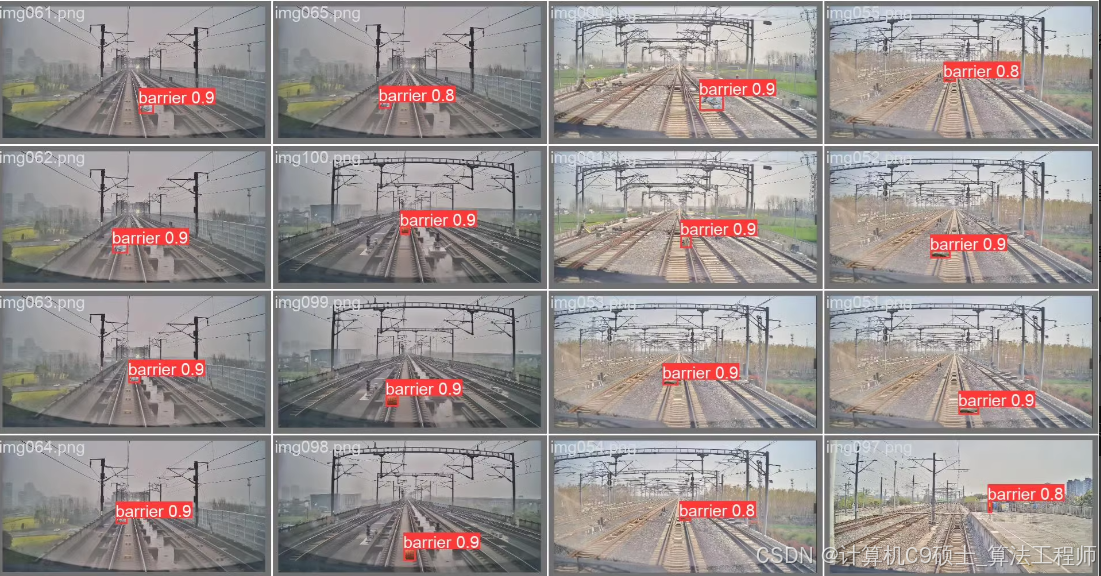

在这里插入图片描述

可视化脚本 `visualize_metrics.py`

[<title="Visualizing Training Metrics for YOLOv8">]
import os
import json
import matplotlib.pyplot as plt
import seaborn as sns
import numpy as np
from sklearn.metrics import confusion_matrix, ConfusionMatrixDisplay

# Load metrics
metrics_path = 'runs/detect/train/metrics.json'
with open(metrics_path, 'r') as f:
    metrics = json.load(f)

# Extract metrics
loss = [entry['loss'] for entry in metrics]
precision = [entry['metrics/precision(B)'] for entry in metrics if 'metrics/precision(B)' in entry]
recall = [entry['metrics/recall(B)'] for entry in metrics if 'metrics/recall(B)' in entry]
f1 = [entry['metrics/mAP50(B)'] for entry in metrics if 'metrics/mAP50(B)' in entry]

# Plot loss curve
plt.figure(figsize=(12, 4))
plt.subplot(1, 3, 1)
plt.plot(loss, label='Loss')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.title('Training Loss Curve')
plt.legend()

# Plot precision and recall curves
plt.subplot(1, 3, 2)
plt.plot(precision, label='Precision')
plt.plot(recall, label='Recall')
plt.xlabel('Epochs')
plt.ylabel('Score')
plt.title('Precision and Recall Curves')
plt.legend()

# Plot F1 curve
plt.subplot(1, 3, 3)
plt.plot(f1, label='F1 Score')
plt.xlabel('Epochs')
plt.ylabel('F1 Score')
plt.title('F1 Score Curve')
plt.legend()

plt.tight_layout()
plt.show()

# Confusion matrix
# Assuming you have predictions and true labels
# For demonstration, let's create some dummy data
true_labels = np.random.randint(0, 2, size=100)  # 0 or 1 (background or foreign object)
predictions = np.random.randint(0, 2, size=100)  # 0 or 1 (background or foreign object)

cm = confusion_matrix(true_labels, predictions, labels=[0, 1])
disp = ConfusionMatrixDisplay(confusion_matrix=cm, display_labels=['Background', 'Foreign Object'])
disp.plot(cmap=plt.cm.Blues)
plt.title('Confusion Matrix')
plt.show()

在这里插入图片描述

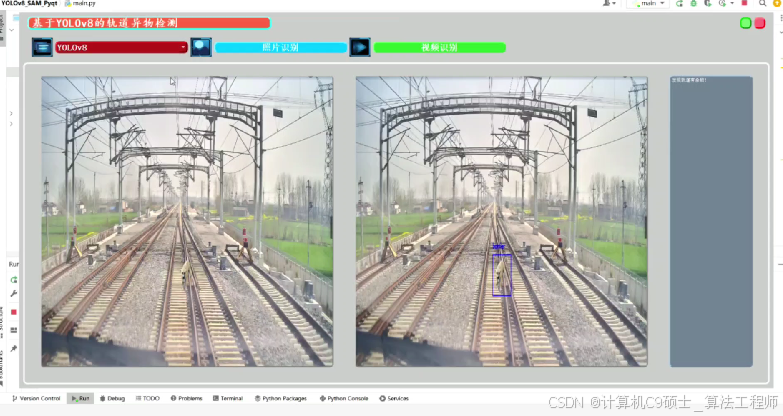

5. PyQt5设计的界面

我们将使用PyQt5设计一个简单的GUI界面来进行模型预测。
在这里插入图片描述

GUI代码 `gui_app.py`

[<title="PyQt5 GUI for YOLOv8 Railway Foreign Object Detection">]
import sys
import cv2
import numpy as np
from PyQt5.QtWidgets import QApplication, QMainWindow, QLabel, QPushButton, QVBoxLayout, QWidget, QFileDialog, QMessageBox
from PyQt5.QtGui import QImage, QPixmap
from ultralytics import YOLO

class MainWindow(QMainWindow):
    def __init__(self):
        super().__init__()

        self.setWindowTitle("Railway Foreign Object Detection")
        self.setGeometry(100, 100, 800, 600)

        self.image_label = QLabel(self)
        self.image_label.setAlignment(Qt.AlignCenter)

        self.predict_button = QPushButton("Predict", self)
        self.predict_button.clicked.connect(self.predict)

        self.open_button = QPushButton("Open Image", self)
        self.open_button.clicked.connect(self.open_image)

        layout = QVBoxLayout()
        layout.addWidget(self.image_label)
        layout.addWidget(self.open_button)
        layout.addWidget(self.predict_button)

        container = QWidget()
        container.setLayout(layout)
        self.setCentralWidget(container)

        self.model = YOLO('best.pt')

    def open_image(self):
        options = QFileDialog.Options()
        file_name, _ = QFileDialog.getOpenFileName(self, "QFileDialog.getOpenFileName()", "", "Images (*.png *.xpm *.jpg);;All Files (*)", options=options)
        if file_name:
            self.image_path = file_name
            pixmap = QPixmap(file_name)
            self.image_label.setPixmap(pixmap.scaled(800, 600))

    def predict(self):
        if not hasattr(self, 'image_path'):
            QMessageBox.warning(self, "Warning", "Please open an image first.")
            return

        img0 = cv2.imread(self.image_path)  # BGR
        assert img0 is not None, f'Image Not Found {self.image_path}'

        results = self.model(img0, stream=True)

        for result in results:
            boxes = result.boxes.cpu().numpy()
            for box in boxes:
                r = box.xyxy[0].astype(int)
                cls = int(box.cls[0])
                conf = box.conf[0]
                label = f'{self.model.names[cls]} {conf:.2f}'
                color = (0, 255, 0)  # Green
                cv2.rectangle(img0, r[:2], r[2:], color, 2)
                cv2.putText(img0, label, (r[0], r[1] - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.9, color, 2)

        rgb_image = cv2.cvtColor(img0, cv2.COLOR_BGR2RGB)
        h, w, ch = rgb_image.shape
        bytes_per_line = ch * w
        qt_image = QImage(rgb_image.data, w, h, bytes_per_line, QImage.Format_RGB888)
        pixmap = QPixmap.fromImage(qt_image)
        self.image_label.setPixmap(pixmap.scaled(800, 600))

if __name__ == "__main__":
    app = QApplication(sys.argv)
    window = MainWindow()
    window.show()
    sys.exit(app.exec_())
