Ubuntu18.04+melodic+激光雷达镭神N10安装使用记录

已于 2025-03-15 22:56:45 修改
阅读量1.2k 收藏 14
点赞数 29
分类专栏： Ubuntu18.04+Melodic 文章标签： linux ubuntu
于 2025-02-08 00:03:46 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/2302_80299870/article/details/145494928
版权

目录

一.大佬资源

二.报错解决

1.检查串口设备连接时无输出

2.编译打包时报错

我的解决办法：

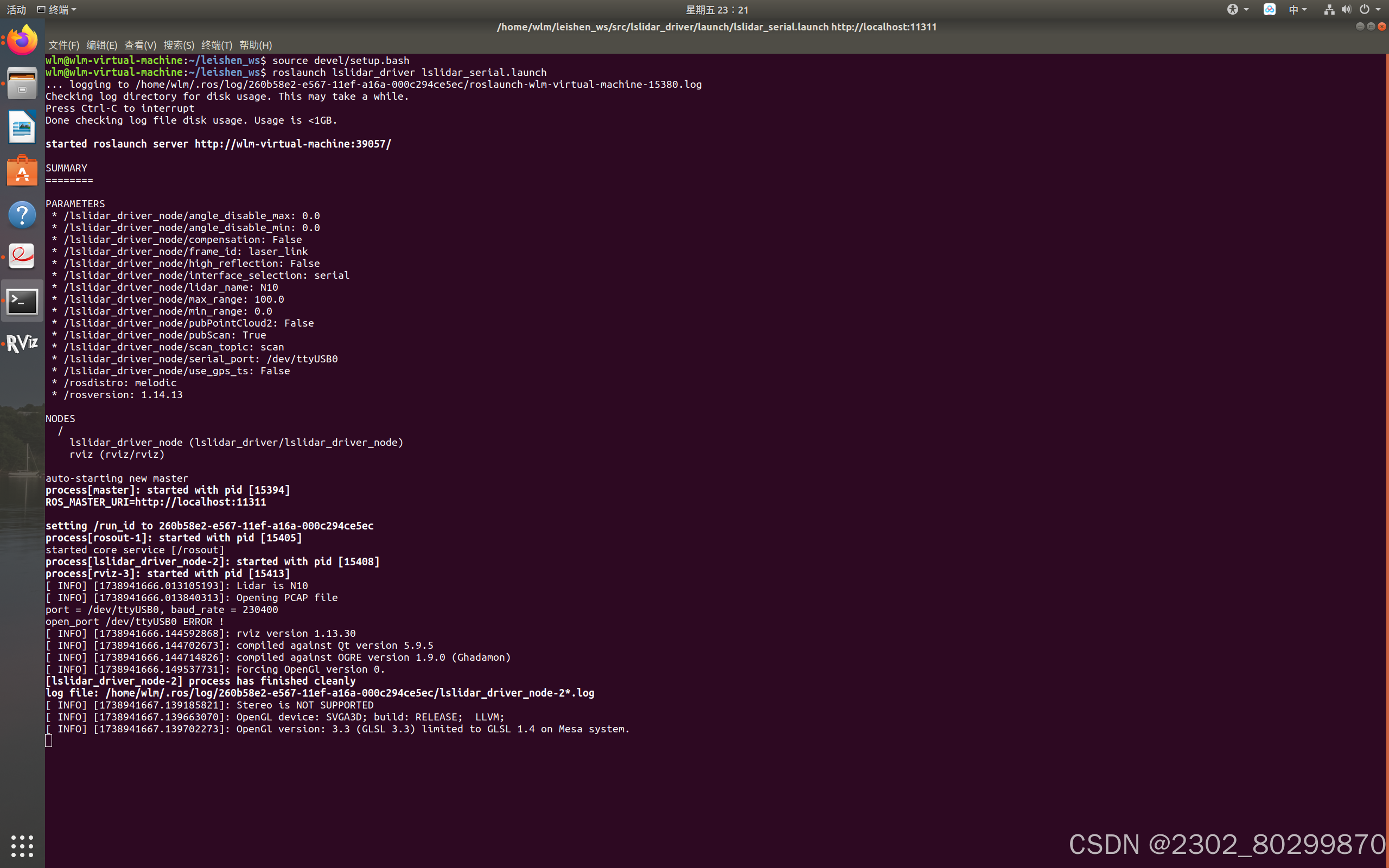

3.运行程序时报错

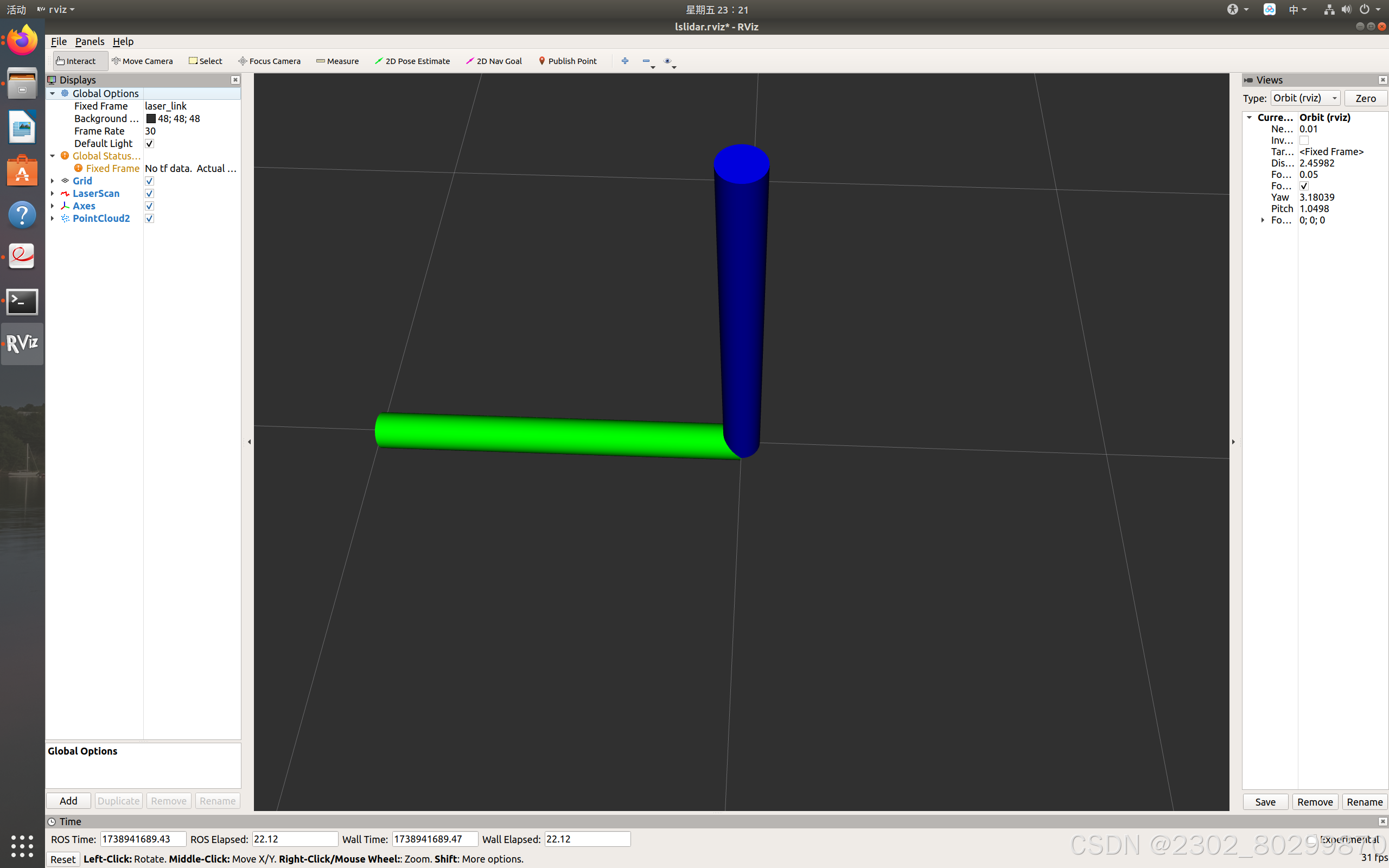

三.结果展示图

 四.小结

一.大佬资源

镭神N10激光雷达Ubuntu18.04使用教程_n10激光雷达镭神-优快云博客

里面有资料，该资料为M10资料，不过只需要修改launch文件并按照笔者的步骤N10也可以使用。

其实下载完资源直接去看那个 镭神智能_M10_用户手册_V1.5.9_20230809.pdf 就可以了，就是要改一下launch文件

二.报错解决

1.检查串口设备连接时无输出

终端没有输出：

wlm@wlm-virtual-machine:~$ ls /dev/ | grep ttyU
wlm@wlm-virtual-machine:~$ ls /dev/ | grep ttyU
wlm@wlm-virtual-machine:~$

可以借鉴：   linux查看usb设备文件,4 种方法识别Linux系统 USB 设备-优快云博客

 搜了百度，我怀疑是串口设备文件名错误：

在Linux中，串口设备通常被命名为/dev/ttyUSB0、/dev/ttyACM0、/dev/ttyS0等。确保你使用的设备文件名正确。你可以通过以下命令列出所有可用的串口设备：

ls /dev/tty*

查看列表中是否有你的设备。

 我的终端输出如下：

wlm@wlm-virtual-machine:~$ ls /dev/tty*
/dev/tty    /dev/tty23  /dev/tty39  /dev/tty54         /dev/ttyS1   /dev/ttyS25
/dev/tty0   /dev/tty24  /dev/tty4   /dev/tty55         /dev/ttyS10  /dev/ttyS26
/dev/tty1   /dev/tty25  /dev/tty40  /dev/tty56         /dev/ttyS11  /dev/ttyS27
/dev/tty10  /dev/tty26  /dev/tty41  /dev/tty57         /dev/ttyS12  /dev/ttyS28
/dev/tty11  /dev/tty27  /dev/tty42  /dev/tty58         /dev/ttyS13  /dev/ttyS29
/dev/tty12  /dev/tty28  /dev/tty43  /dev/tty59         /dev/ttyS14  /dev/ttyS3
/dev/tty13  /dev/tty29  /dev/tty44  /dev/tty6          /dev/ttyS15  /dev/ttyS30
/dev/tty14  /dev/tty3   /dev/tty45  /dev/tty60         /dev/ttyS16  /dev/ttyS31
/dev/tty15  /dev/tty30  /dev/tty46  /dev/tty61         /dev/ttyS17  /dev/ttyS4
/dev/tty16  /dev/tty31  /dev/tty47  /dev/tty62         /dev/ttyS18  /dev/ttyS5
/dev/tty17  /dev/tty32  /dev/tty48  /dev/tty63         /dev/ttyS19  /dev/ttyS6
/dev/tty18  /dev/tty33  /dev/tty49  /dev/tty7          /dev/ttyS2   /dev/ttyS7
/dev/tty19  /dev/tty34  /dev/tty5   /dev/tty8          /dev/ttyS20  /dev/ttyS8
/dev/tty2   /dev/tty35  /dev/tty50  /dev/tty9          /dev/ttyS21  /dev/ttyS9
/dev/tty20  /dev/tty36  /dev/tty51  /dev/ttyCH343USB0  /dev/ttyS22
/dev/tty21  /dev/tty37  /dev/tty52  /dev/ttyprintk     /dev/ttyS23
/dev/tty22  /dev/tty38  /dev/tty53  /dev/ttyS0         /dev/ttyS24

 我的串口设备为/dev/ttyCH343USB0。

于是我的解决办法是输入我的串口设备名称：

wlm@wlm-virtual-machine:~$ ls /dev/ |grep ttyCH343USB0
ttyCH343USB0

 结果输出端输出红色字体ttyCH343USB0。此时检查设备已连接上。

问题解决！！

相应的在赋予串口权限时也要改一下串口的名称。

2.编译打包时报错

就是进入leishen_ws空间时，要编译下面命令行时出现了报错：

cd ~/leishen_ws

catkin_make

报错如下：

[  8%] Built target roscpp_generate_messages_py
[  8%] Built target bond_generate_messages_cpp
[  8%] Built target geometry_msgs_generate_messages_nodejs
[  8%] Built target bond_generate_messages_eus
In file included from /home/wlm/leishen_ws/src/lslidar_driver/src/input.cc:18:0:
/home/wlm/leishen_ws/src/lslidar_driver/include/lslidar_driver/input.h:35:10: fatal error: lslidar_msgs/LslidarPacket.h: 没有那个文件或目录
 #include <lslidar_msgs/LslidarPacket.h>  //报错在此
          ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
compilation terminated.
[  8%] Built target bond_generate_messages_py
lslidar_driver/CMakeFiles/lslidar_input.dir/build.make:75: recipe for target 'lslidar_driver/CMakeFiles/lslidar_input.dir/src/input.cc.o' failed
make[2]: *** [lslidar_driver/CMakeFiles/lslidar_input.dir/src/input.cc.o] Error 1
CMakeFiles/Makefile2:1515: recipe for target 'lslidar_driver/CMakeFiles/lslidar_input.dir/all' failed
make[1]: *** [lslidar_driver/CMakeFiles/lslidar_input.dir/all] Error 2
make[1]: *** 正在等待未完成的任务....
[  8%] Built target nodelet_generate_messages_cpp
Makefile:145: recipe for target 'all' failed
make: *** [all] Error 2
Invoking "make -j2 -l2" failed

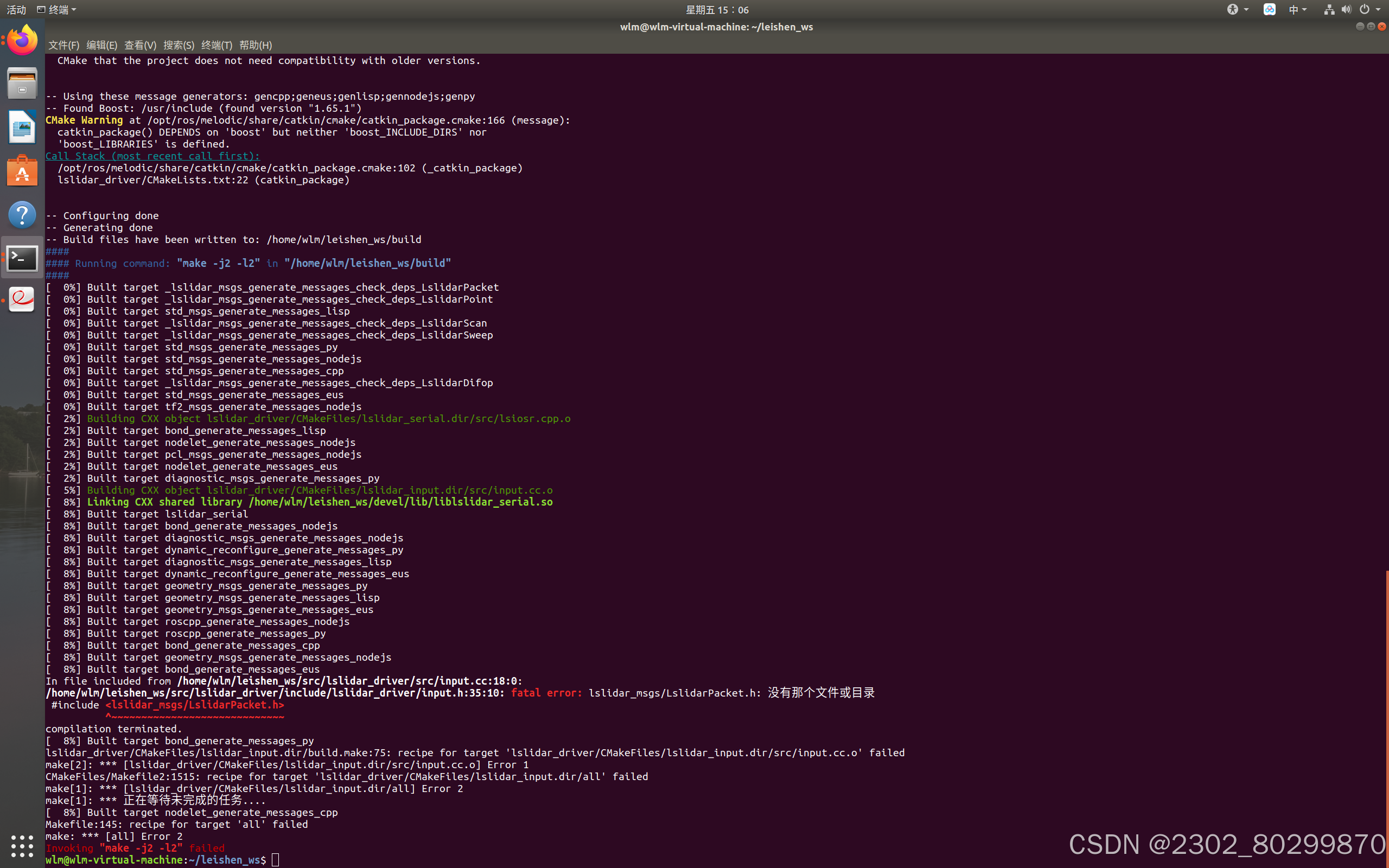

图：

我的解决办法：

（也是借鉴别人的博客，写到此处也只是记录以下，方便自己以后使用）

sudo apt-get install libpcap-dev
cd leishen_ws/src/
catkin_make -DCATKIN_WHITELIST_PACKAGES=lslidar_msgs
catkin_make -DCATKIN_WHITELIST_PACKAGES=lslidar_driver
catkin_make

结果如下：

（1）执行完catkin_make -DCATKIN_WHITELIST_PACKAGES=lslidar_msgs：

wlm@wlm-virtual-machine:~/leishen_ws$ catkin_make -DCATKIN_WHITELIST_PACKAGES=lslidar_msgs
Base path: /home/wlm/leishen_ws
Source space: /home/wlm/leishen_ws/src
Build space: /home/wlm/leishen_ws/build
Devel space: /home/wlm/leishen_ws/devel
Install space: /home/wlm/leishen_ws/install
Creating symlink "/home/wlm/leishen_ws/src/CMakeLists.txt" pointing to "/opt/ros/melodic/share/catkin/cmake/toplevel.cmake"
####
#### Running command: "cmake /home/wlm/leishen_ws/src -DCATKIN_WHITELIST_PACKAGES=lslidar_msgs -DCATKIN_DEVEL_PREFIX=/home/wlm/leishen_ws/devel -DCMAKE_INSTALL_PREFIX=/home/wlm/leishen_ws/install -G Unix Makefiles" in "/home/wlm/leishen_ws/build"
####
-- The C compiler identification is GNU 7.5.0
-- The CXX compiler identification is GNU 7.5.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /usr/bin/cc - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /usr/bin/c++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Using CATKIN_DEVEL_PREFIX: /home/wlm/leishen_ws/devel
-- Using CMAKE_PREFIX_PATH: /opt/ros/melodic
-- This workspace overlays: /opt/ros/melodic
-- Found PythonInterp: /usr/bin/python2 (found suitable version "2.7.17", minimum required is "2")
-- Using PYTHON_EXECUTABLE: /usr/bin/python2
-- Using Debian Python package layout
-- Using empy: /usr/bin/empy
-- Using CATKIN_ENABLE_TESTING: ON
-- Call enable_testing()
-- Using CATKIN_TEST_RESULTS_DIR: /home/wlm/leishen_ws/build/test_results
-- Found gtest sources under '/usr/src/googletest': gtests will be built
-- Found gmock sources under '/usr/src/googletest': gmock will be built
CMake Deprecation Warning at /usr/src/googletest/CMakeLists.txt:1 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


CMake Deprecation Warning at /usr/src/googletest/googlemock/CMakeLists.txt:41 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


CMake Deprecation Warning at /usr/src/googletest/googletest/CMakeLists.txt:48 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


-- Found PythonInterp: /usr/bin/python2 (found version "2.7.17")
-- Looking for pthread.h
-- Looking for pthread.h - found
-- Performing Test CMAKE_HAVE_LIBC_PTHREAD
-- Performing Test CMAKE_HAVE_LIBC_PTHREAD - Failed
-- Looking for pthread_create in pthreads
-- Looking for pthread_create in pthreads - not found
-- Looking for pthread_create in pthread
-- Looking for pthread_create in pthread - found
-- Found Threads: TRUE
-- Using Python nosetests: /usr/bin/nosetests-2.7
-- catkin 0.7.29
-- BUILD_SHARED_LIBS is on
-- BUILD_SHARED_LIBS is on
-- Using CATKIN_WHITELIST_PACKAGES: lslidar_msgs
-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
-- ~~  traversing 1 packages in topological order:
-- ~~  - lslidar_msgs
-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
-- +++ processing catkin package: 'lslidar_msgs'
-- ==> add_subdirectory(lslidar_msgs)
CMake Deprecation Warning at lslidar_msgs/CMakeLists.txt:1 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


-- Using these message generators: gencpp;geneus;genlisp;gennodejs;genpy
-- lslidar_msgs: 5 messages, 0 services
-- Configuring done
-- Generating done
-- Build files have been written to: /home/wlm/leishen_ws/build
####
#### Running command: "make -j2 -l2" in "/home/wlm/leishen_ws/build"
####
[  0%] Built target std_msgs_generate_messages_eus
[  0%] Built target _lslidar_msgs_generate_messages_check_deps_LslidarPoint
[  0%] Built target _lslidar_msgs_generate_messages_check_deps_LslidarScan
[  0%] Built target _lslidar_msgs_generate_messages_check_deps_LslidarSweep
[  0%] Built target _lslidar_msgs_generate_messages_check_deps_LslidarDifop
[  0%] Built target std_msgs_generate_messages_py
[  0%] Built target _lslidar_msgs_generate_messages_check_deps_LslidarPacket
[  0%] Built target std_msgs_generate_messages_nodejs
[  0%] Built target std_msgs_generate_messages_lisp
[  0%] Built target std_msgs_generate_messages_cpp
[  3%] Generating EusLisp code from lslidar_msgs/LslidarPoint.msg
[  7%] Generating Python from MSG lslidar_msgs/LslidarPoint
[ 11%] Generating EusLisp code from lslidar_msgs/LslidarPacket.msg
[ 14%] Generating EusLisp code from lslidar_msgs/LslidarDifop.msg
[ 18%] Generating EusLisp code from lslidar_msgs/LslidarScan.msg
[ 22%] Generating EusLisp code from lslidar_msgs/LslidarSweep.msg
[ 25%] Generating EusLisp manifest code for lslidar_msgs
[ 29%] Generating Python from MSG lslidar_msgs/LslidarPacket
[ 33%] Generating Python from MSG lslidar_msgs/LslidarDifop
[ 37%] Generating Python from MSG lslidar_msgs/LslidarScan
[ 40%] Generating Python from MSG lslidar_msgs/LslidarSweep
[ 40%] Built target lslidar_msgs_generate_messages_eus
[ 44%] Generating Javascript code from lslidar_msgs/LslidarPoint.msg
[ 48%] Generating Javascript code from lslidar_msgs/LslidarPacket.msg
[ 51%] Generating Python msg __init__.py for lslidar_msgs
[ 55%] Generating Javascript code from lslidar_msgs/LslidarDifop.msg
[ 59%] Generating Javascript code from lslidar_msgs/LslidarScan.msg
[ 62%] Generating Javascript code from lslidar_msgs/LslidarSweep.msg
[ 62%] Built target lslidar_msgs_generate_messages_nodejs
[ 66%] Generating Lisp code from lslidar_msgs/LslidarPoint.msg
[ 66%] Built target lslidar_msgs_generate_messages_py
[ 70%] Generating Lisp code from lslidar_msgs/LslidarPacket.msg
[ 74%] Generating C++ code from lslidar_msgs/LslidarPoint.msg
[ 77%] Generating Lisp code from lslidar_msgs/LslidarDifop.msg
[ 81%] Generating Lisp code from lslidar_msgs/LslidarScan.msg
[ 85%] Generating Lisp code from lslidar_msgs/LslidarSweep.msg
[ 88%] Generating C++ code from lslidar_msgs/LslidarPacket.msg
[ 88%] Built target lslidar_msgs_generate_messages_lisp
[ 92%] Generating C++ code from lslidar_msgs/LslidarDifop.msg
[ 96%] Generating C++ code from lslidar_msgs/LslidarScan.msg
[100%] Generating C++ code from lslidar_msgs/LslidarSweep.msg
[100%] Built target lslidar_msgs_generate_messages_cpp
[100%] Built target lslidar_msgs_generate_messages

（2）执行完catkin_make -DCATKIN_WHITELIST_PACKAGES=lslidar_driver：

wlm@wlm-virtual-machine:~/leishen_ws$ catkin_make -DCATKIN_WHITELIST_PACKAGES=lslidar_driver
Base path: /home/wlm/leishen_ws
Source space: /home/wlm/leishen_ws/src
Build space: /home/wlm/leishen_ws/build
Devel space: /home/wlm/leishen_ws/devel
Install space: /home/wlm/leishen_ws/install
####
#### Running command: "cmake /home/wlm/leishen_ws/src -DCATKIN_WHITELIST_PACKAGES=lslidar_driver -DCATKIN_DEVEL_PREFIX=/home/wlm/leishen_ws/devel -DCMAKE_INSTALL_PREFIX=/home/wlm/leishen_ws/install -G Unix Makefiles" in "/home/wlm/leishen_ws/build"
####
-- Using CATKIN_DEVEL_PREFIX: /home/wlm/leishen_ws/devel
-- Using CMAKE_PREFIX_PATH: /opt/ros/melodic
-- This workspace overlays: /opt/ros/melodic
-- Found PythonInterp: /usr/bin/python2 (found suitable version "2.7.17", minimum required is "2")
-- Using PYTHON_EXECUTABLE: /usr/bin/python2
-- Using Debian Python package layout
-- Using empy: /usr/bin/empy
-- Using CATKIN_ENABLE_TESTING: ON
-- Call enable_testing()
-- Using CATKIN_TEST_RESULTS_DIR: /home/wlm/leishen_ws/build/test_results
-- Found gtest sources under '/usr/src/googletest': gtests will be built
-- Found gmock sources under '/usr/src/googletest': gmock will be built
CMake Deprecation Warning at /usr/src/googletest/CMakeLists.txt:1 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


CMake Deprecation Warning at /usr/src/googletest/googlemock/CMakeLists.txt:41 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


CMake Deprecation Warning at /usr/src/googletest/googletest/CMakeLists.txt:48 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


-- Found PythonInterp: /usr/bin/python2 (found version "2.7.17")
-- Using Python nosetests: /usr/bin/nosetests-2.7
-- catkin 0.7.29
-- BUILD_SHARED_LIBS is on
-- BUILD_SHARED_LIBS is on
-- Using CATKIN_WHITELIST_PACKAGES: lslidar_driver
-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
-- ~~  traversing 1 packages in topological order:
-- ~~  - lslidar_driver
-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
-- +++ processing catkin package: 'lslidar_driver'
-- ==> add_subdirectory(lslidar_driver)
CMake Deprecation Warning at lslidar_driver/CMakeLists.txt:1 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


-- Using these message generators: gencpp;geneus;genlisp;gennodejs;genpy
-- Found Boost: /usr/include (found version "1.65.1")
CMake Warning at /opt/ros/melodic/share/catkin/cmake/catkin_package.cmake:166 (message):
  catkin_package() DEPENDS on 'boost' but neither 'boost_INCLUDE_DIRS' nor
  'boost_LIBRARIES' is defined.
Call Stack (most recent call first):
  /opt/ros/melodic/share/catkin/cmake/catkin_package.cmake:102 (_catkin_package)
  lslidar_driver/CMakeLists.txt:22 (catkin_package)


-- Configuring done
-- Generating done
-- Build files have been written to: /home/wlm/leishen_ws/build
####
#### Running command: "make -j2 -l2" in "/home/wlm/leishen_ws/build"
####
[  0%] Built target actionlib_msgs_generate_messages_py
[ 12%] Building CXX object lslidar_driver/CMakeFiles/lslidar_serial.dir/src/lsiosr.cpp.o
[ 12%] Built target lslidar_msgs_generate_messages_nodejs
[ 12%] Built target lslidar_msgs_generate_messages_eus
[ 12%] Built target lslidar_msgs_generate_messages_cpp
[ 12%] Built target tf2_msgs_generate_messages_nodejs
[ 12%] Built target tf2_msgs_generate_messages_eus
[ 12%] Built target tf2_msgs_generate_messages_cpp
[ 12%] Built target nodelet_generate_messages_nodejs
[ 12%] Built target pcl_msgs_generate_messages_nodejs
[ 12%] Built target nodelet_generate_messages_eus
[ 12%] Built target diagnostic_msgs_generate_messages_py
[ 12%] Built target std_msgs_generate_messages_cpp
[ 12%] Built target diagnostic_msgs_generate_messages_nodejs
[ 12%] Built target dynamic_reconfigure_generate_messages_py
[ 12%] Built target diagnostic_msgs_generate_messages_lisp
[ 12%] Built target dynamic_reconfigure_generate_messages_eus
[ 12%] Built target geometry_msgs_generate_messages_py
[ 12%] Built target geometry_msgs_generate_messages_lisp
[ 12%] Built target diagnostic_msgs_generate_messages_eus
[ 12%] Built target lslidar_msgs_generate_messages_py
[ 12%] Built target actionlib_msgs_generate_messages_lisp
[ 12%] Built target nodelet_generate_messages_py
[ 12%] Built target sensor_msgs_generate_messages_py
[ 12%] Built target sensor_msgs_generate_messages_nodejs
[ 12%] Built target roscpp_generate_messages_cpp
[ 12%] Built target actionlib_generate_messages_cpp
[ 12%] Built target sensor_msgs_generate_messages_lisp
[ 12%] Built target geometry_msgs_generate_messages_eus
[ 12%] Built target roscpp_generate_messages_py
[ 12%] Built target geometry_msgs_generate_messages_nodejs
[ 12%] Built target std_srvs_generate_messages_eus
[ 12%] Built target roscpp_generate_messages_lisp
[ 25%] Linking CXX shared library /home/wlm/leishen_ws/devel/lib/liblslidar_serial.so
[ 25%] Built target bond_generate_messages_eus
[ 25%] Built target rosgraph_msgs_generate_messages_cpp
[ 25%] Built target tf_generate_messages_py
[ 25%] Built target dynamic_reconfigure_generate_messages_cpp
[ 25%] Built target topic_tools_generate_messages_cpp
[ 25%] Built target nodelet_generate_messages_lisp
[ 25%] Built target sensor_msgs_generate_messages_eus
[ 25%] Built target sensor_msgs_generate_messages_cpp
[ 25%] Built target roscpp_generate_messages_nodejs
[ 25%] Built target std_msgs_generate_messages_lisp
[ 25%] Built target nodelet_generate_messages_cpp
[ 25%] Built target bond_generate_messages_py
[ 25%] Built target std_srvs_generate_messages_nodejs
[ 25%] Built target geometry_msgs_generate_messages_cpp
[ 25%] Built target actionlib_generate_messages_lisp
[ 25%] Built target rosgraph_msgs_generate_messages_eus
[ 25%] Built target rosgraph_msgs_generate_messages_lisp
[ 25%] Built target rosgraph_msgs_generate_messages_nodejs
[ 25%] Built target roscpp_generate_messages_eus
[ 25%] Built target actionlib_msgs_generate_messages_eus
[ 25%] Built target rosgraph_msgs_generate_messages_py
[ 25%] Built target std_msgs_generate_messages_eus
[ 25%] Built target std_msgs_generate_messages_nodejs
[ 25%] Built target bond_generate_messages_lisp
[ 25%] Built target bond_generate_messages_cpp
[ 25%] Built target std_msgs_generate_messages_py
[ 37%] Building CXX object lslidar_driver/CMakeFiles/lslidar_input.dir/src/input.cc.o
[ 37%] Built target lslidar_serial
[ 37%] Built target bond_generate_messages_nodejs
[ 37%] Built target pcl_ros_gencfg
[ 37%] Built target topic_tools_generate_messages_nodejs
[ 37%] Built target lslidar_msgs_generate_messages_lisp
[ 37%] Built target tf2_msgs_generate_messages_py
[ 37%] Built target actionlib_generate_messages_py
[ 37%] Built target dynamic_reconfigure_generate_messages_lisp
[ 37%] Built target pcl_msgs_generate_messages_cpp
[ 37%] Built target dynamic_reconfigure_generate_messages_nodejs
[ 37%] Built target tf2_msgs_generate_messages_lisp
[ 37%] Built target dynamic_reconfigure_gencfg
[ 37%] Built target std_srvs_generate_messages_lisp
[ 37%] Built target topic_tools_generate_messages_lisp
[ 37%] Built target pcl_msgs_generate_messages_eus
[ 37%] Built target topic_tools_generate_messages_eus
[ 37%] Built target std_srvs_generate_messages_cpp
[ 37%] Built target tf_generate_messages_eus
[ 37%] Built target actionlib_msgs_generate_messages_cpp
[ 37%] Built target std_srvs_generate_messages_py
[ 37%] Built target tf_generate_messages_lisp
[ 37%] Built target tf_generate_messages_nodejs
[ 37%] Built target diagnostic_msgs_generate_messages_cpp
[ 37%] Built target pcl_msgs_generate_messages_py
[ 37%] Built target actionlib_generate_messages_eus
[ 37%] Built target pcl_msgs_generate_messages_lisp
[ 37%] Built target tf_generate_messages_cpp
[ 37%] Built target actionlib_generate_messages_nodejs
[ 37%] Built target topic_tools_generate_messages_py
[ 37%] Built target nodelet_topic_tools_gencfg
[ 37%] Built target actionlib_msgs_generate_messages_nodejs
[ 50%] Linking CXX shared library /home/wlm/leishen_ws/devel/lib/liblslidar_input.so
[ 50%] Built target lslidar_input
[ 62%] Building CXX object lslidar_driver/CMakeFiles/lslidar_driver.dir/src/lslidar_driver.cc.o
[ 75%] Linking CXX shared library /home/wlm/leishen_ws/devel/lib/liblslidar_driver.so
[ 75%] Built target lslidar_driver
[ 87%] Building CXX object lslidar_driver/CMakeFiles/lslidar_driver_node.dir/src/lslidar_driver_node.cc.o
[100%] Linking CXX executable /home/wlm/leishen_ws/devel/lib/lslidar_driver/lslidar_driver_node
[100%] Built target lslidar_driver_node

（3）执行完catkin_make后：

wlm@wlm-virtual-machine:~/leishen_ws$ catkin_make
Base path: /home/wlm/leishen_ws
Source space: /home/wlm/leishen_ws/src
Build space: /home/wlm/leishen_ws/build
Devel space: /home/wlm/leishen_ws/devel
Install space: /home/wlm/leishen_ws/install
####
#### Running command: "cmake /home/wlm/leishen_ws/src -DCATKIN_DEVEL_PREFIX=/home/wlm/leishen_ws/devel -DCMAKE_INSTALL_PREFIX=/home/wlm/leishen_ws/install -G Unix Makefiles" in "/home/wlm/leishen_ws/build"
####
-- Using CATKIN_DEVEL_PREFIX: /home/wlm/leishen_ws/devel
-- Using CMAKE_PREFIX_PATH: /opt/ros/melodic
-- This workspace overlays: /opt/ros/melodic
-- Found PythonInterp: /usr/bin/python2 (found suitable version "2.7.17", minimum required is "2")
-- Using PYTHON_EXECUTABLE: /usr/bin/python2
-- Using Debian Python package layout
-- Using empy: /usr/bin/empy
-- Using CATKIN_ENABLE_TESTING: ON
-- Call enable_testing()
-- Using CATKIN_TEST_RESULTS_DIR: /home/wlm/leishen_ws/build/test_results
-- Found gtest sources under '/usr/src/googletest': gtests will be built
-- Found gmock sources under '/usr/src/googletest': gmock will be built
CMake Deprecation Warning at /usr/src/googletest/CMakeLists.txt:1 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


CMake Deprecation Warning at /usr/src/googletest/googlemock/CMakeLists.txt:41 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


CMake Deprecation Warning at /usr/src/googletest/googletest/CMakeLists.txt:48 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


-- Found PythonInterp: /usr/bin/python2 (found version "2.7.17")
-- Using Python nosetests: /usr/bin/nosetests-2.7
-- catkin 0.7.29
-- BUILD_SHARED_LIBS is on
-- BUILD_SHARED_LIBS is on
-- Using CATKIN_WHITELIST_PACKAGES: lslidar_driver
-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
-- ~~  traversing 1 packages in topological order:
-- ~~  - lslidar_driver
-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
-- +++ processing catkin package: 'lslidar_driver'
-- ==> add_subdirectory(lslidar_driver)
CMake Deprecation Warning at lslidar_driver/CMakeLists.txt:1 (cmake_minimum_required):
  Compatibility with CMake < 2.8.12 will be removed from a future version of
  CMake.

  Update the VERSION argument <min> value or use a ...<max> suffix to tell
  CMake that the project does not need compatibility with older versions.


-- Using these message generators: gencpp;geneus;genlisp;gennodejs;genpy
CMake Warning at /opt/ros/melodic/share/catkin/cmake/catkin_package.cmake:166 (message):
  catkin_package() DEPENDS on 'boost' but neither 'boost_INCLUDE_DIRS' nor
  'boost_LIBRARIES' is defined.
Call Stack (most recent call first):
  /opt/ros/melodic/share/catkin/cmake/catkin_package.cmake:102 (_catkin_package)
  lslidar_driver/CMakeLists.txt:22 (catkin_package)


-- Configuring done
-- Generating done
-- Build files have been written to: /home/wlm/leishen_ws/build
####
#### Running command: "make -j2 -l2" in "/home/wlm/leishen_ws/build"
####
Consolidate compiler generated dependencies of target lslidar_serial
[  0%] Built target actionlib_msgs_generate_messages_py
[ 25%] Built target lslidar_serial
[ 25%] Built target lslidar_msgs_generate_messages_nodejs
[ 25%] Built target lslidar_msgs_generate_messages_eus
[ 25%] Built target lslidar_msgs_generate_messages_cpp
[ 25%] Built target tf2_msgs_generate_messages_nodejs
[ 25%] Built target tf2_msgs_generate_messages_eus
[ 25%] Built target tf2_msgs_generate_messages_cpp
[ 25%] Built target nodelet_generate_messages_nodejs
[ 25%] Built target pcl_msgs_generate_messages_nodejs
[ 25%] Built target nodelet_generate_messages_eus
[ 25%] Built target diagnostic_msgs_generate_messages_py
[ 25%] Built target std_msgs_generate_messages_cpp
[ 25%] Built target diagnostic_msgs_generate_messages_nodejs
[ 25%] Built target dynamic_reconfigure_generate_messages_py
[ 25%] Built target diagnostic_msgs_generate_messages_lisp
[ 25%] Built target dynamic_reconfigure_generate_messages_eus
[ 25%] Built target geometry_msgs_generate_messages_py
[ 25%] Built target diagnostic_msgs_generate_messages_eus
[ 25%] Built target geometry_msgs_generate_messages_lisp
[ 25%] Built target actionlib_msgs_generate_messages_lisp
[ 25%] Built target lslidar_msgs_generate_messages_py
[ 25%] Built target nodelet_generate_messages_py
[ 25%] Built target sensor_msgs_generate_messages_py
[ 25%] Built target sensor_msgs_generate_messages_nodejs
[ 25%] Built target roscpp_generate_messages_cpp
[ 25%] Built target actionlib_generate_messages_cpp
[ 25%] Built target sensor_msgs_generate_messages_lisp
[ 25%] Built target roscpp_generate_messages_py
[ 25%] Built target geometry_msgs_generate_messages_eus
[ 25%] Built target geometry_msgs_generate_messages_nodejs
[ 25%] Built target std_srvs_generate_messages_eus
[ 25%] Built target roscpp_generate_messages_lisp
[ 25%] Built target bond_generate_messages_eus
[ 25%] Built target rosgraph_msgs_generate_messages_cpp
[ 25%] Built target tf_generate_messages_py
[ 25%] Built target dynamic_reconfigure_generate_messages_cpp
[ 25%] Built target topic_tools_generate_messages_cpp
[ 25%] Built target nodelet_generate_messages_lisp
[ 25%] Built target sensor_msgs_generate_messages_eus
[ 25%] Built target sensor_msgs_generate_messages_cpp
[ 25%] Built target roscpp_generate_messages_nodejs
[ 25%] Built target std_msgs_generate_messages_lisp
[ 25%] Built target nodelet_generate_messages_cpp
[ 25%] Built target bond_generate_messages_py
[ 25%] Built target std_srvs_generate_messages_nodejs
[ 25%] Built target geometry_msgs_generate_messages_cpp
[ 25%] Built target actionlib_generate_messages_lisp
[ 25%] Built target rosgraph_msgs_generate_messages_eus
[ 25%] Built target rosgraph_msgs_generate_messages_nodejs
[ 25%] Built target rosgraph_msgs_generate_messages_lisp
[ 25%] Built target roscpp_generate_messages_eus
[ 25%] Built target actionlib_msgs_generate_messages_eus
[ 25%] Built target rosgraph_msgs_generate_messages_py
[ 25%] Built target std_msgs_generate_messages_eus
[ 25%] Built target std_msgs_generate_messages_nodejs
[ 25%] Built target bond_generate_messages_lisp
[ 25%] Built target bond_generate_messages_cpp
[ 25%] Built target std_msgs_generate_messages_py
Consolidate compiler generated dependencies of target lslidar_input
[ 25%] Built target bond_generate_messages_nodejs
[ 25%] Built target pcl_ros_gencfg
[ 25%] Built target topic_tools_generate_messages_nodejs
[ 25%] Built target lslidar_msgs_generate_messages_lisp
[ 50%] Built target lslidar_input
[ 50%] Built target tf2_msgs_generate_messages_py
[ 50%] Built target actionlib_generate_messages_py
[ 50%] Built target dynamic_reconfigure_generate_messages_lisp
[ 50%] Built target pcl_msgs_generate_messages_cpp
[ 50%] Built target dynamic_reconfigure_generate_messages_nodejs
[ 50%] Built target tf2_msgs_generate_messages_lisp
[ 50%] Built target dynamic_reconfigure_gencfg
[ 50%] Built target std_srvs_generate_messages_lisp
[ 50%] Built target topic_tools_generate_messages_lisp
[ 50%] Built target pcl_msgs_generate_messages_eus
[ 50%] Built target topic_tools_generate_messages_eus
[ 50%] Built target std_srvs_generate_messages_cpp
[ 50%] Built target actionlib_msgs_generate_messages_cpp
[ 50%] Built target tf_generate_messages_eus
[ 50%] Built target std_srvs_generate_messages_py
[ 50%] Built target tf_generate_messages_lisp
[ 50%] Built target tf_generate_messages_nodejs
[ 50%] Built target diagnostic_msgs_generate_messages_cpp
[ 50%] Built target pcl_msgs_generate_messages_py
[ 50%] Built target actionlib_generate_messages_eus
[ 50%] Built target pcl_msgs_generate_messages_lisp
[ 50%] Built target tf_generate_messages_cpp
[ 50%] Built target actionlib_generate_messages_nodejs
[ 50%] Built target topic_tools_generate_messages_py
[ 50%] Built target nodelet_topic_tools_gencfg
[ 50%] Built target actionlib_msgs_generate_messages_nodejs
Consolidate compiler generated dependencies of target lslidar_driver
[ 75%] Built target lslidar_driver
Consolidate compiler generated dependencies of target lslidar_driver_node
[100%] Built target lslidar_driver_node

大功告成，问题解决！！

3.运行程序时报错

在leishen_ws中运行下面命令行时报错：

source devel/setup.bash
roslaunch lsm10_v2 lsm10_v2.launch

报错如下：

wlm@wlm-virtual-machine:~/leishen_ws$ source devel/setup.bash
wlm@wlm-virtual-machine:~/leishen_ws$ roslaunch lsm10_v2 lsm10_v2.launch
RLException: [lsm10_v2.launch] is neither a launch file in package [lsm10_v2] nor is [lsm10_v2] a launch file name
The traceback for the exception was written to the log file

哈哈哈哈，看了几分钟才发现，为是按着M10用户手册来的，忘了我的是镭神N10，已经把launch文件按照要求改了，所以第二个命令写错了，应该是：

更新ROS环境，让ros识别驱动包

source devel/setup.bash

运行驱动程序

roslaunch lslidar_driver lslidar_serial.launch

不要再搞错了哟！！

三.结果展示图

 第二张图我勾选了LaserScan和Axes,把坐标也显示出来了：

 四.小结

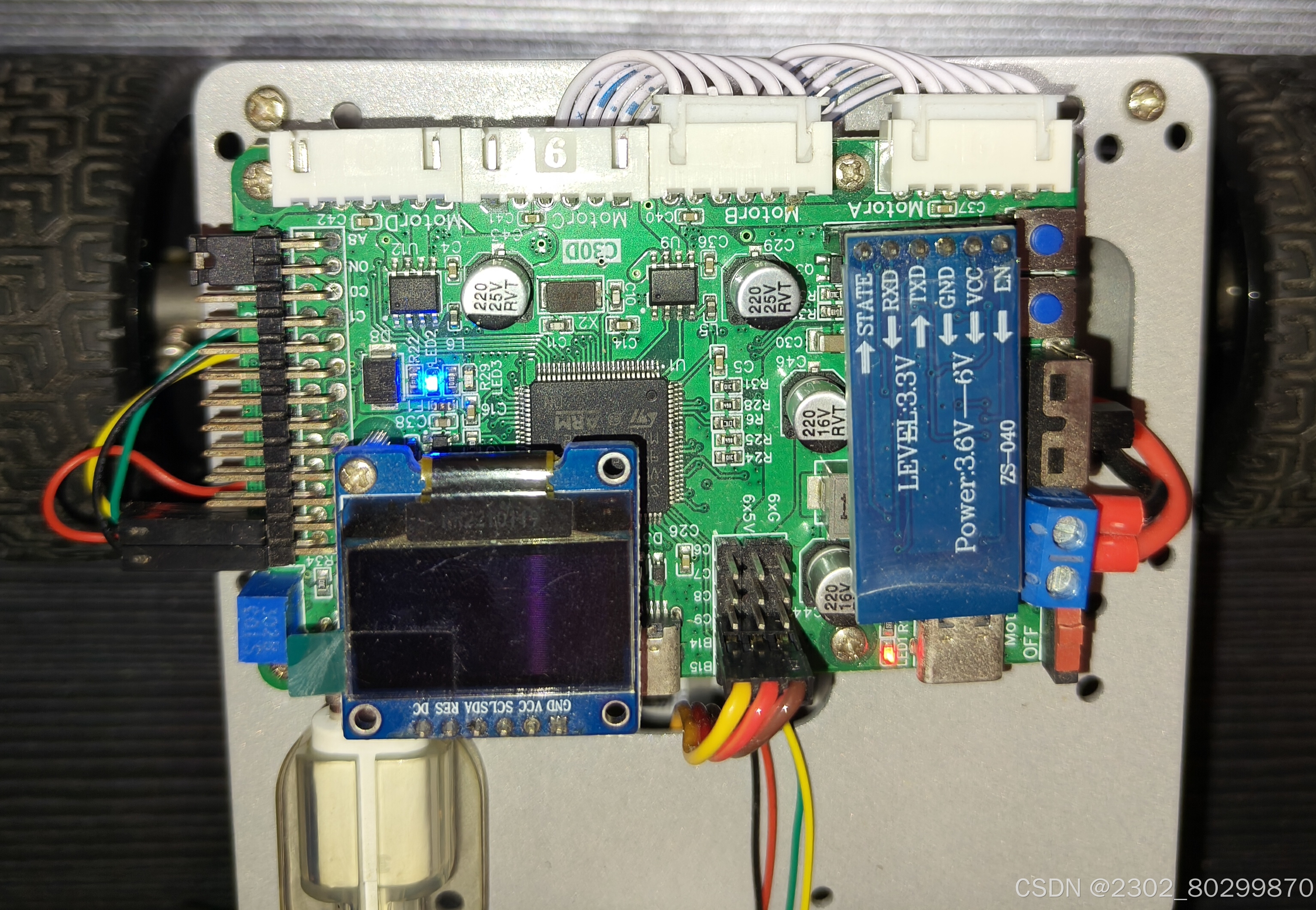

小车是老师给我的小车，我用数据线连接小车上的nano板子和我的电脑，并连接到ubuntu虚拟机上。想要控制小车，还需设置参数，看我慢慢摸索，等我下一篇博客出来。

（是基于cartographer的），目前会参考到的博客：

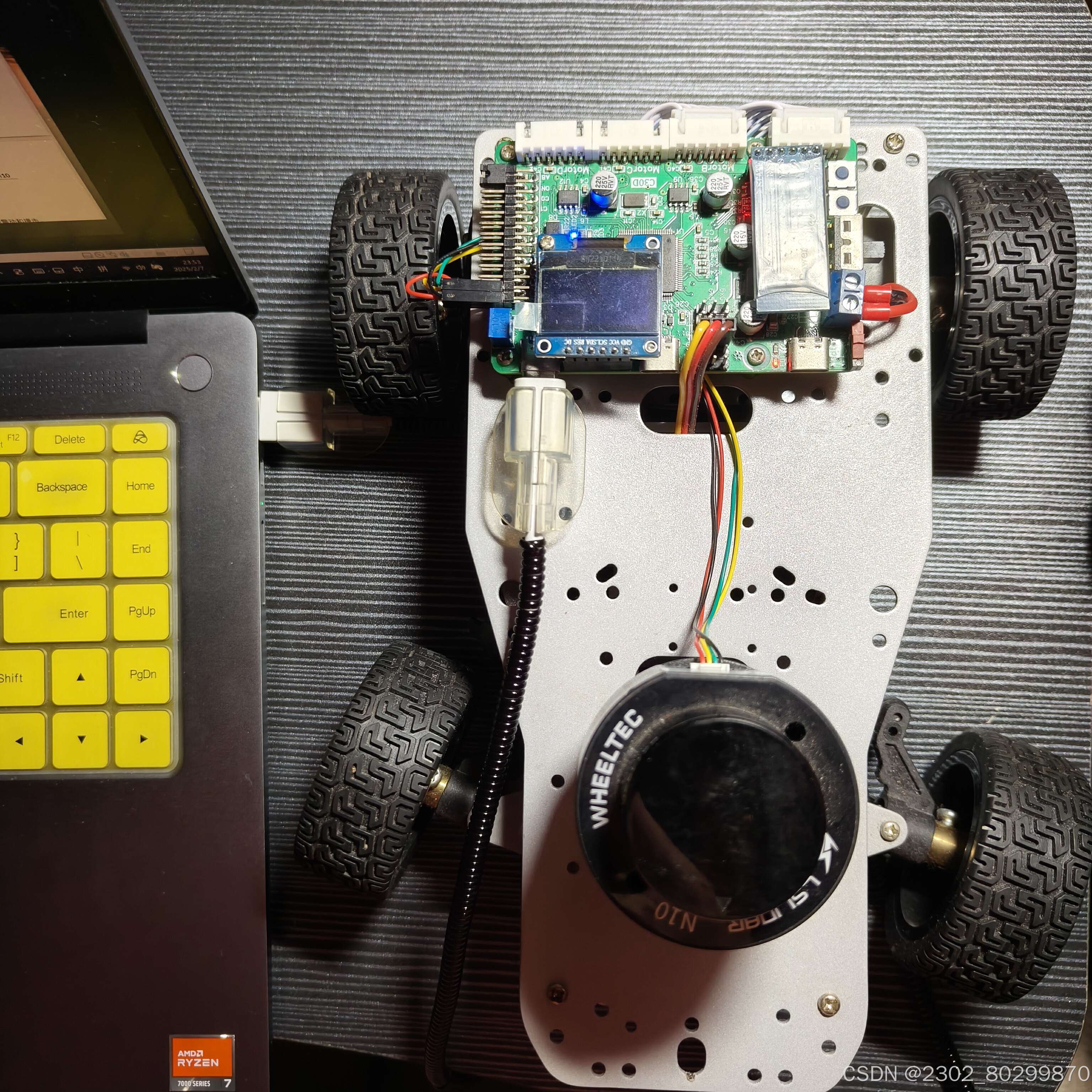

镭神智能N10激光雷达测评+ROS_Cartographer应用测试_雷神雷达n10-优快云博客文章浏览阅读9.4k次，点赞11次，收藏90次。将N10雷达连接ROS主控（本次使用Nvidia Jetson nano+melodic系统进行测试），通过Ubuntu电脑或虚拟机查看构建好的地图。_雷神雷达n10https://blog.youkuaiyun.com/Feizhai2/article/details/127617541https://blog.youkuaiyun.com/Feizhai2/article/details/127617541https://blog.youkuaiyun.com/Feizhai2/article/details/127617541然后我的小车连接电脑的图片如下：



ubuntu18.04 安装WHEELTE N100 SDK，并用rviz显示
2401_83046377的博客
03-21 518
Windows中，使用资料包中的CP21xx Customization Utility软件修改串口名称为 “0003”(可自行取名)，修改完之后点击Program Device按钮，可能要稍微等待一小会即可修改完成。更改ahrs_data.launch文件中port，value="/dev/fdilink_ahrs"，改完后如下，也可以直接将以下内容复制粘贴进ahrs_data.launch。创建工作空间和src，将fdilink_ahrs放入src，fdilink_ahrs文件可以在我之前博客下载。
利用树莓派4B运行Mid-40激光雷达全过程
stone9528的博客
01-23 3522
前言 学习激光雷达4个月有余，将运行雷达的全过程整理一下记录下来，算是学习总结。 1.烧录ubuntu镜像到树莓派 第一步，用SDFormatter工具格式化SD卡。前往下载 第二步，下载ubuntu镜像。 由于官网目前提供的是ubuntu mate20.04的系统，而旧版本的ubuntu mate18.04也不支持树莓派4B系统，因此我们选择间接安装ubuntu mate18.04，先下载支持树莓派4B的ubuntu server。链接 如果是运行loam算法，选择ubuntu-18.04.5
镭神N10激光雷达Ubuntu18.04使用教程
weixin_64115506的博客
04-16 2563
前言笔者在使用这款激光雷达时，发现网上的资料多为M10，N10的资料相对较少，所以笔者写这篇文章帮助同学成功在Ubuntu上使用镭神N10激光雷达。
镭神智能N10激光雷达测评+ROS_Cartographer应用测试
Feizhai2的博客
10-31 1万+
将N10雷达连接ROS主控（本次使用Nvidia Jetson nano+melodic系统进行测试），通过Ubuntu电脑或虚拟机查看构建好的地图。
镭神智能N10（老版本，接口2.0）雷达调试
weixin_68990480的博客
12-08 2535
N10是老版本（2.0mm接口），新版本是（1.25mm接口），市面上找不到专门转接板了，因此自己做了转接线连接串口模块
雷神N10资料（程序代码和产品说明）
11-01
雷神N10资料（程序代码和产品说明）
镭神N10激光雷达：Ubuntu 18.04与ROS Melodic的完美结合
gitblog_06548的博客
09-20 612
镭神N10激光雷达：Ubuntu 18.04与ROS Melodic的完美结合 镭神N10激光雷达Ubuntu18.04使用教程 项目地址: https://gitcode.com/Resource-Bundle-Collect...
Ubuntu18.04+melodic+激光雷达镭神N10安装使用记录(2)
2302_80299870的博客
03-15 735
上一篇博客我们已经改了文件中的“N10”（也就是雷达选择），所以现在还要改一个地方，就是雷达连接的串口，我的串口名称为tyyS0，文件里默认是/dev/ttyUSB0，所以我直接改为/dev/ttyS0就行了。按照我的上一篇博客或者这篇博客上一步查看自己的设备串口名字也应该清楚了自己的名称了。打开rviz后，更改Fixed Frame的值为下图中"frame_id"对应的值"value"，，一般是laser。因为我的串口名为 ttyS0，如果不同，需要将此命令后面改下名字。不知道自己设备串口名字的，输入。
Ubuntu配置ROS系统 激光雷达
12-31
在Ubuntu 18.04以及ROS Melodic环境下，安装必要的软件包对于成功集成镭神N10激光雷达至关重要。确保已经安装了所有必需的库文件和支持程序[^1]。 ```bash sudo apt-get update sudo apt-get install ros-melodic-...
保姆级Gmapping算法介绍到复现
热门推荐
m0_63647490的博客
02-26 2万+
1.概述 本文主要是学习SLAM过程中，记录下我复现Gmapping算法的过程，包括我遇到的各种问题，以便后续自己复习，也希望能对大家有所帮助，在此，也感谢很多优快云的前辈的文章，给了我很多帮助，在此致谢。 2.下载Gmapping源代码 安装编译所需要的依赖包 sudo apt-get install ros-melodic-slam-gmapping 注意：上述命令中，如果你的Ubuntu版本是16.04，需要将melodic换成kinetic,melodic对应的 Ubuntu版...
镭神N10雷达驱动下载
QQ3545325613的博客
07-15 1565
1.复制lsx10包到工作空间src中（作者使用雷达用于阿克曼小车，故放在阿克曼的工作区间里面）2.运行终端并编译运行以下命令安装依赖然后返回工作空间的根目录并在该目录下打开一个终端，先执行命令先编译msgs，然后执行编译driver功能包。
【Linux】借助gcc源码修改，搜索头文件当前进展
05-22 252
在使用修改源代码编译的GCC，进行编译内核源代码时，好像性能要慢不少，有可能是打印日志操作有文件IO导致，也有可能是gcc编译的会不会不是release版本不太对，不太清楚。从上图可以看出对于每次的搜索，都是从第一个目录开始搜索，图里也可以看到修改源代码所在的目录，函数，行，昨天的博客感觉对于找到的位置还是不太好。其实，linux内核在编译时和链接时所使用的源代码不一定相同，也即编译能通过，但是链接会报缺少文件这类问题，下一步想找找链接时对于源文件搜索。这里也有一些gcc系统头文件目录搜索。
Linux 搭建FTP服务器(vsftpd)
Stringzhua的博客
05-22 1212
或者修改/etc/selinux/config文件，将SELINUX=enconfig改为SELINUX=disabled，然后重启系统。在Linux上查看，发现已经有了scptoserver.txt文件，说明文件复制到服务器成功！默认即可，如果有需要可以修改/etc/ssh/sshd_config文件。scp 本地文件 user@远程服务器IP:/远程目录/在win10使用git的bash窗口上传文件到Linux。scp root@远程服务器ip:/远程文件 本地目录/
【Linux】初见，基础指令（续）
记录学习与成长
05-20 1464
本文介绍了Linux系统中的多个常用指令及其功能。cat指令用于打印文件内容，支持行号编号和空行压缩；more和less指令用于分页显示文件内容，less功能更强大，支持搜索和行号显示；head和tail指令分别显示文件头部和尾部内容，支持指定行数；date指令用于显示和格式化时间，支持时间戳转换；cal指令查看日历；find指令用于查找文件；whereis指令查找命令位置；alias指令为命令取别名；grep指令在文件中搜索字符串；zip和unzip指令用于压缩和解压文件；rzsz指令用于Linux与Wi
Ansible模块——管理100台Linux的最佳实践
tersky的专栏
05-20 587
在使用Ansible管理100台Linux服务器时，遵循最佳实践可以显著提升系统的可维护性、可扩展性和安全性。首先，通过合理分组和分层管理主机，使用YAML格式的inventory文件清晰定义服务器角色和环境。其次，采用模块化的目录结构，利用roles实现Playbook的重用性和模块化。优化连接参数如增加并发数和启用SSH连接复用，可以提升执行效率。变量管理应通过group_vars和host_vars进行，确保配置的灵活性和覆盖性。使用Roles和Tags可以精准执行任务，而Vault则用于加密敏感信息
RHCSA Linux 系统 硬盘管理
Y_P_W的博客
05-23 735
1扇区 = 512B，分区 = 多个扇区 ×512B查看硬盘命令~]# lsblk。
Linux中的tty与login之间的关系
最新发布
zyqash的博客
05-23 516
项目login角色启动登录界面、捕获用户名用户身份认证，启动用户 shell运行时机系统启动后由 systemd/init 启动由agetty调用，完成认证替换关系agetty被login替换login被用户的 shell 替换如果你使用ps或pstree查看，会看到agetty和login不会同时存在于同一个终端上。
Linux详解基本指令
心动的那一刻，记忆便盛开了花
05-19 1196
如果当前⽤⼾是root: yum install -y tree (因为现在开始⽤的都是root，所以推荐这个⽤法) # 如果当前⽤⼾是普通⽤⼾: sudo yum install -y tree (后⾯讲讲完vim，⼤家才能将⾃⼰添加到系统信任列表中，暂时普通⽤⼾⽆法使⽤sudo)理解路径存在的意义：树状组织方式，都是为了保证快速定位查找到指定的文件，而定位文件就需要具有唯一性的方案来进行定位文件。其中任何一个节点，都只有一个父节点，所以，从根目录开始，定位指定文件，路径具有唯一性。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
