Hadoop之MapReduce04【客户端源码分析】

我们来看下Job对象的实例化过程。

// 获取Job对象

Job job = Job.getInstance(conf);

进入getInstance(conf)方法。

public static Job getInstance(Configuration conf) throws IOException {

// create with a null Cluster

JobConf jobConf = new JobConf(conf);

return new Job(jobConf);

}

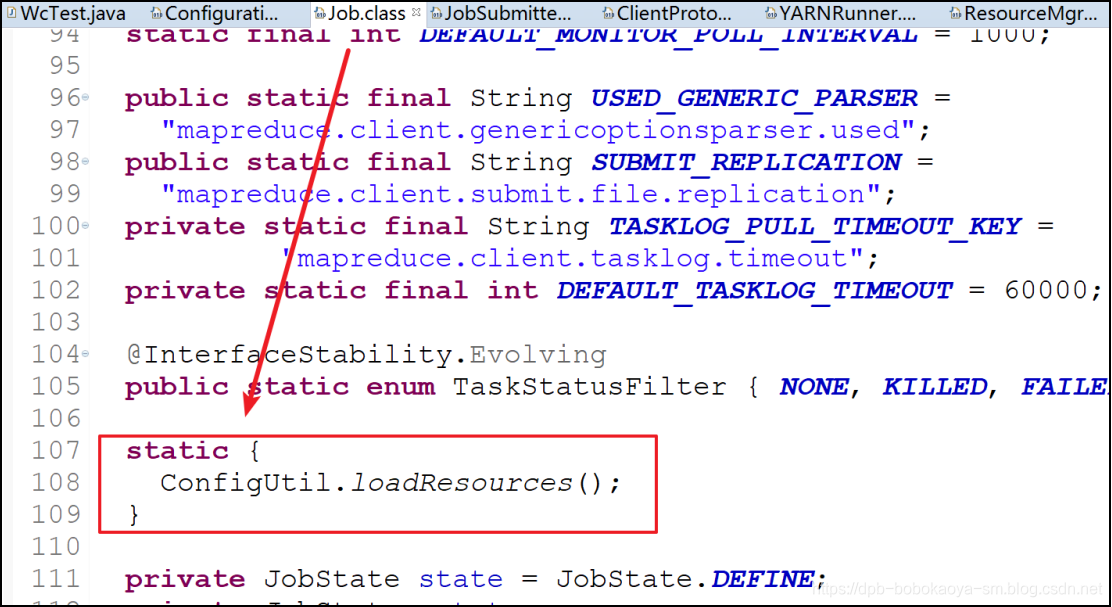

Job类中同样有static代码块。

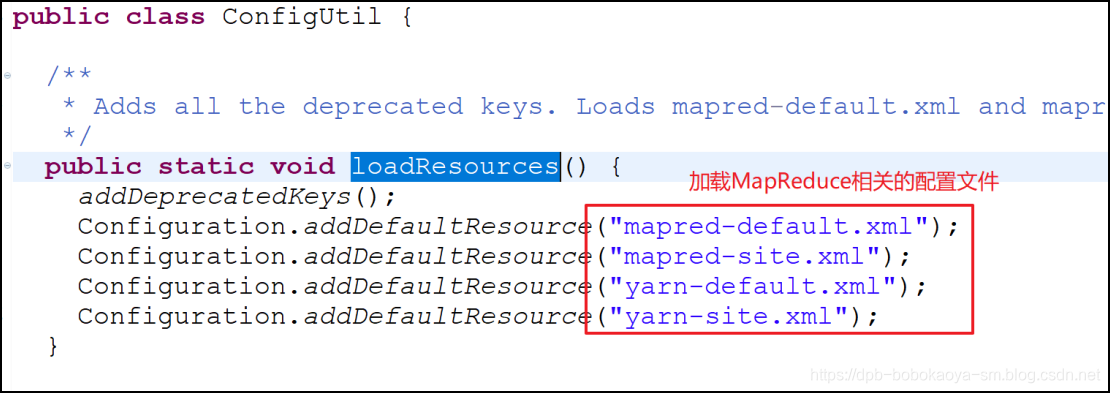

进入loadResources方法

3.waitForCompletion

---

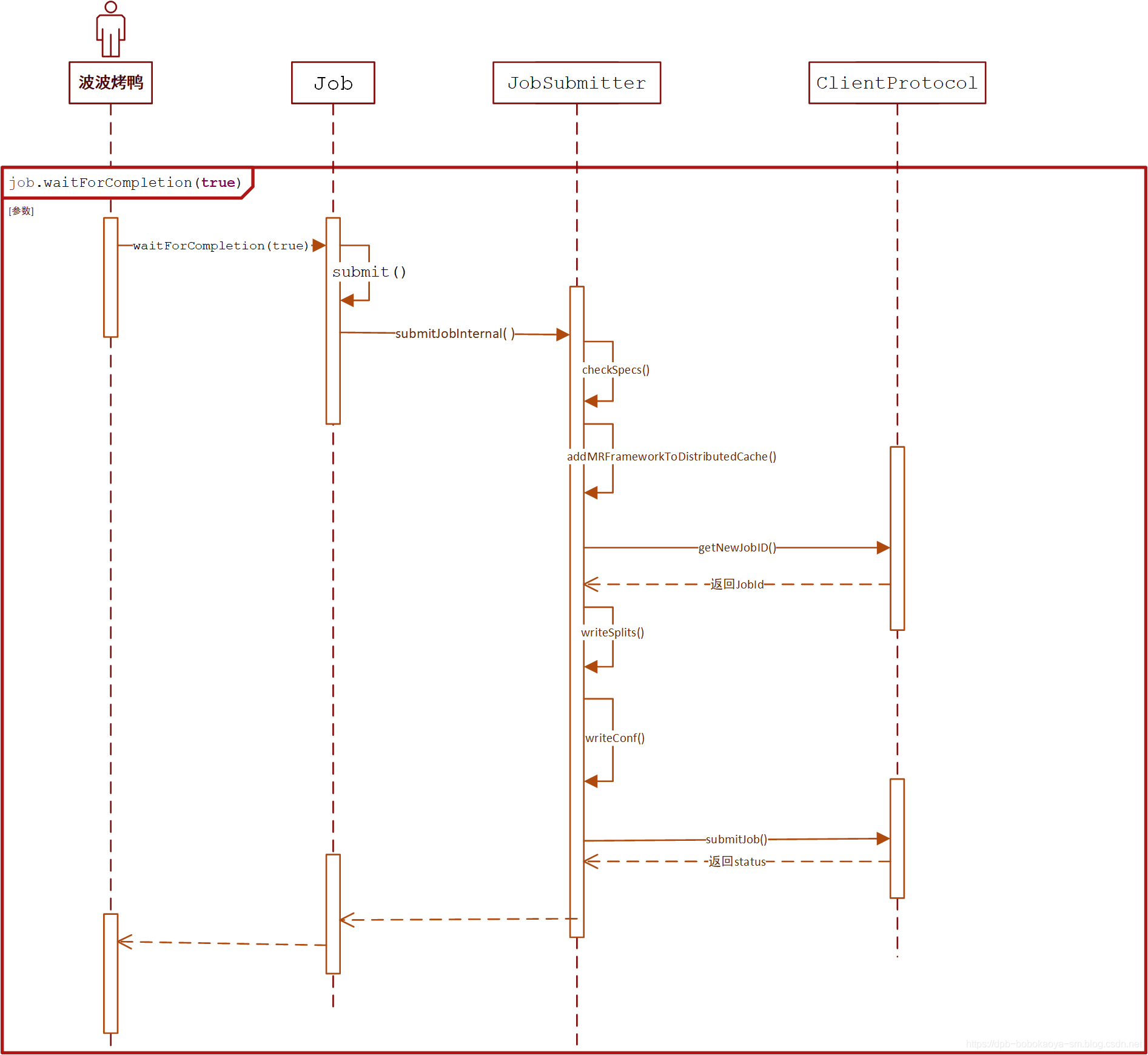

该方法的执行过程比较复杂，我们慢慢来分析，首先来看下简化的时序图

3.1waitForCompletion

public boolean waitForCompletion(boolean verbose

) throws IOException, InterruptedException,

ClassNotFoundException {

// 判断任务的状态，如果是DEFINE就提交

if (state == JobState.DEFINE) {

submit();

}

if (verbose) {

// 监听并且输出任务信息

monitorAndPrintJob();

} else {

// get the completion poll interval from the client.

int completionPollIntervalMillis =

Job.getCompletionPollInterval(cluster.getConf());

while (!isComplete()) {

try {

// 间隔判断是否执行完成

Thread.sleep(completionPollIntervalMillis);

} catch (InterruptedException ie) {

}

}

}

return isSuccessful();

}

3.2submit

进入submit方法查看

public void submit()

throws IOException, InterruptedException, ClassNotFoundException {

// 再次确认任务状态

ensureState(JobState.DEFINE);

// 默认使用new APIs

setUseNewAPI();

// 初始化cluster对象

connect();

// 根据初始化得到的cluster对象生成JobSubmitter对象

final JobSubmitter submitter =

getJobSubmitter(cluster.getFileSystem(), cluster.getClient());

//

status = ugi.doAs(new PrivilegedExceptionAction() {

public JobStatus run() throws IOException, InterruptedException,

ClassNotFoundException {

// 进入 submitJobInternal 方法查看

return submitter.submitJobInternal(Job.this, cluster);

}

});

//将job的状态设置为RUNNING

state = JobState.RUNNING;

LOG.info("The url to track the job: " + getTrackingURL());

}

3.3 submitJobInternal

/**

• 检查job的输入输出规范

• 计算job的InputSplit

• 如果需要的话，设置需要的核算信息对于job的分布式缓存

• 复制job的jar和配置文件到分布式文件系统的系统目录

• 提交作业执行以及监控它的状态

*/

JobStatus submitJobInternal(Job job, Cluster cluster)

throws ClassNotFoundException, InterruptedException, IOException {

//检查job的输出空间

checkSpecs(job);

Configuration conf = job.getConfiguration();

// 将MapReduce框架加入分布式缓存中

addMRFrameworkToDistributedCache(conf);

// 初始化job的工作根目录并返回path路径

Path jobStagingArea = JobSubmissionFiles.getStagingDir(cluster, conf);

//configure the command line options correctly on the submitting dfs

InetAddress ip = InetAddress.getLocalHost();

if (ip != null) {

submitHostAddress = ip.getHostAddress();

submitHostName = ip.getHostName();

conf.set(MRJobConfig.JOB_SUBMITHOST,submitHostName);

conf.set(MRJobConfig.JOB_SUBMITHOSTADDR,submitHostAddress);

}

// 为job分配一个名字

JobID jobId = submitClient.getNewJobID();

job.setJobID(jobId);

// 获得job的提交路径，也就是在jobStagingArea目录下建一个以jobId为文件名的目录

Path submitJobDir = new Path(jobStagingArea, jobId.toString());

JobStatus status = null;

// 进行一系列的配置

try {

conf.set(MRJobConfig.USER_NAME,

UserGroupInformation.getCurrentUser().getShortUserName());

conf.set(“hadoop.http.filter.initializers”,

“org.apache.hadoop.yarn.server.webproxy.amfilter.AmFilterInitializer”);

conf.set(MRJobConfig.MAPREDUCE_JOB_DIR, submitJobDir.toString());

LOG.debug("Configuring job " + jobId + " with " + submitJobDir

• " as the submit dir");

// get delegation token for the dir

TokenCache.obtainTokensForNamenodes(job.getCredentials(),

new Path[] { submitJobDir }, conf);

populateTokenCache(conf, job.getCredentials());

// generate a secret to authenticate shuffle transfers

if (TokenCache.getShuffleSecretKey(job.getCredentials()) == null) {

KeyGenerator keyGen;

try {

keyGen = KeyGenerator.getInstance(SHUFFLE_KEYGEN_ALGORITHM);

keyGen.init(SHUFFLE_KEY_LENGTH);

} catch (NoSuchAlgorithmException e) {

throw new IOException(“Error generating shuffle secret key”, e);

}

SecretKey shuffleKey = keyGen.generateKey();

TokenCache.setShuffleSecretKey(shuffleKey.getEncoded(),

job.getCredentials());

}

// 这个方法实现文件上传

copyAndConfigureFiles(job, submitJobDir);

Path submitJobFile = JobSubmissionFiles.getJobConfPath(submitJobDir);

// Create the splits for the job

LOG.debug("Creating splits at " + jtFs.makeQualified(submitJobDir));

// 方法内部会根据我们之前的设置，选择使用new-api还是old-api分别进行分片操作

int maps = writeSplits(job, submitJobDir);

conf.setInt(MRJobConfig.NUM_MAPS, maps);

LOG.info(“number of splits:” + maps);

// write “queue admins of the queue to which job is being submitted”

// to job file.

String queue = conf.get(MRJobConfig.QUEUE_NAME,

JobConf.DEFAULT_QUEUE_NAME);

AccessControlList acl = submitClient.getQueueAdmins(queue);

conf.set(toFullPropertyName(queue,

QueueACL.ADMINISTER_JOBS.getAclName()), acl.getAclString());

// removing jobtoken referrals before copying the jobconf to HDFS

// as the tasks don’t need this setting, actually they may break

// because of it if present as the referral will point to a

// different job.

TokenCache.cleanUpTokenReferral(conf);

if (conf.getBoolean(

MRJobConfig.JOB_TOKEN_TRACKING_IDS_ENABLED,

MRJobConfig.DEFAULT_JOB_TOKEN_TRACKING_IDS_ENABLED)) {

// Add HDFS tracking ids

ArrayList trackingIds = new ArrayList();

for (Token<? extends TokenIdentifier> t :

job.getCredentials().getAllTokens()) {

trackingIds.add(t.decodeIdentifier().getTrackingId());

}

conf.setStrings(MRJobConfig.JOB_TOKEN_TRACKING_IDS,

trackingIds.toArray(new String[trackingIds.size()]));

}

// 提交规划文件 job.split wc.jar …

writeConf(conf, submitJobFile);

//

// Now, actually submit the job (using the submit name)

// 提交任务

printTokens(jobId, job.getCredentials());

status = submitClient.submitJob(

jobId, submitJobDir.toString(), job.getCredentials());

if (status != null) {

return status;

} else {

throw new IOException(“Could not launch job”);

}

} finally {

if (status == null) {

LOG.info("Cleaning up the staging area " + submitJobDir);

if (jtFs != null && submitJobDir != null)

jtFs.delete(submitJobDir, true);

}

}

}

3.4writeSplits

private int writeSplits(org.apache.hadoop.mapreduce.JobContext job,

Path jobSubmitDir) throws IOException,

InterruptedException, ClassNotFoundException {

JobConf jConf = (JobConf)job.getConfiguration();

int maps;

if (jConf.getUseNewMapper()) {

//进入

maps = writeNewSplits(job, jobSubmitDir);

} else {

maps = writeOldSplits(jConf, jobSubmitDir);

}

return maps;

}

3.5writeNewSplits

int writeNewSplits(JobContext job, Path jobSubmitDir) throws IOException,

InterruptedException, ClassNotFoundException {

Configuration conf = job.getConfiguration();

// 根据我们设置的inputFormat.class通过反射获得inputFormat对象

InputFormat<?, ?> input =

ReflectionUtils.newInstance(job.getInputFormatClass(), conf);

// 获取分片信息

List splits = input.getSplits(job);

T[] array = (T[]) splits.toArray(new InputSplit[splits.size()]);

// sort the splits into order based on size, so that the biggest

// go first

Arrays.sort(array, new SplitComparator());

// 将分片的信息写入到jobSubmitDir --job.split文件中

JobSplitWriter.createSplitFiles(jobSubmitDir, conf,

jobSubmitDir.getFileSystem(conf), array);

return array.length;

}

3.6 getSplits

public List getSplits(JobContext job) throws IOException {

Stopwatch sw = new Stopwatch().start();

// 最小值

long minSize = Math.max(getFormatMinSplitSize(), getMinSplitSize(job));

// 最大值

long maxSize = getMaxSplitSize(job);

// generate splits

List splits = new ArrayList();

List files = listStatus(job);

for (FileStatus file: files) {

Path path = file.getPath();

long length = file.getLen();

if (length != 0) {

BlockLocation[] blkLocations;

if (file instanceof LocatedFileStatus) {

blkLocations = ((LocatedFileStatus) file).getBlockLocations();

} else {

FileSystem fs = path.getFileSystem(job.getConfiguration());

blkLocations = fs.getFileBlockLocations(file, 0, length);

}

if (isSplitable(job, path)) {
